DATE: May 6, 1993
GAMES: All pinball games with dollar bill validator ready door
SUBJECT: Position of coin door wire harness clamp

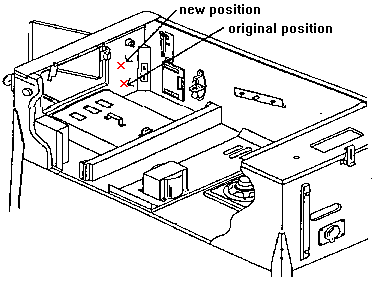

Due to the possibilty of the coin door pinching the wiring harness, please move the clamp that is securing the harness from it's original position (see diagram below) and move it approximately 4 inches higher. As an added measure to ensure that the harness won't get pinched, put some spiral tubing or tape over the harness, especially the 115VAC cable.
Thank you,
WMS GAMES Parts & Service INC.
