 Champion Pub Playfield Teardown

[First] [Prev] [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
13

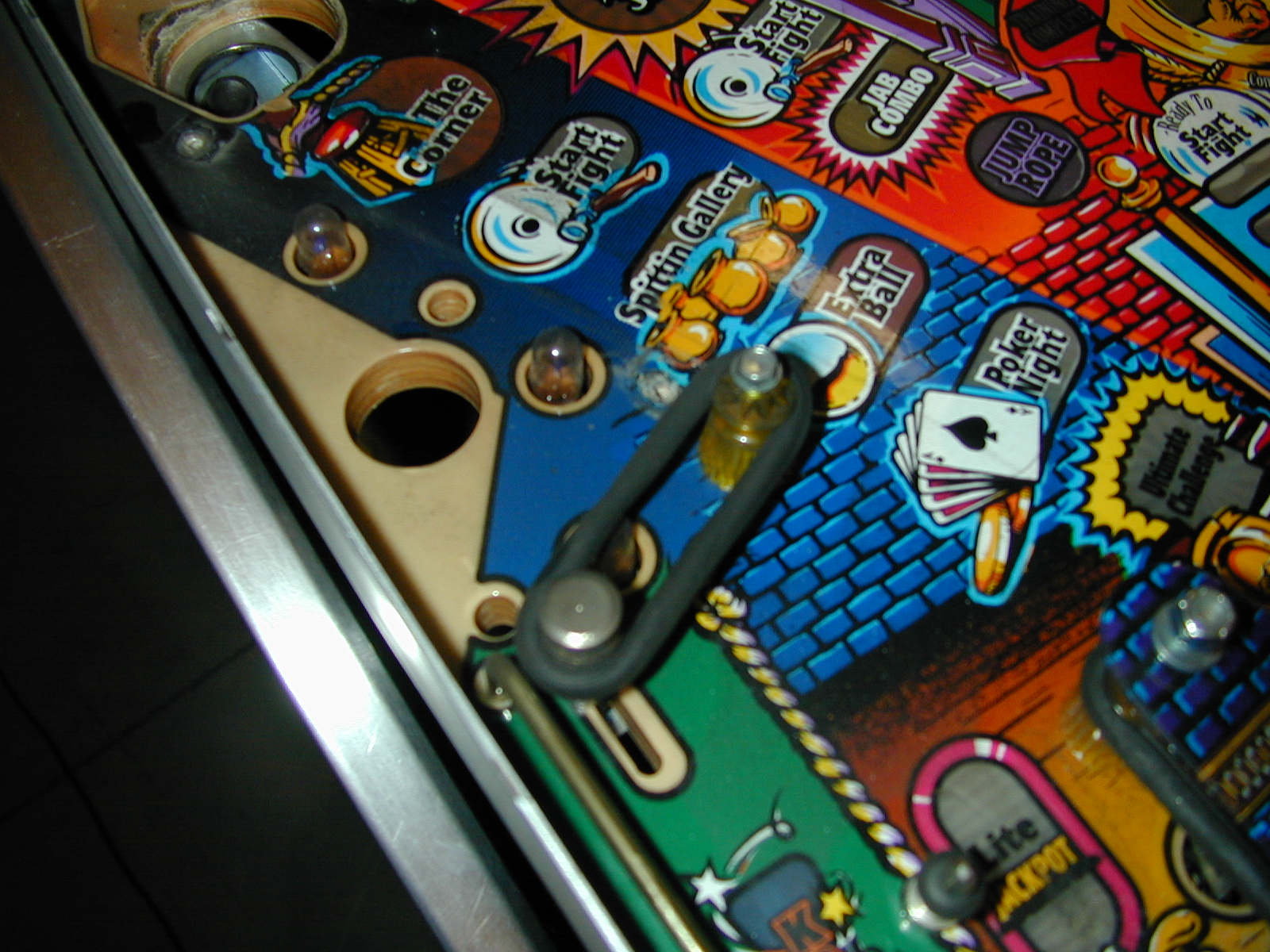

Star post to left of Extra Ball w/rubber ring - 1 MS		 14

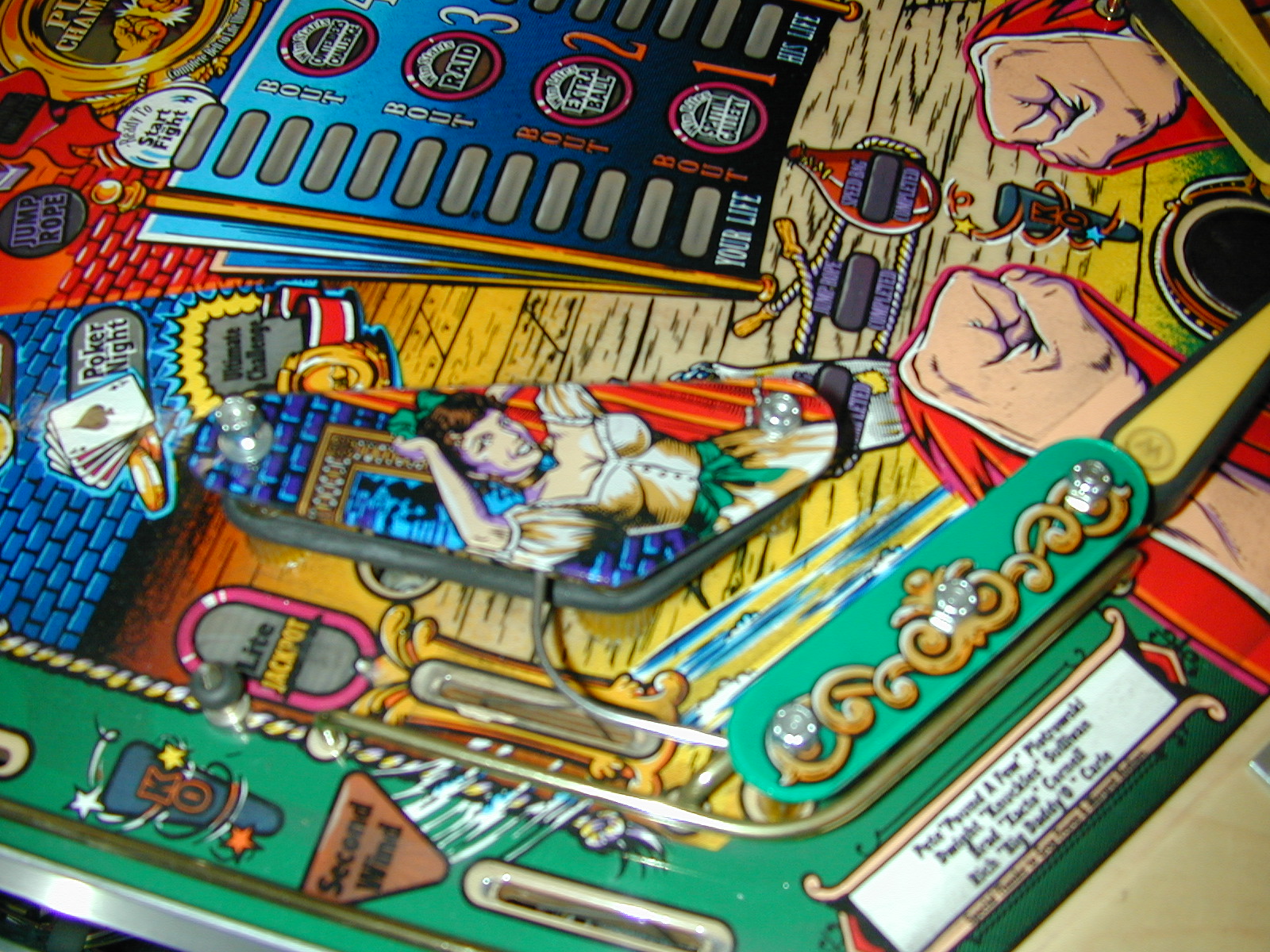

Left sling plastic - 2 nuts		 15

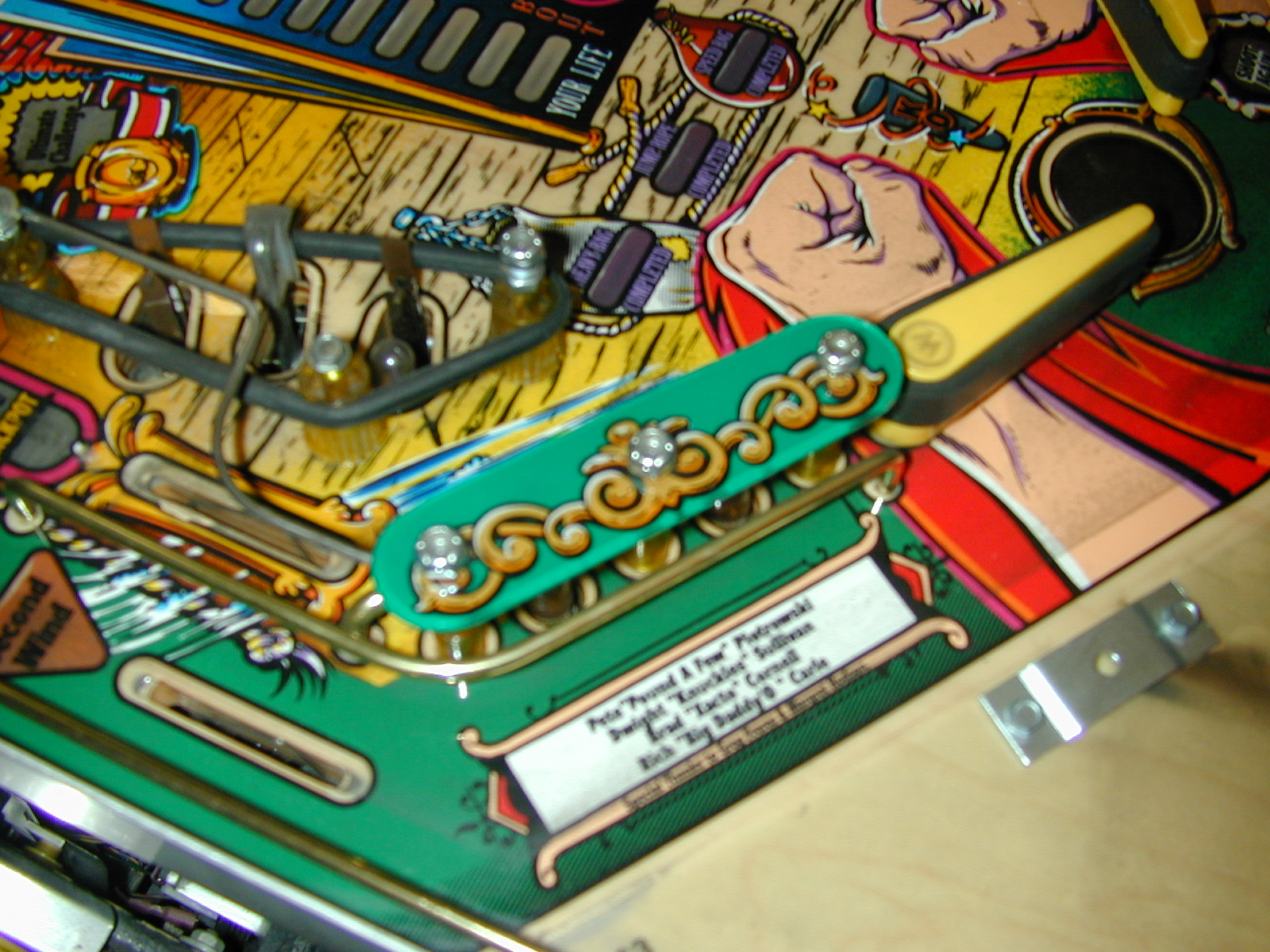

Left inlane plastic - 3 nuts		 16

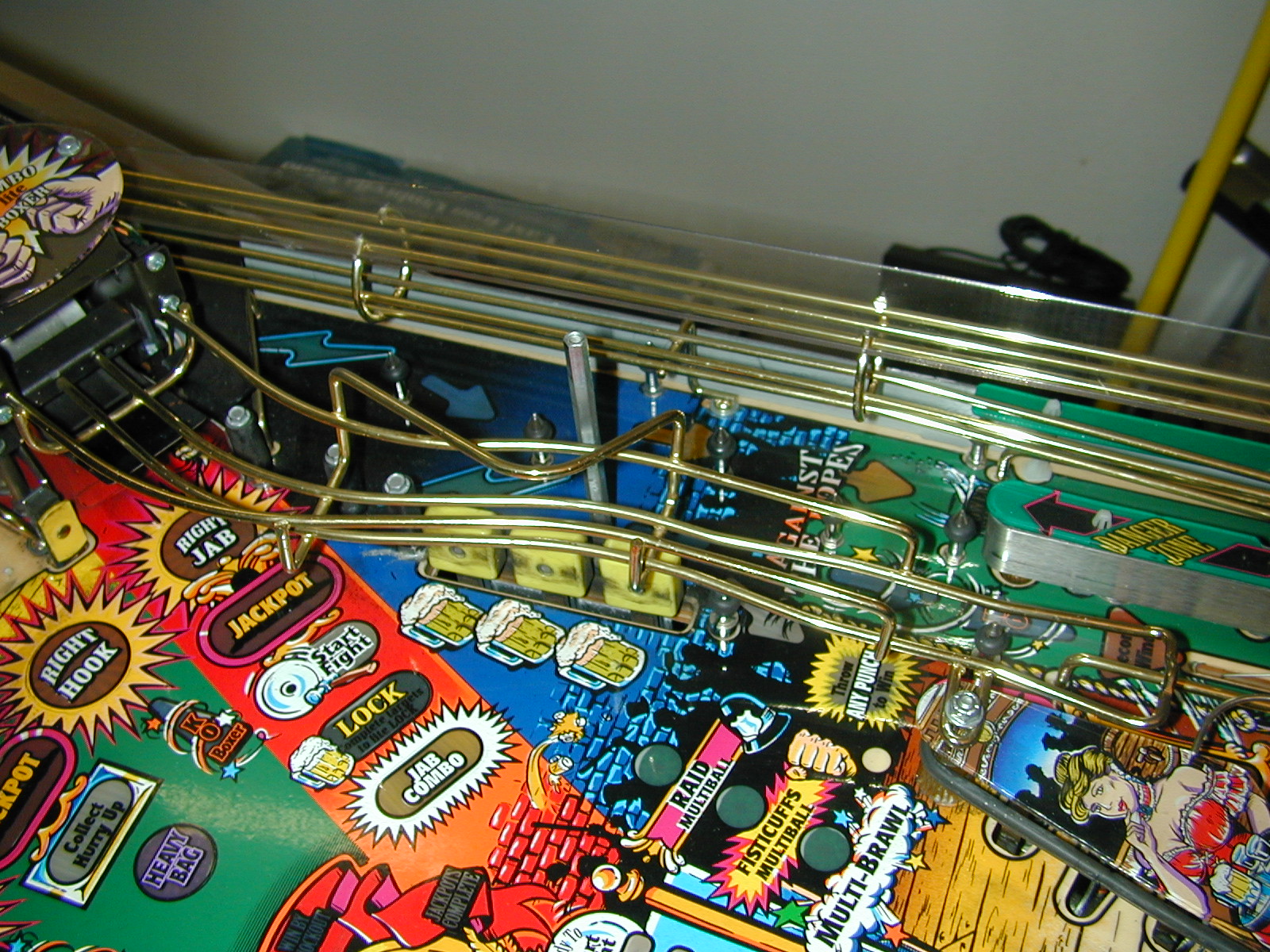

Right metal ramp - 1 nut
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
17

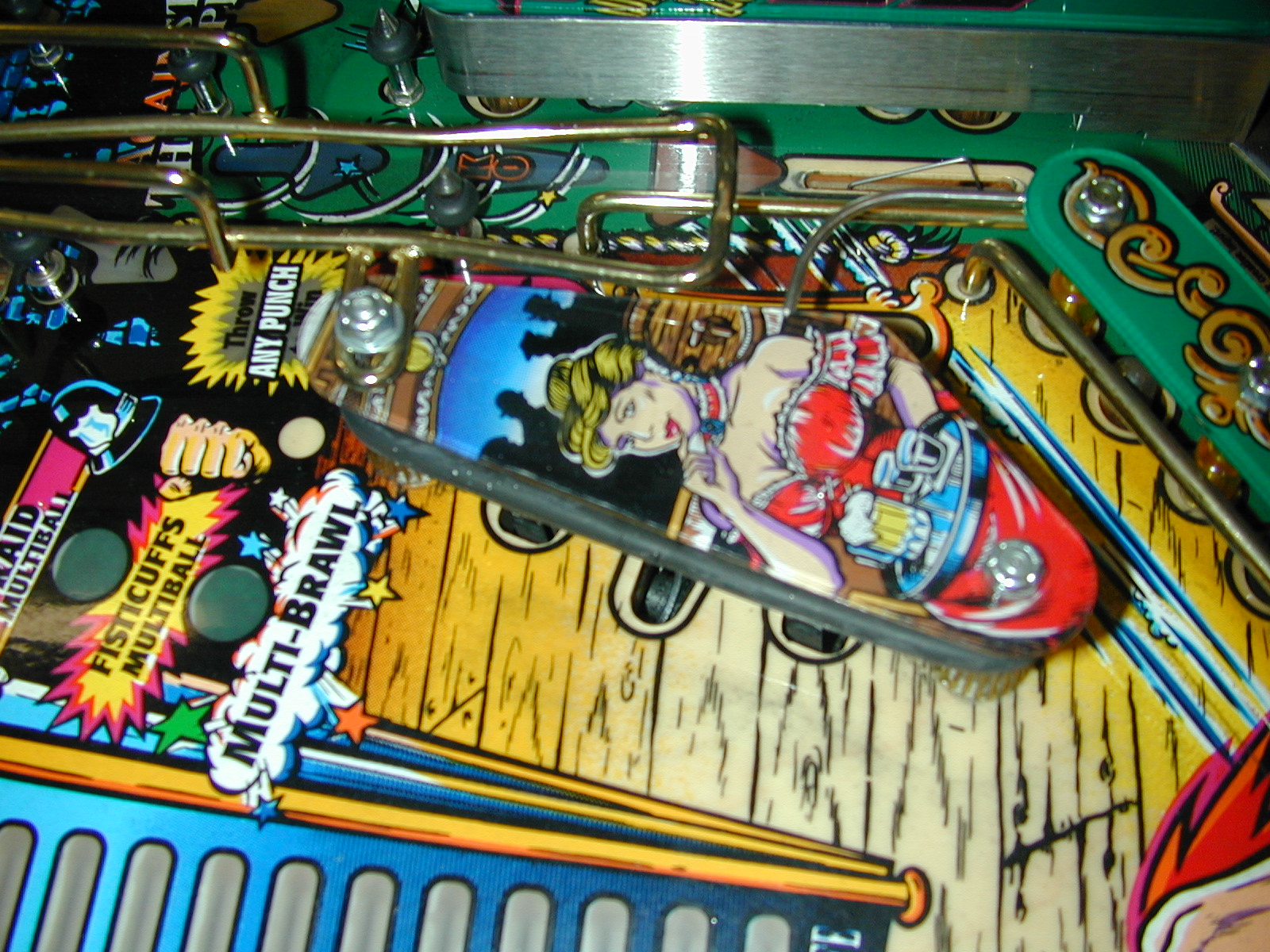

Right sling plastic - 2 nuts		 18

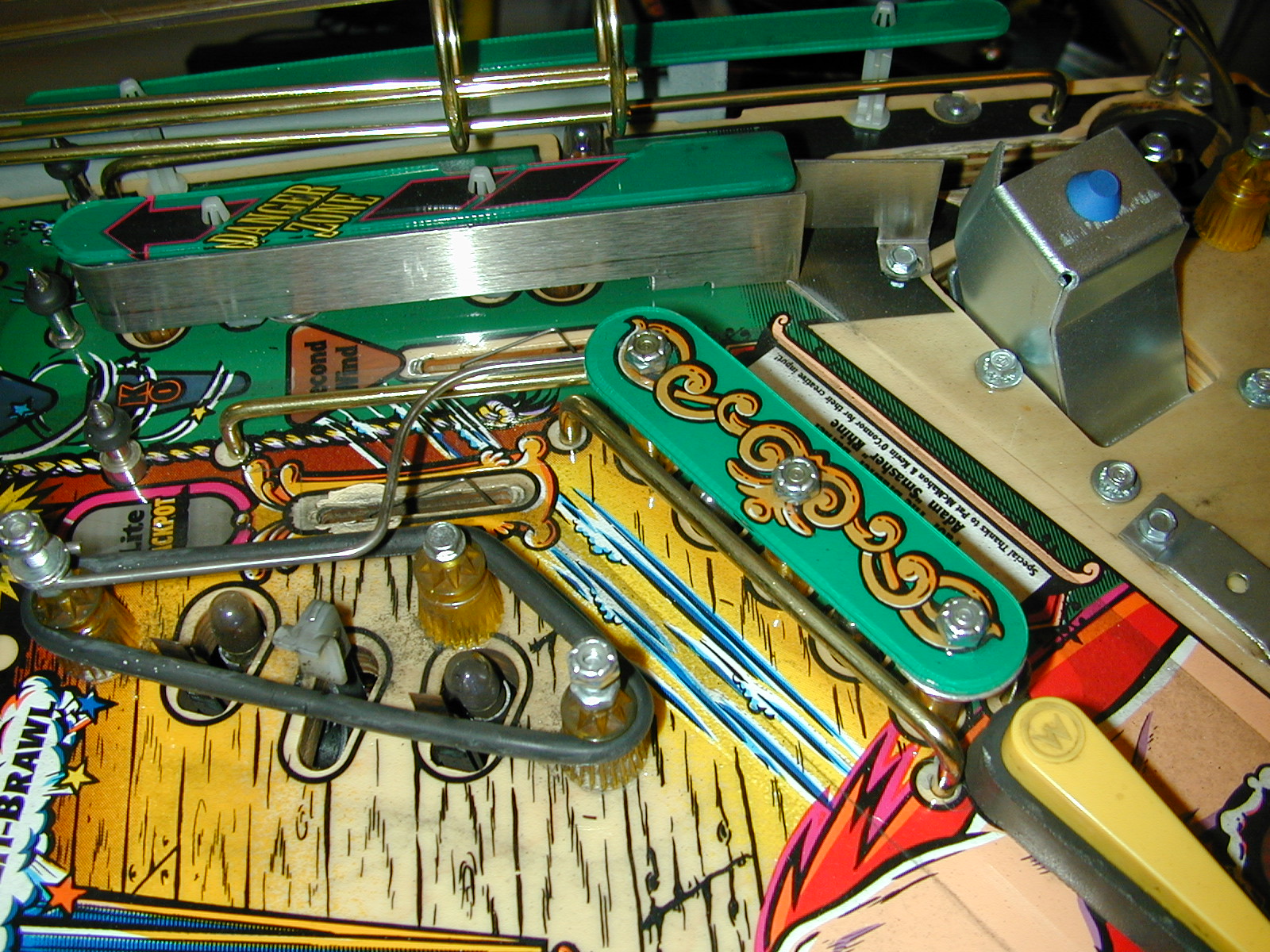

Right inlane plastic - 3 nuts		 19
Right sling wire guide		 20
Left sling wire guide
Click to enlarge Click to enlarge Click to enlarge Click to enlarge

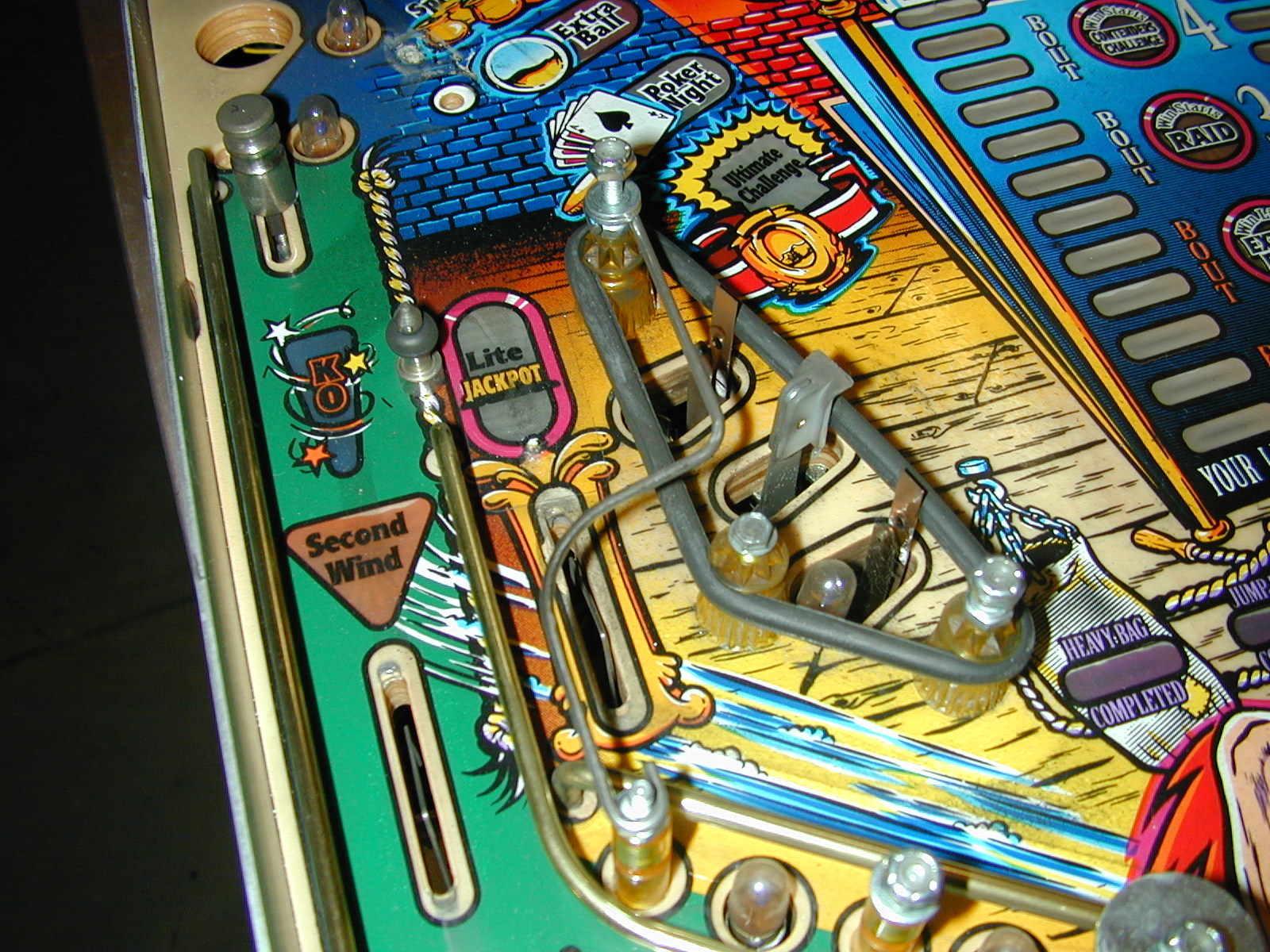

21
Left and right sling rubbers		 22
Left sling and inlane plastic posts		 23

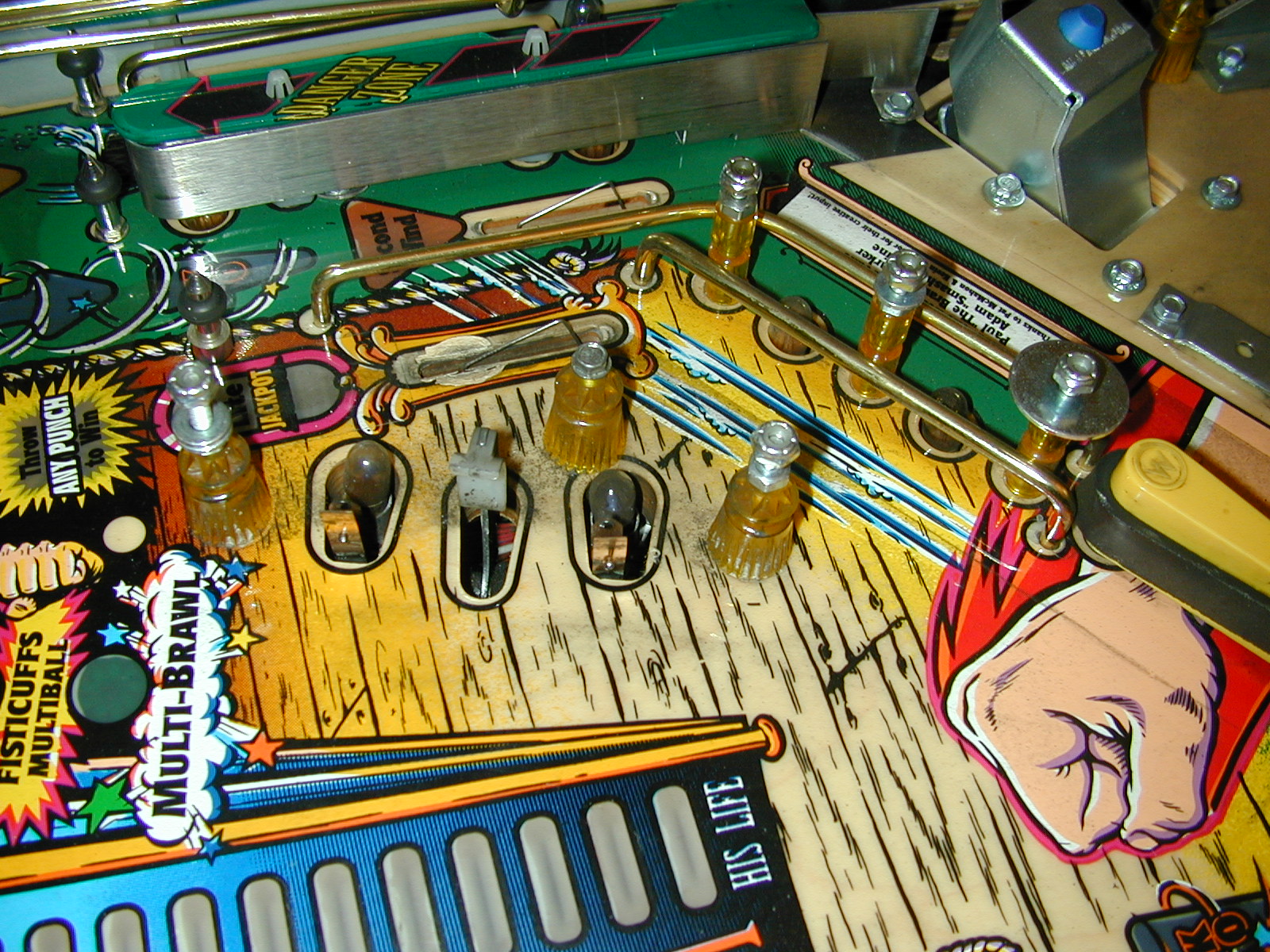

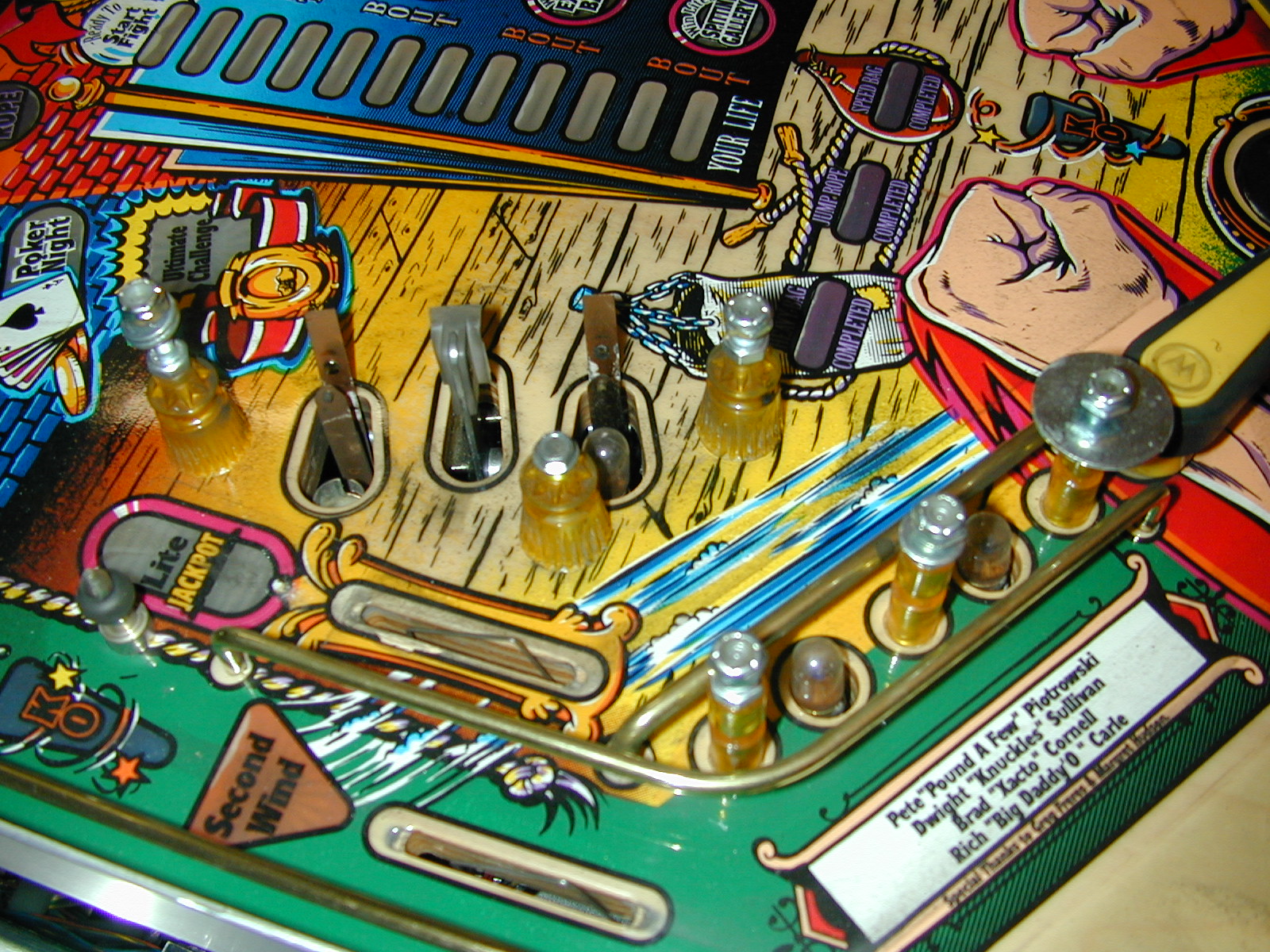

Right sling and inlane plastic posts		 24

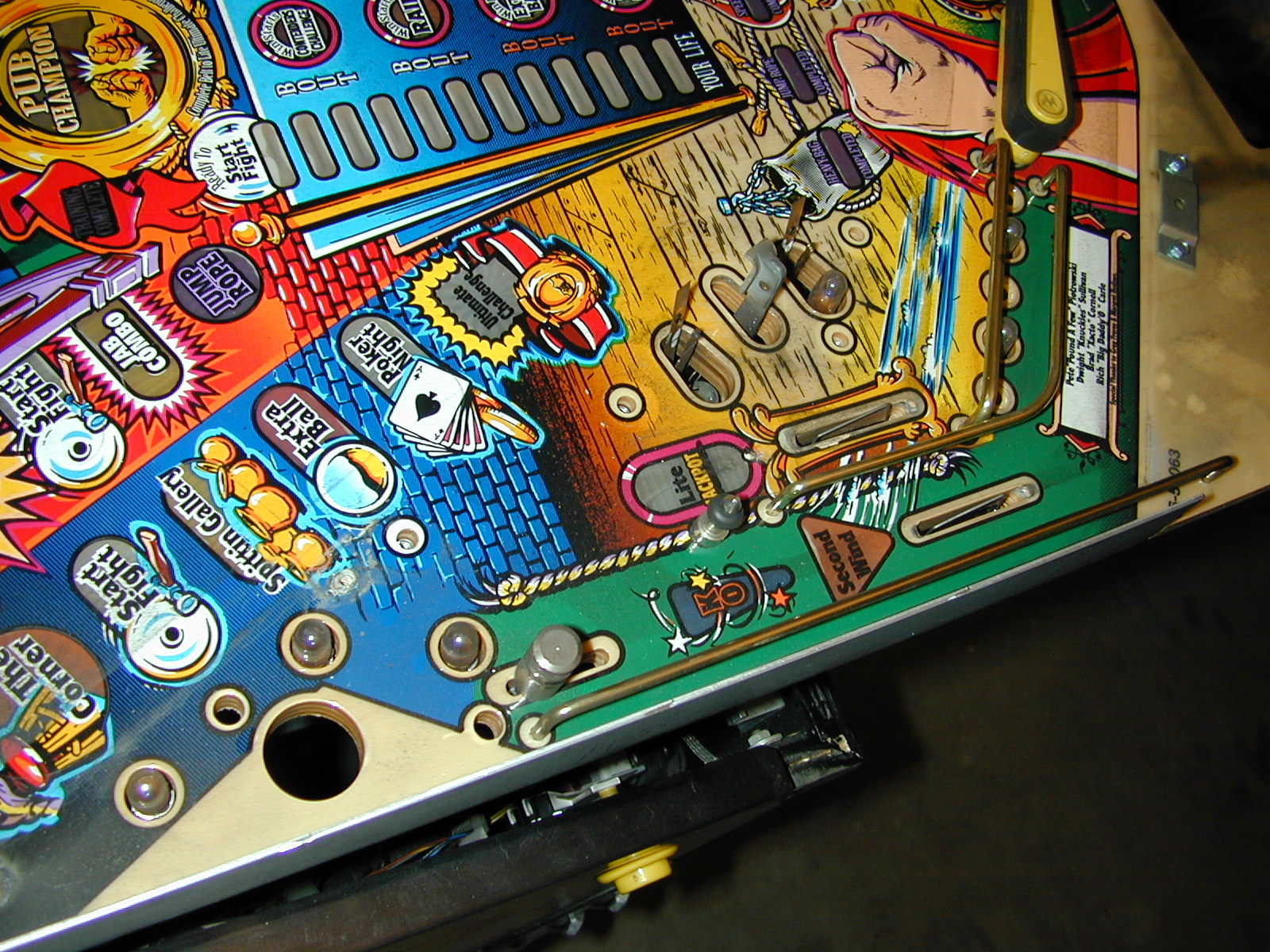

7 #44 lamps on lower left
