 Champion Pub Playfield Teardown

[First] [Prev] [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
37

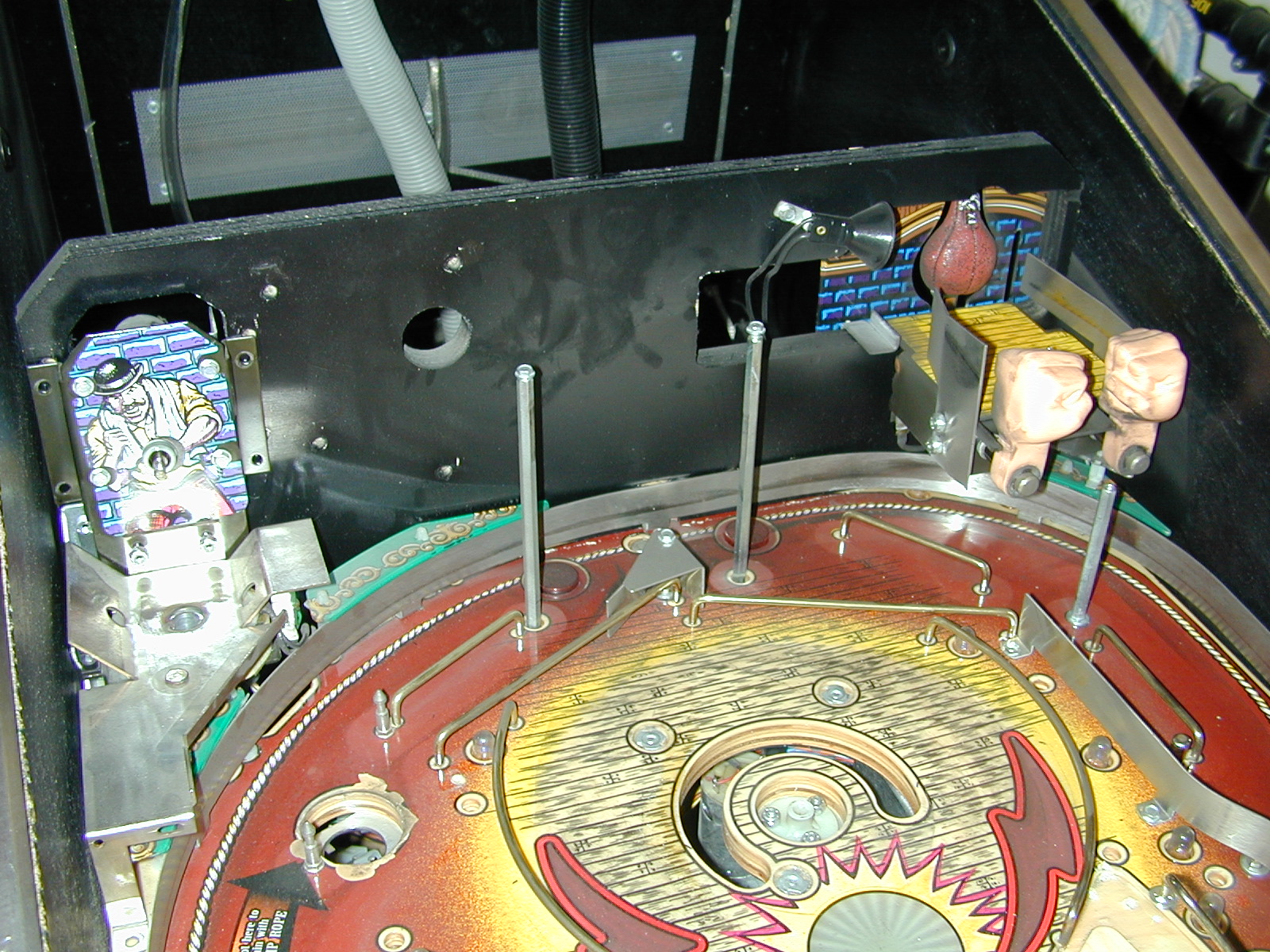

Backboard - 4 WS, 4 MS, 3 CON (jump rope ass'y attached with 4 MS)		 38

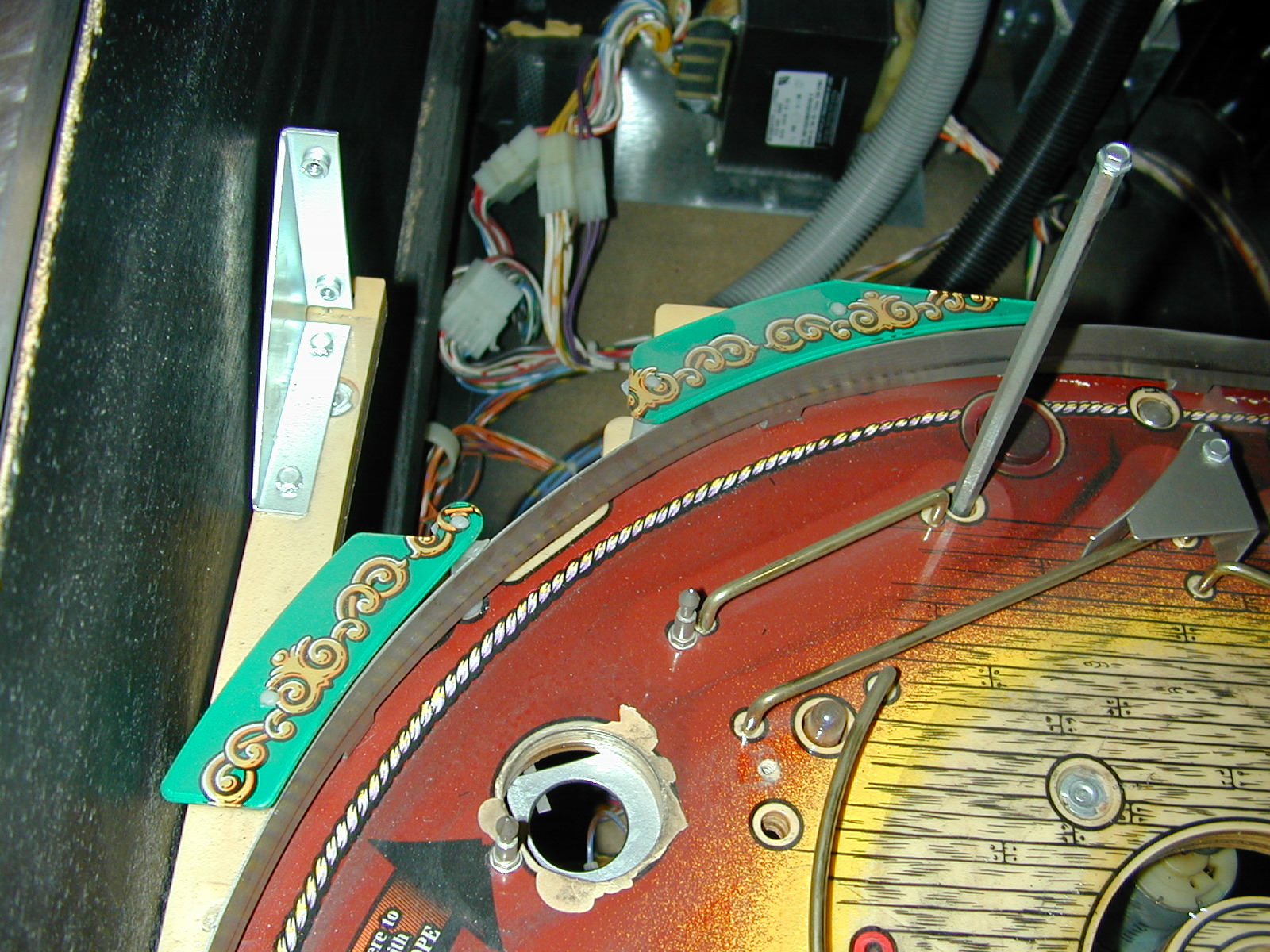

Two plastics on upper left loop - 4 standoffs		 39

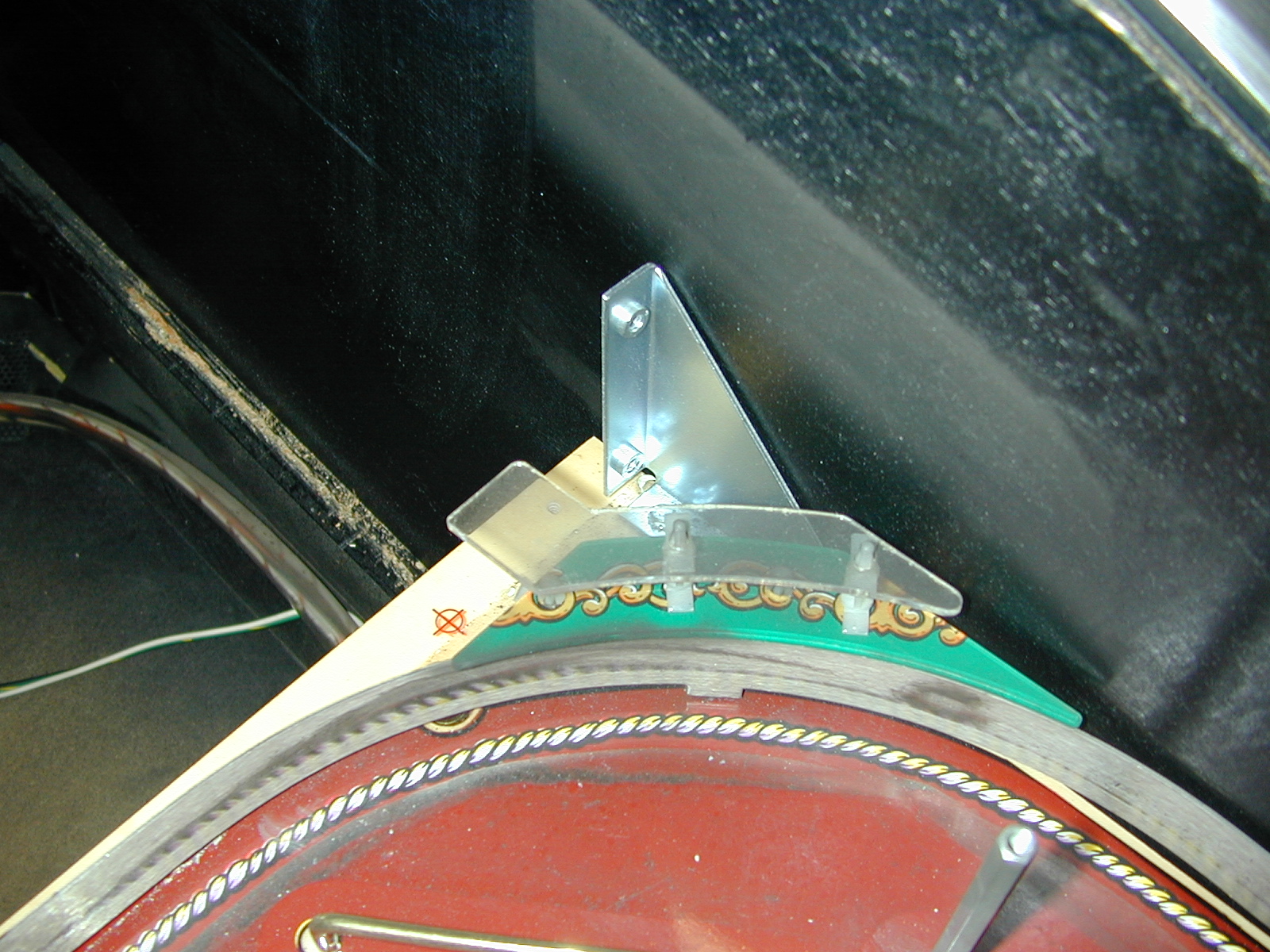

Plastic on upper right loop - 2 standoffs		 40

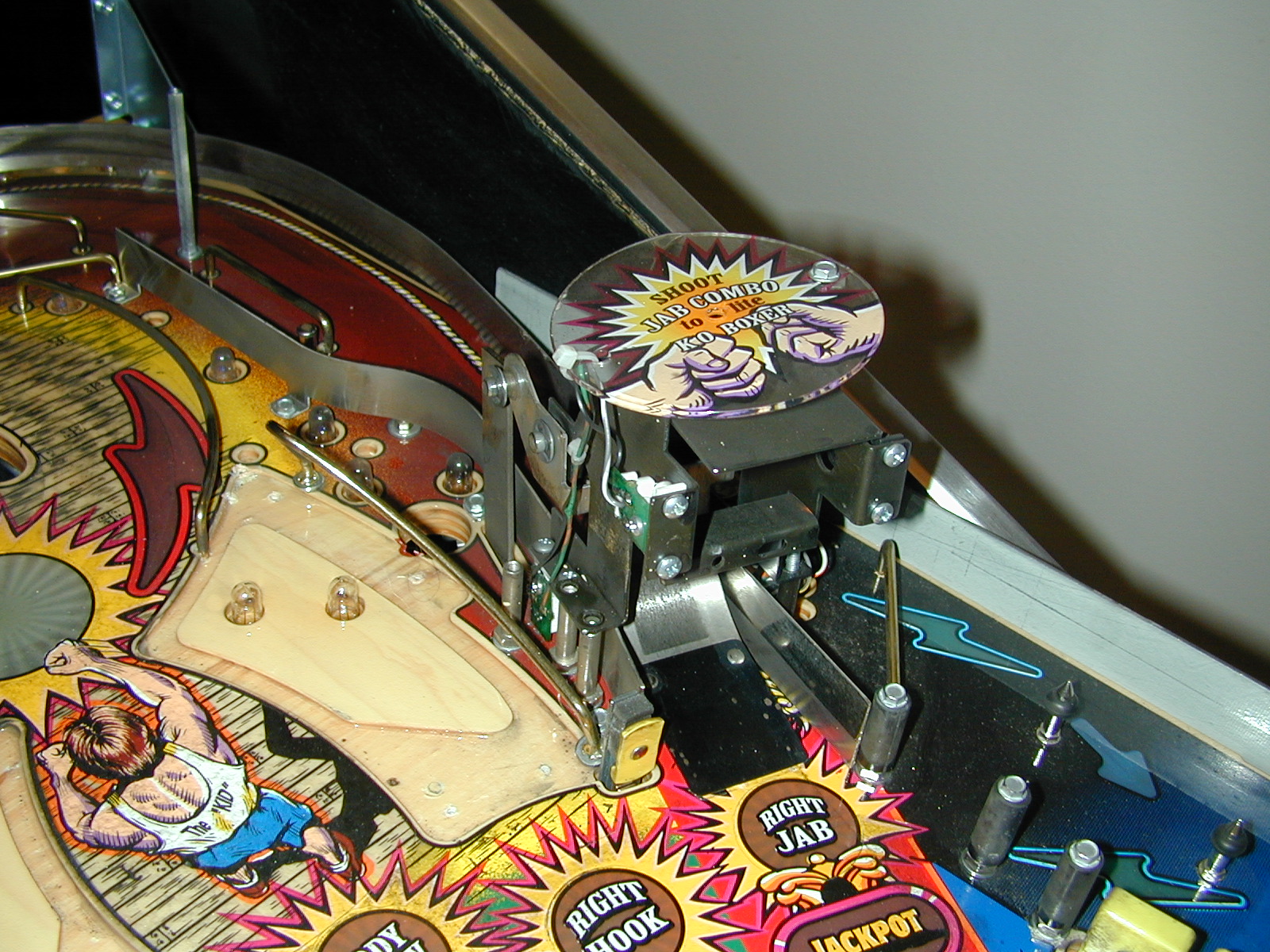

Right scoop ramp - 2 MS, 1 standoff, 1 e-clip, 2 CON
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
41

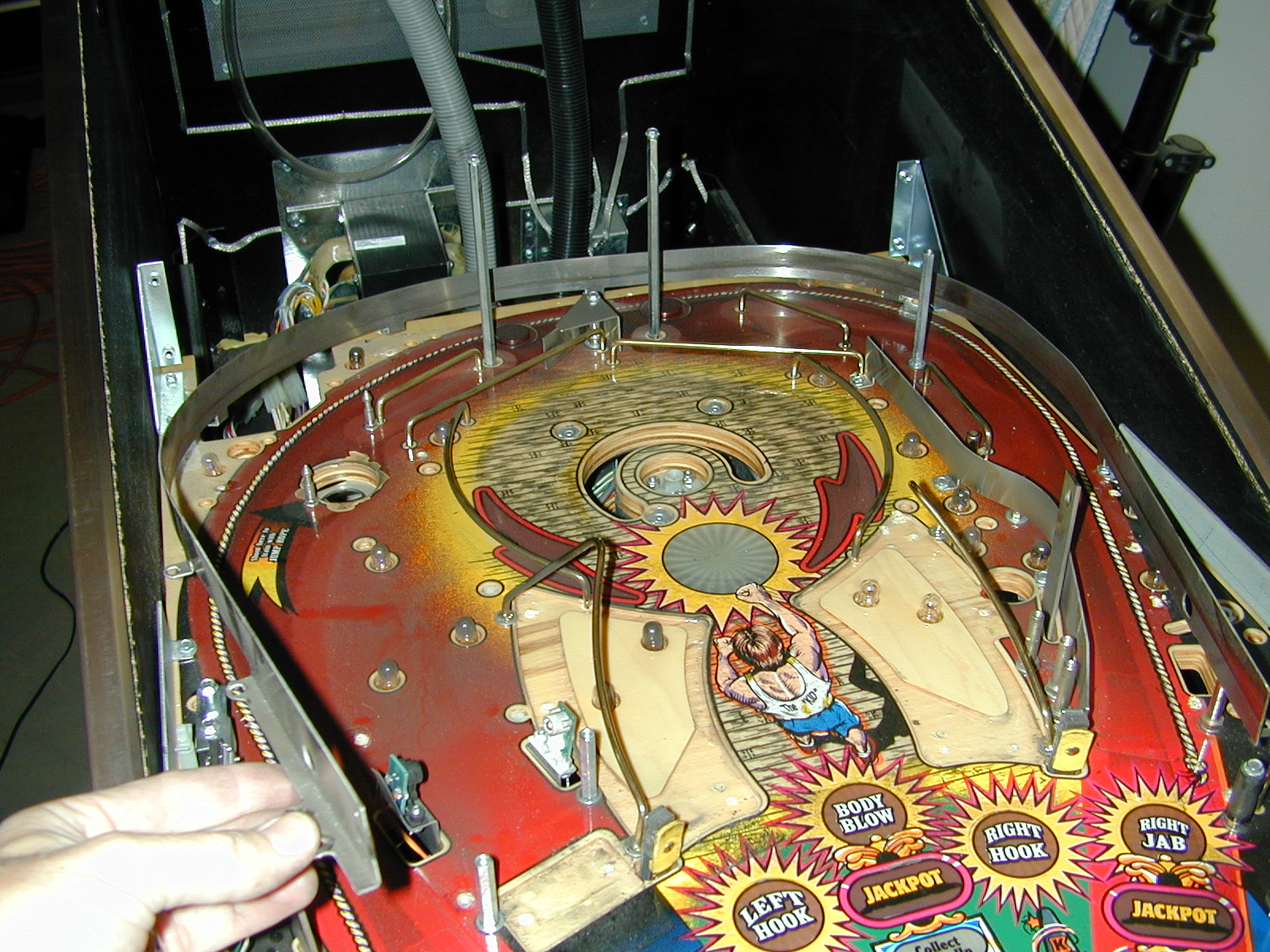

Outer loop metal guide - 11 WS, 2 MS standoffs on lower left		 42

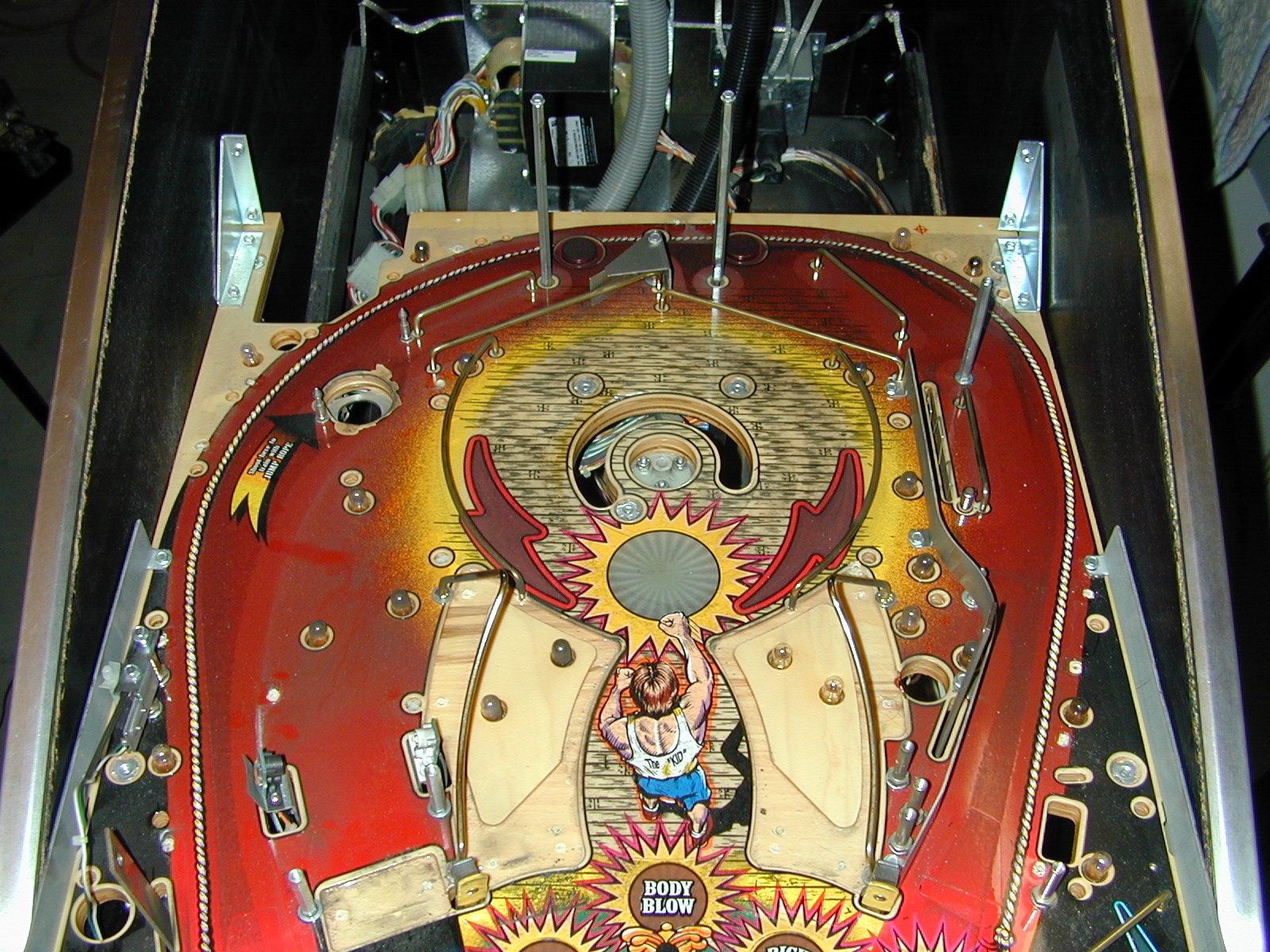

20 #44s on upper playfield		 43

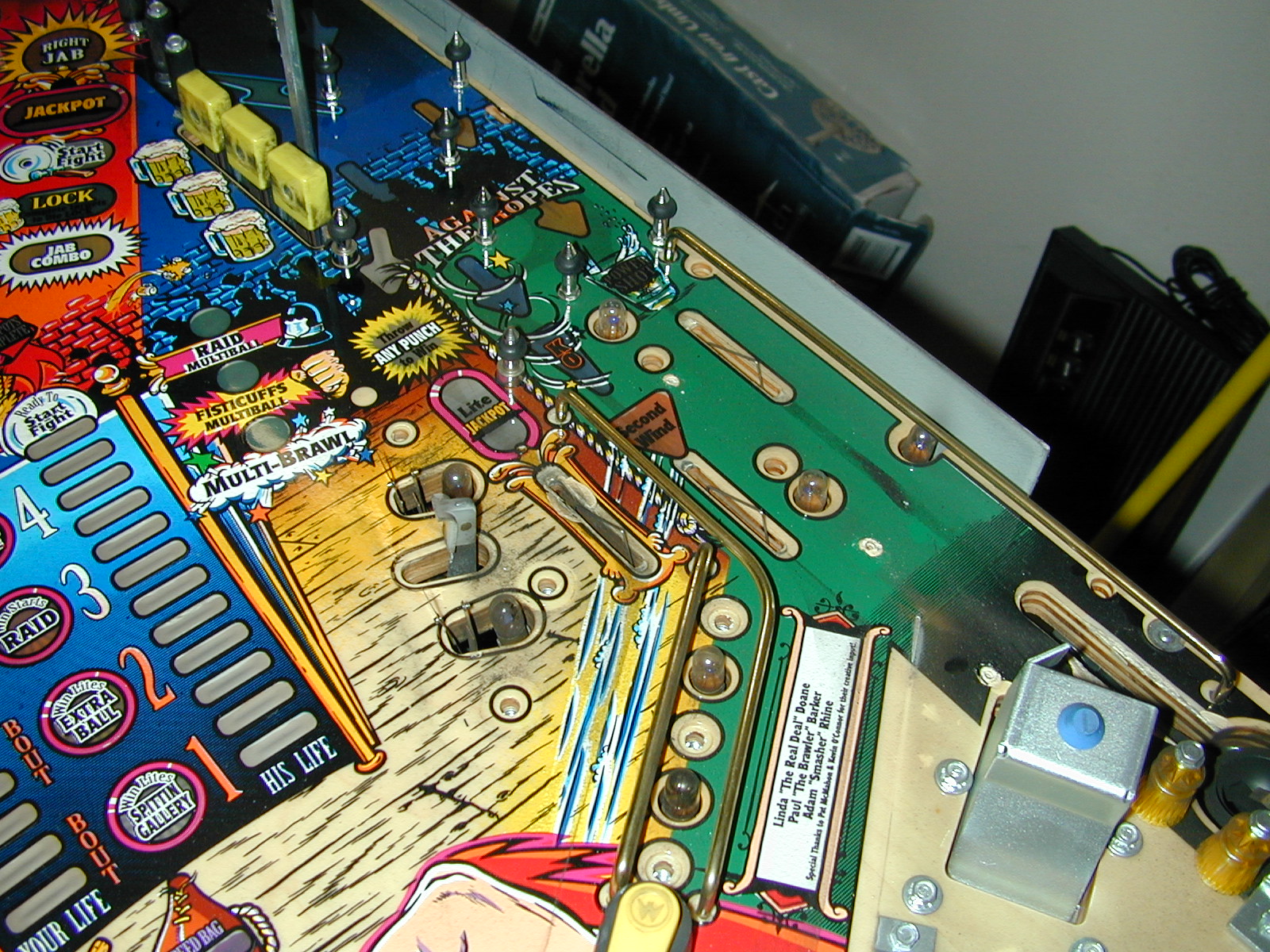

7 #44s on lower right		 44

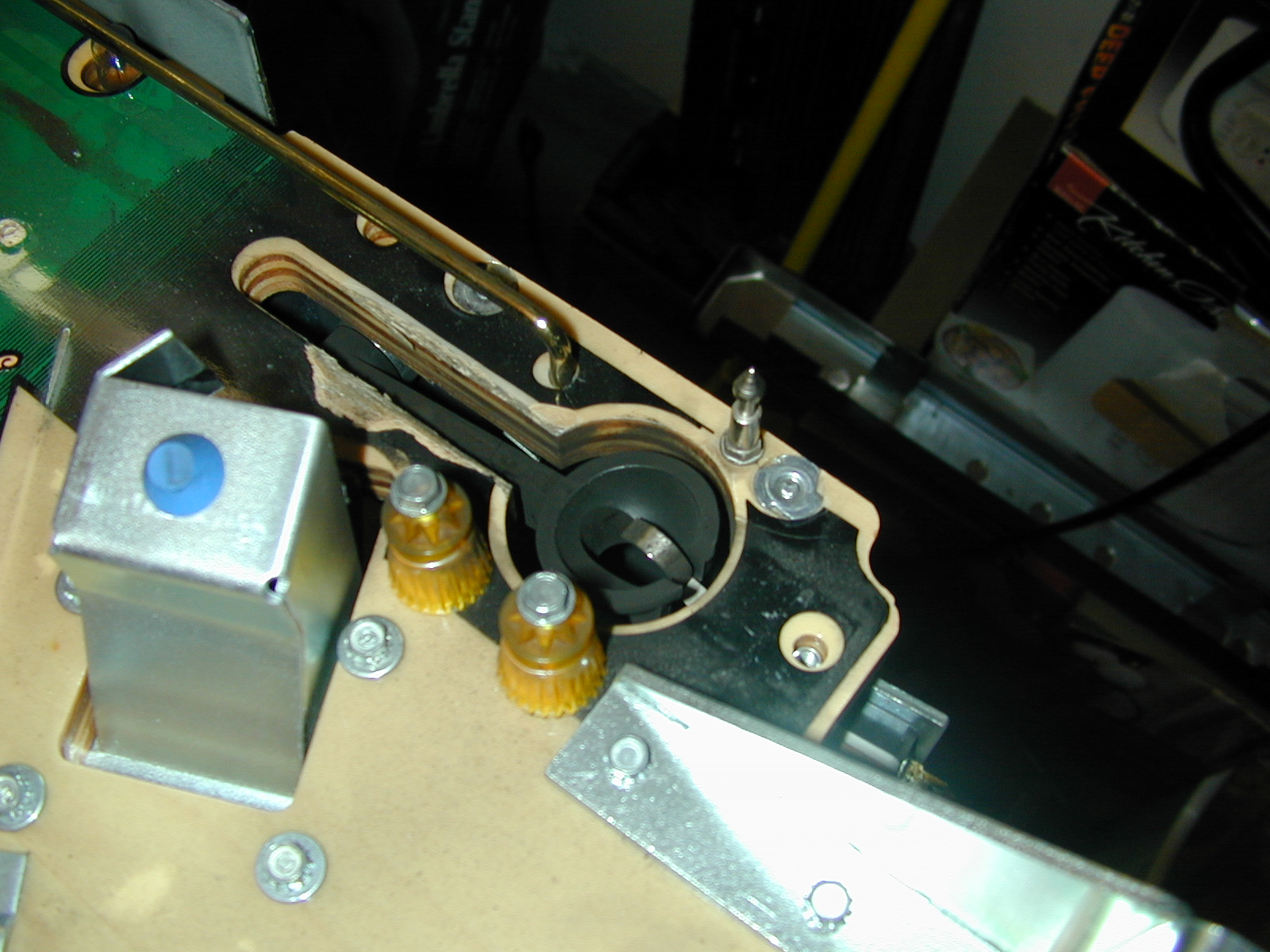

2 star posts and 1 metal post at shooter lane
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
45

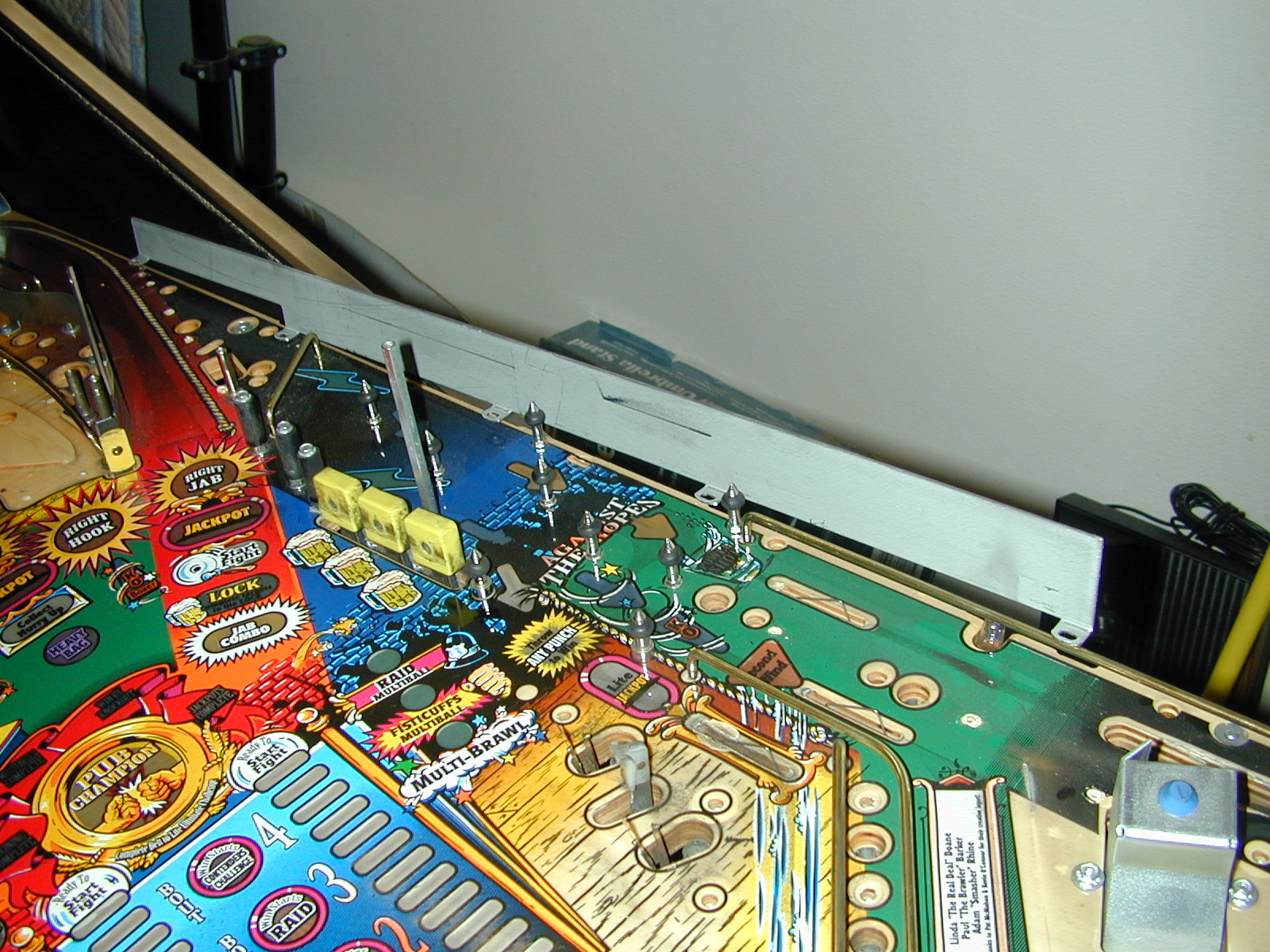

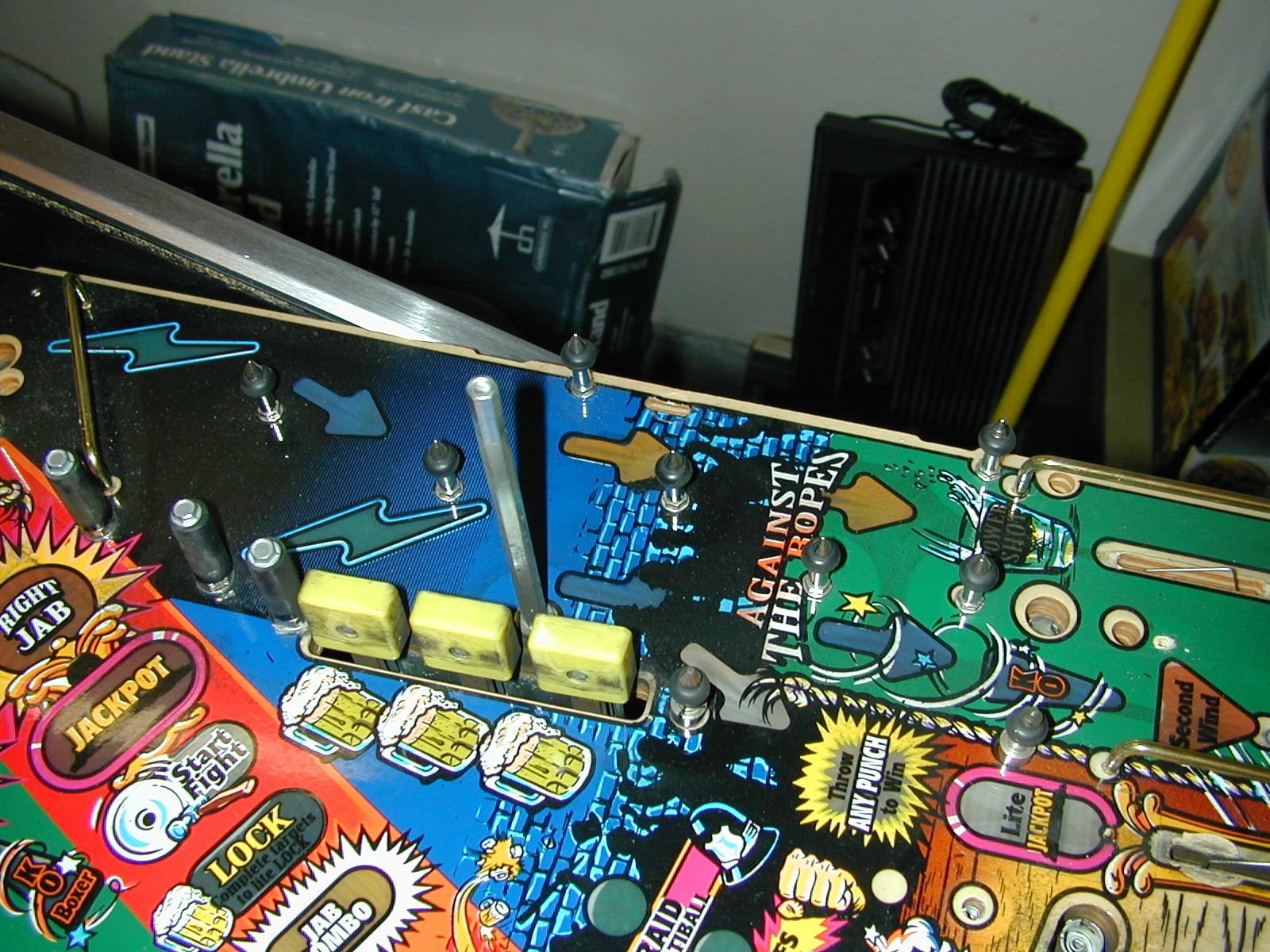

Seven "Against The Ropes" posts with rubbers		 46

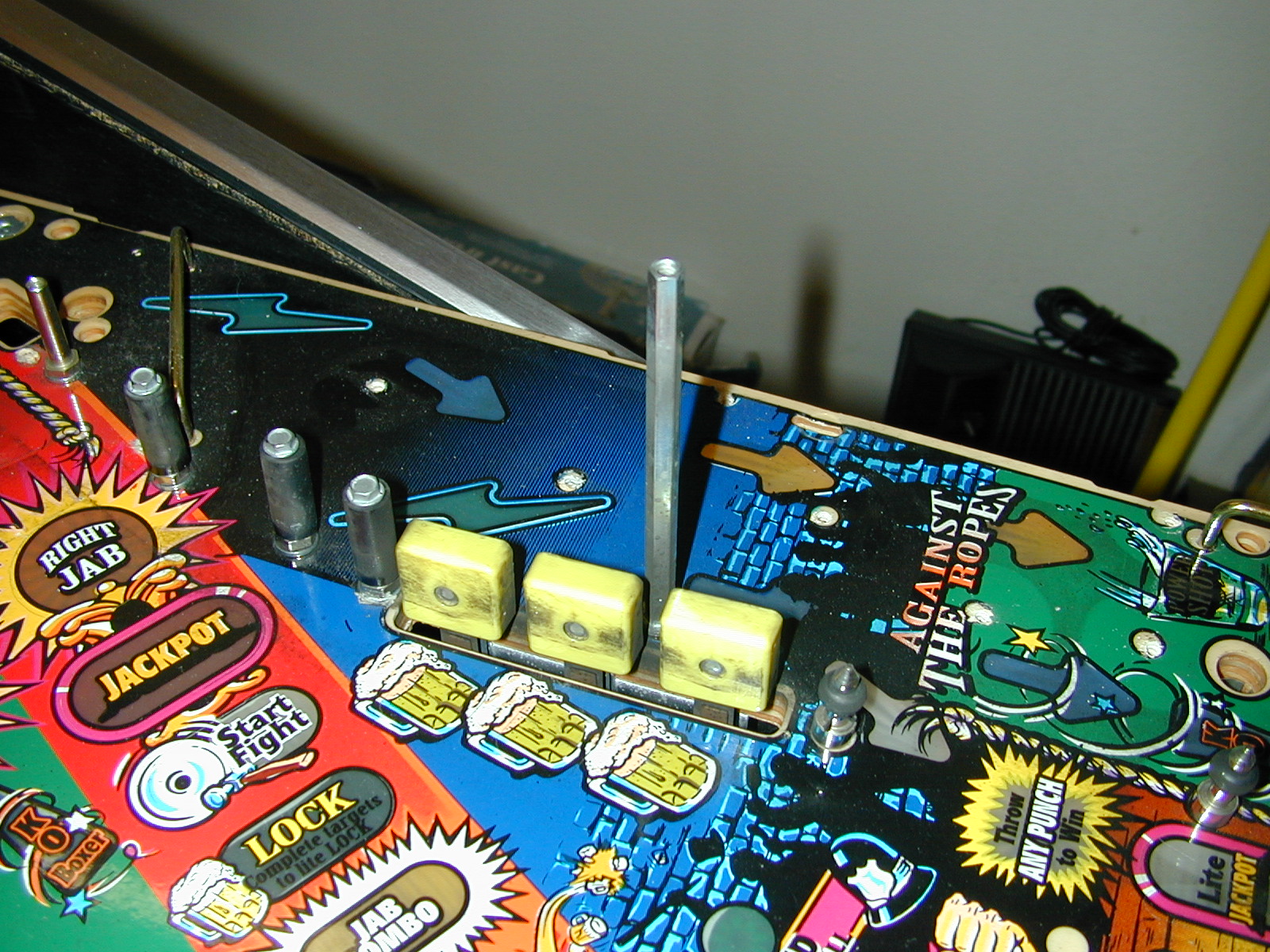

Large standoff behind right target bank with washer		 47
Three gold ball guides on lower right		 48
Left side metal stiffener - 5 WS
