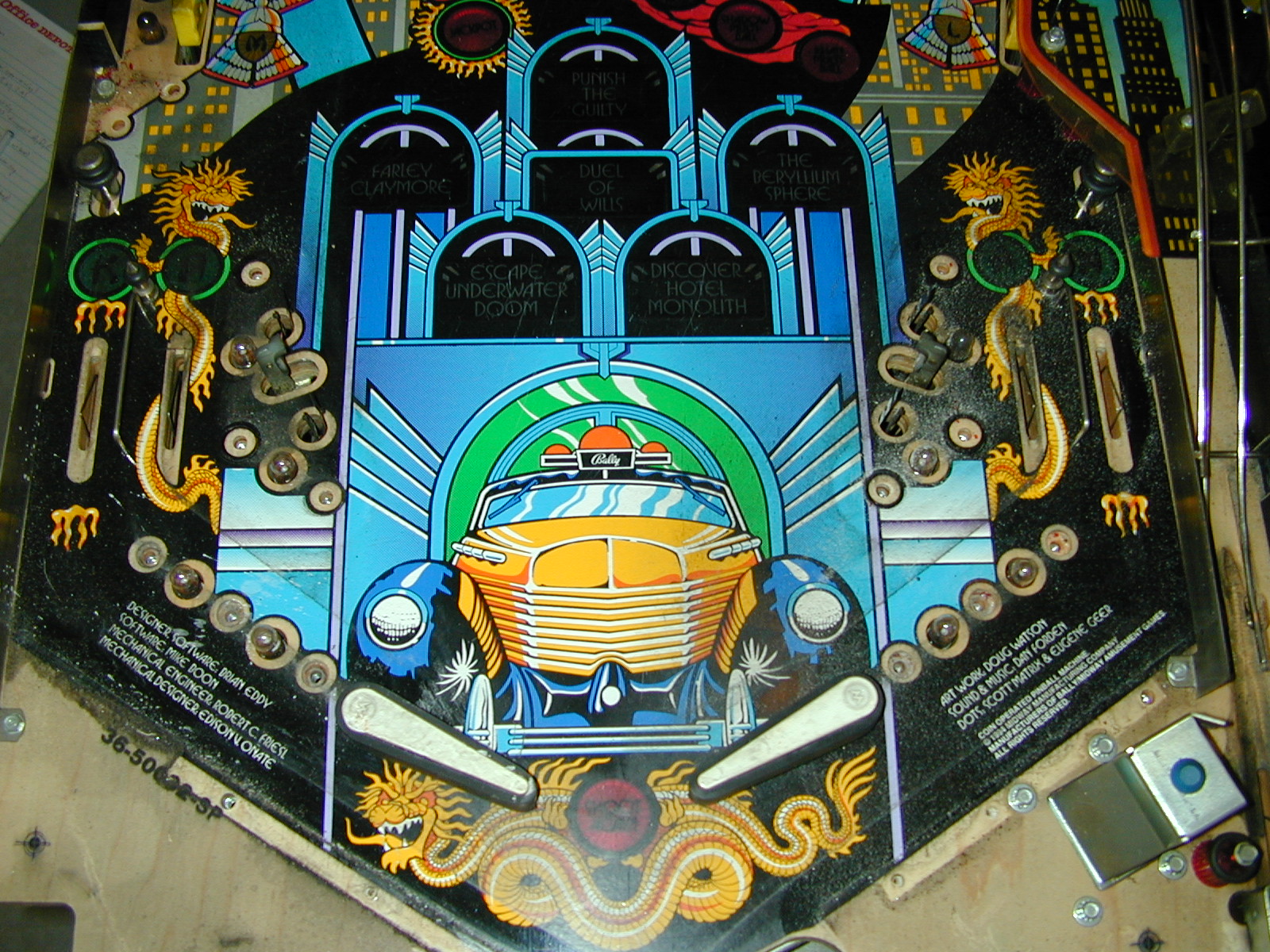

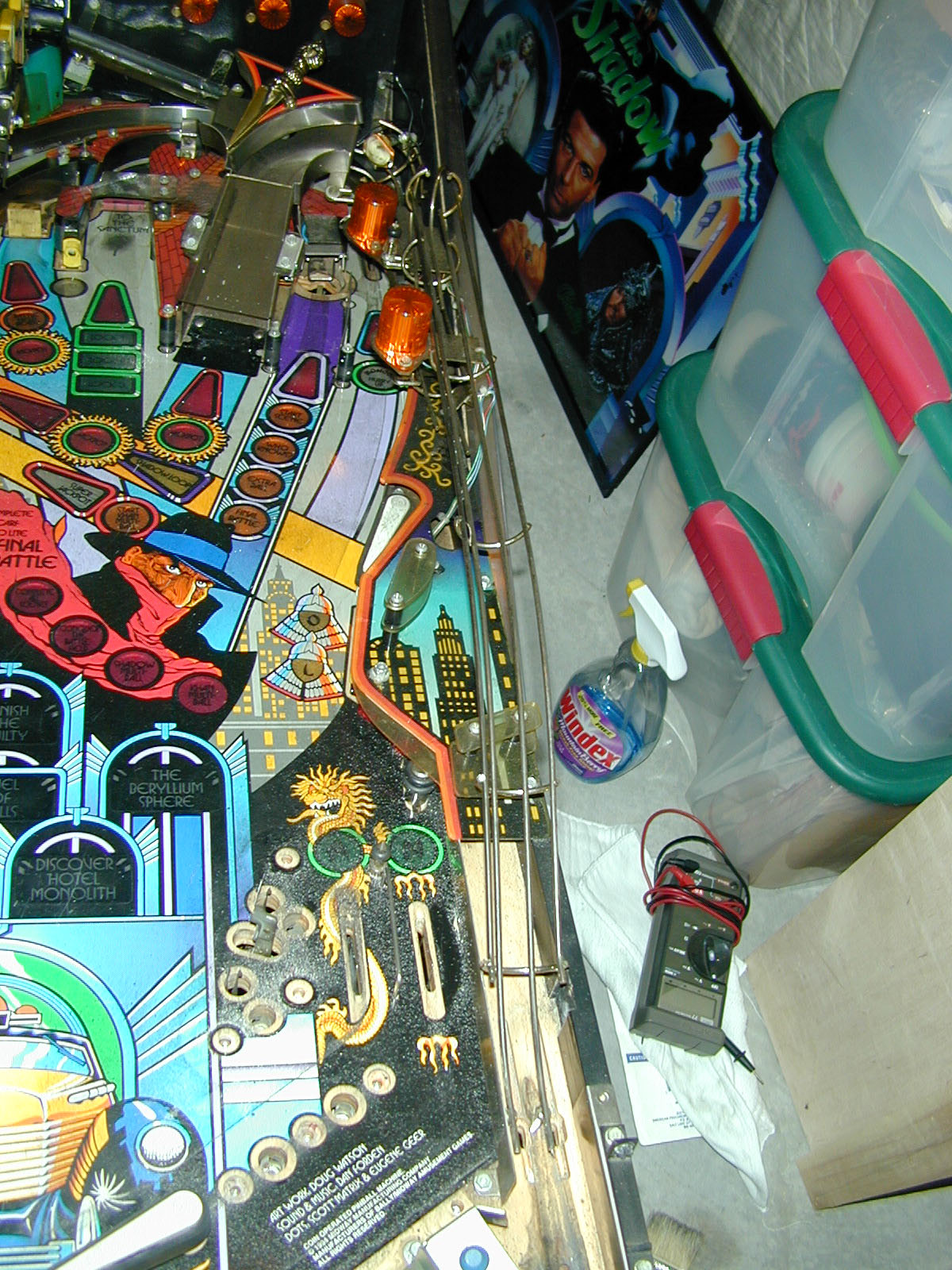

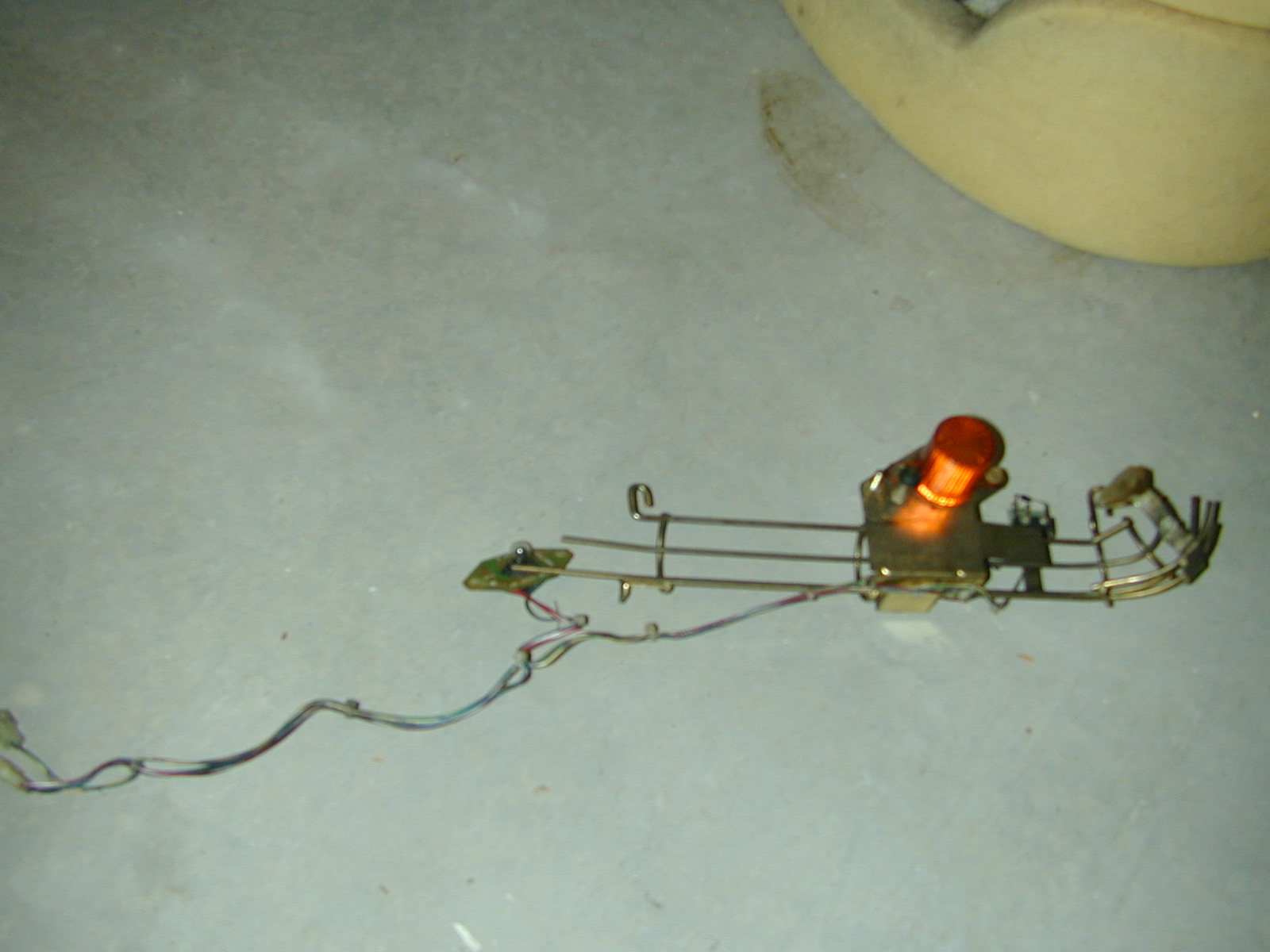

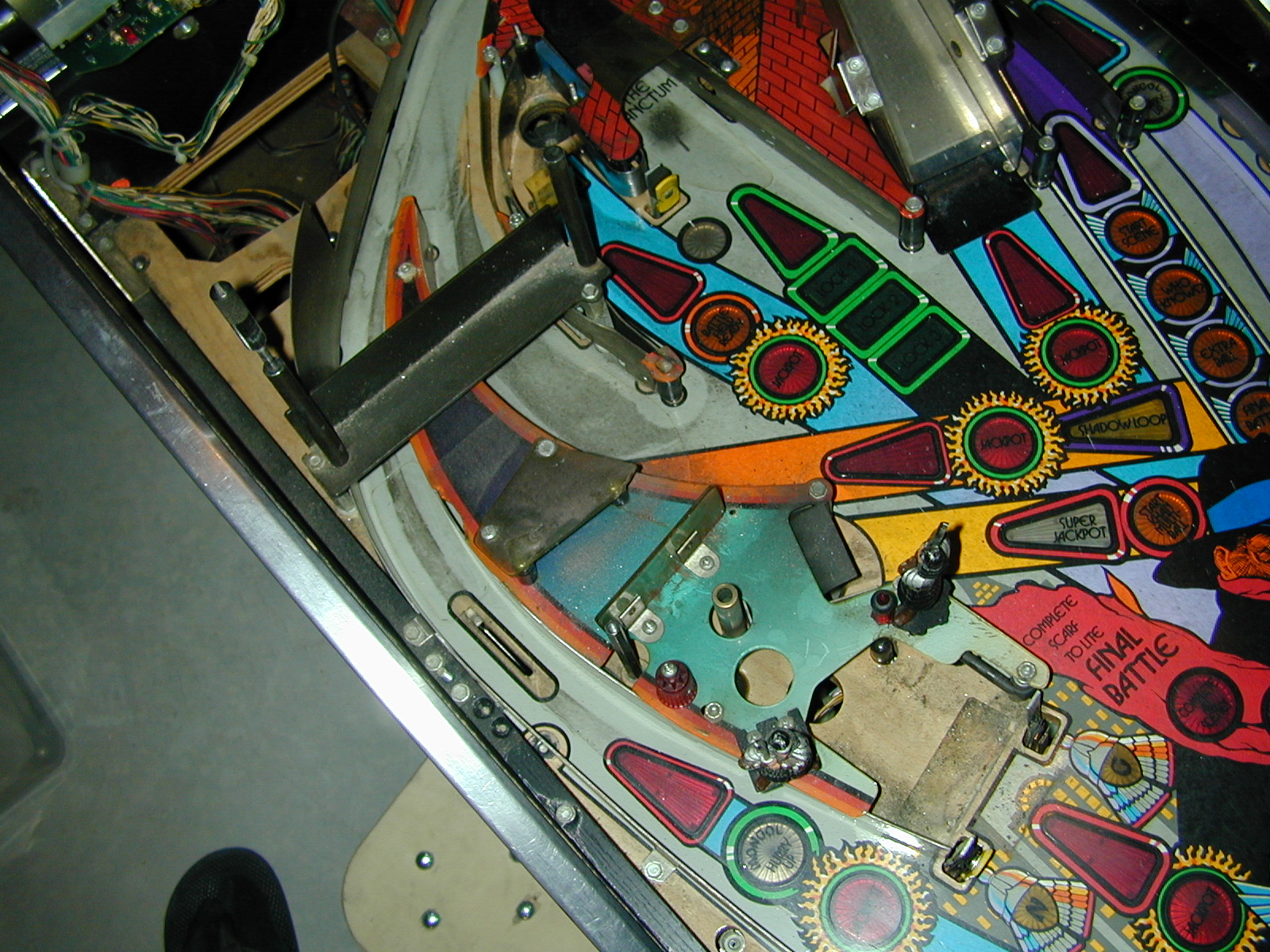

13 8 #44 lamps - slings and inlanes 14 VUK wire ramp to battlefield - 2 nuts, 4 washers 15 Shooter wire ramp - 3 nuts/washers, remove flasher - 2 WS, 2 CON 16 Wiring overview 17 Ramp wiring 18 Two mongol warriors 19 Clear plastic to right of upper right Mongol Hurry Up - 3 WS 20 Right side large plastic - 3 WS, 1 nut 21 5 #44, 1 #89 lamps 22 3 #44, 1 #89 lamps 23 Left Mongol plastic - 4 nuts, 1 MS 24 6 #44, 1 #89 lamps under left mongol plastic
