Playfield Teardown
![[First]](new2_first.png)
|
![[Prev]](new2_prev.png)
|
![[Next]](new2_next.png)
|
![[Last]](new2_last.png)
|
 |
 |
 |
 |

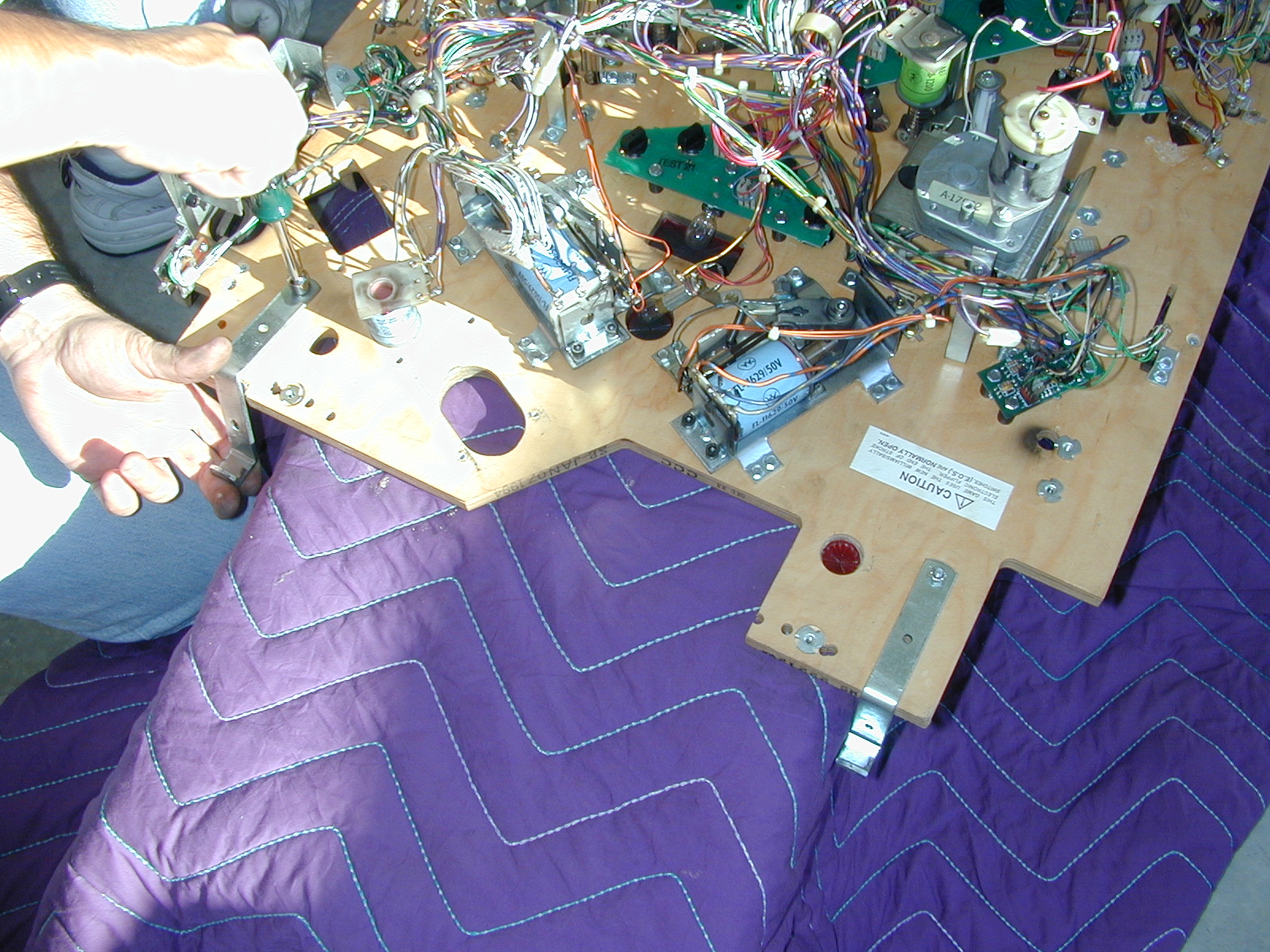

| 73 Playfield hanging supports - 1 MS with nut on each, upper position only |

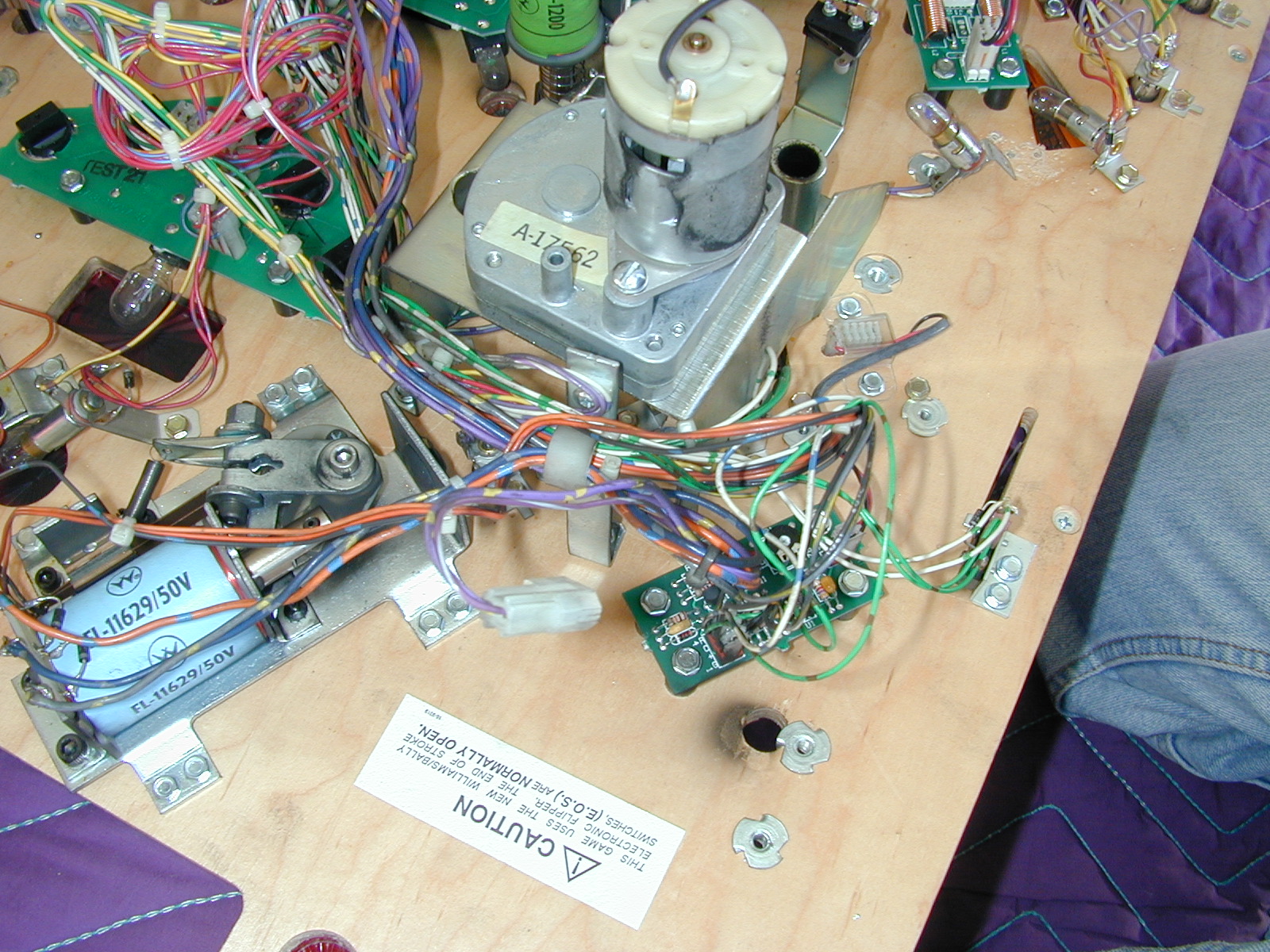

74 Inlane eddy sensor and board - 1 each side |
75 Lamp and motor boards - 7 + 1 opto board |

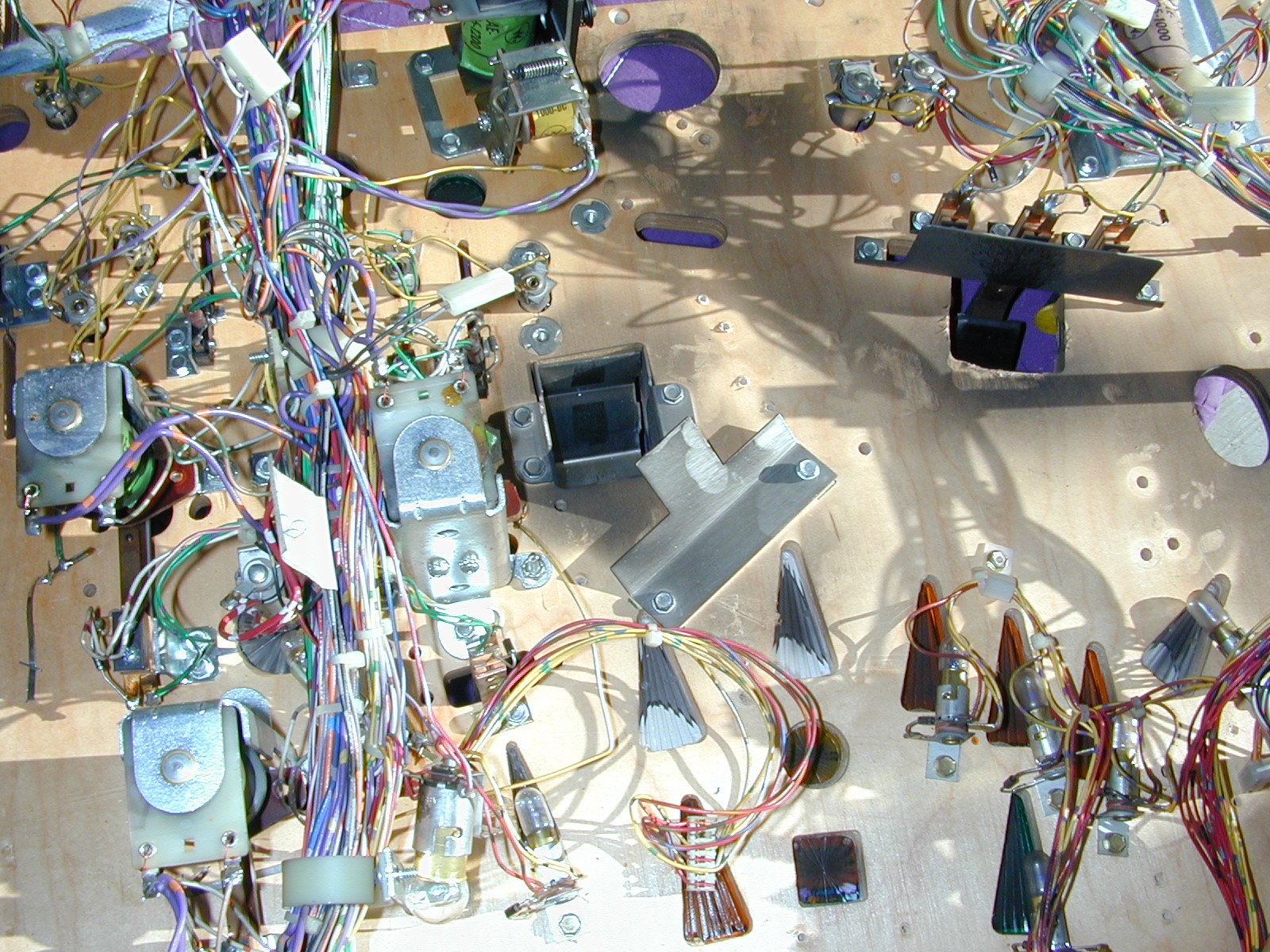

76 Deflector bracket in upper center - 2 WS |
 |
 |
 |
 |

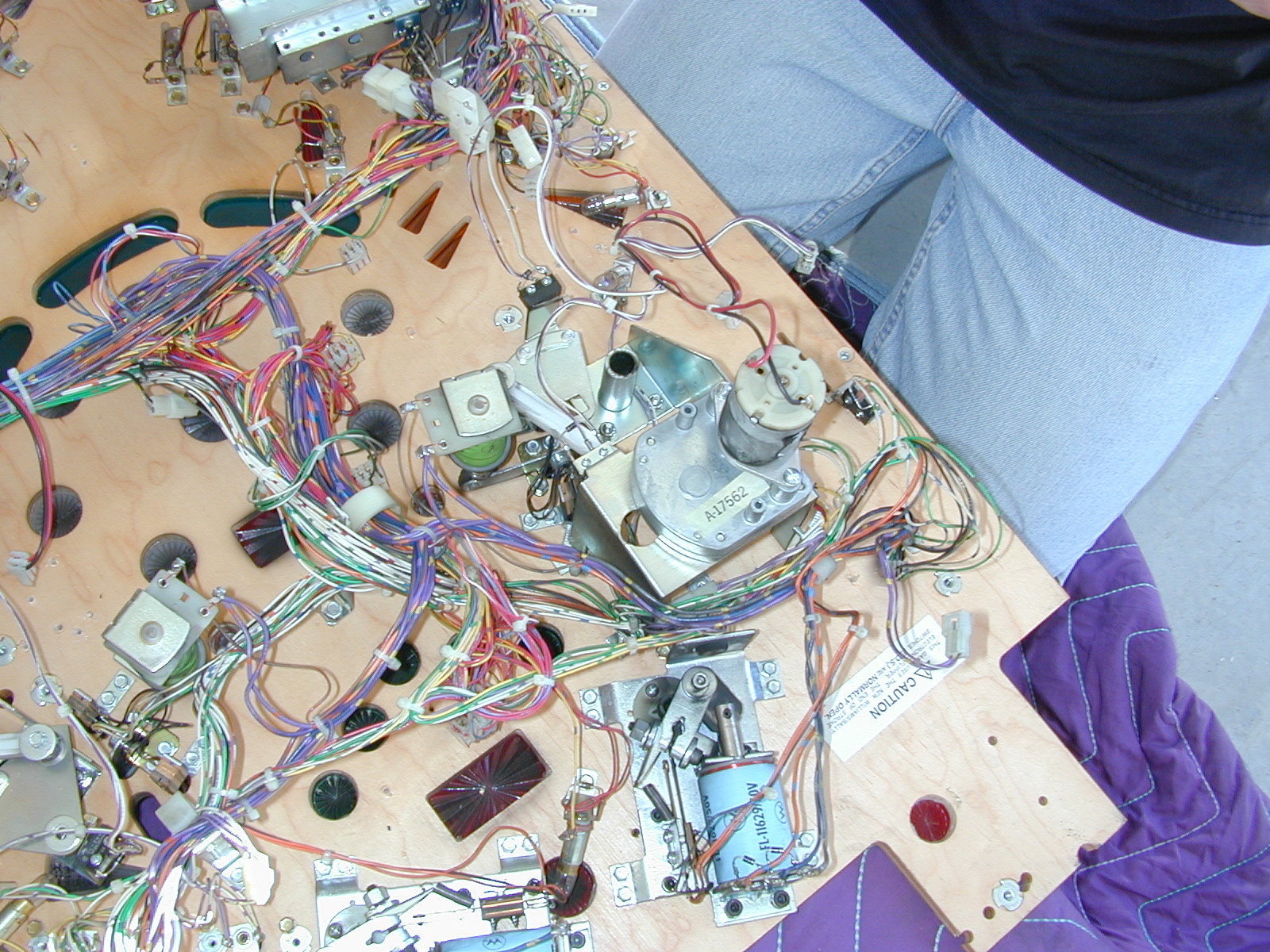

| 77 Left cannon ass'y - 1 CON and motor |

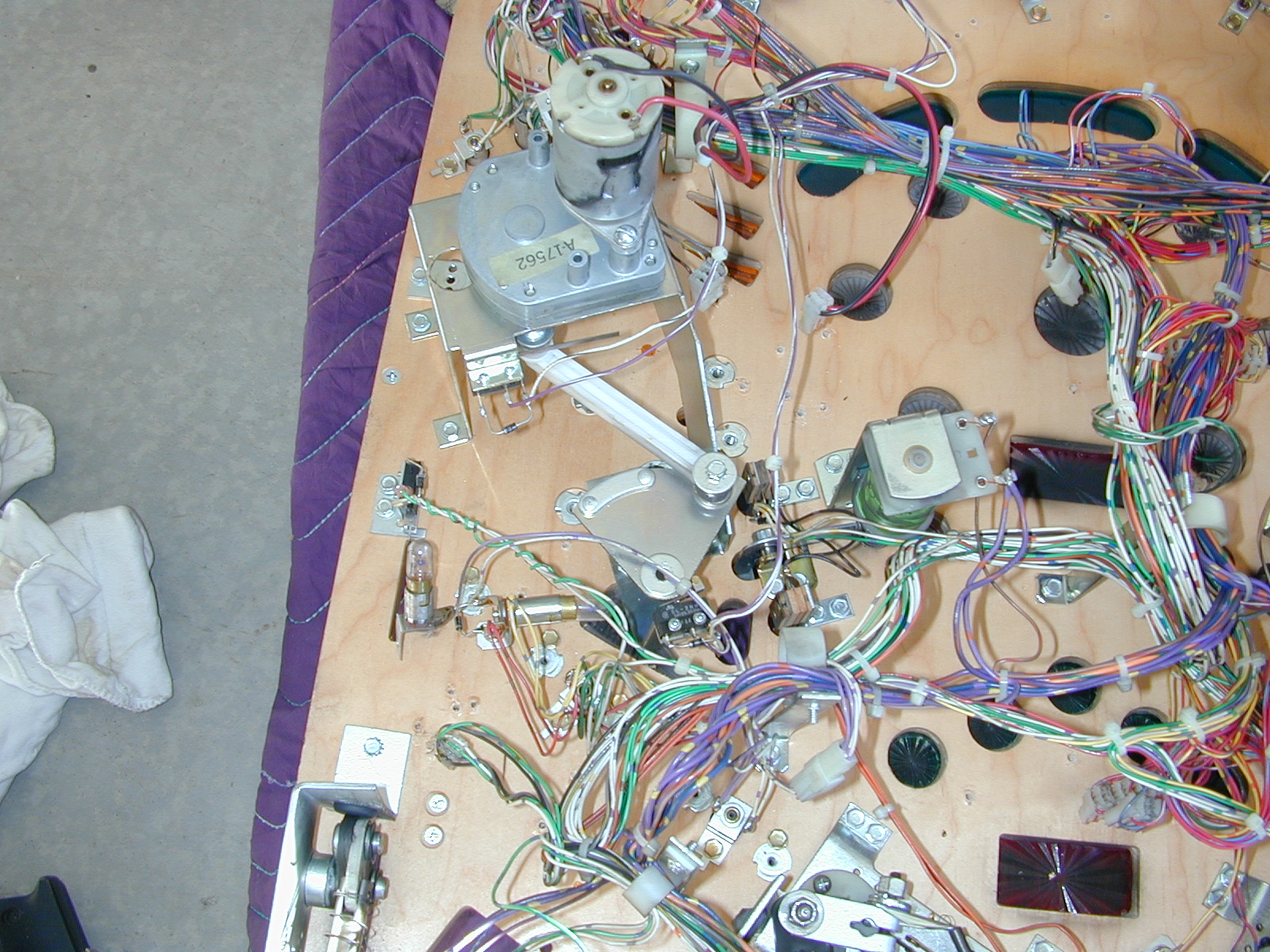

78 Right cannon ass'y - 1 CON and motor |

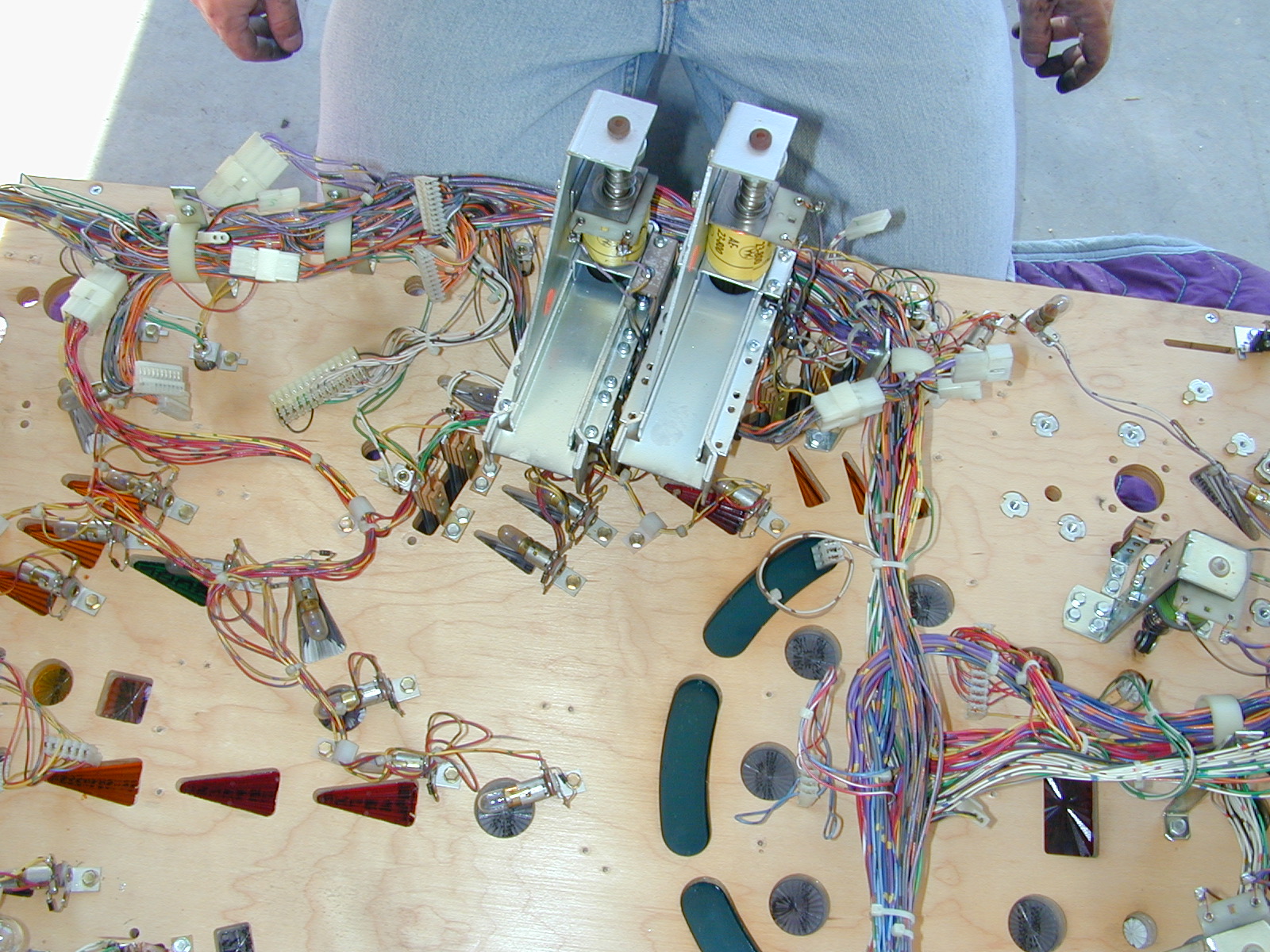

79 Two assemblies on mid left - 8 WS, 2 CON |

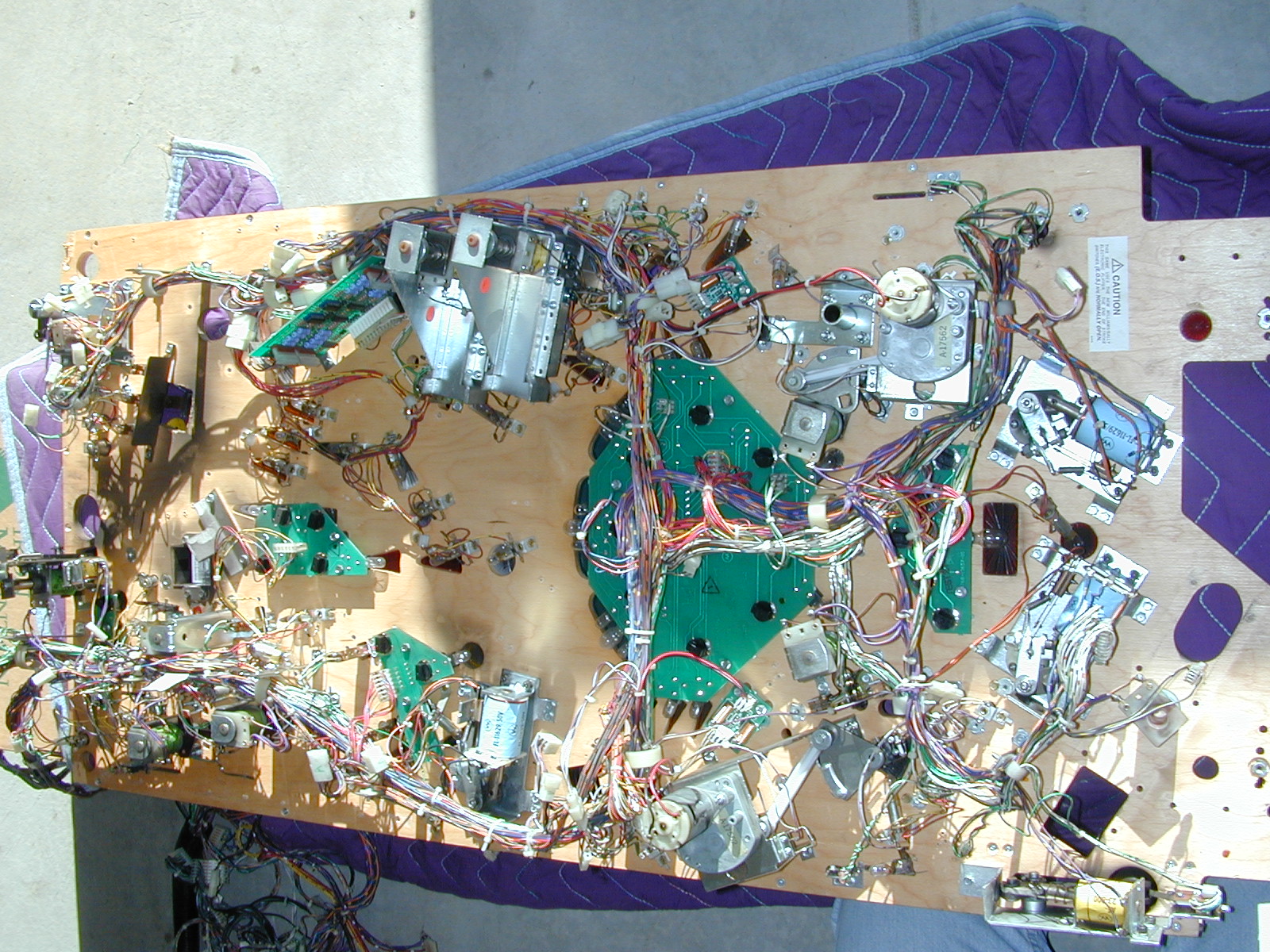

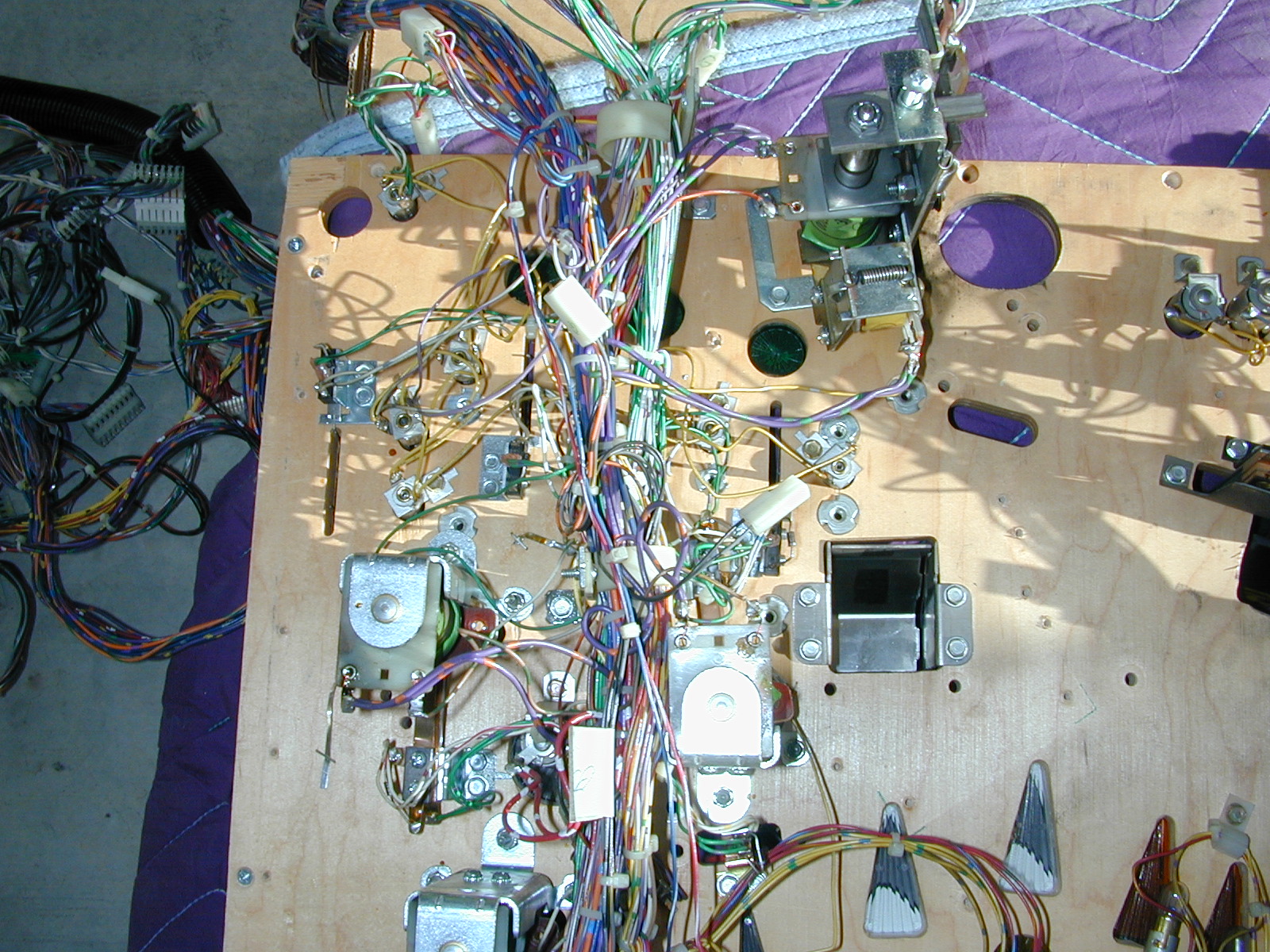

80 Playfield harness overview |
 |
 |
 |
 |

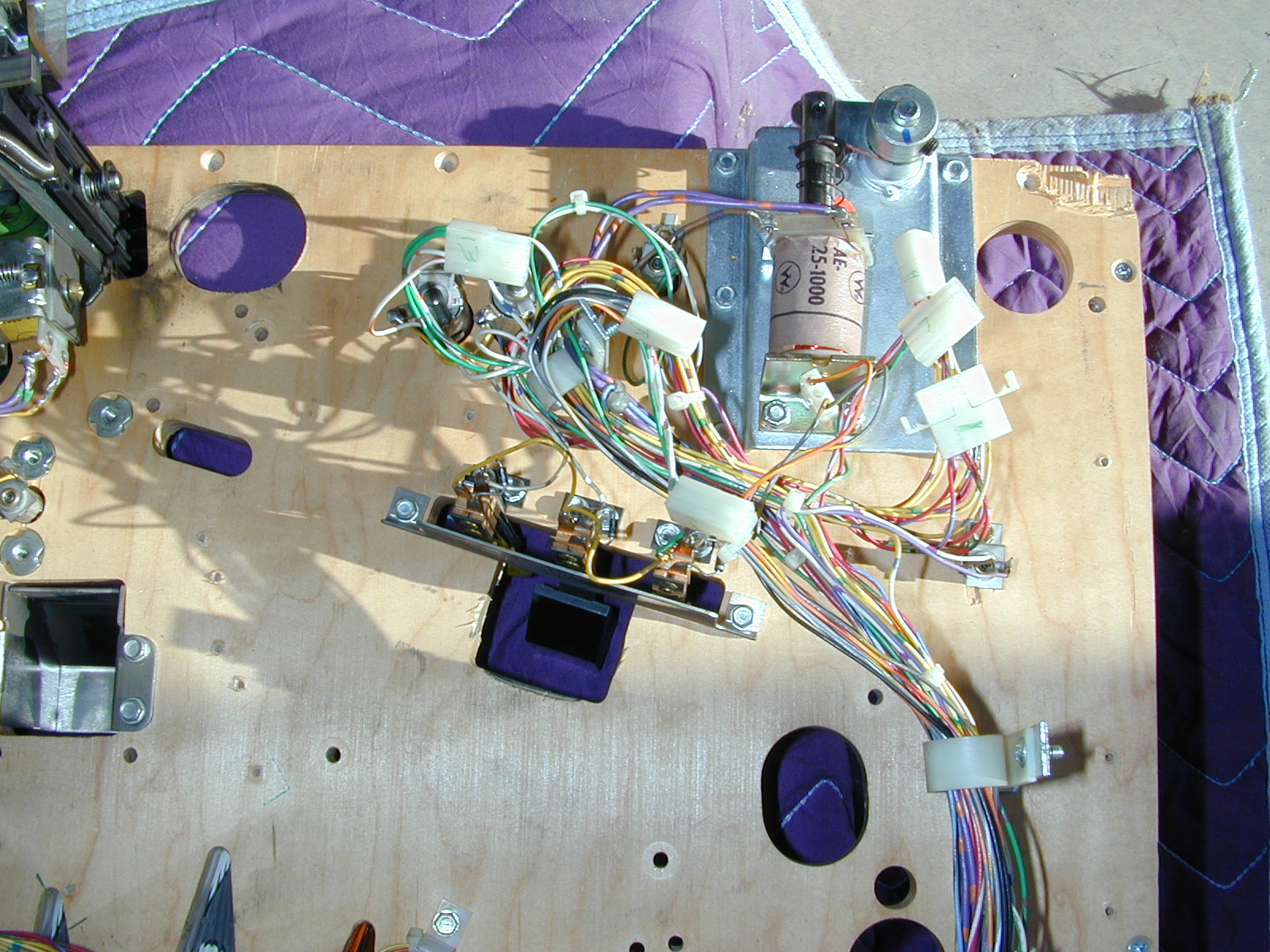

| 81 Playfield harness overview |

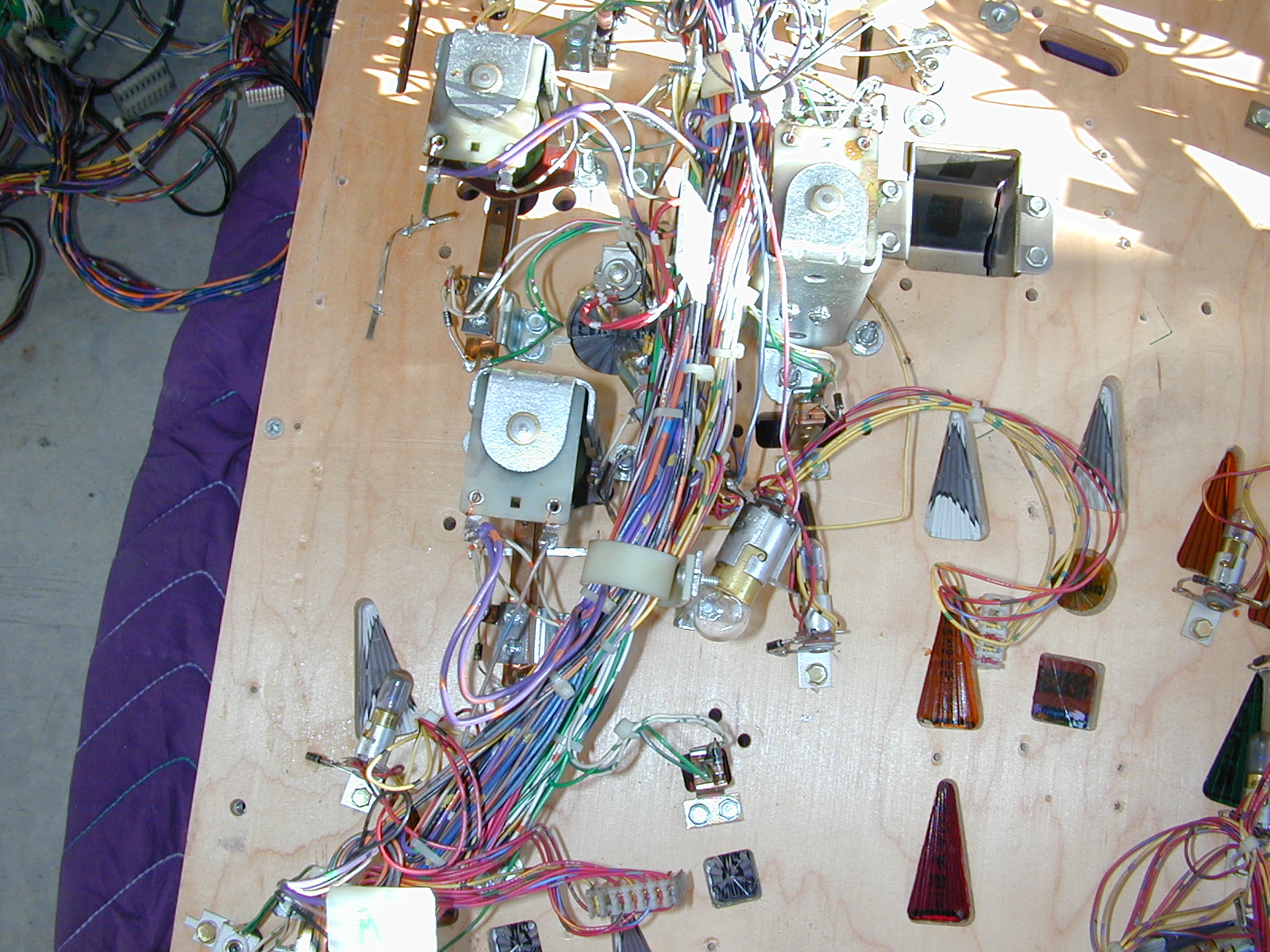

82 Playfield harness overview |

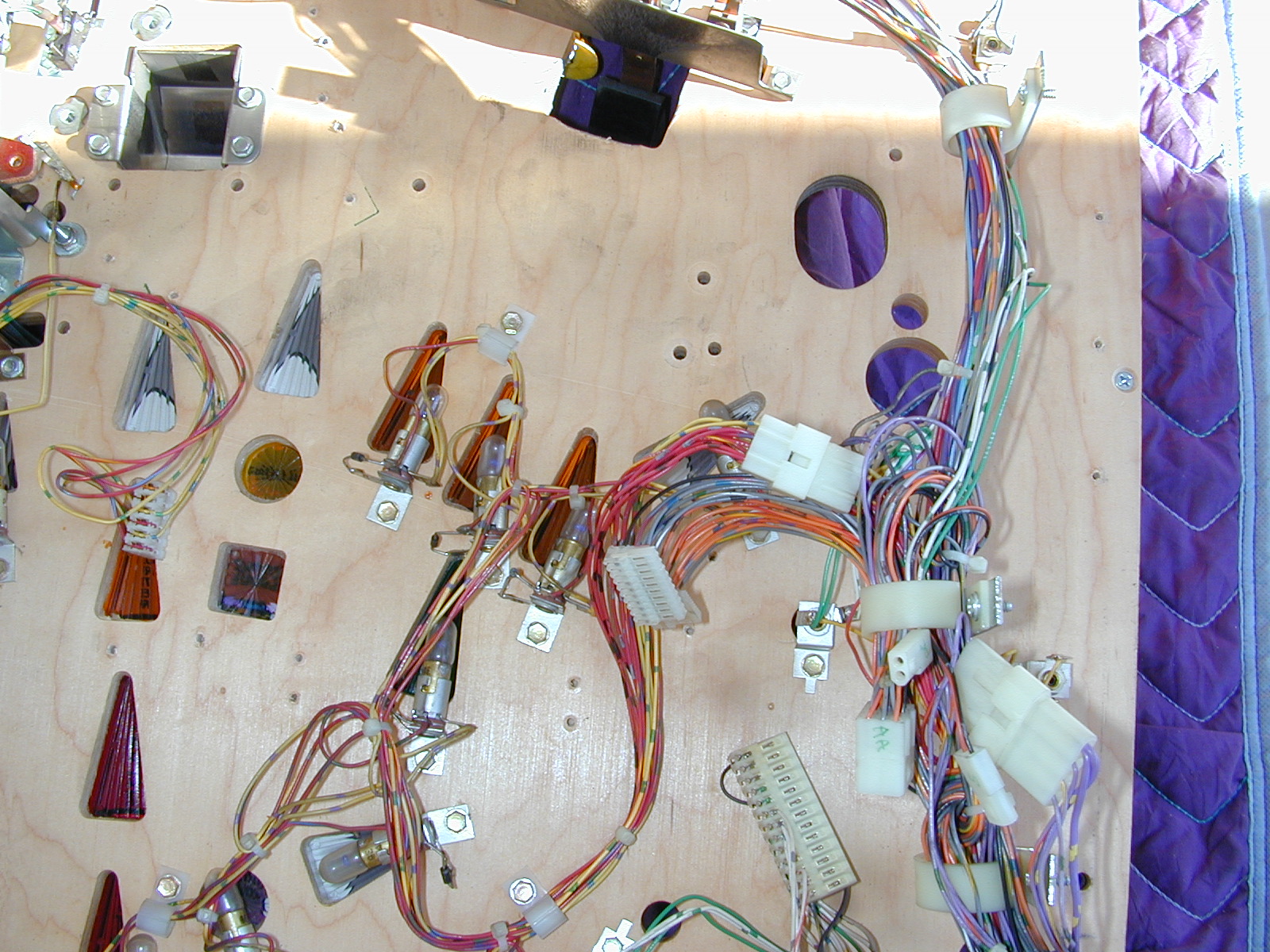

83 Playfield harness overview |

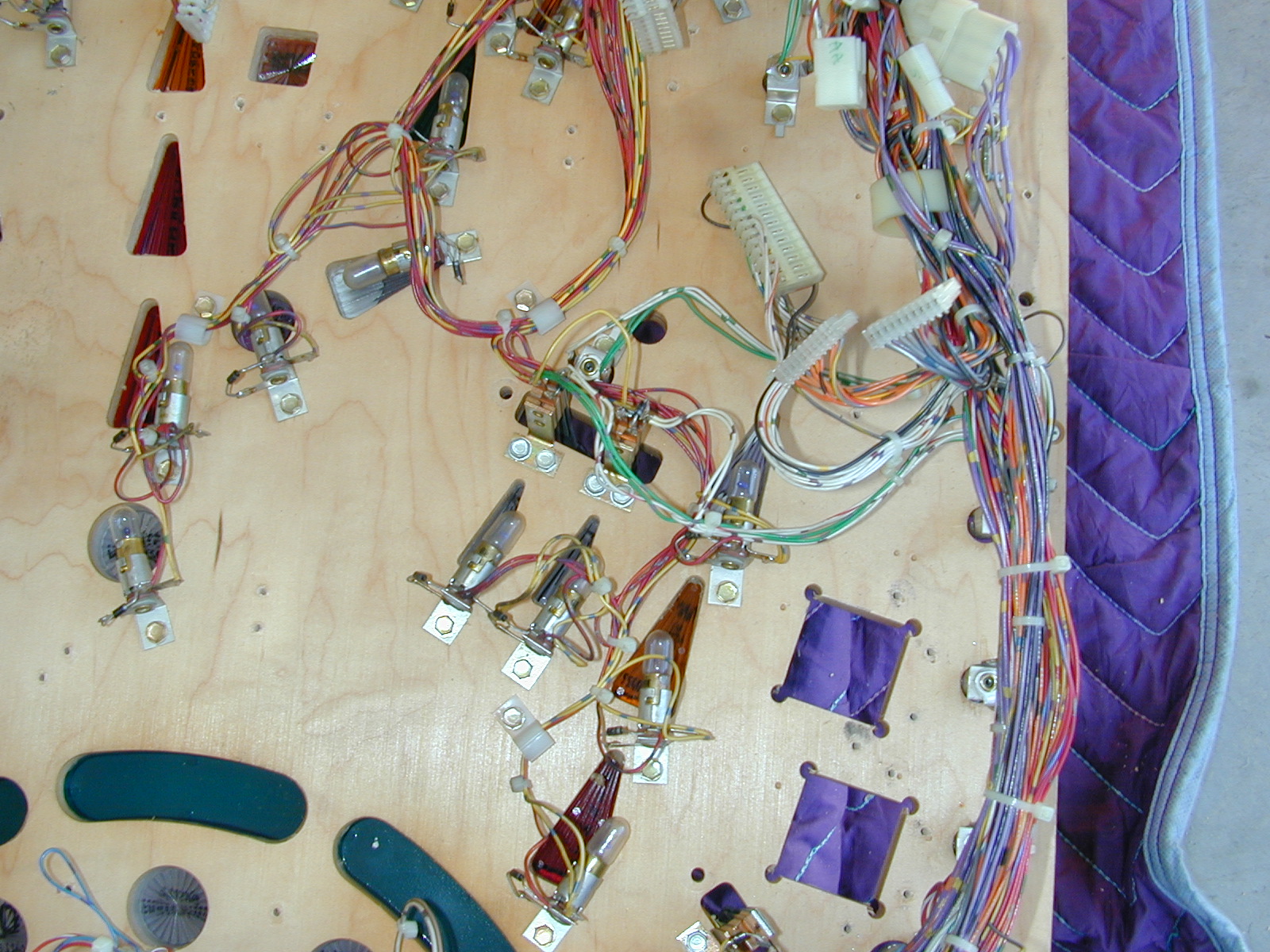

84 Playfield harness overview |
