Star Trek: The Next Generation
Playfield Teardown


[First] [Prev] [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
25

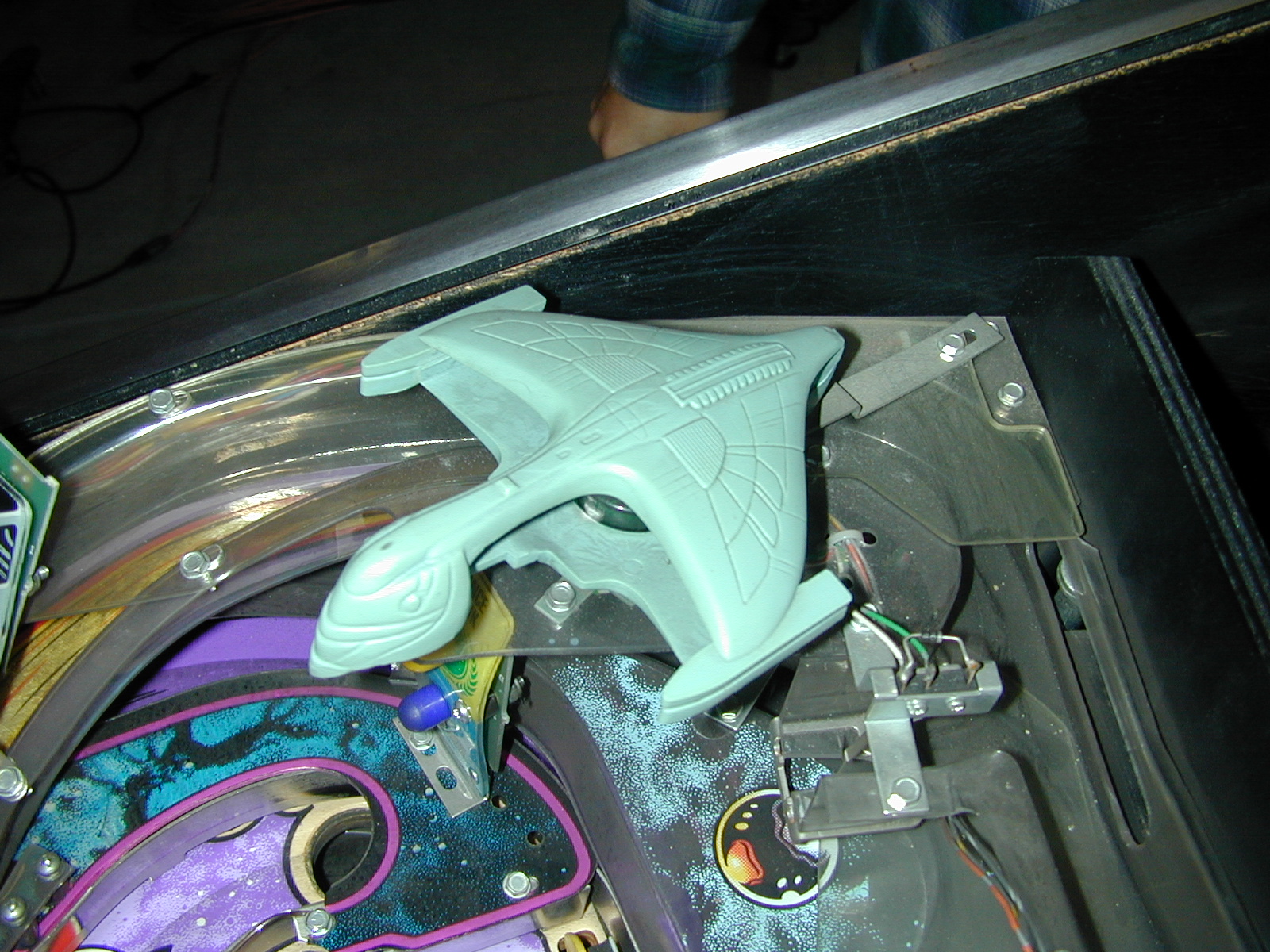

Bird of Prey in upper left - 1 WS		 26

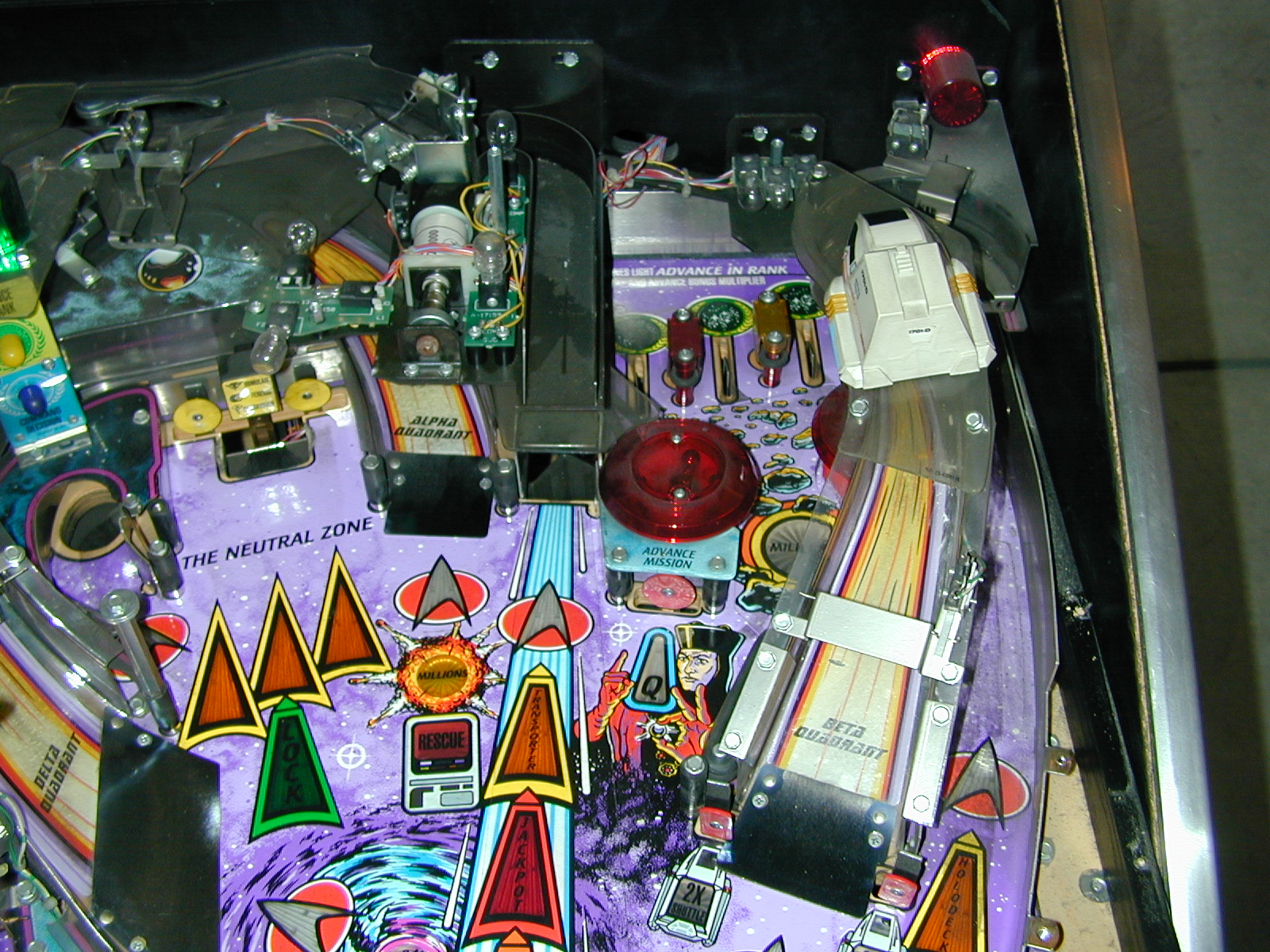

Right plastic ramp - 2 small WS, 2 MS, 1 CON		 27

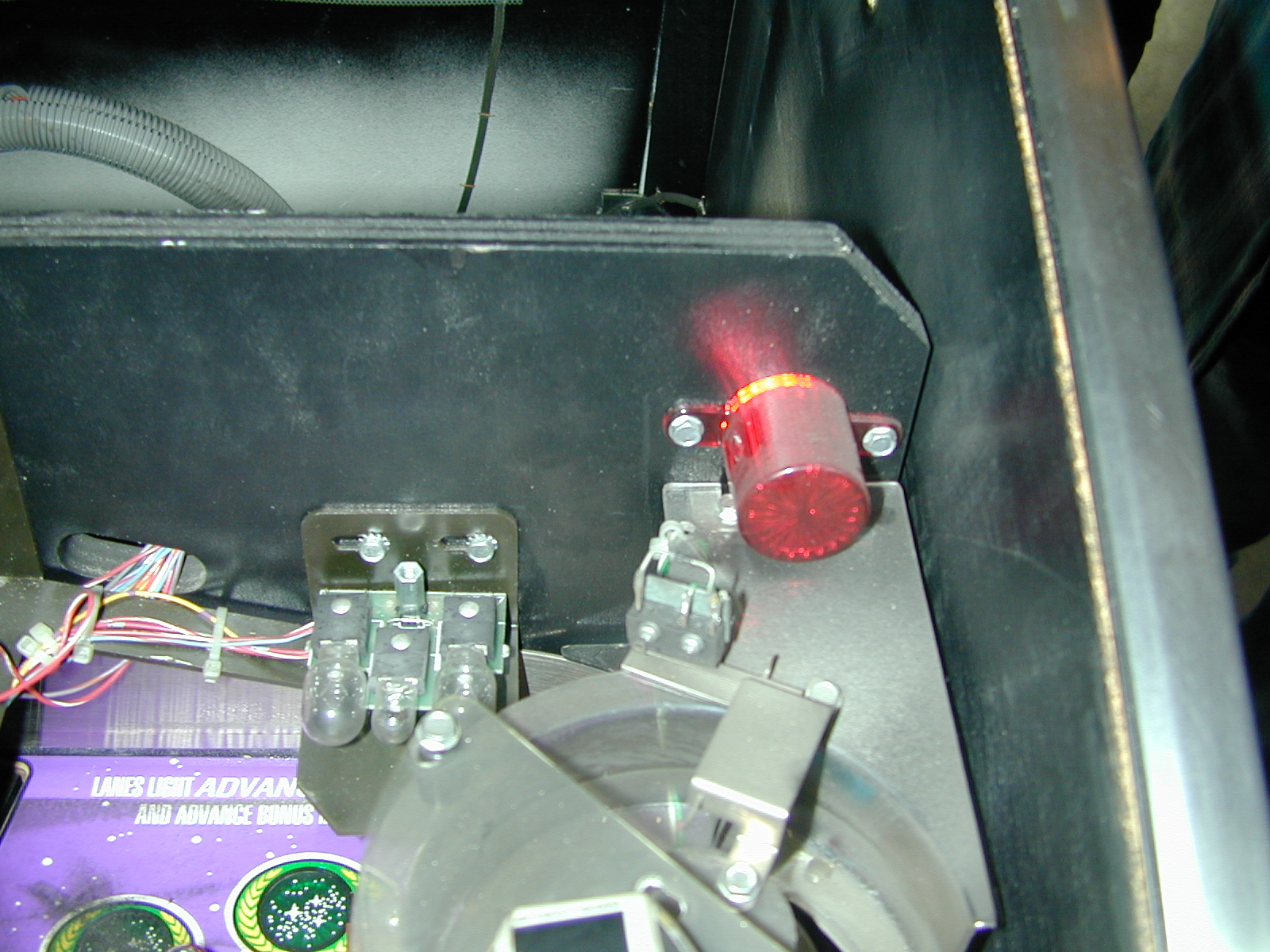

Red flasher dome in upper right corner - 2 WS (reverse steps 26/27 on re-assembly)		 28

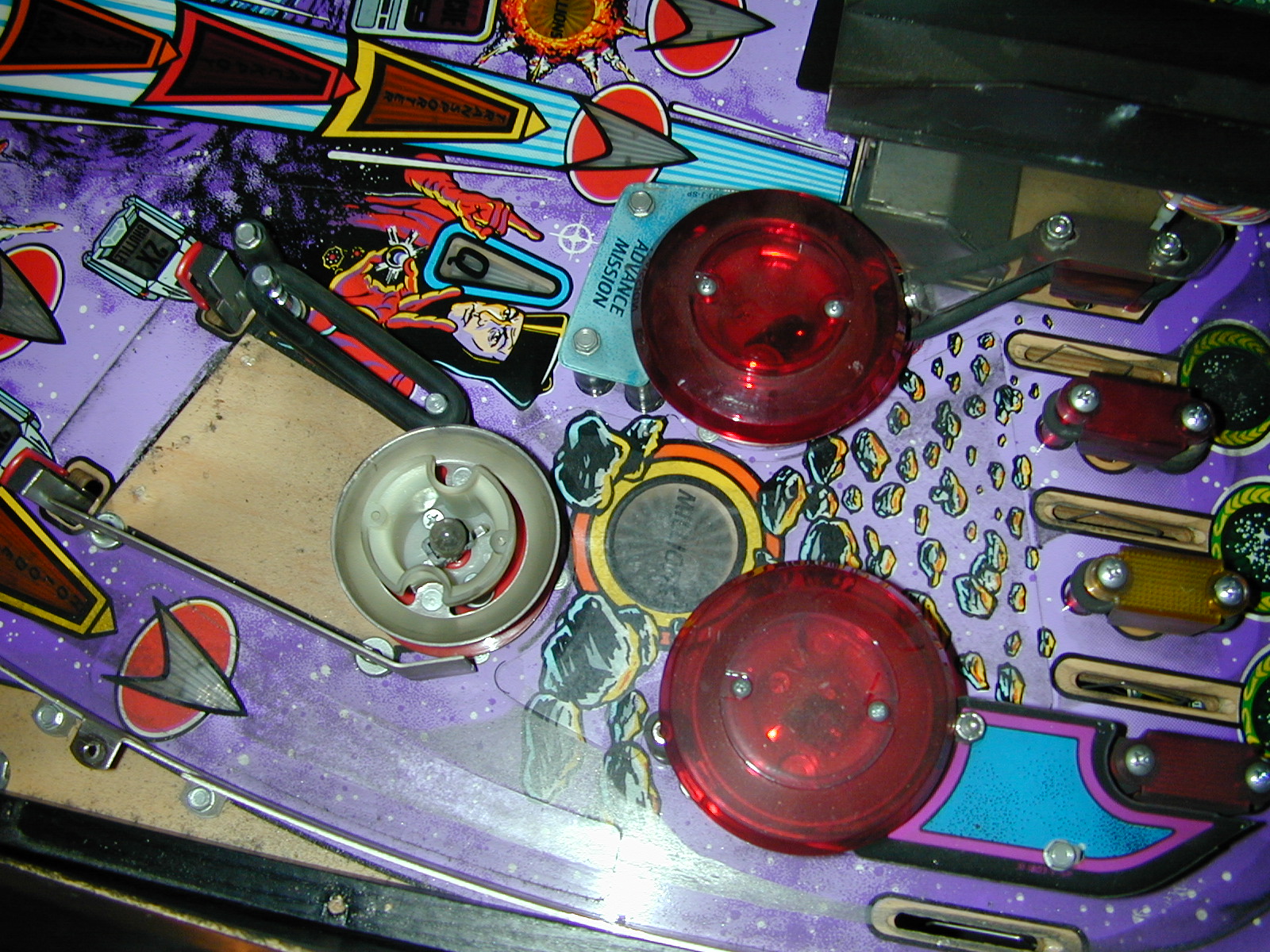

Two pop bumper caps - 4 WS
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
29

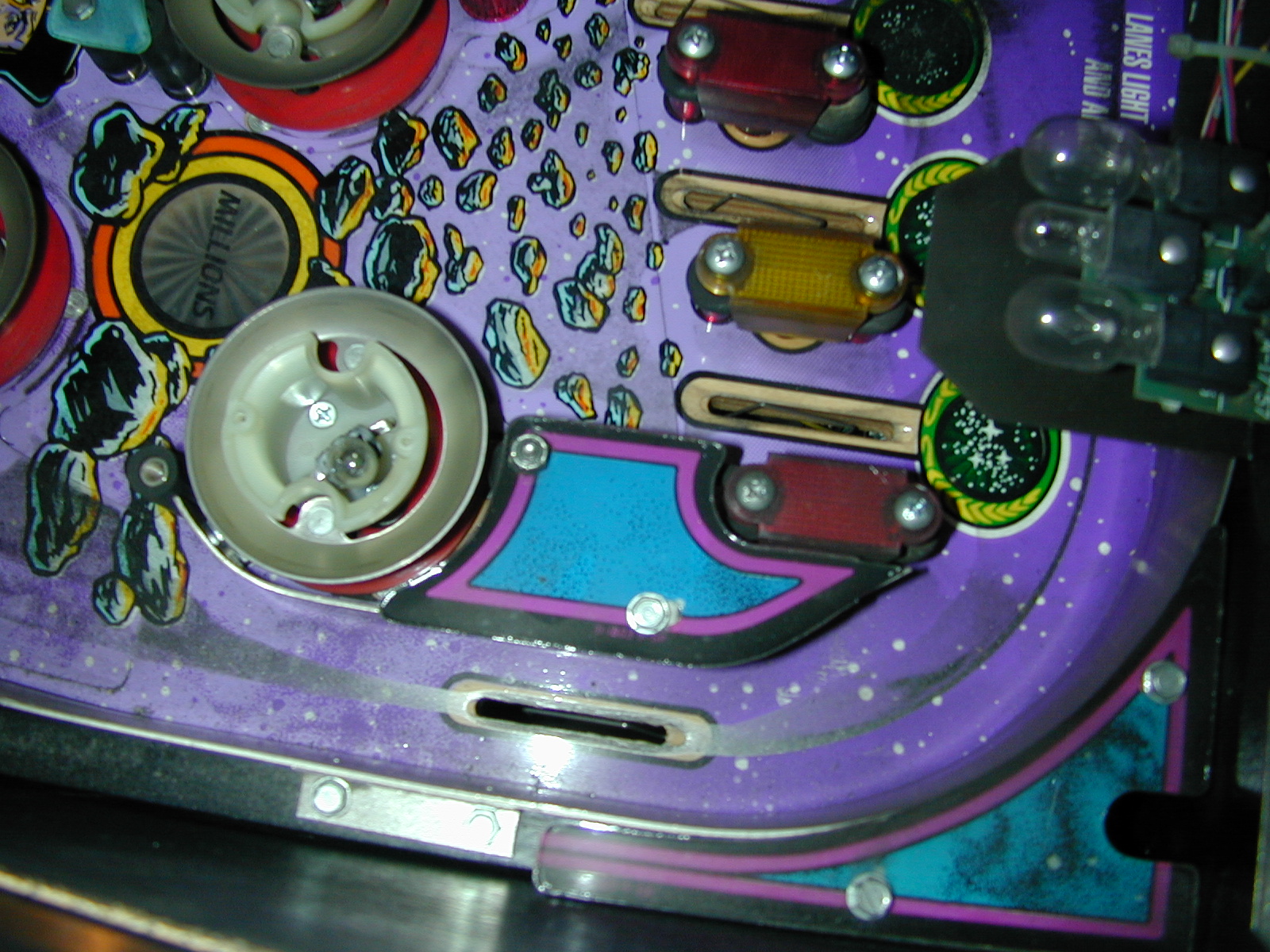

-5 plastic above right pop bumper - 1 nut, 1 MS		 30

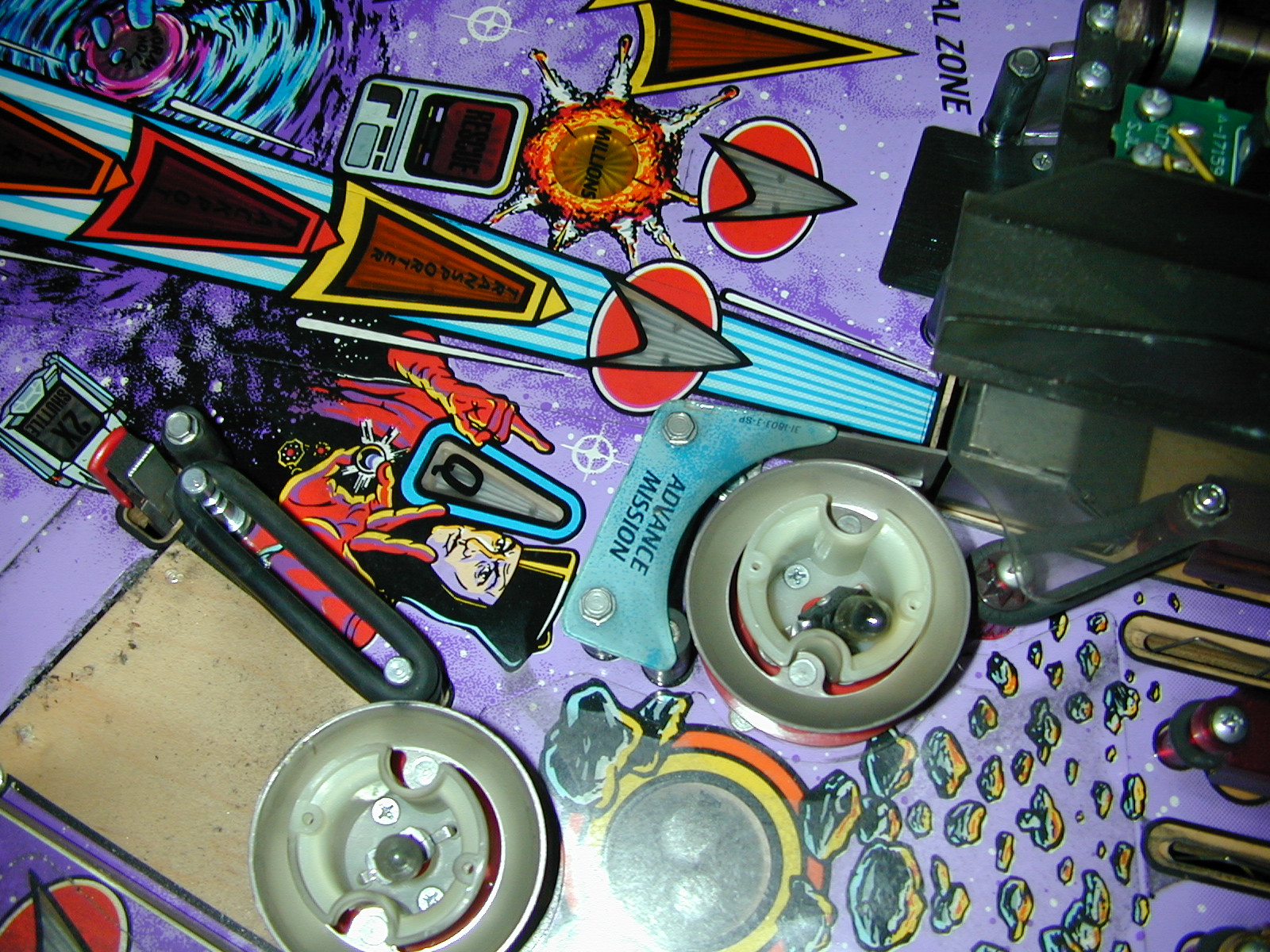

Advance mission plastic below left pop bumper - 2 MS		 31

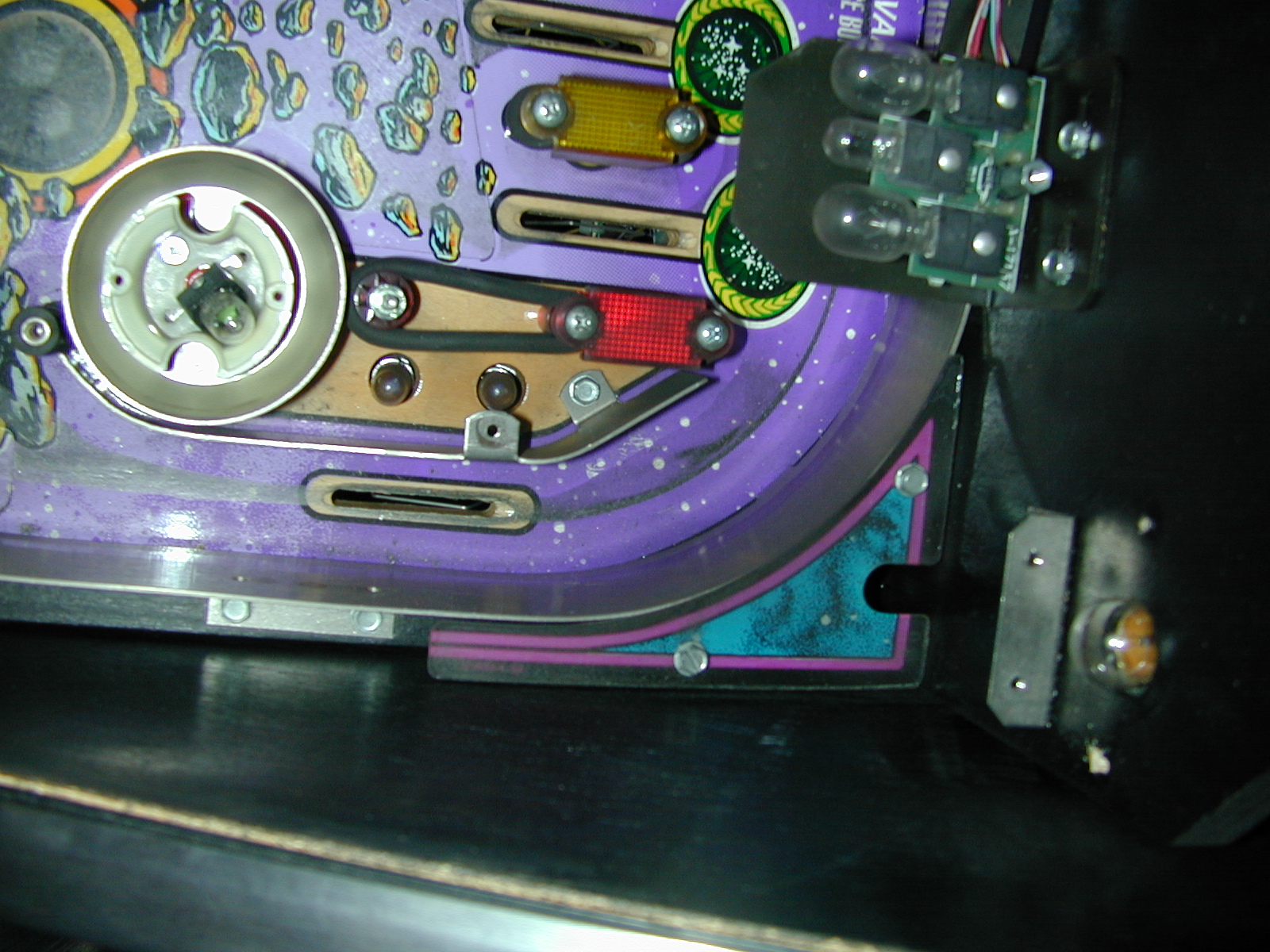

-4 plastic in upper right corner - 1 MS, 1 WS		 32

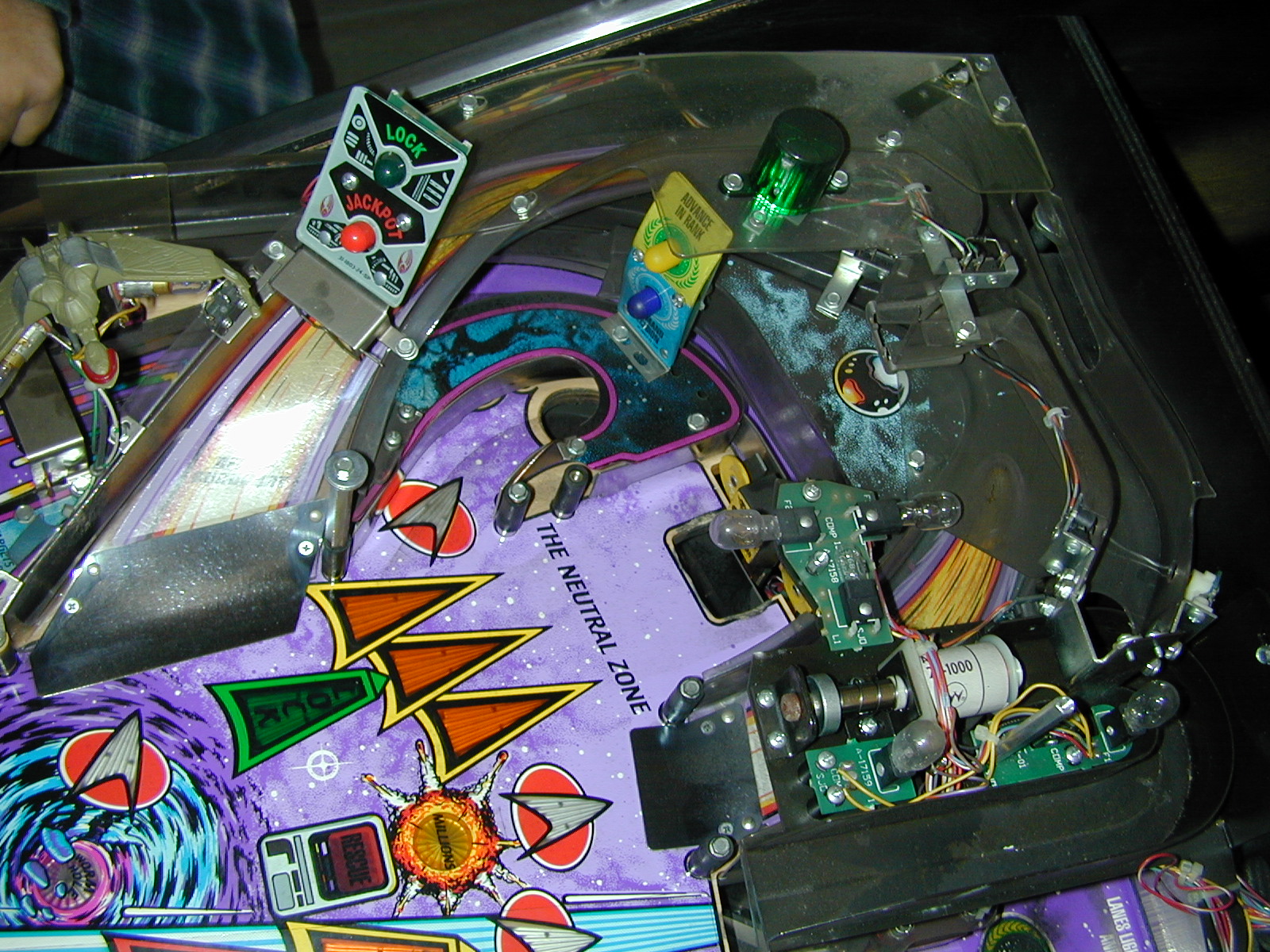

Left plastic ramp ass'y - 4 CON, 2 MS, 2 small WS, 2 small MS with washers at top
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
33

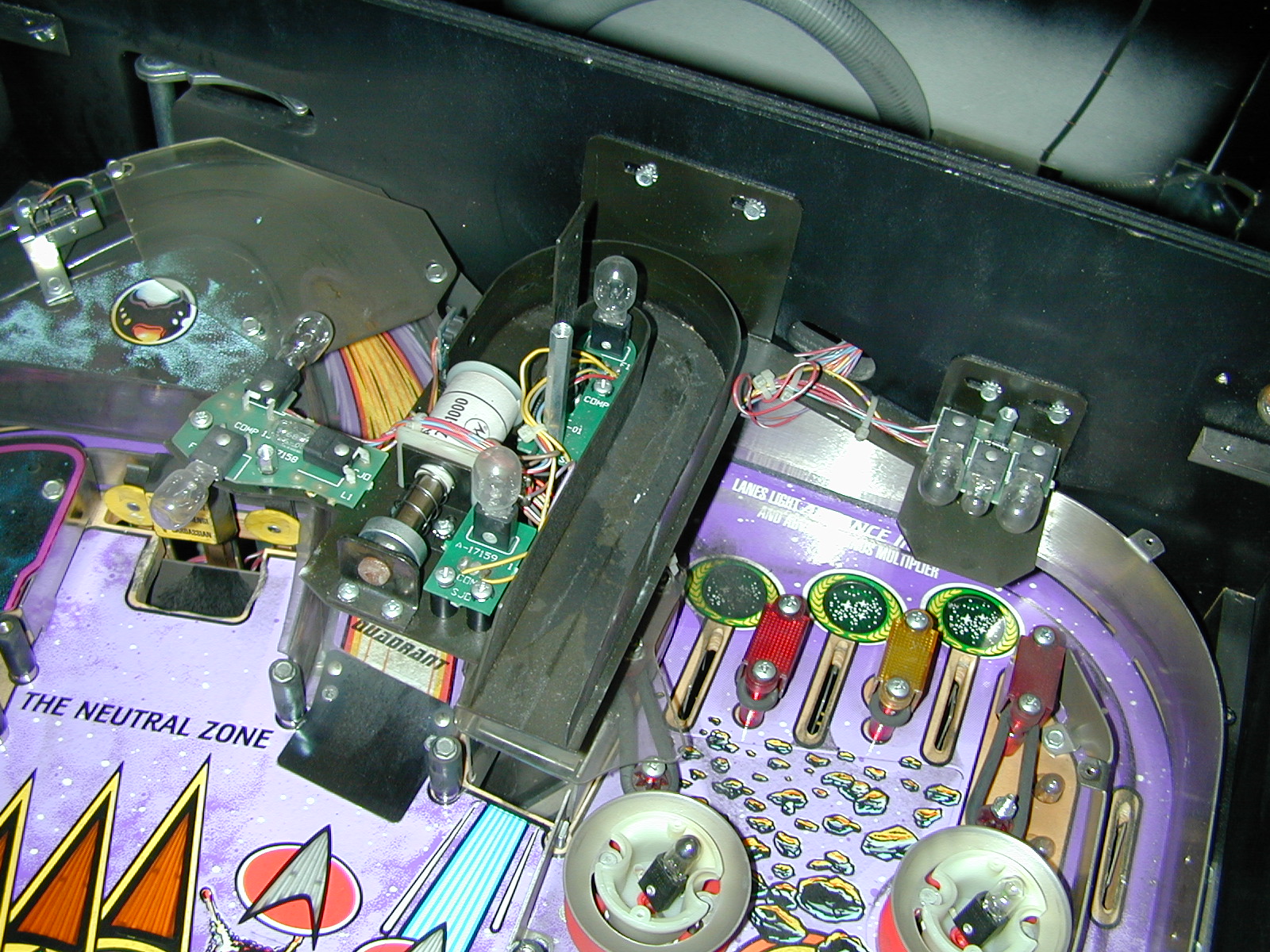

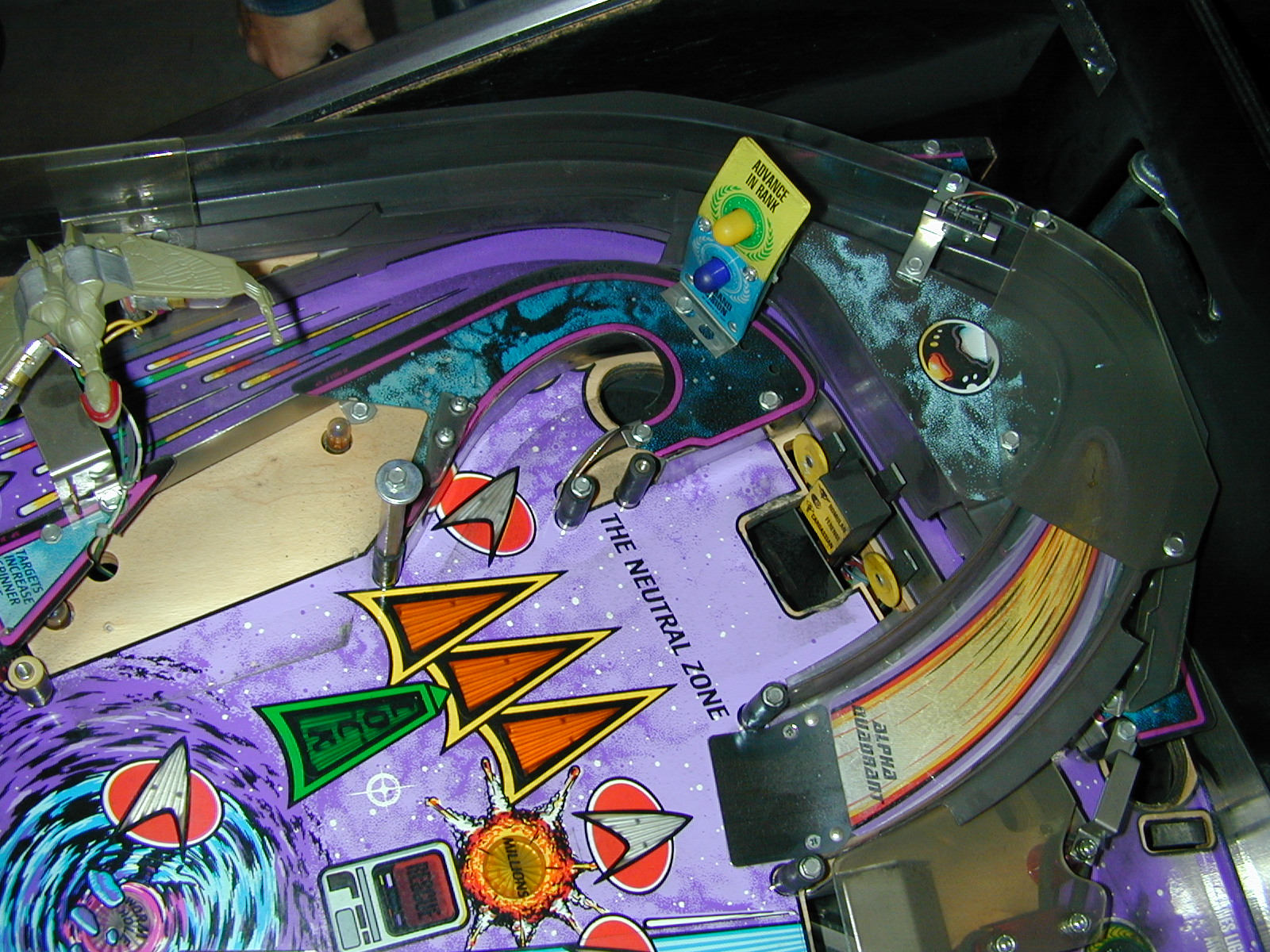

Center bracket/lamp/solenoid ass'y - 4 MS, 3 CON		 34
Alpha ramp - 2 small WS, 1 CON		 35

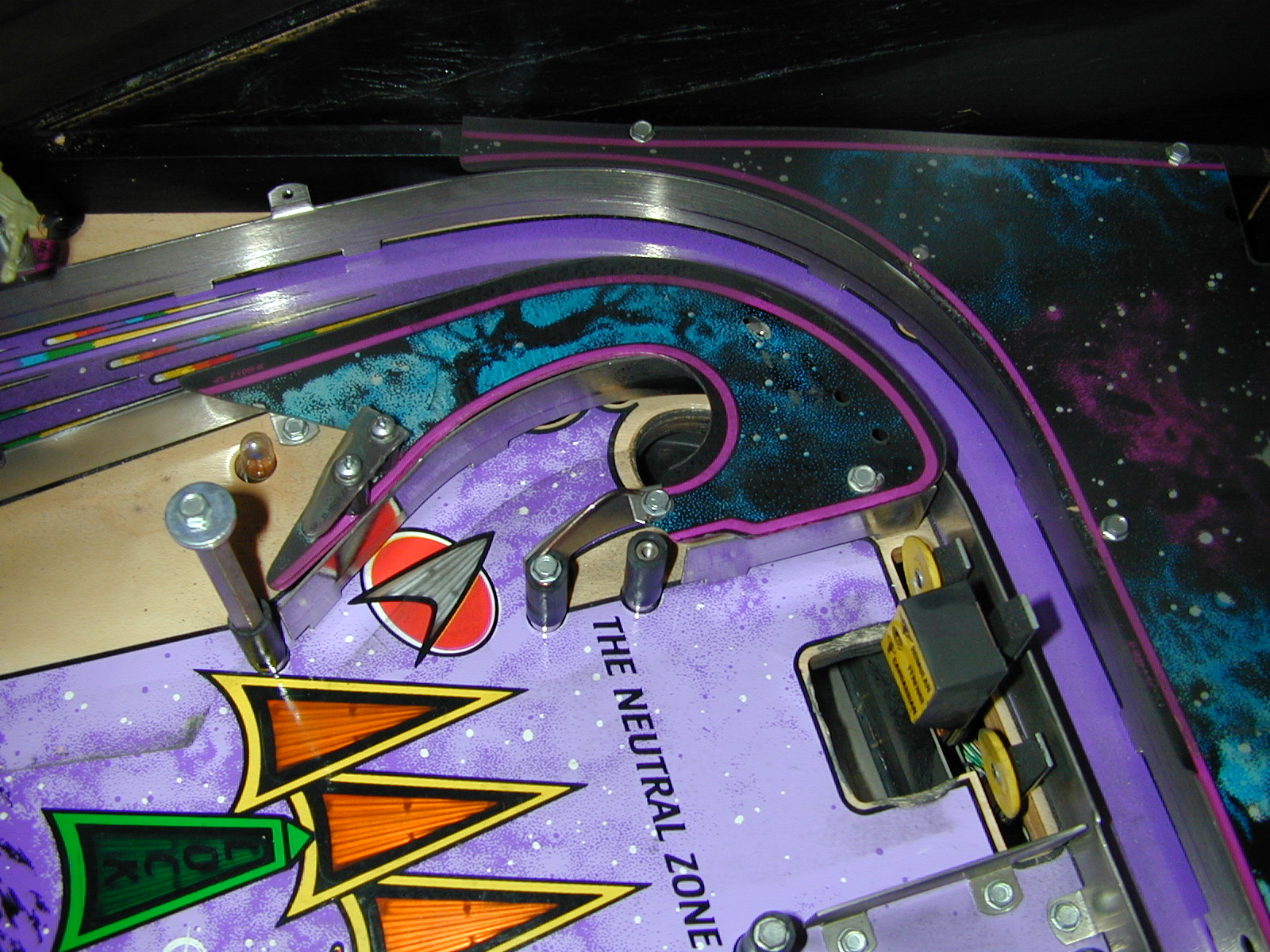

Advance rank light ass'y - 1 MS, 1 CON		 36
Plastic ass'y (-2/-27) to left of neutral zone - 4 MS
