Star Trek: The Next Generation
Playfield Teardown


[First] [Prev] [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
37

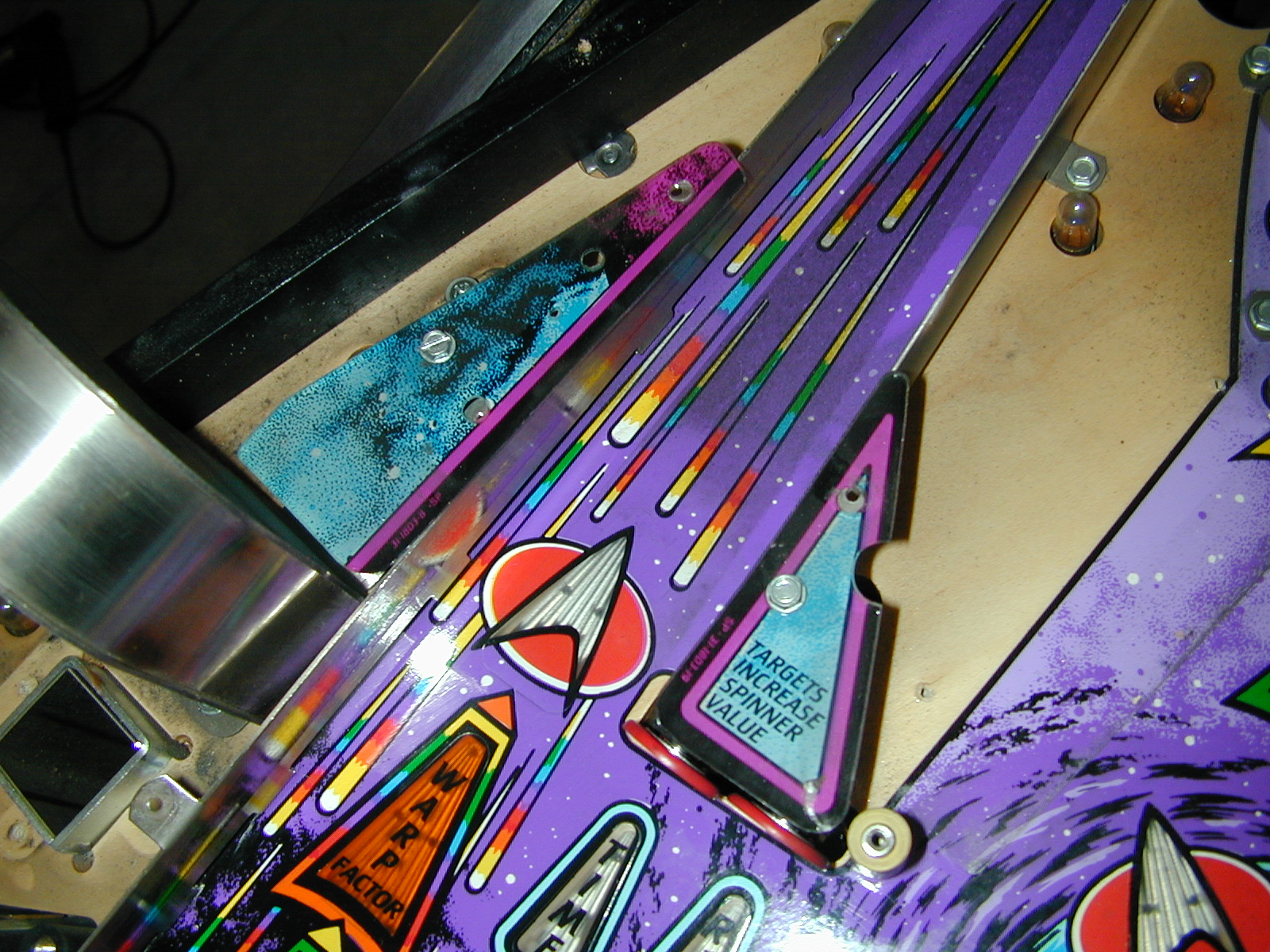

-1 large plastic in upper left corner - 2 MS, 2 WS		 38

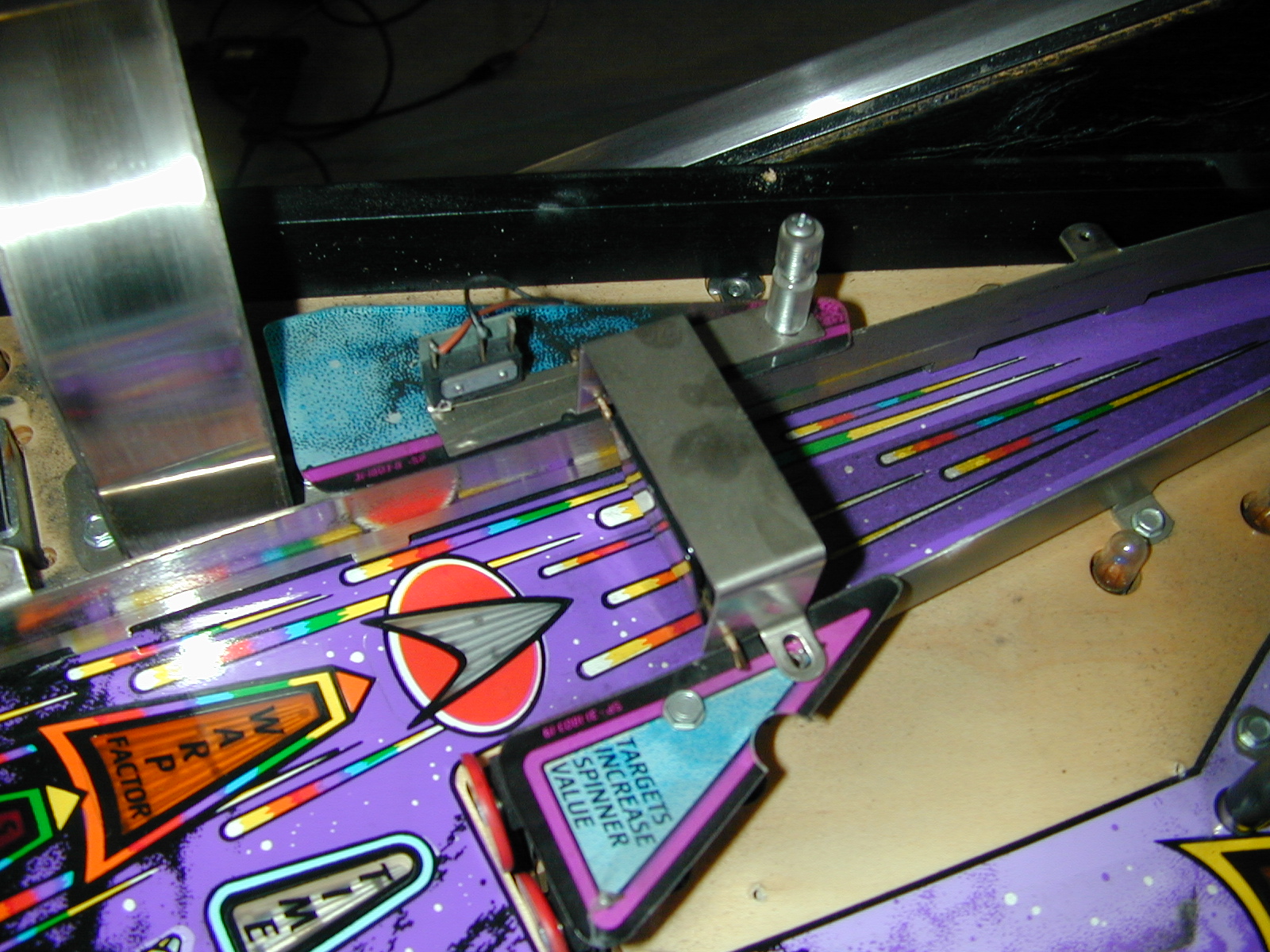

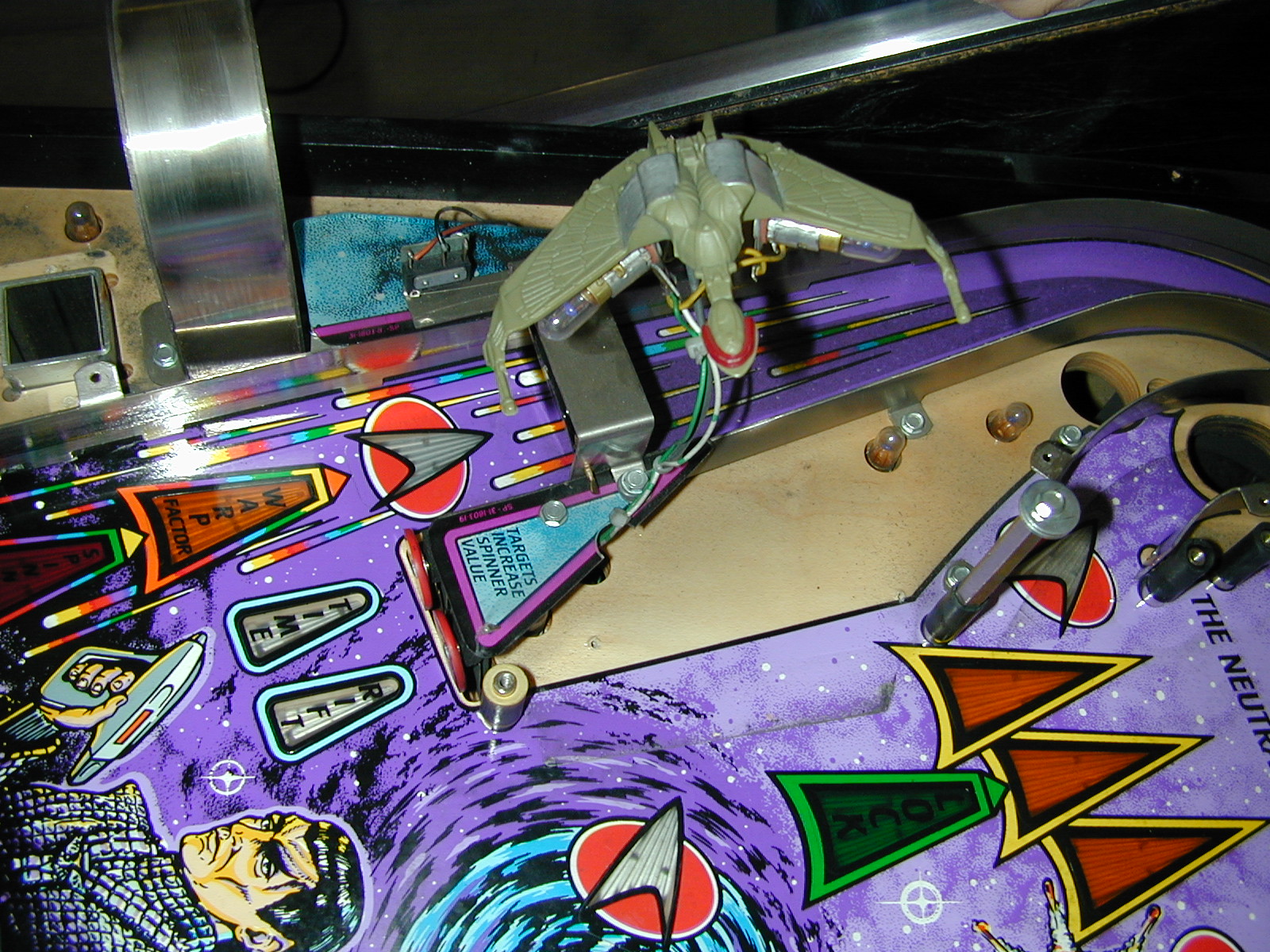

Klingon ship ass'y - 1 MS, 1 CON		 39
Warp factor gate ass'y - 1 MS on clear post, 1 CON		 40
Two plastics (-8/-19) on entrance of warp factor loop - 1 MS, 1 WS
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
41

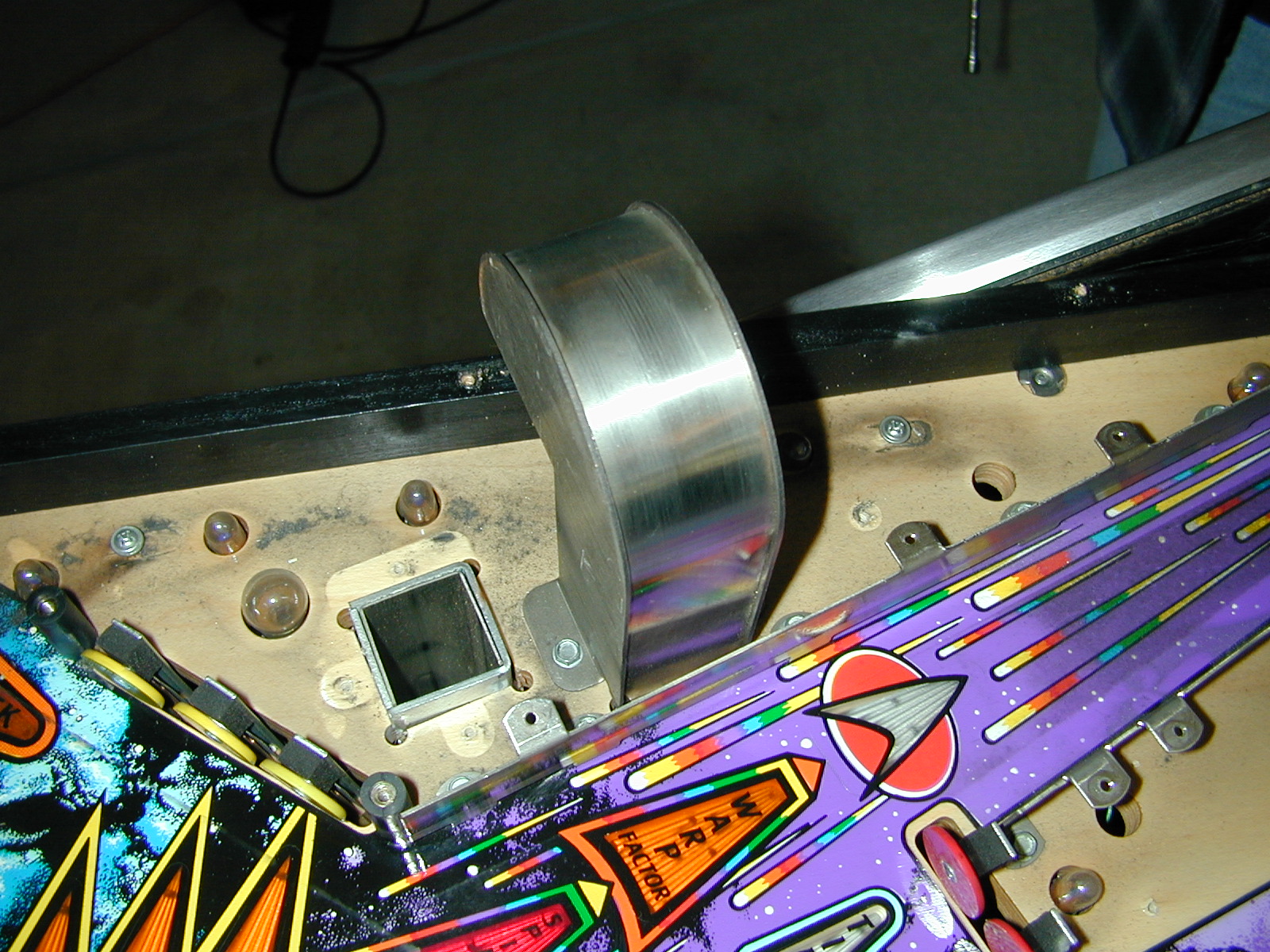

Kickout scoop to left of warp factor - 2 WS		 42

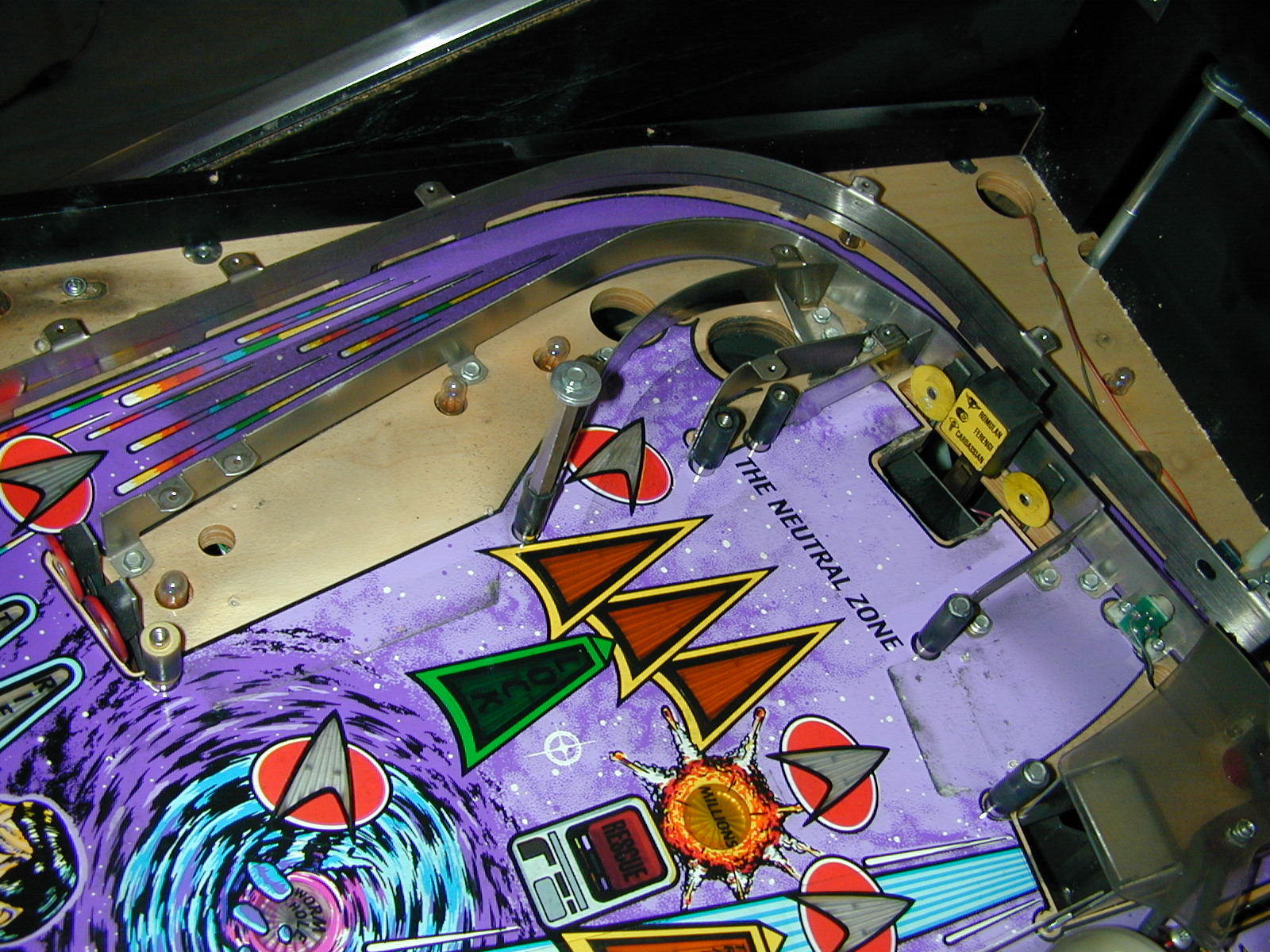

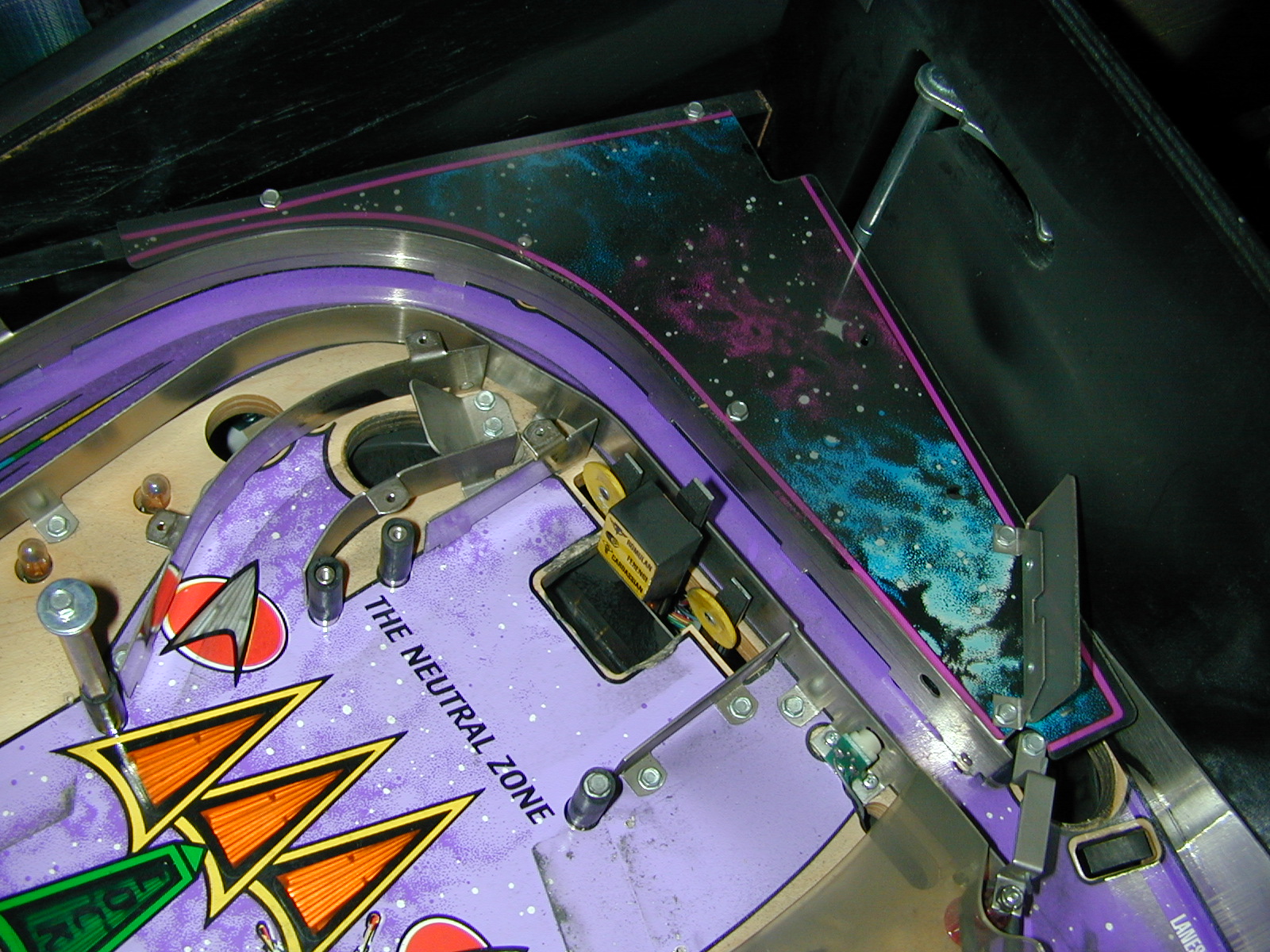

Left loop outer metal guide - 9 WS, 1 nut (this must be installed prior to subway ramp)		 43
Left loop inner metal guide - 4 WS, 1 nut/washer, 1 CON		 44
Upper center gate - 1 MS, 1 nut (reverse 43/44 on re-assembly)
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
45

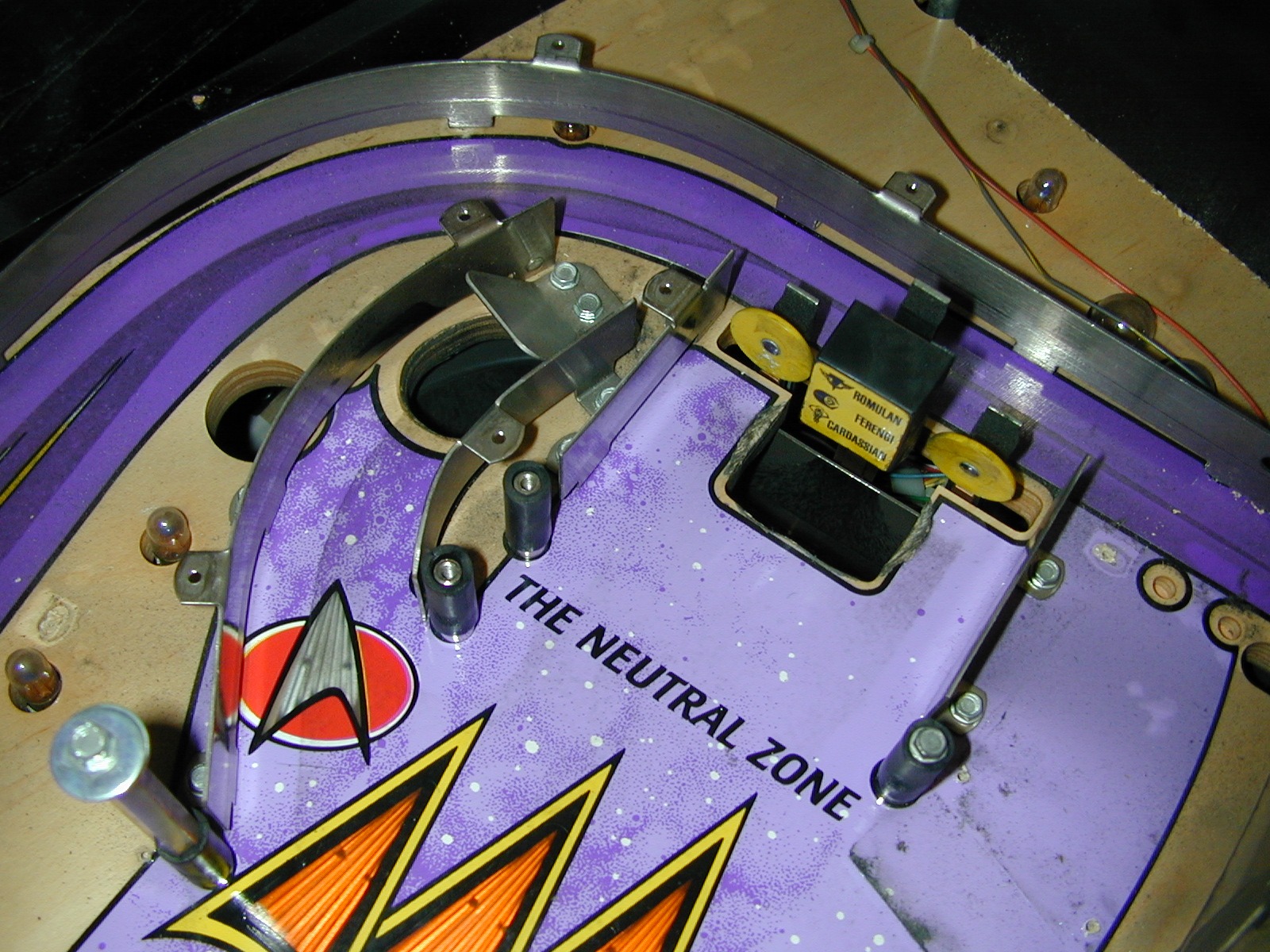

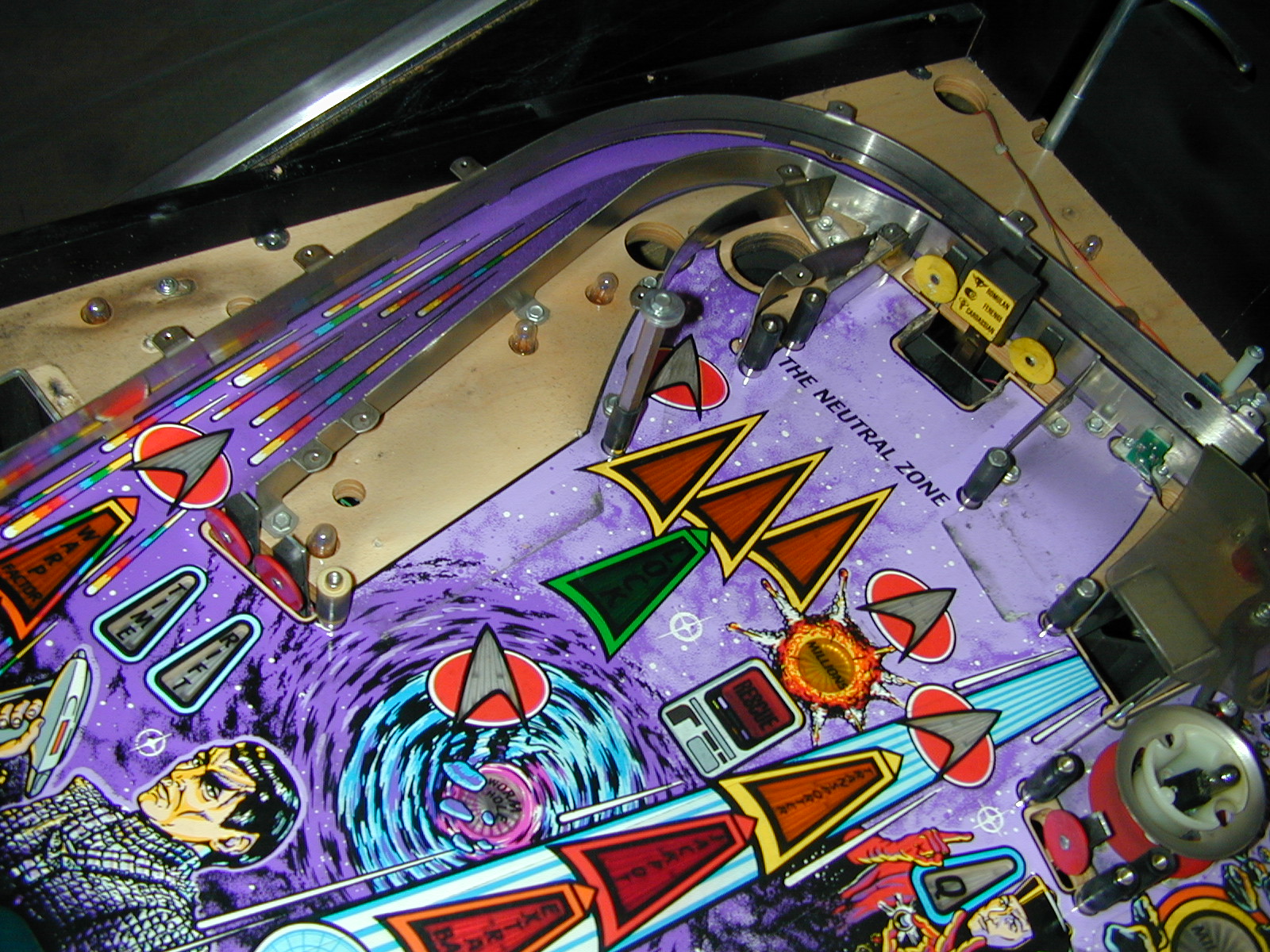

Four metal guides and one deflector around neutral zone  (install before subway ramp)		 46

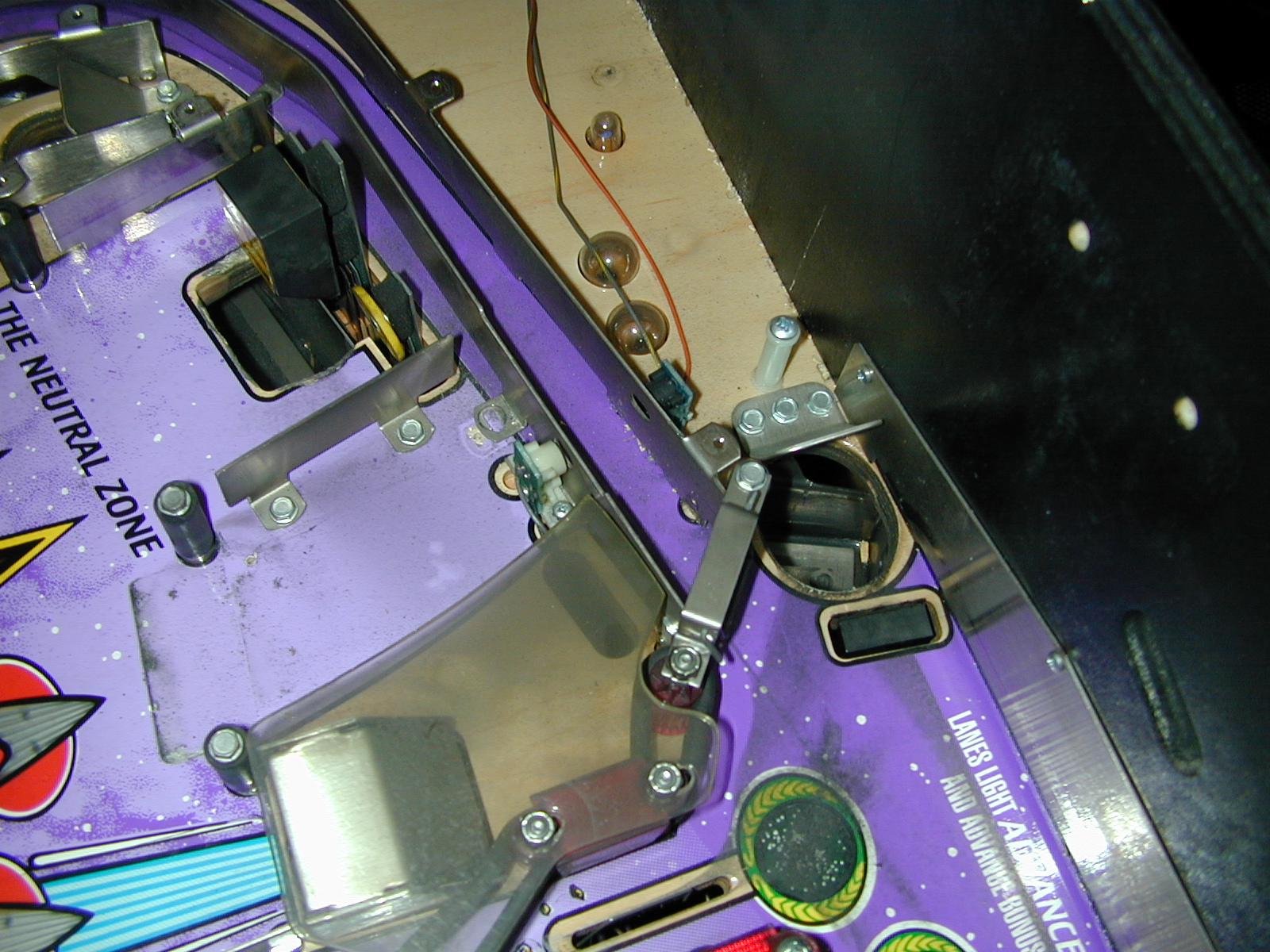

Clear plastics behind center scoop - 2 nuts		 47

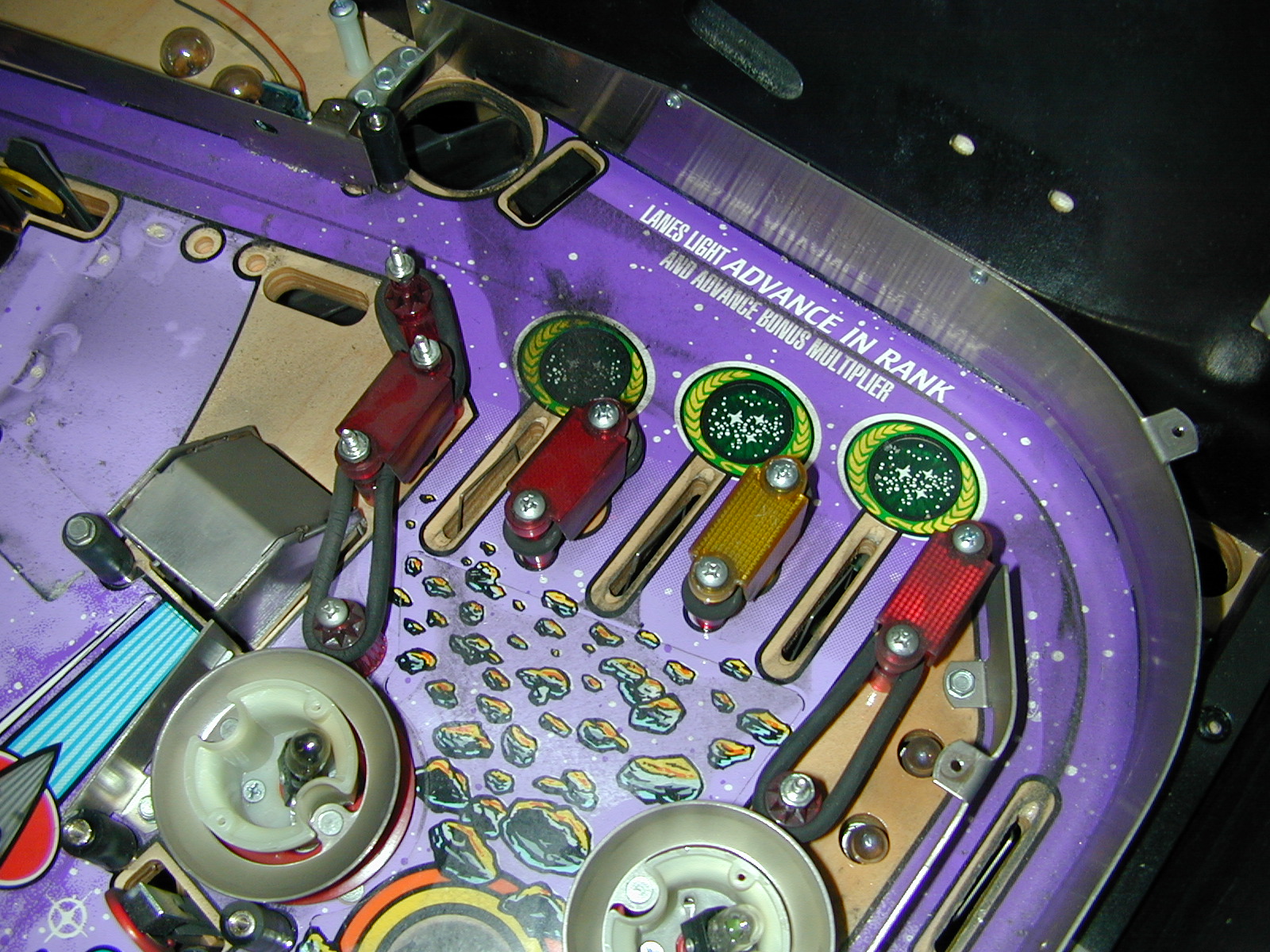

Upper rollovers guides and posts - 11 MS		 48

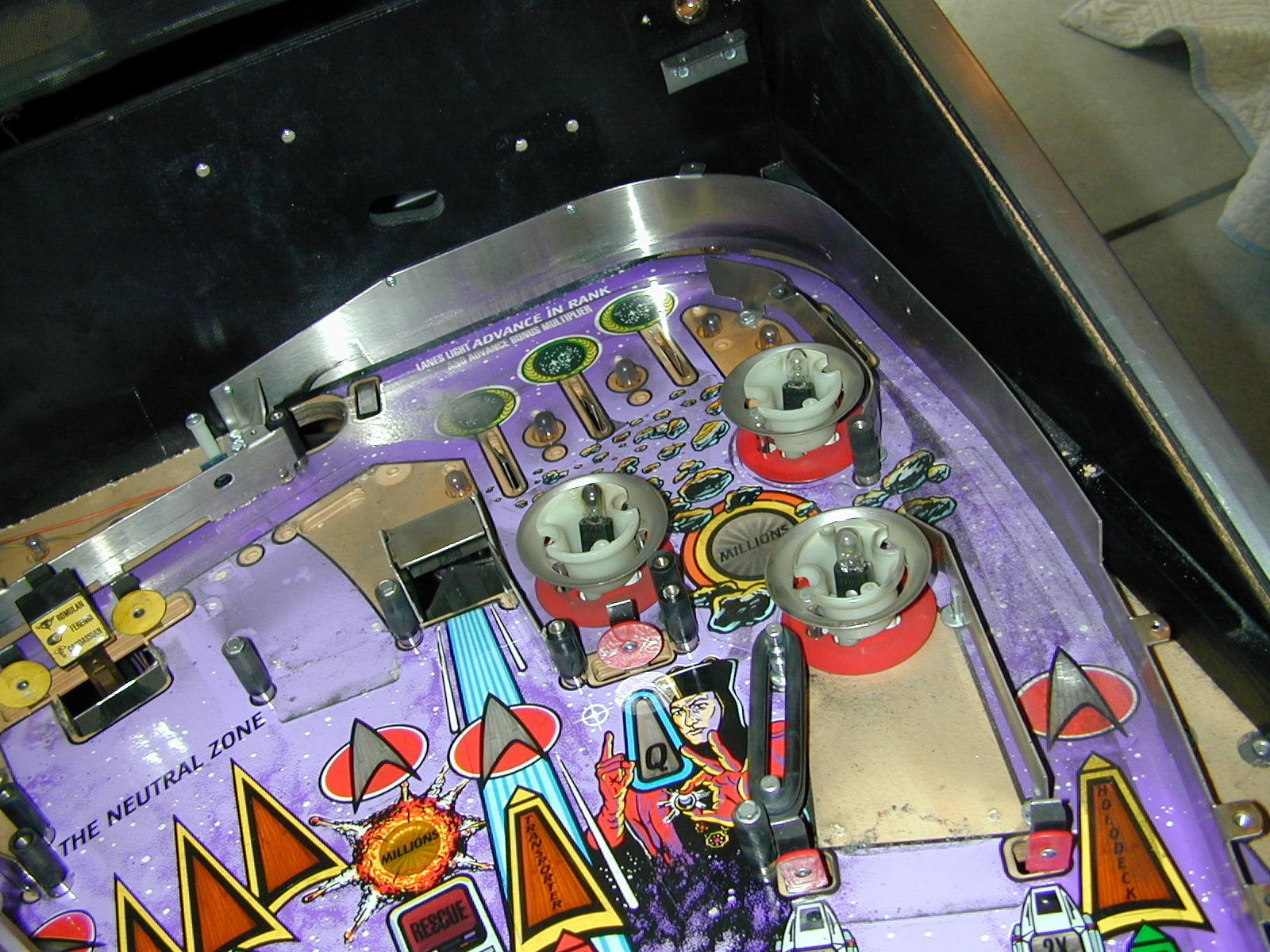

Right loop outer metal guide - 7 WS, 3 small WS
