Playfield Teardown Pictures

The Finished Product


Click to enlarge Click to enlarge Click to enlarge Click to enlarge

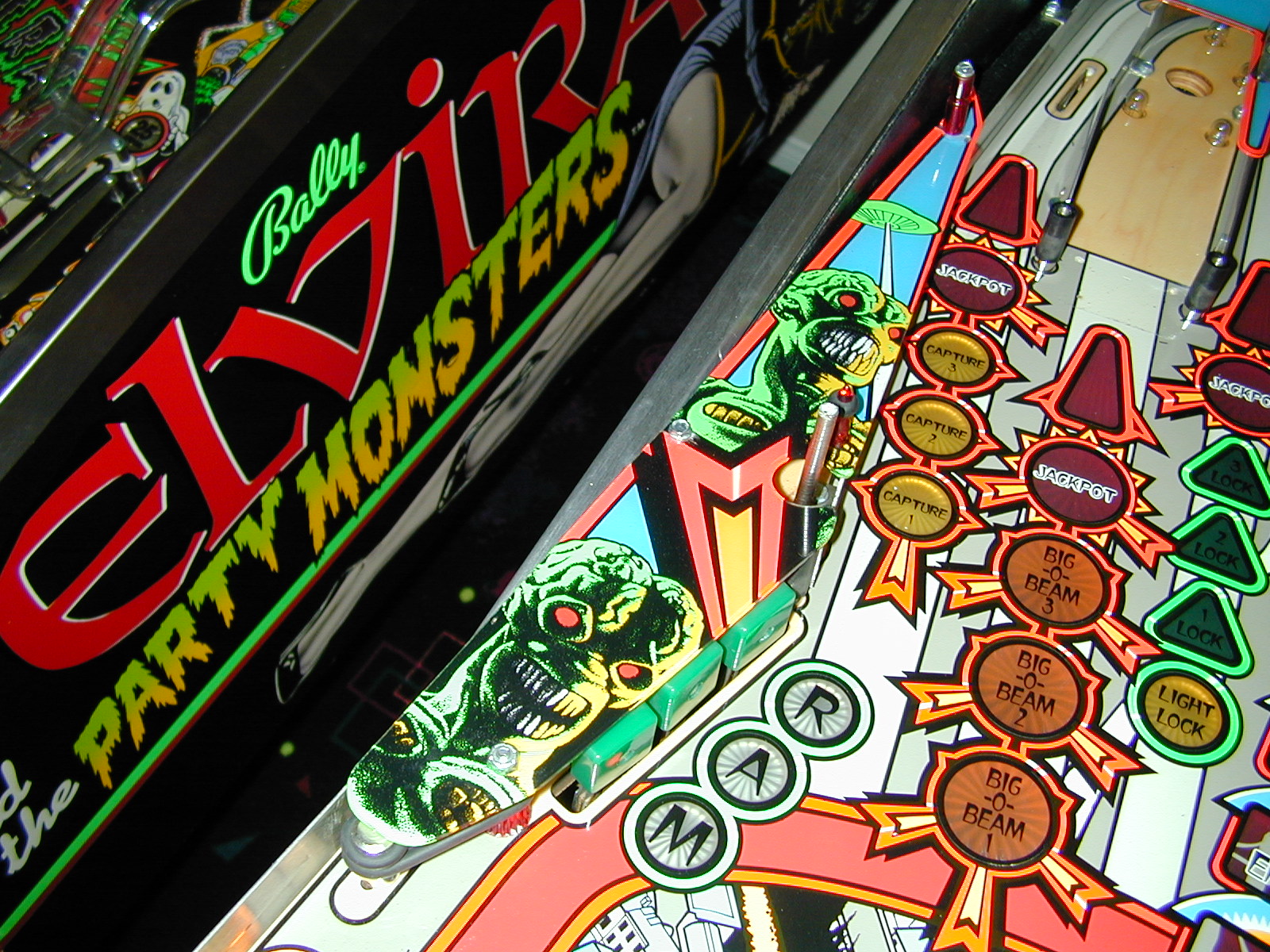

13
Left plastic ass'y - 1 nut, 1 WS, 1 WS on upper red post
14
Right plastic ass'y - 2 nuts

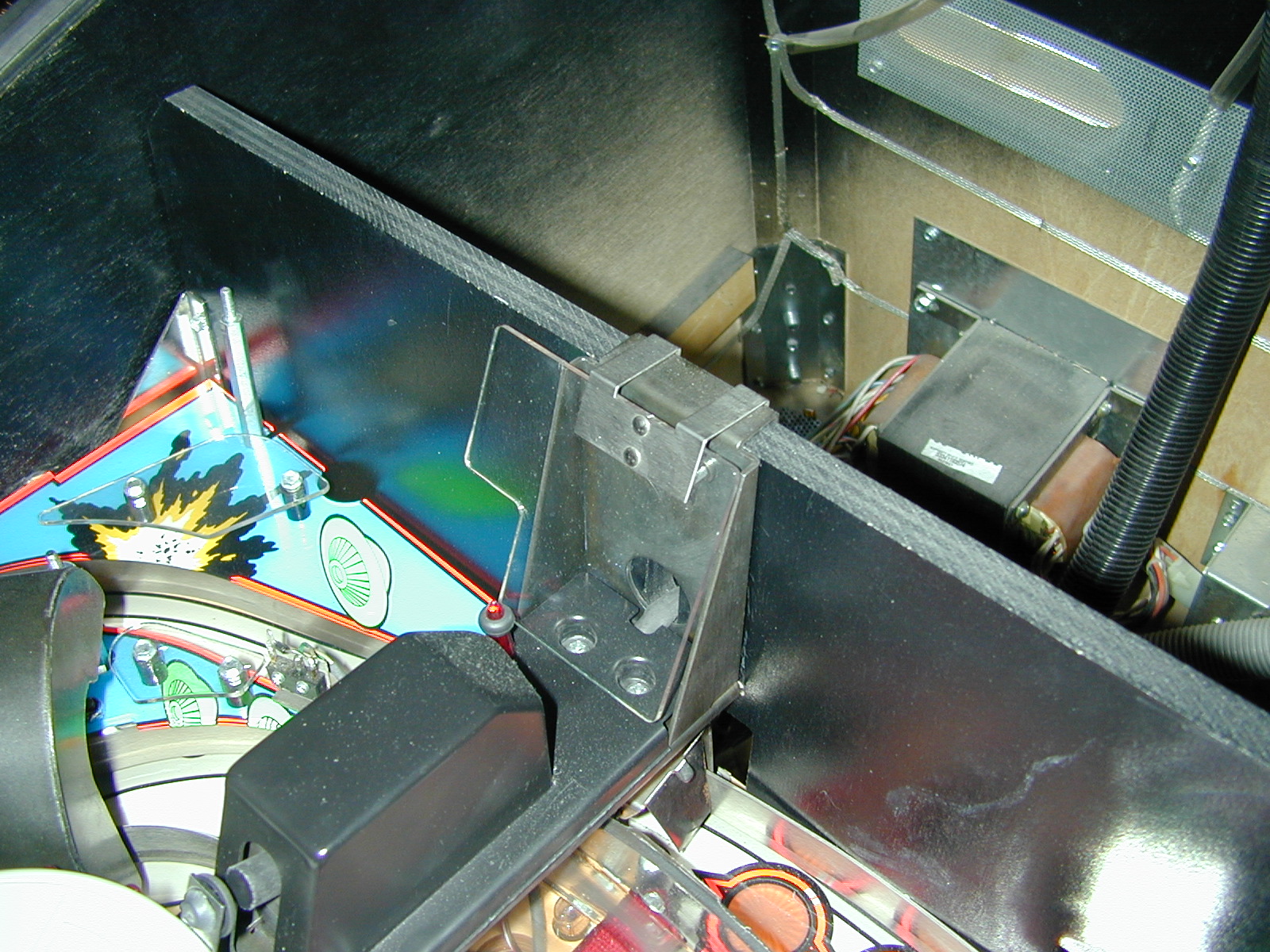

15
Center top clear plastic - 2 MS

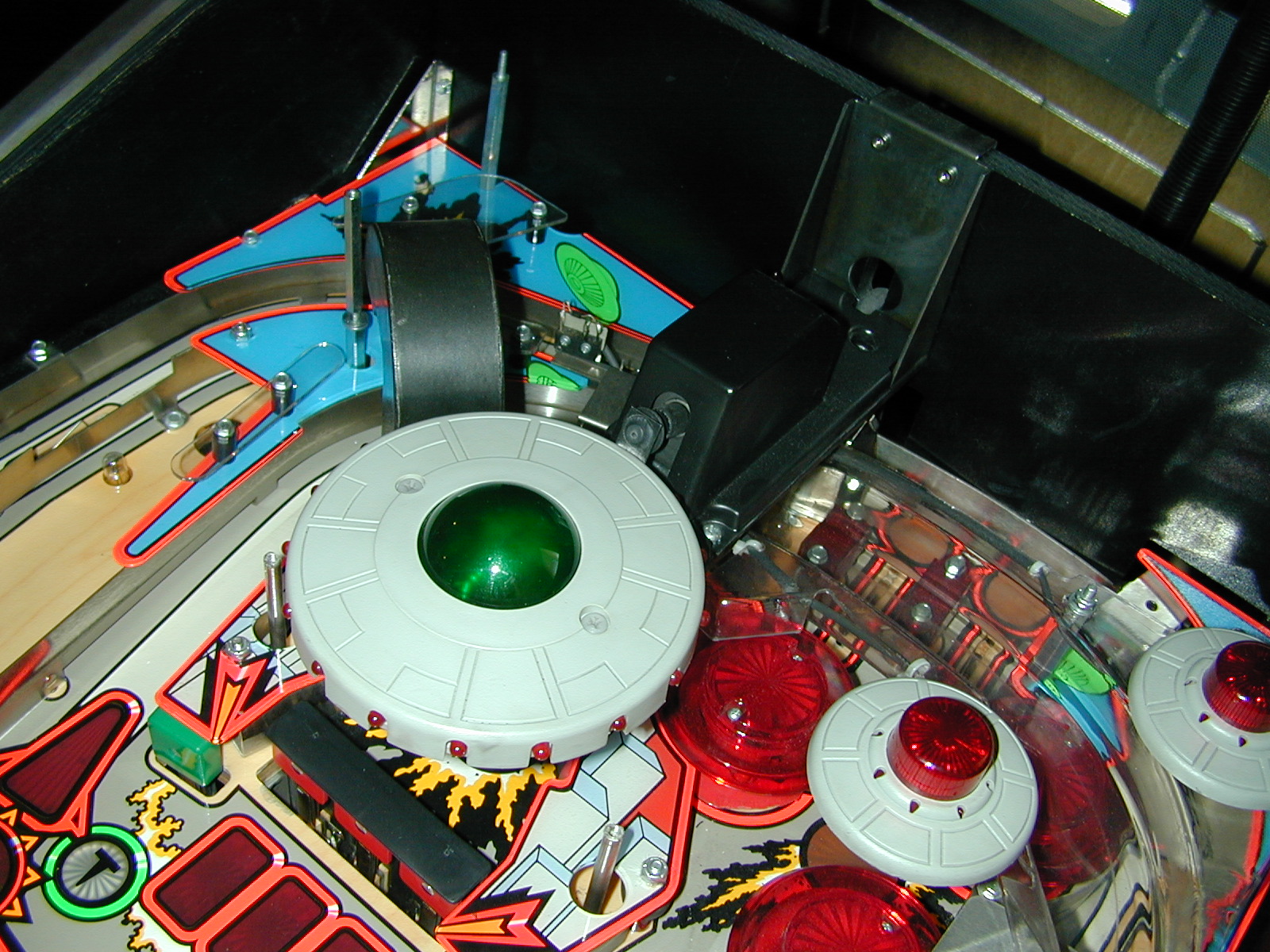

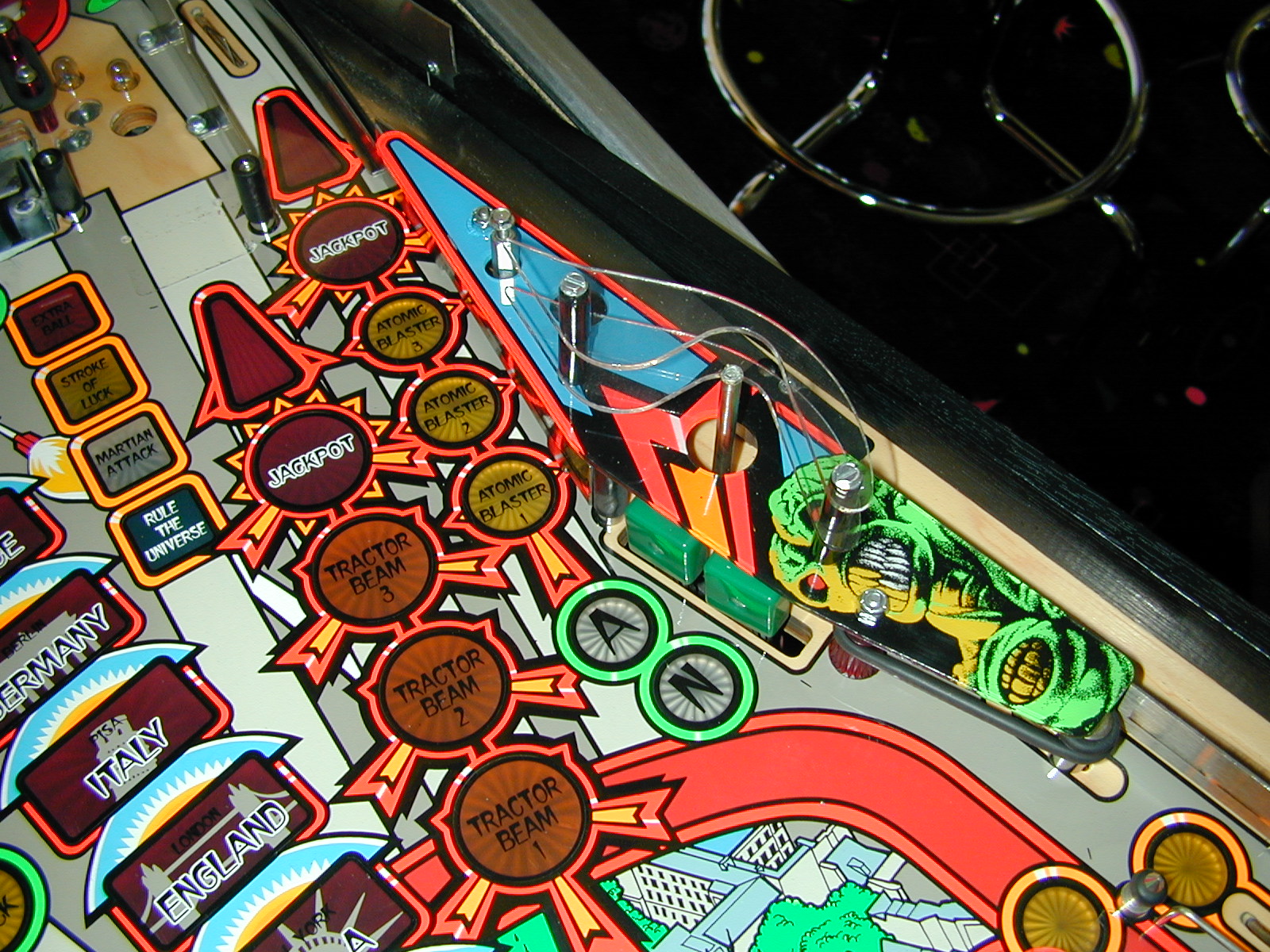

16
Saucer ass'y - clip tie down to strobe wires
Click to enlarge Click to enlarge Click to enlarge Click to enlarge

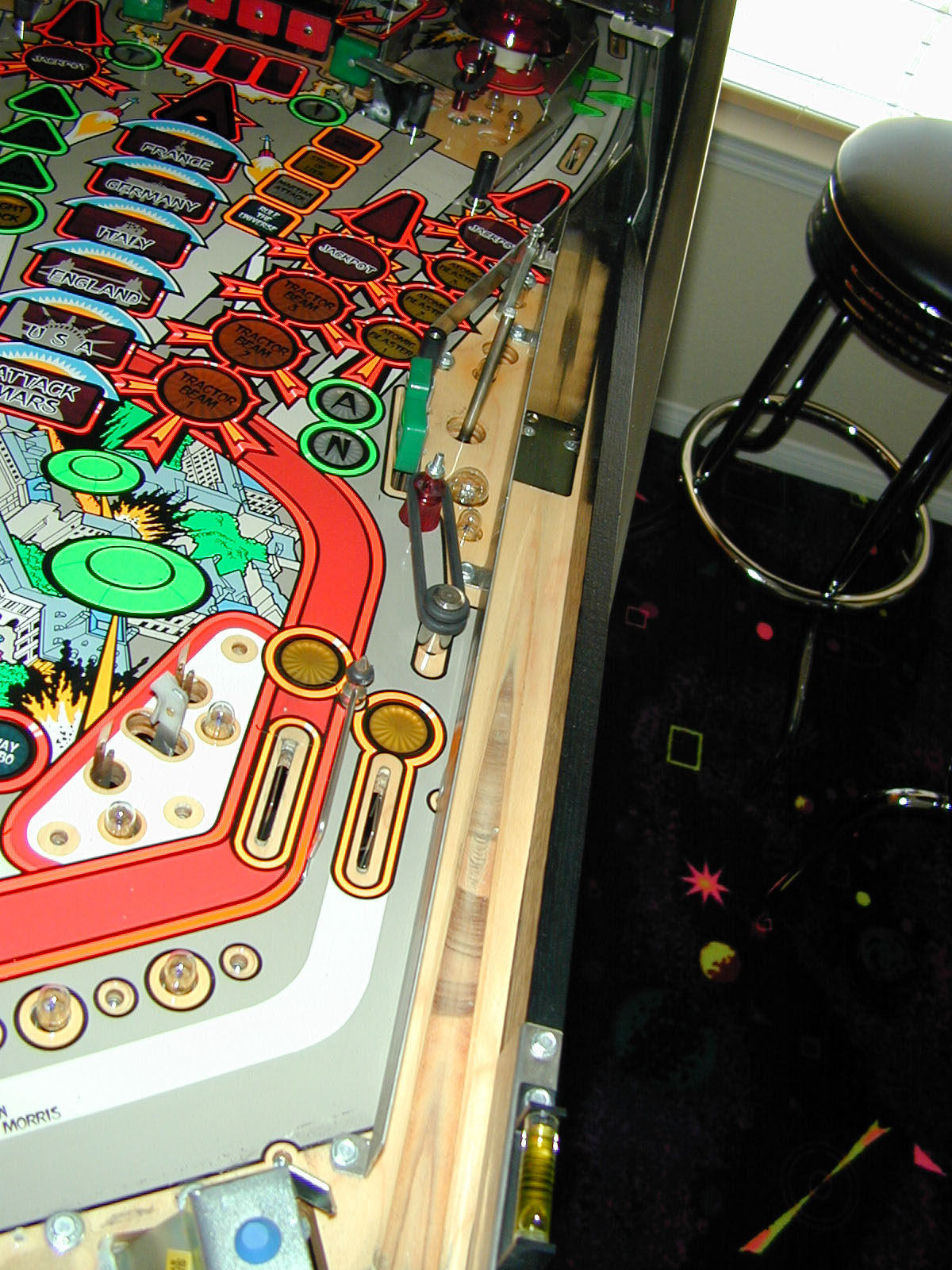

17
Metal guide to left of shooter lane - 3 WS, 1 nut/washer

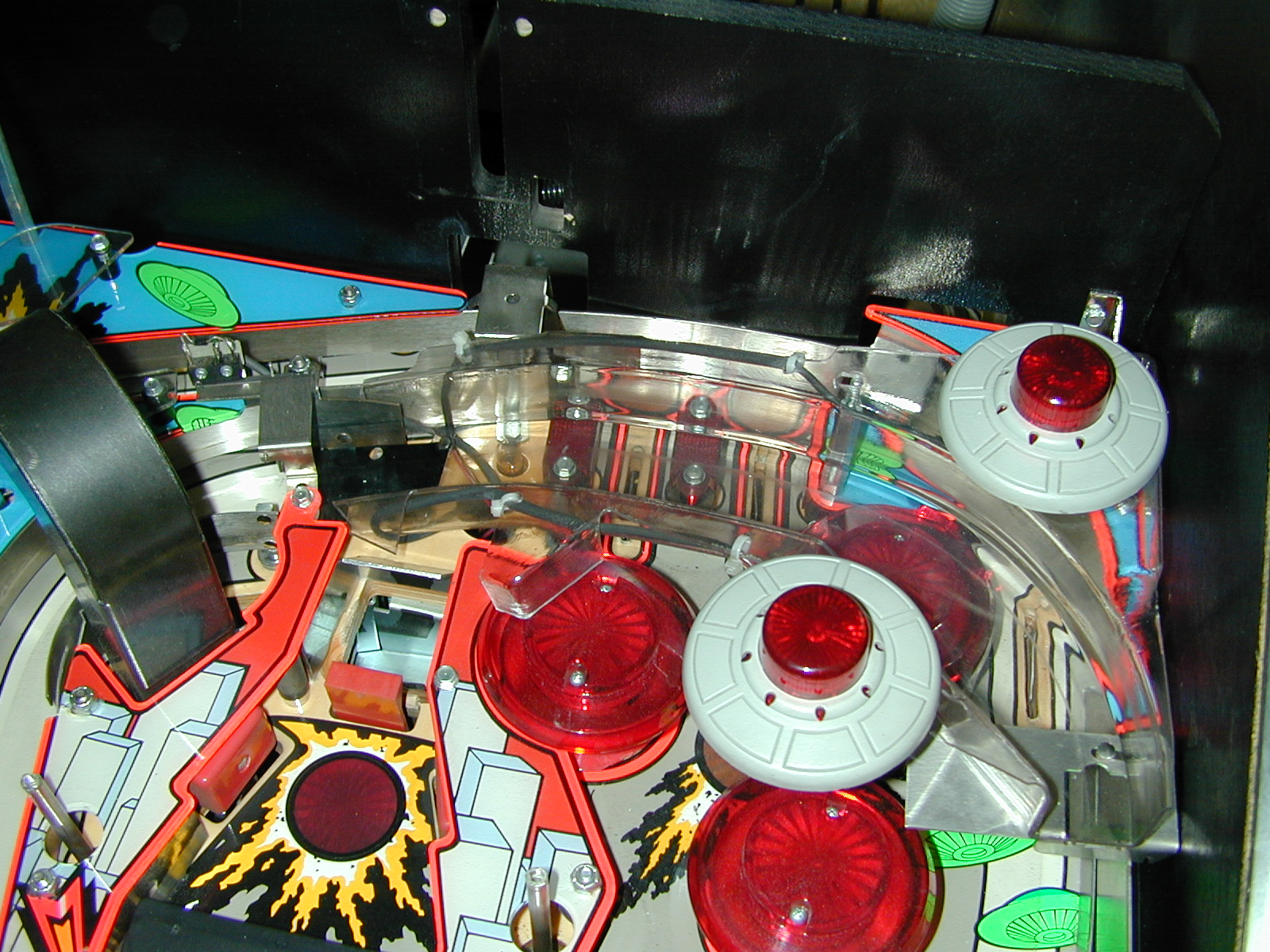

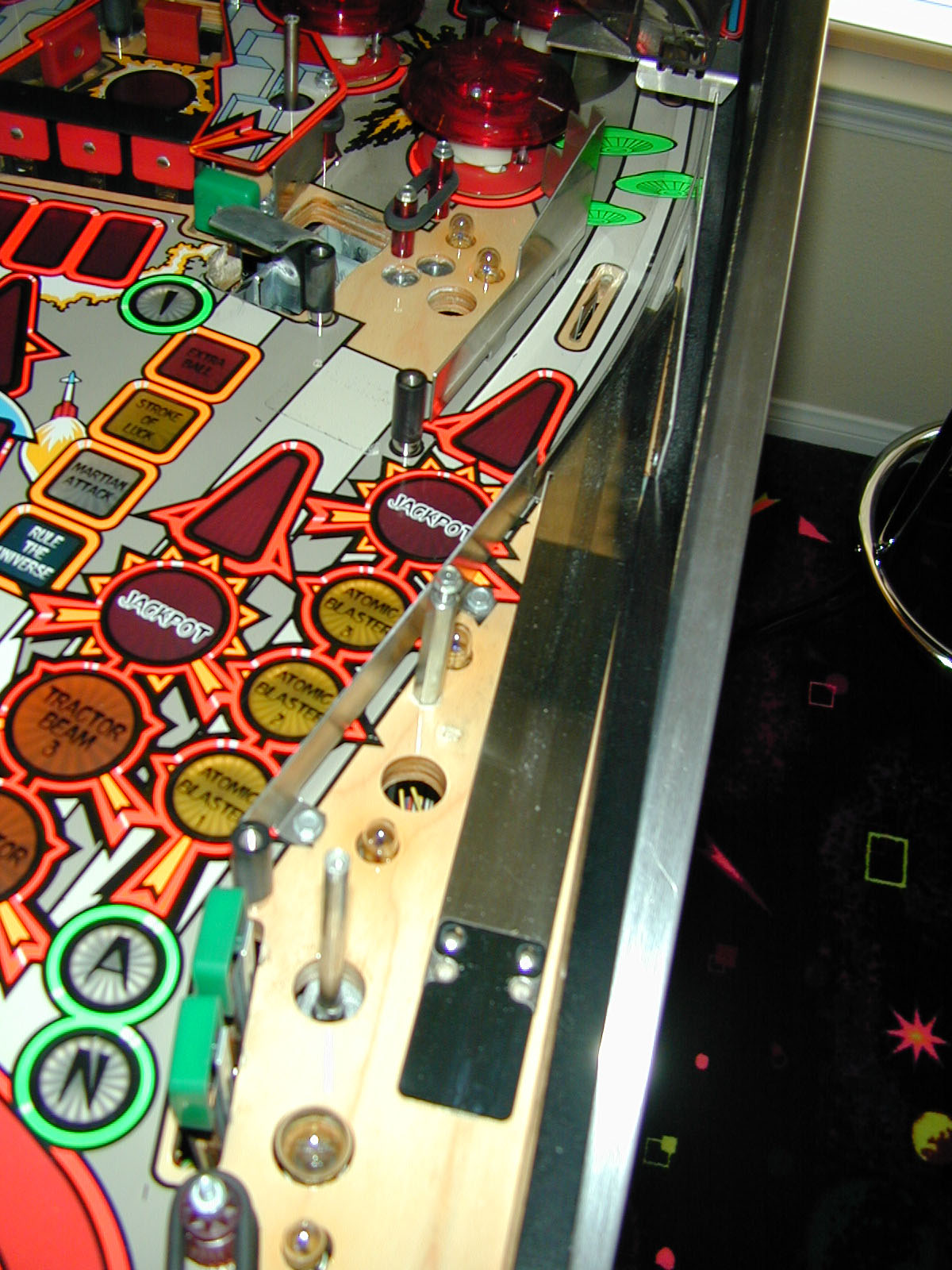

18
Shooter ramp - 2 small WS
19
Upper right plastic ramp - 2 small WS, 1 nut/washer

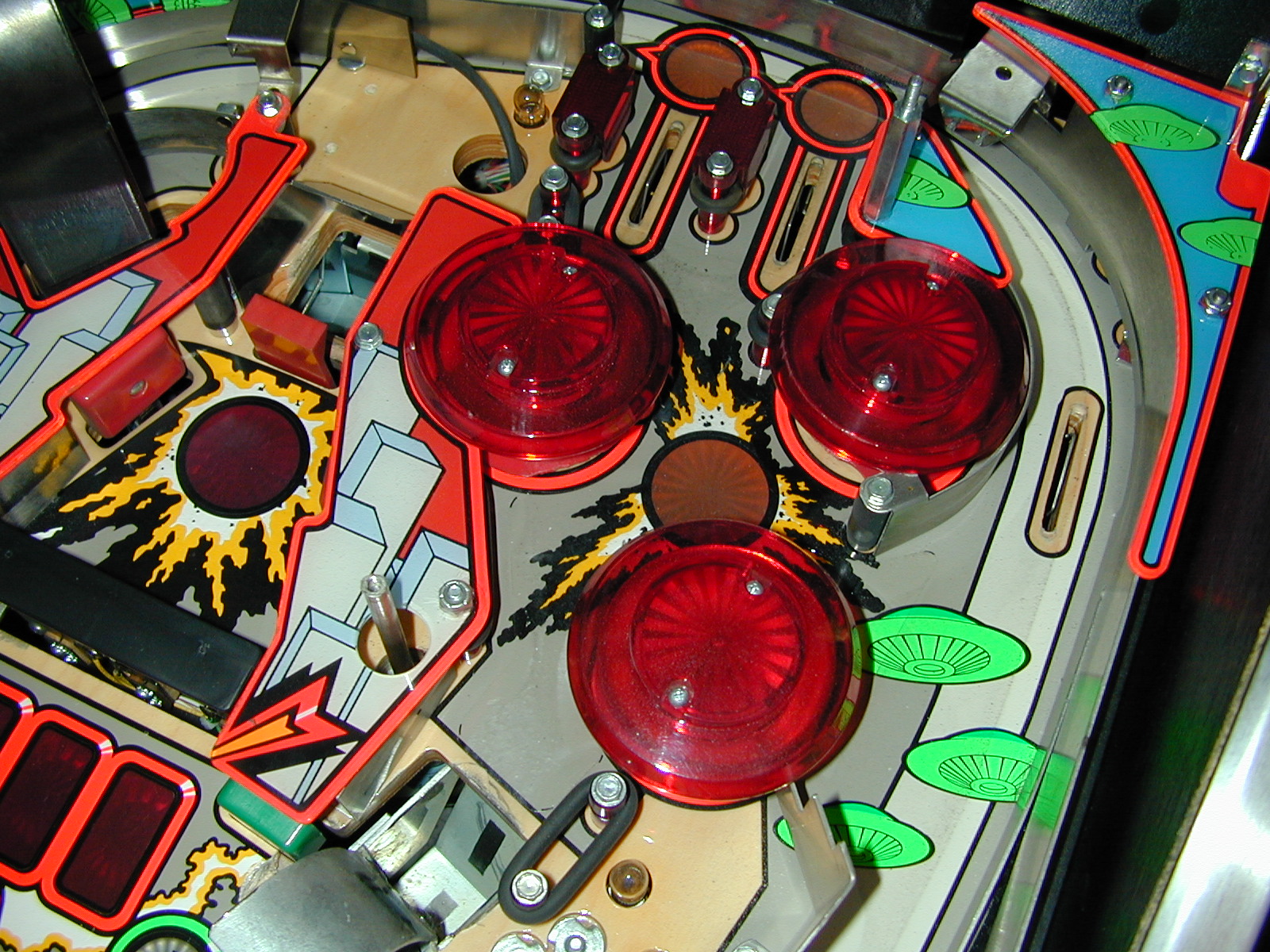

20
3 pop bumper caps - 6 WS
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
21
Plastic to right of center saucer - 1 MS, 1 nut

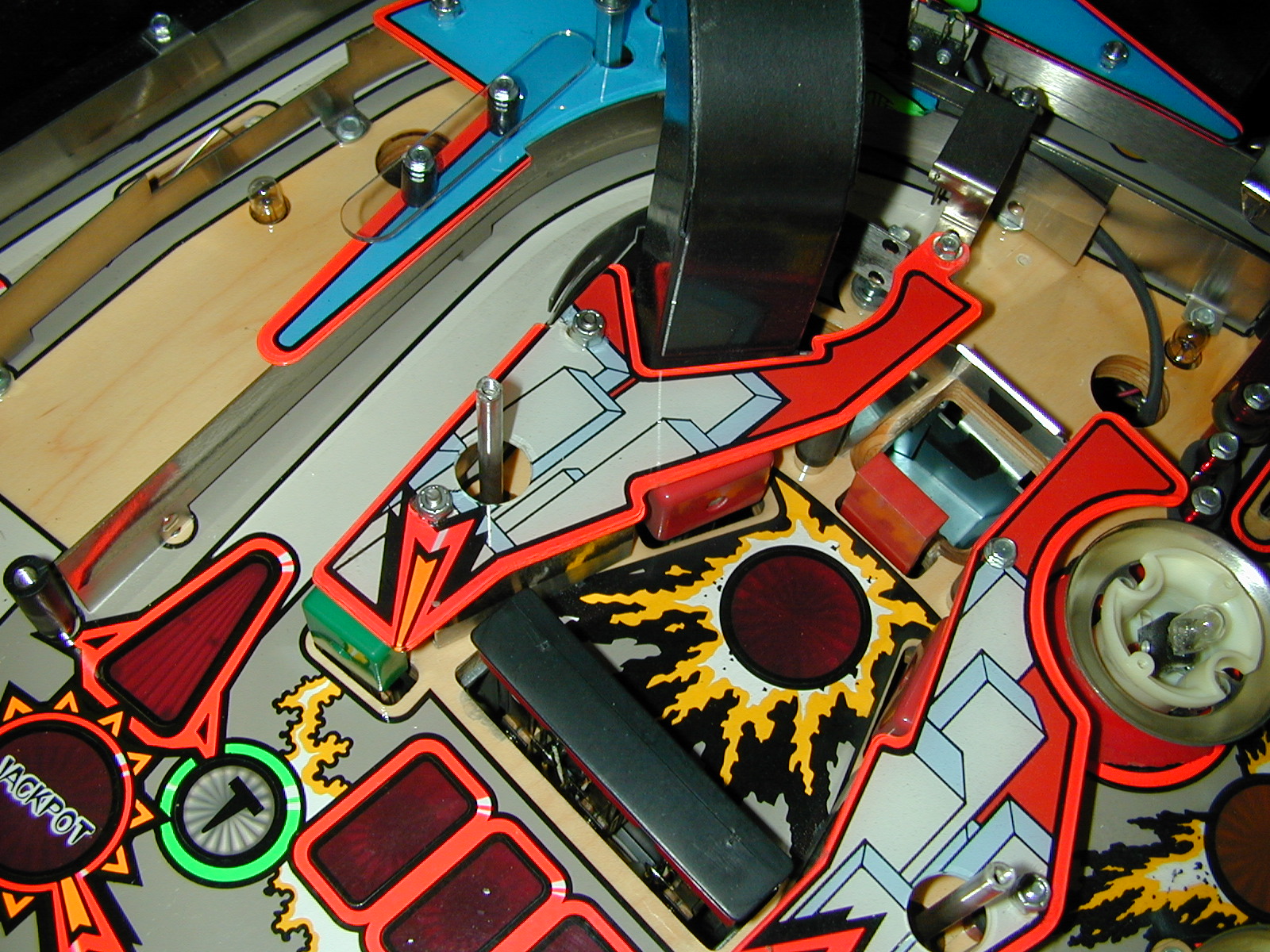

22
Plastic to left of center saucer - 1 MS, 2 nuts

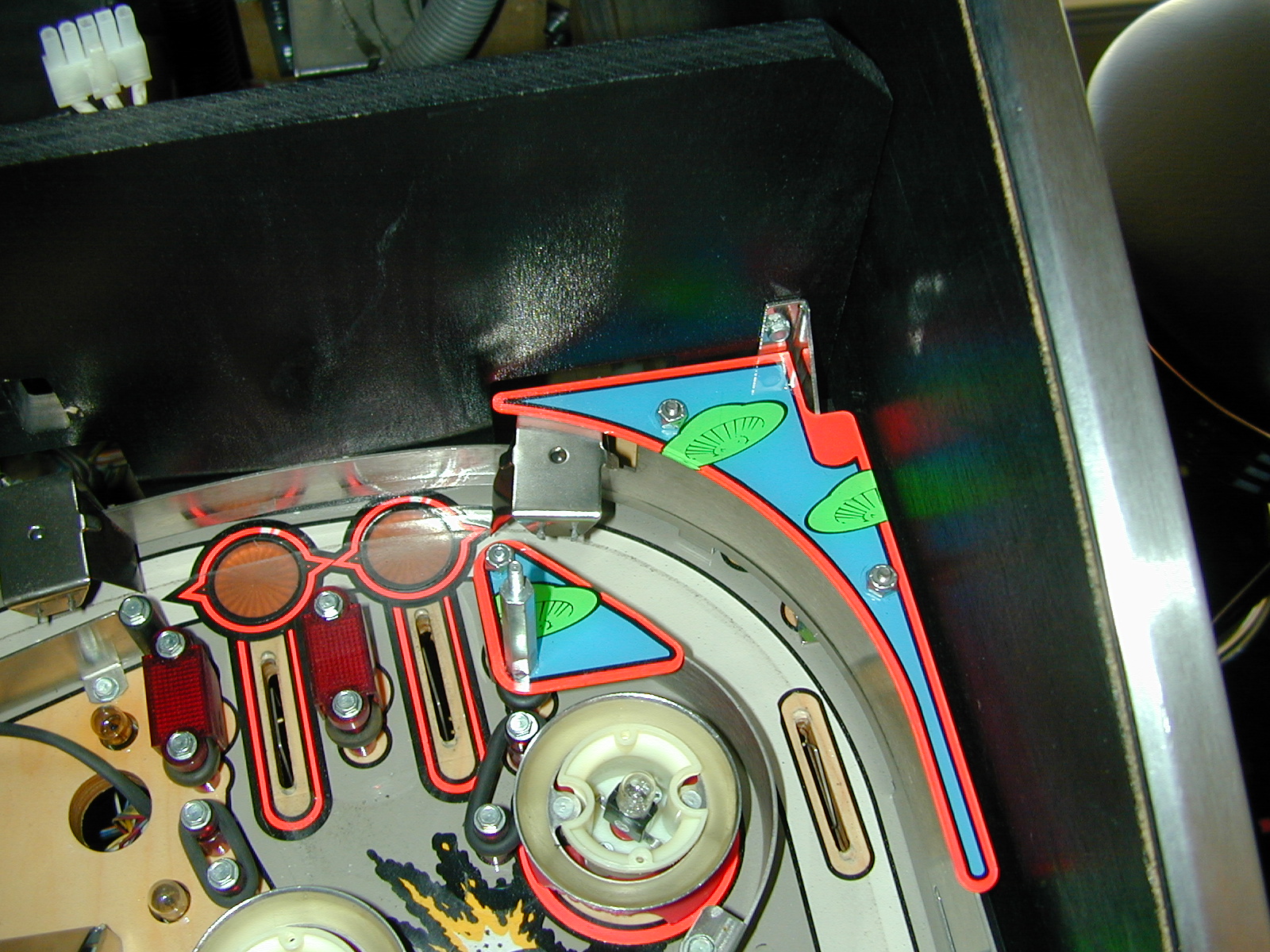

23
Upper right plastic - 2 nuts

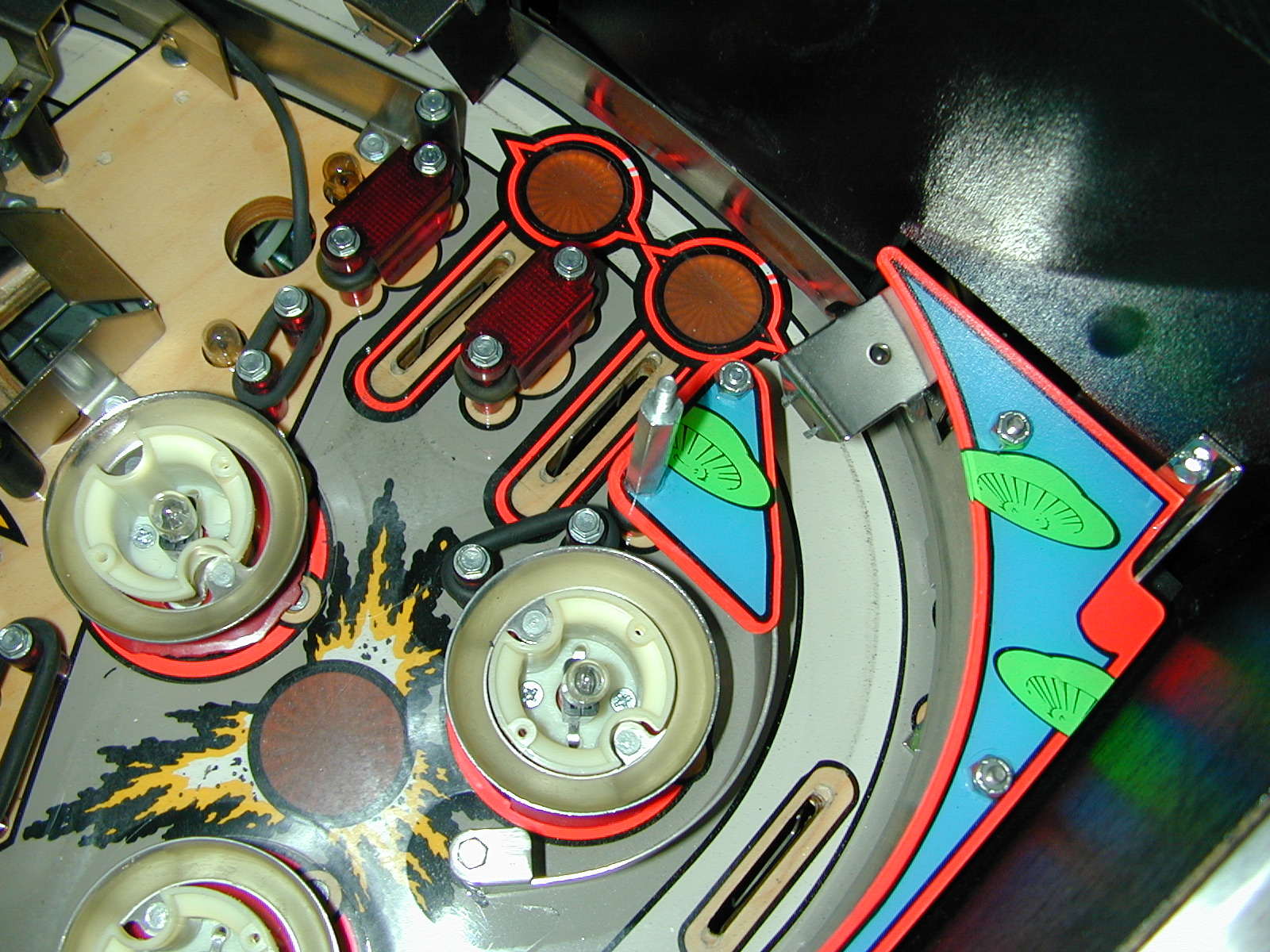

24
Plastic to right of rollovers - 1 nut upper, 1 standoff lower
