1

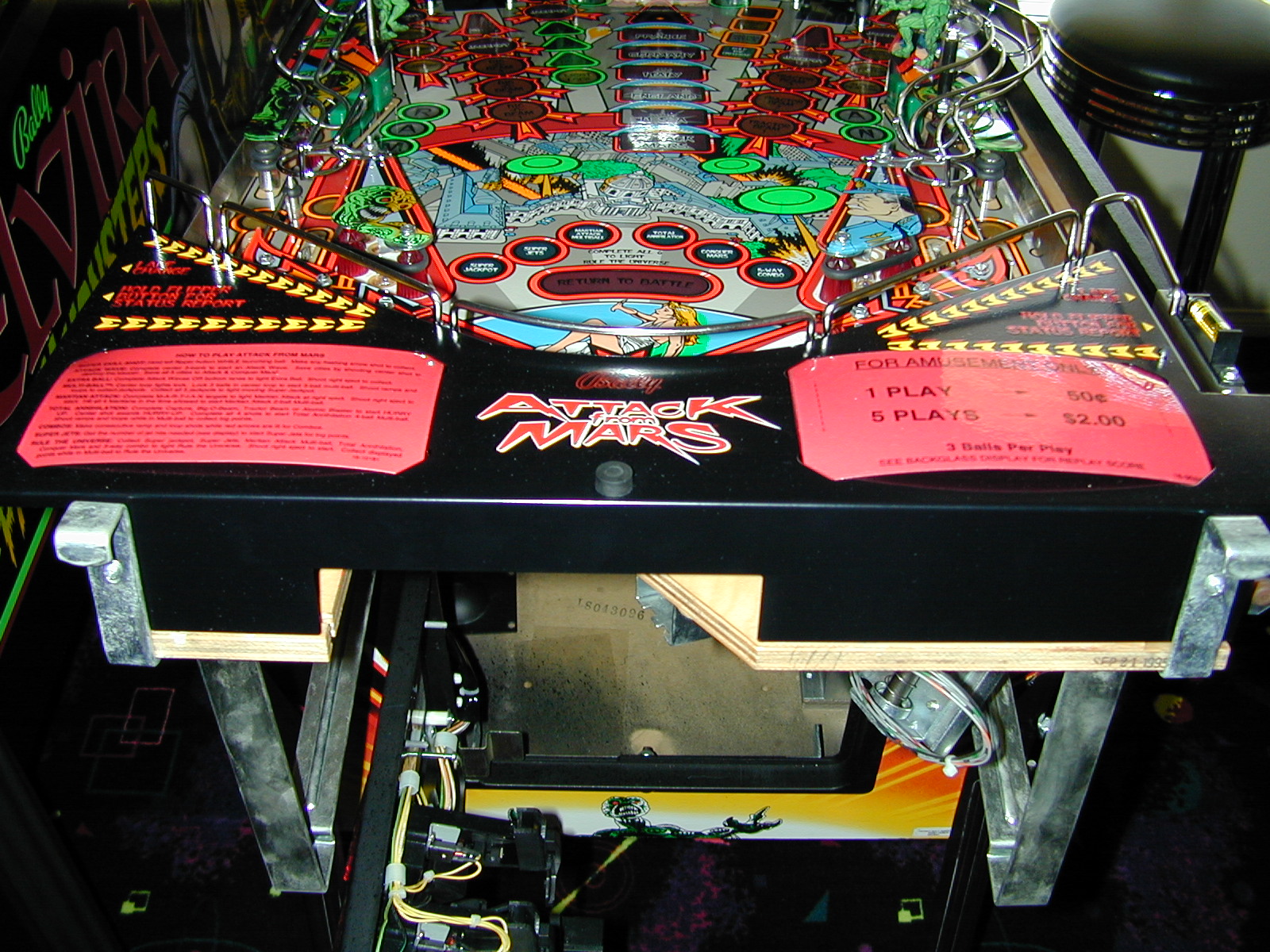

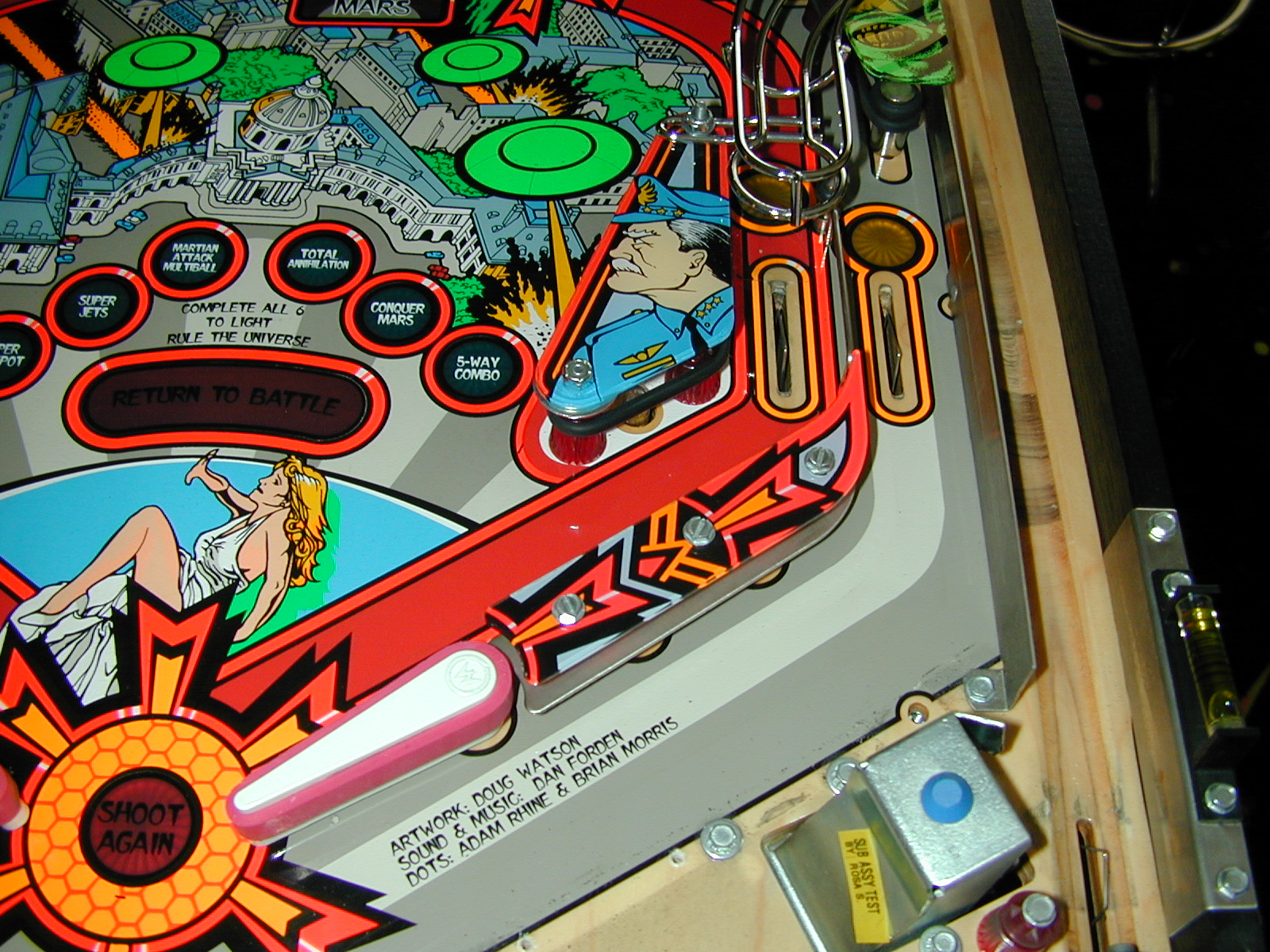

Apron - 2 wood/sheet metal screws (WS)
|
2

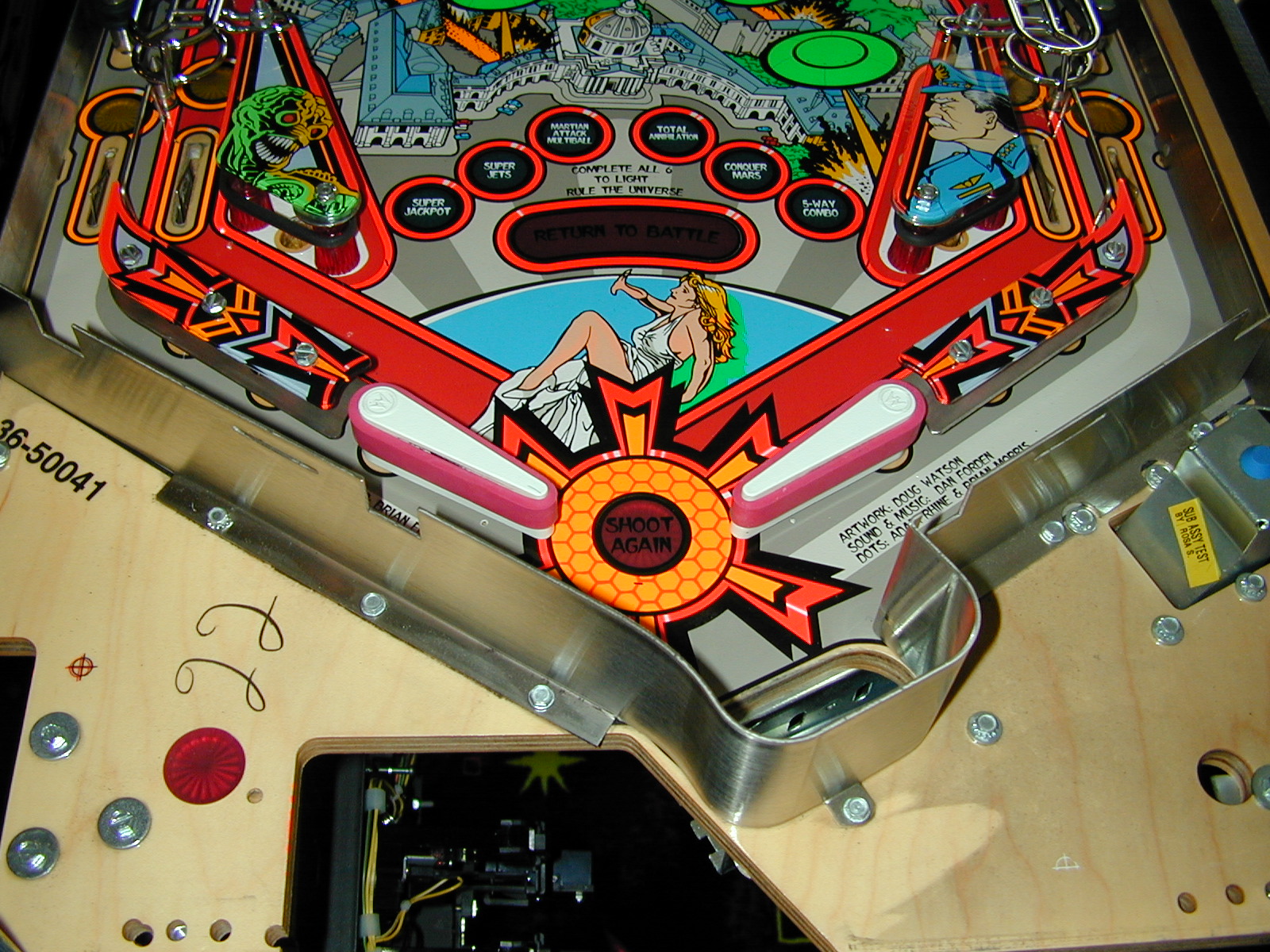

Ball return metal guide - 5 WS, 2 machine screws (MS)
|
3
Right inlane ass'y - 3 MS
|
4
Left inlane ass'y - 3 MS
|
 |
 |
 |
 |
5

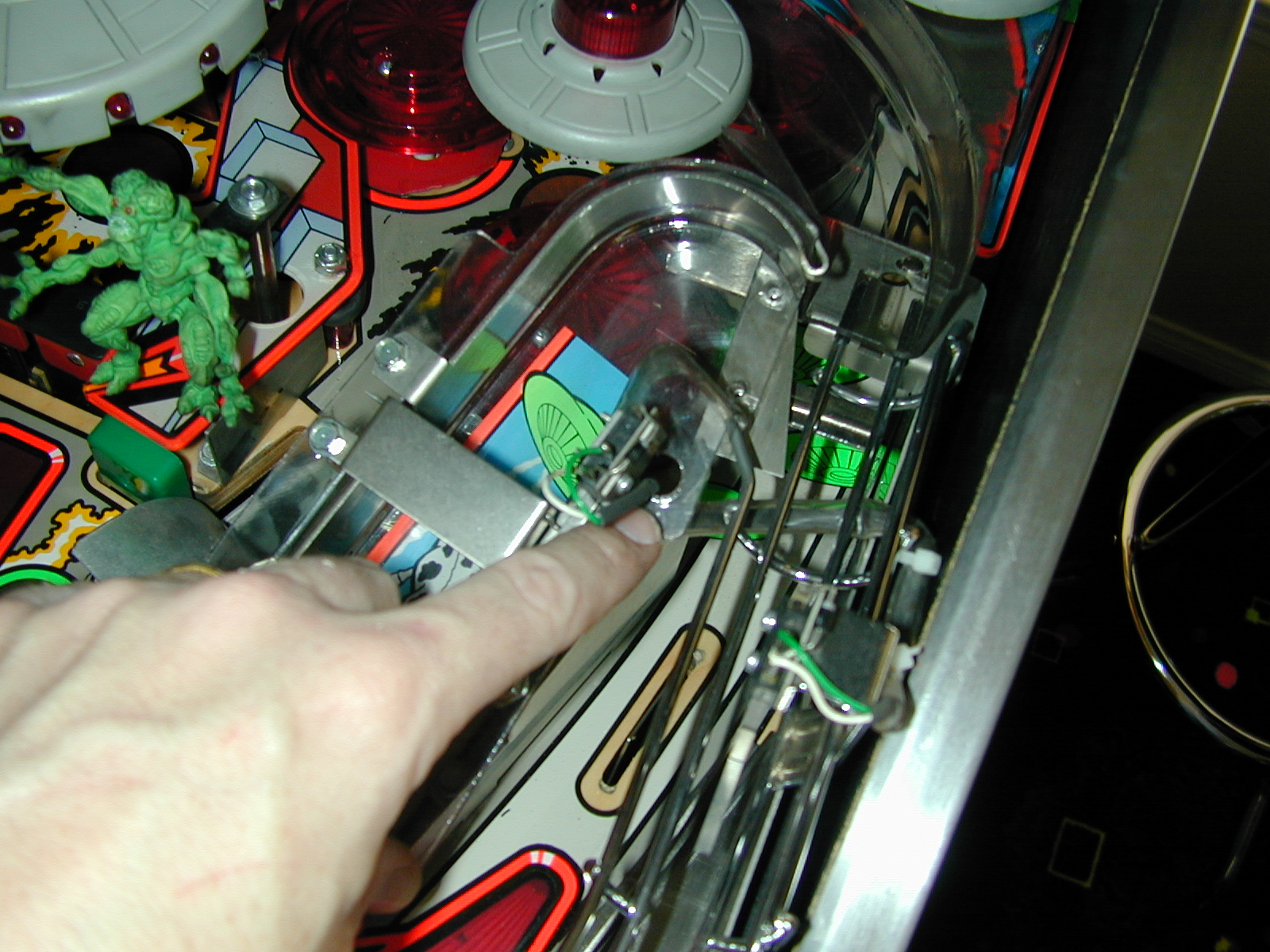

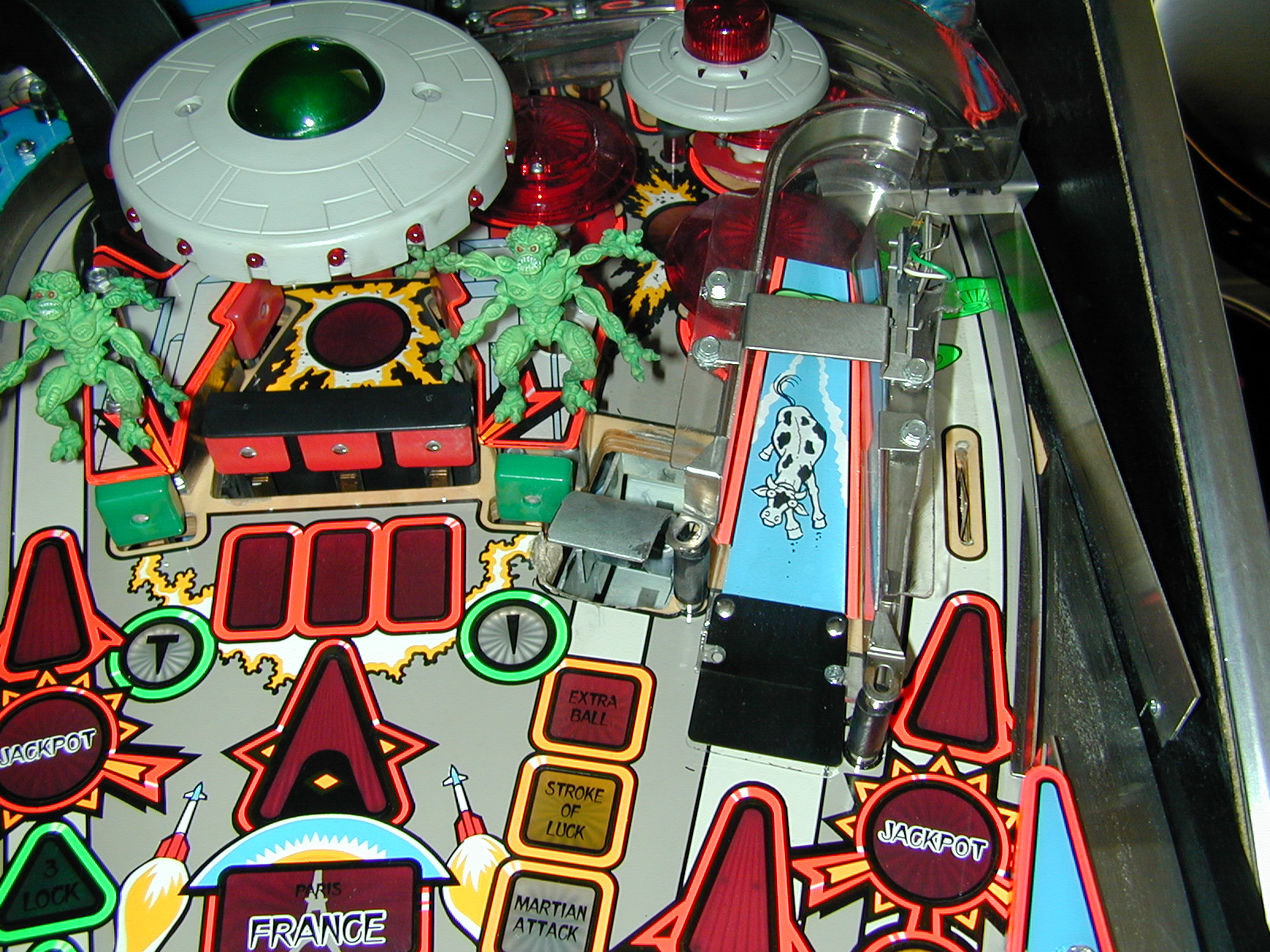

Right wire ramp - 2 small WS with shim, 1 nut with washer,1 MS,
2 connectors (CON)
|
6
Let wire ramp - 1 nut with washer, 1 MS, 1 standoff
|
7

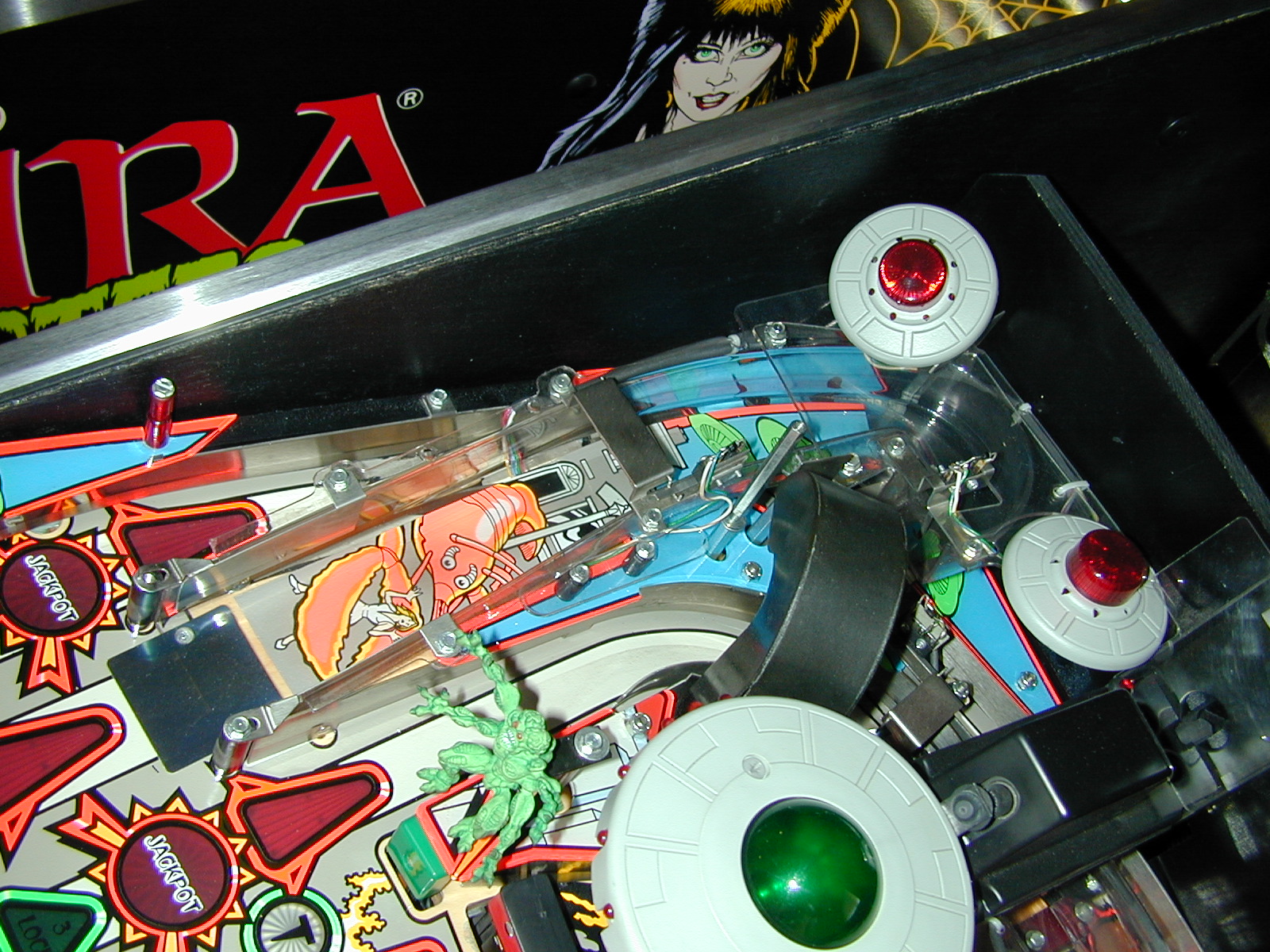

Right plastic ramp - 2 small WS, 2 MS, 1 CON
|
8
Left plastic ramp - 2 small WS, 2 MS
|
 |
 |
 |
 |
9
Metal guide at top of left plastic ramp
|
10

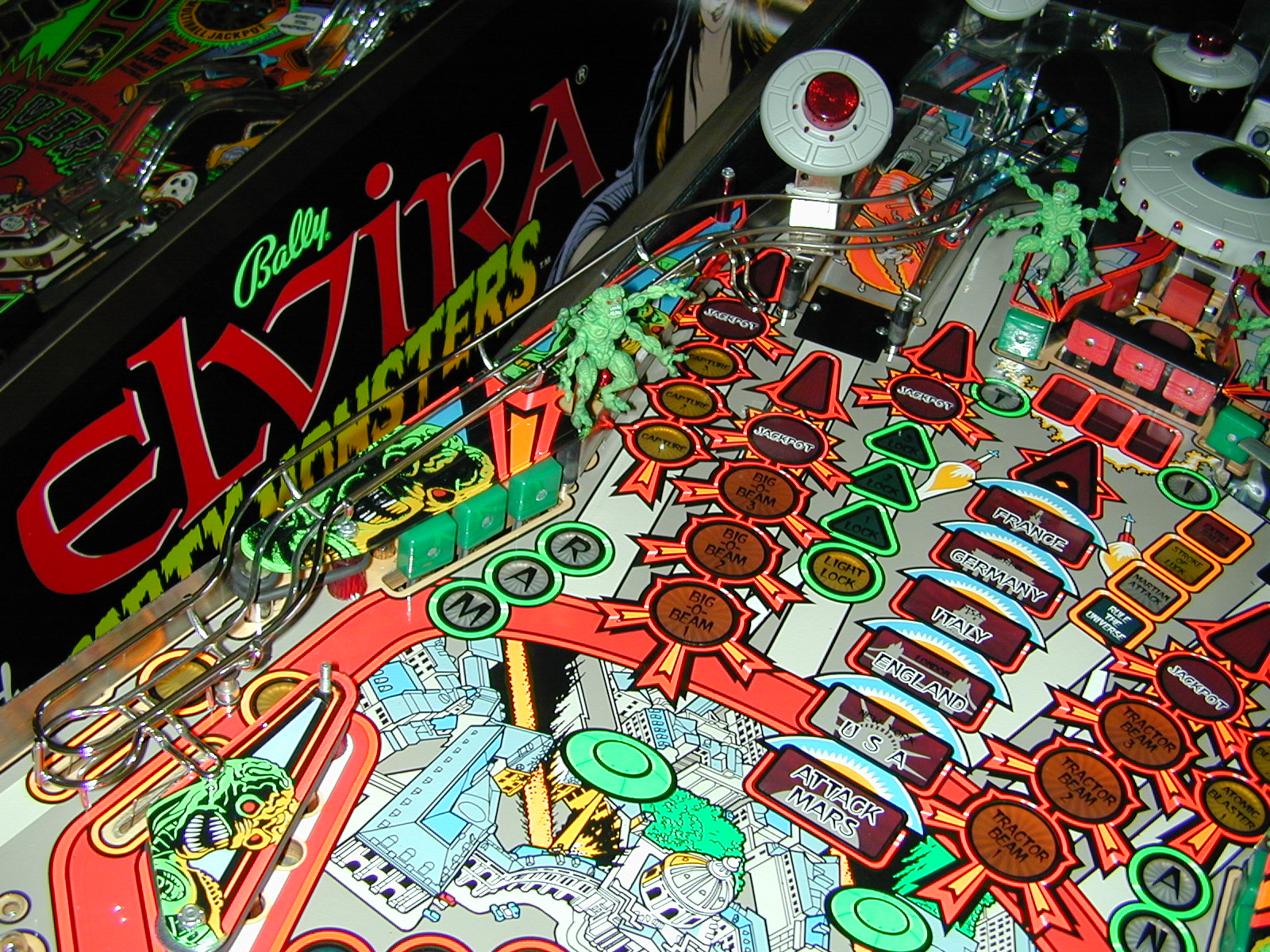

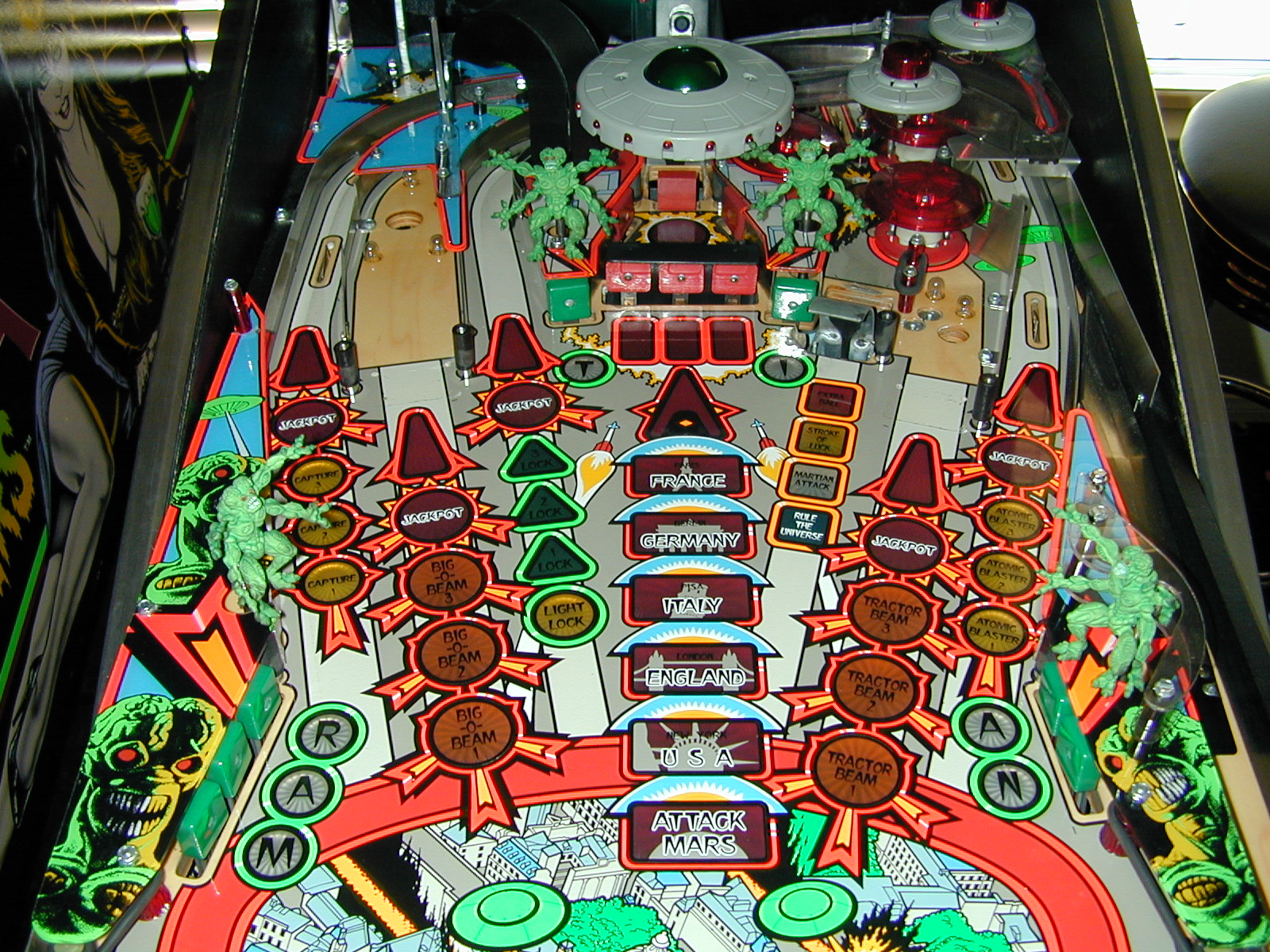

4 martians and brackets- 4 MS with washers
|
11

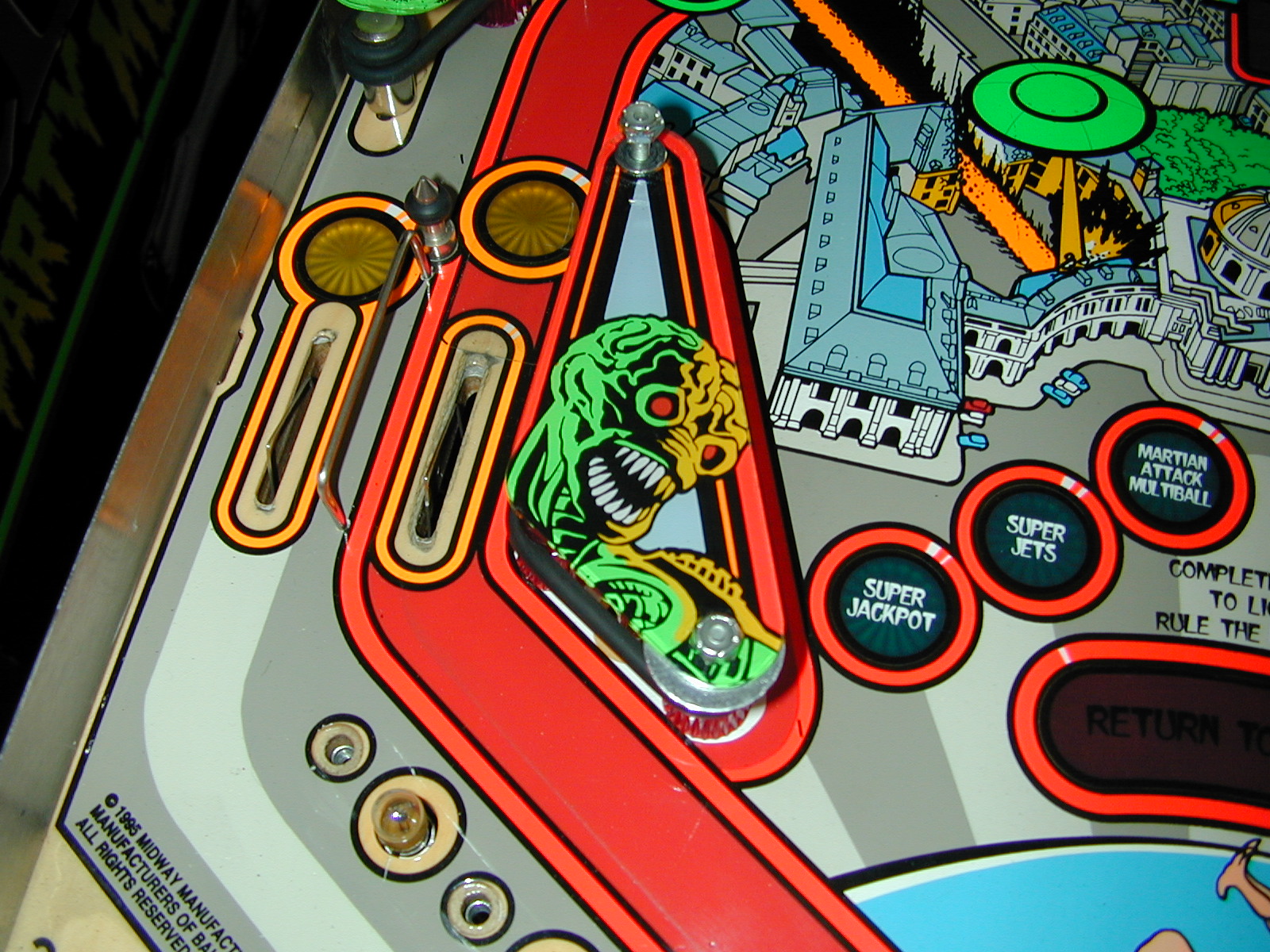

Left sling ass'y - long stud on top, short stud on bottom
|
12

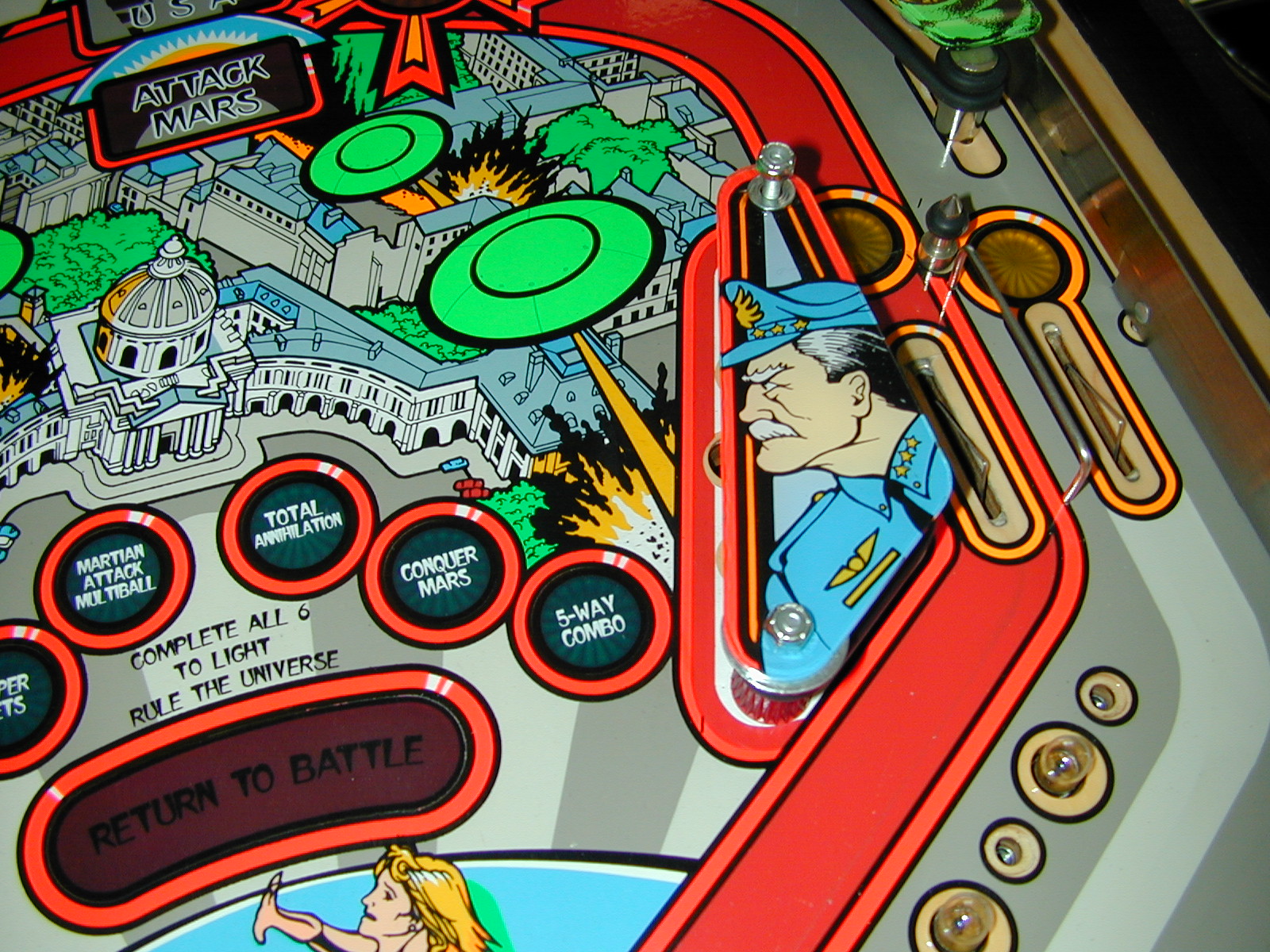

Right sling ass'y - long stud on top, short stud on bottom
|
