 Champion Pub Playfield Teardown

    [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
1

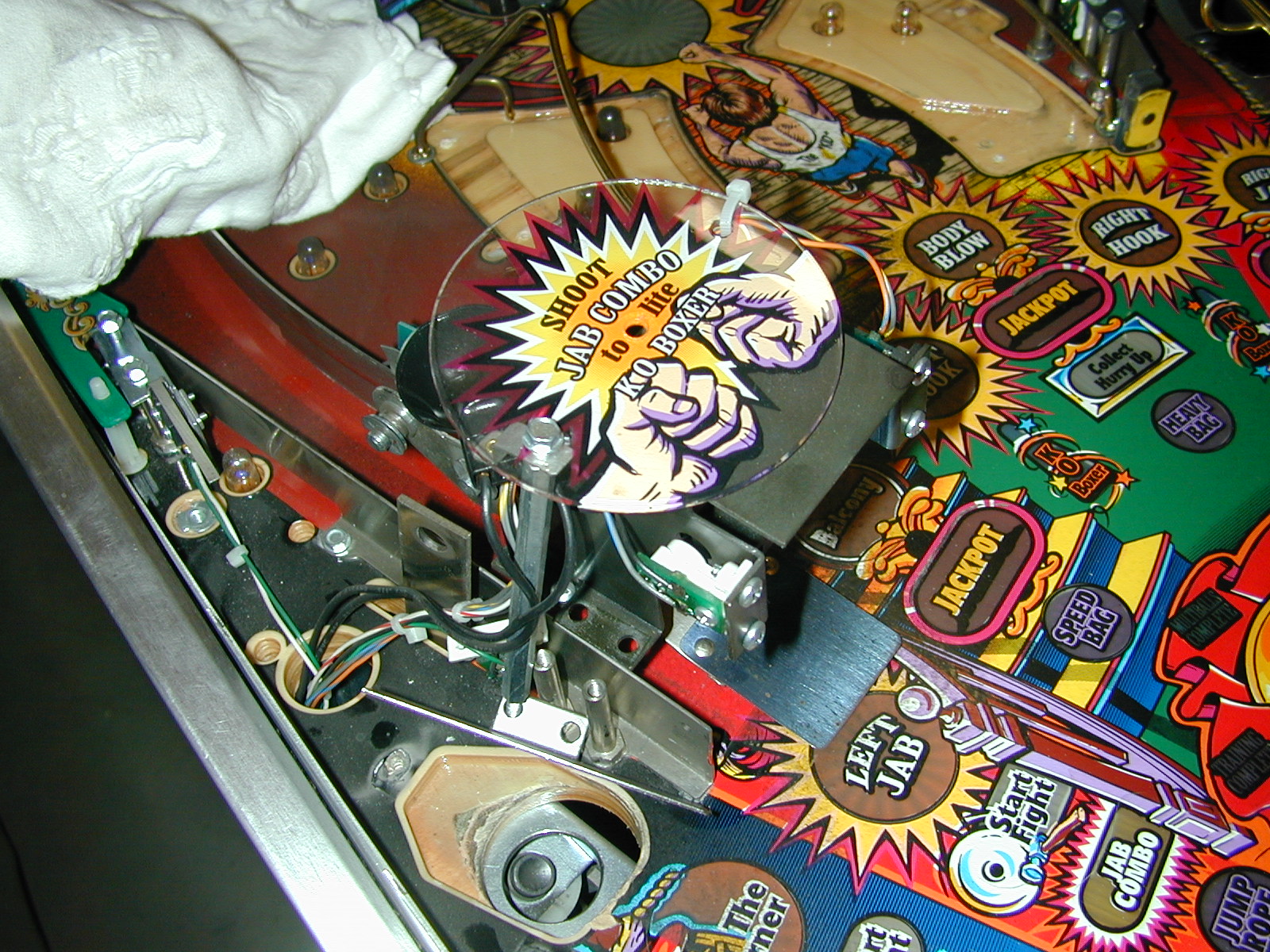

Top center ramp diverter - 2 machine screws (MS)		 2
Main ramp - 1 connector (CON), 4 MS, 2 small wood screws (WS)		 3

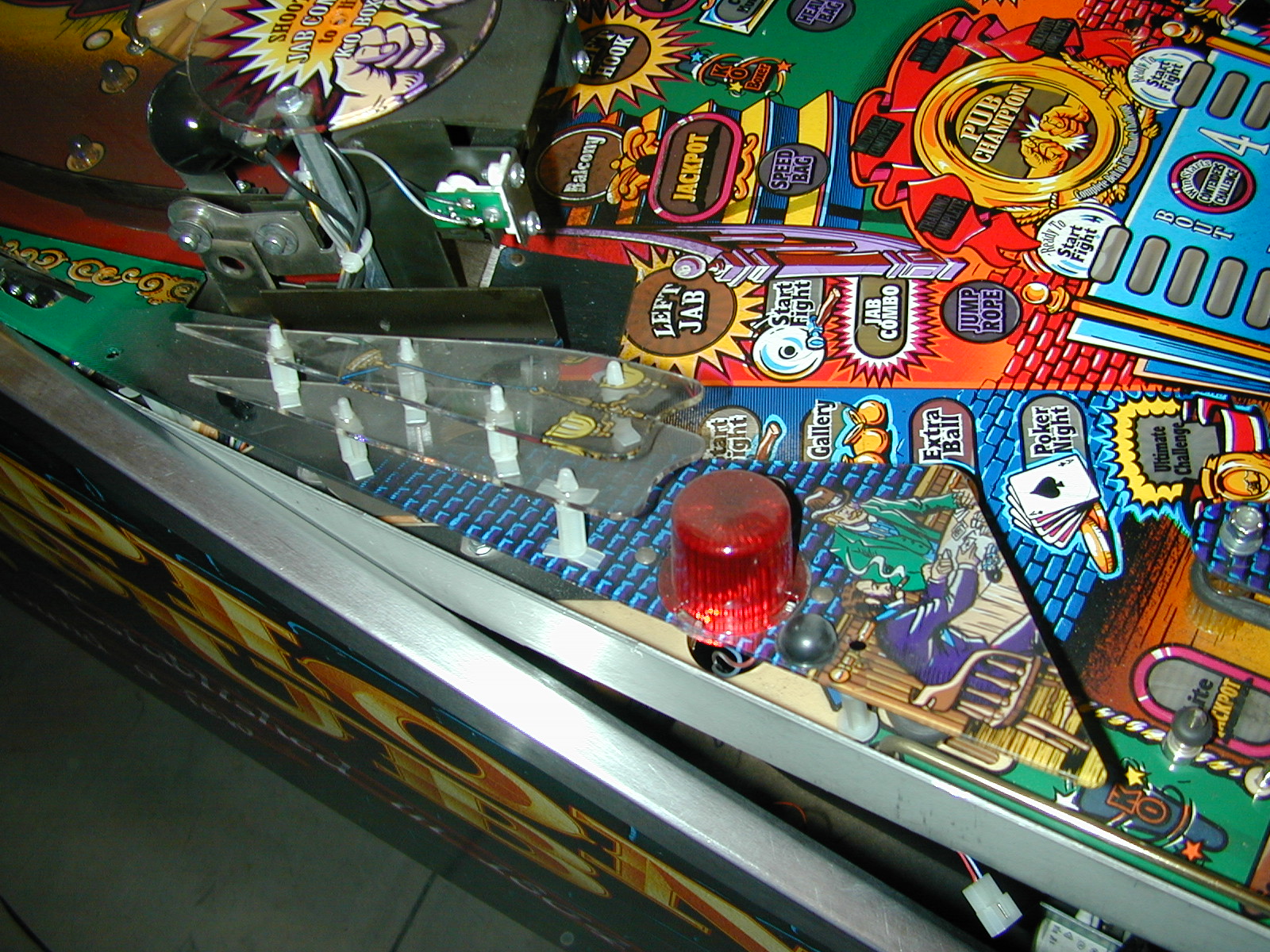

Plastics behind left punch ramp - 4 standoffs		 4
Left punch ramp - 2 WS, 2 small WS
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
5
Plastic behind right punch ramp - 3 standoffs, 1 CON		 6

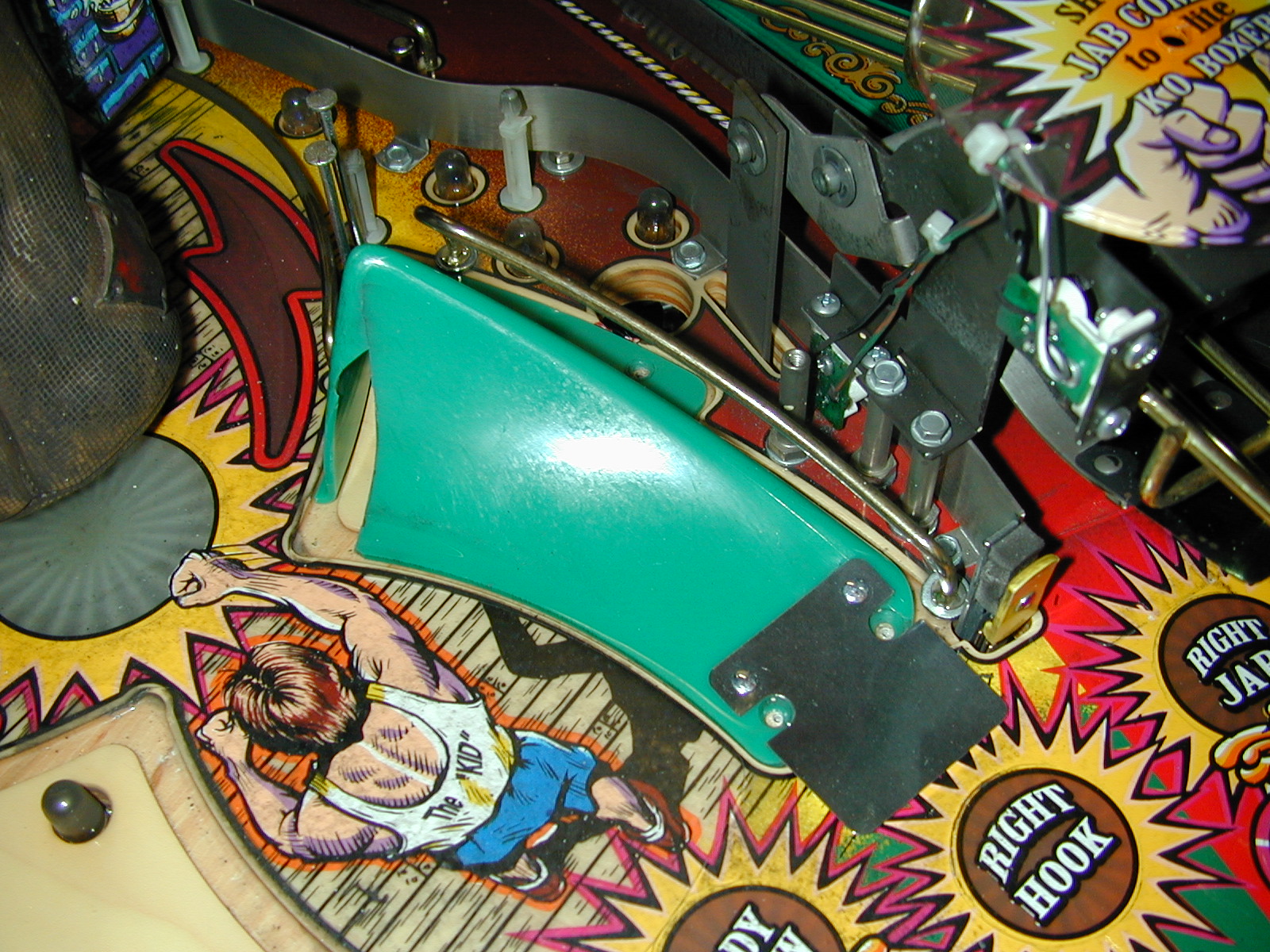

Right punch ramp - 2 WS, 2 small WS		 7
Left metal ramp - 1 MS, 1 nut		 8
Plastic on lower left with stack - 4 standoffs, 1 CON
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
9
Lower left "The Corner" steel guide - 3 WS		 10
Left scoop assembly - 4 WS, 2 MS, 1 standoff, 2 CON		 11
Post to upper left of Balcony  - 1 nut and washer		 12
Arch - 2 MS
