 Champion Pub Playfield Teardown

[First] [Prev] [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
25

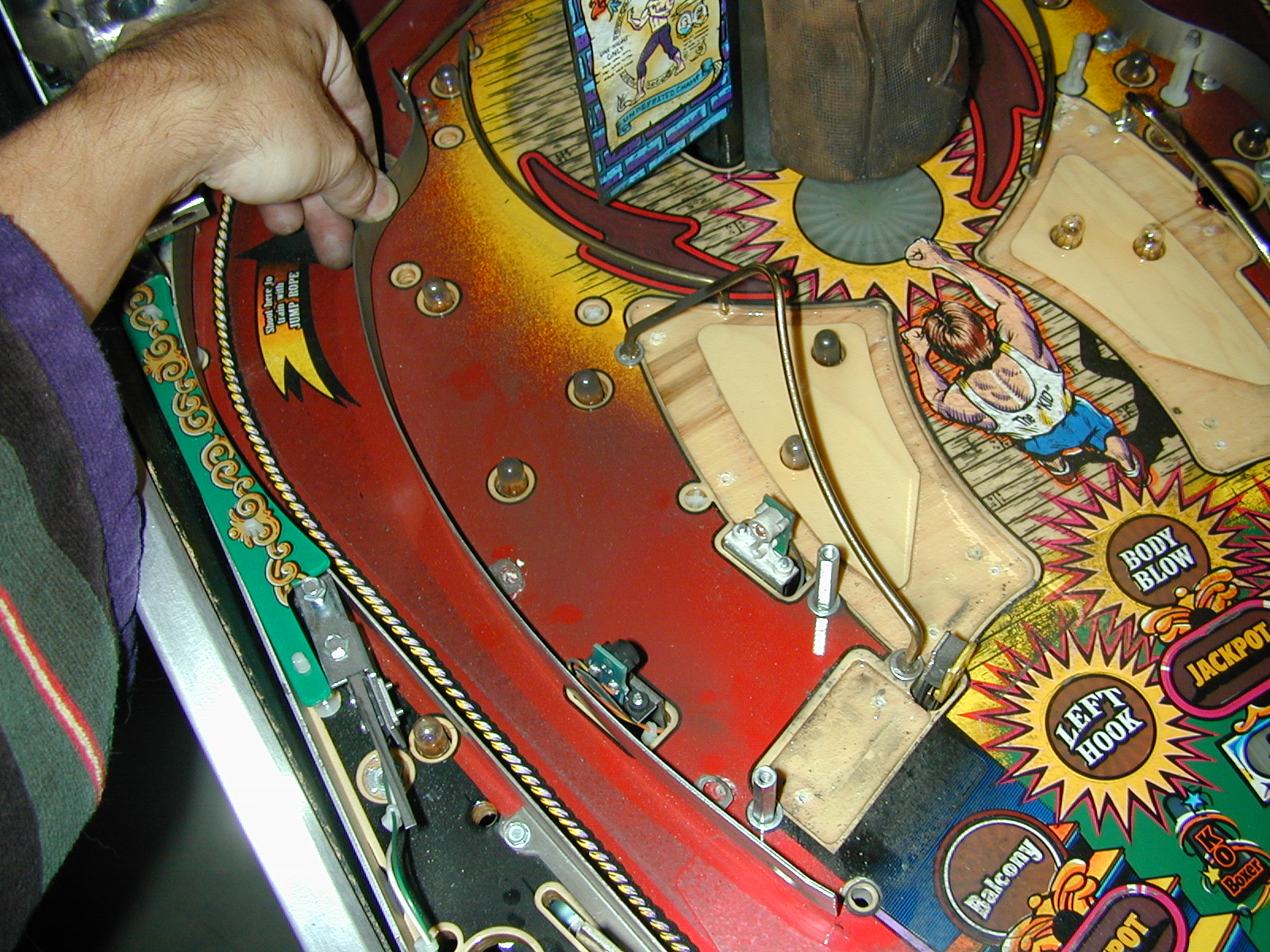

Inside metal guide on upper left loop - 3 WS		 26
Top metal plate from boxer assembly - 2 MS		 27

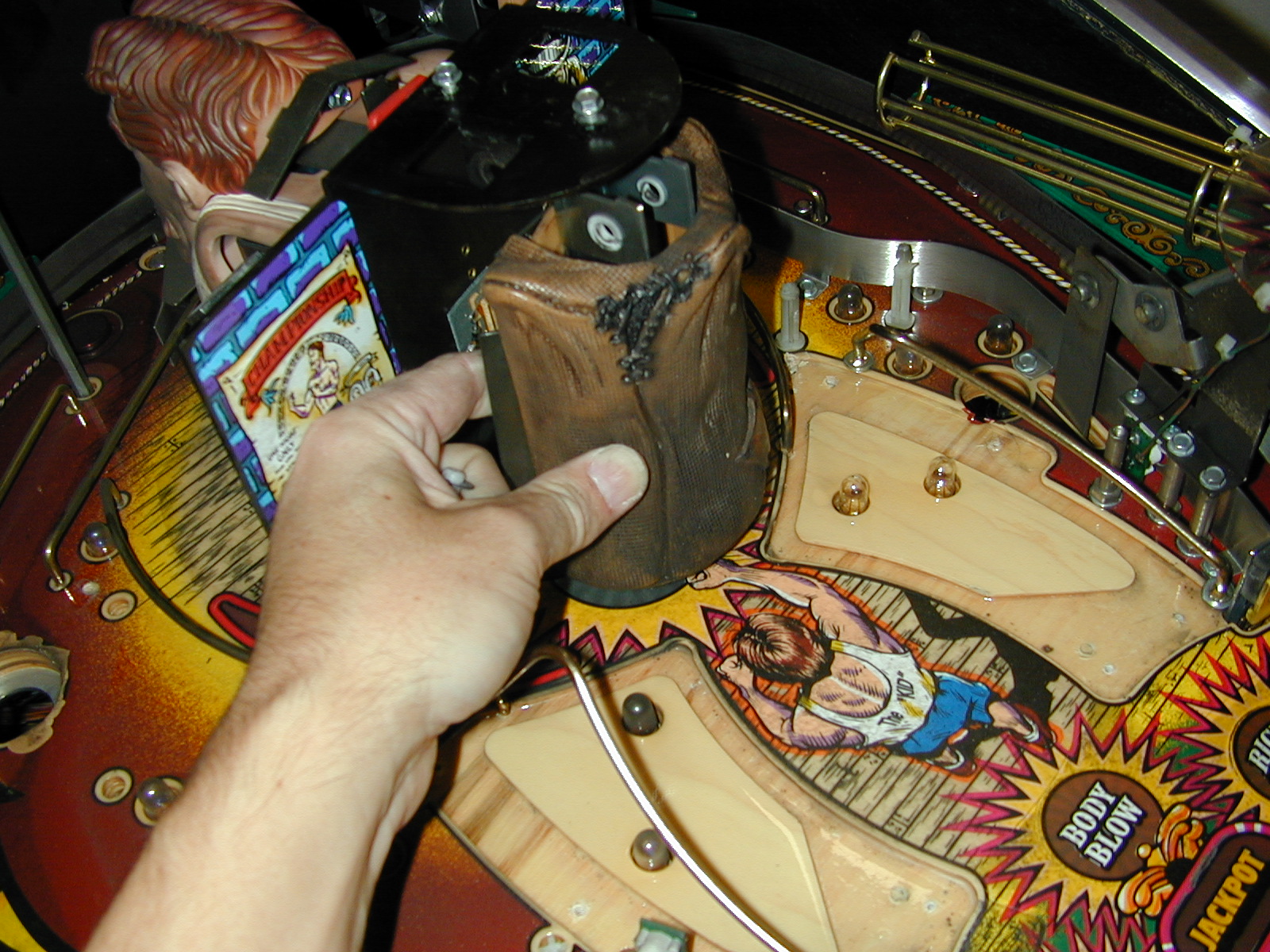

Heavy bag - 3 E-clips and washers		 28

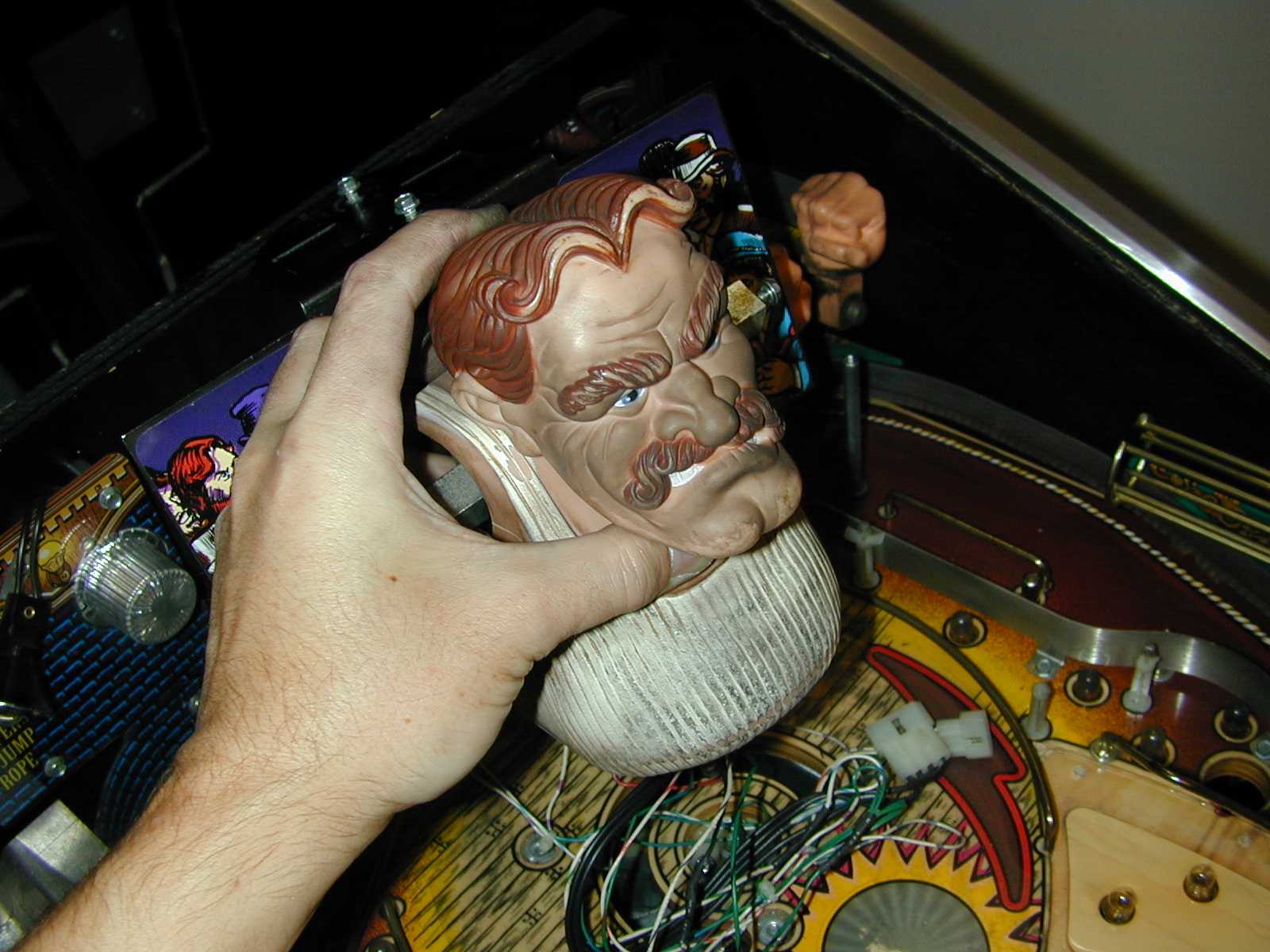

Boxer assembly - 4 set screws, 3 CON
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
29

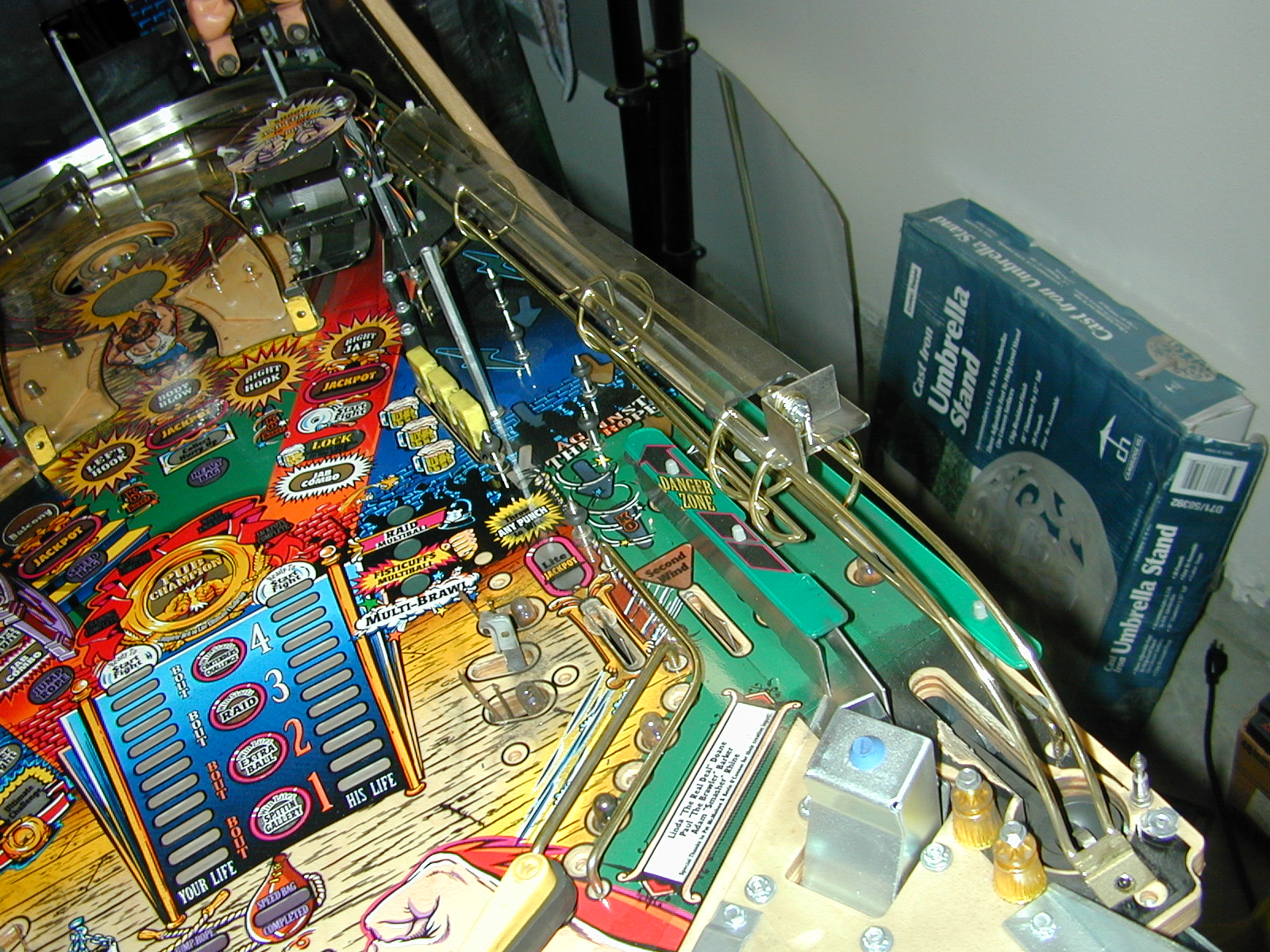

Metal launch ramp - 1 MS, 2 nuts, 4 washers		 30

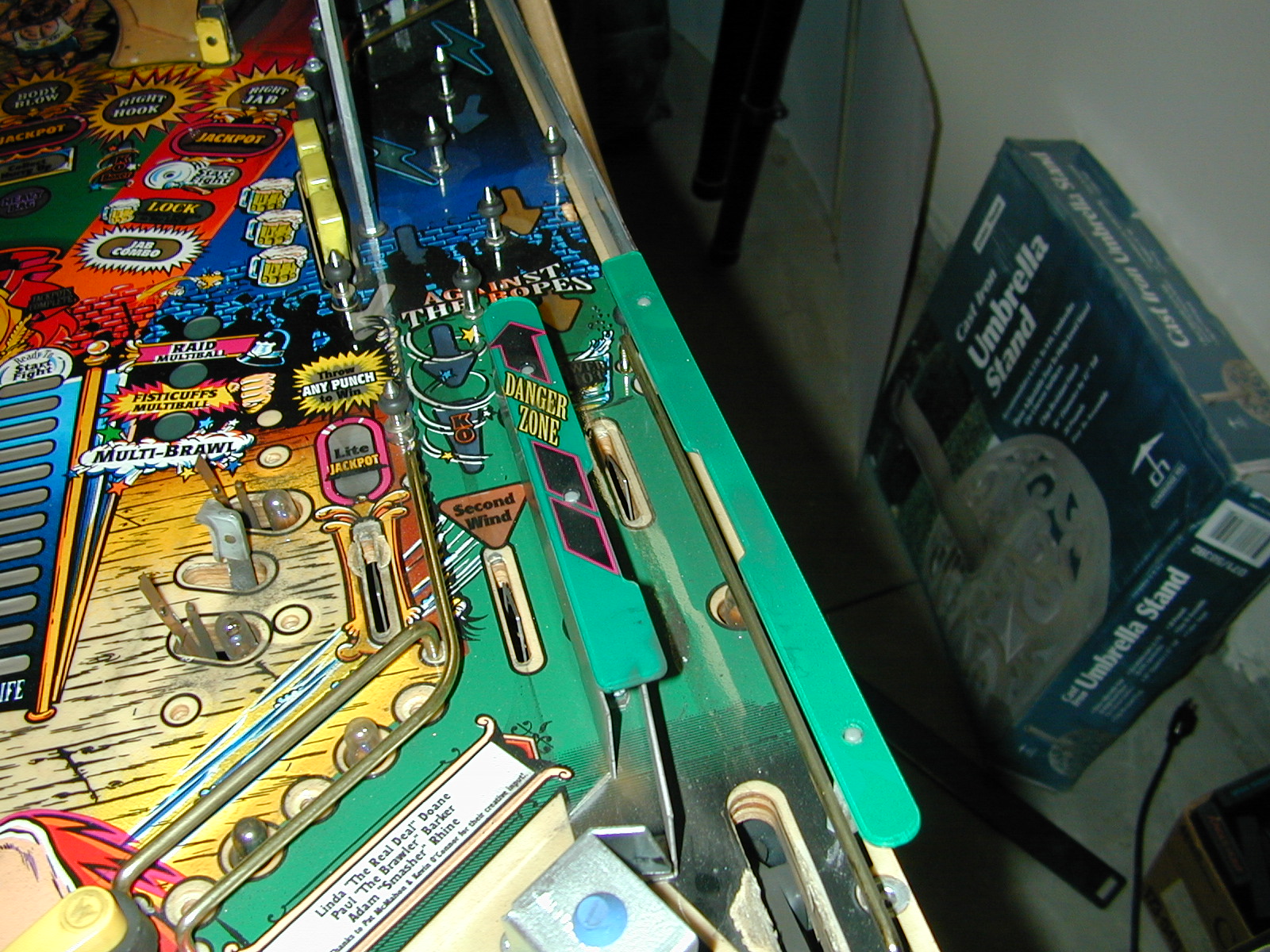

Danger zone plastic and plastic to right of shooter - 3 WS		 31

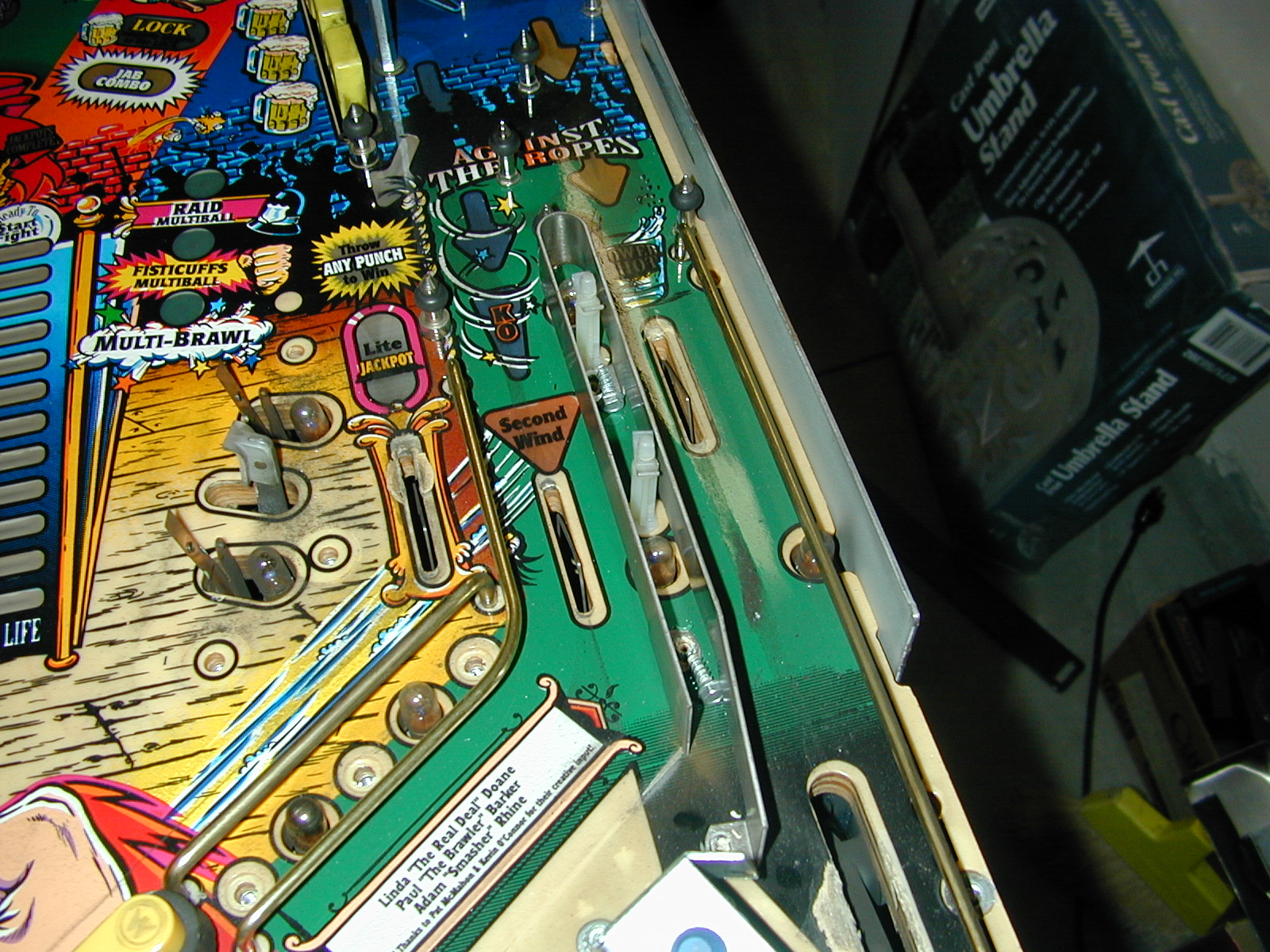

Metal guide to left of shooter - 3 WS		 32
Plastic to right of right scoop ramp - 3 standoffs
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
33
Plastic on left below jump rope - 3 standoffs		 34

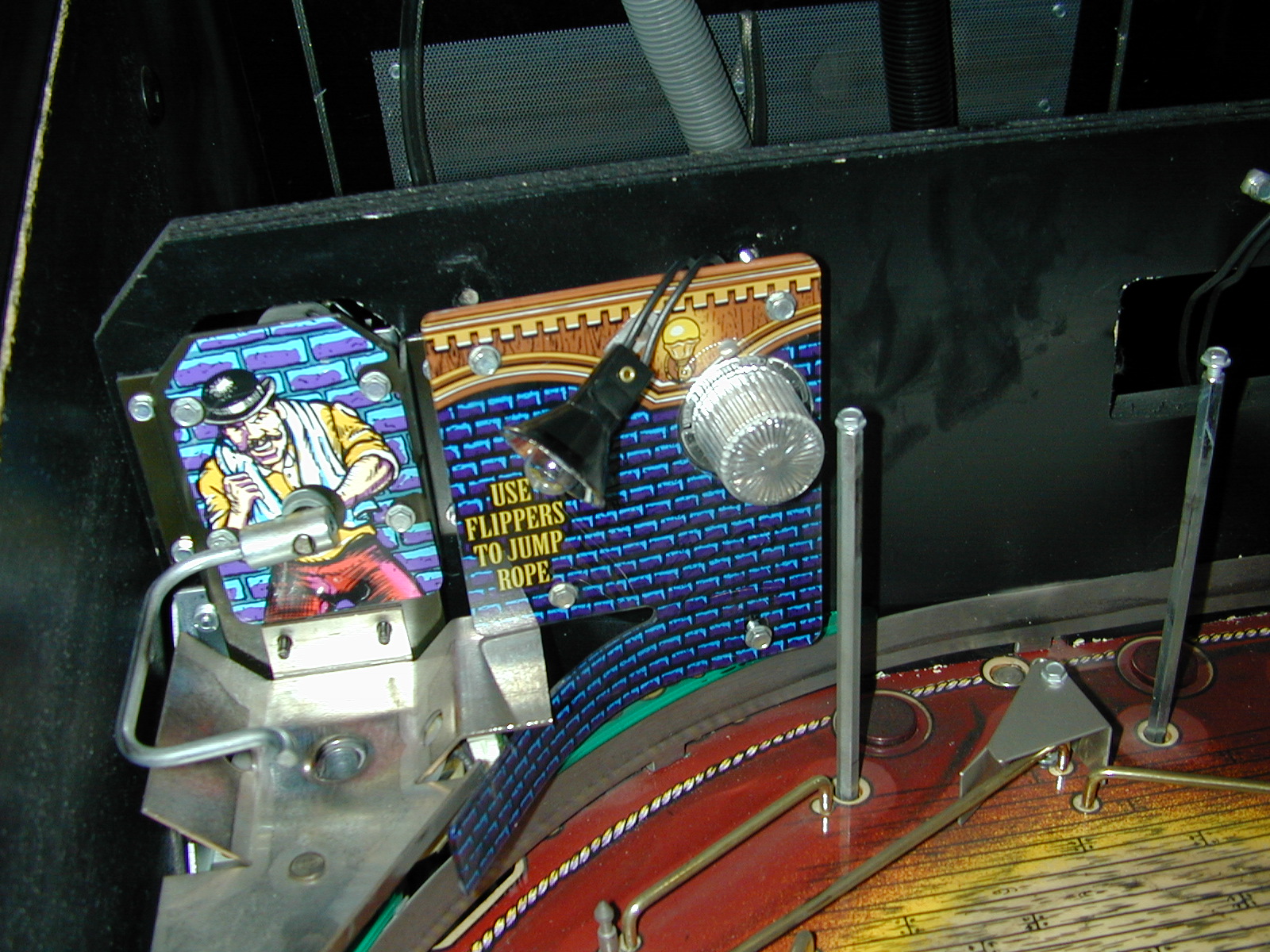

"Use Flippers" plastic on left backboard - 4 MS, 2 CON		 35

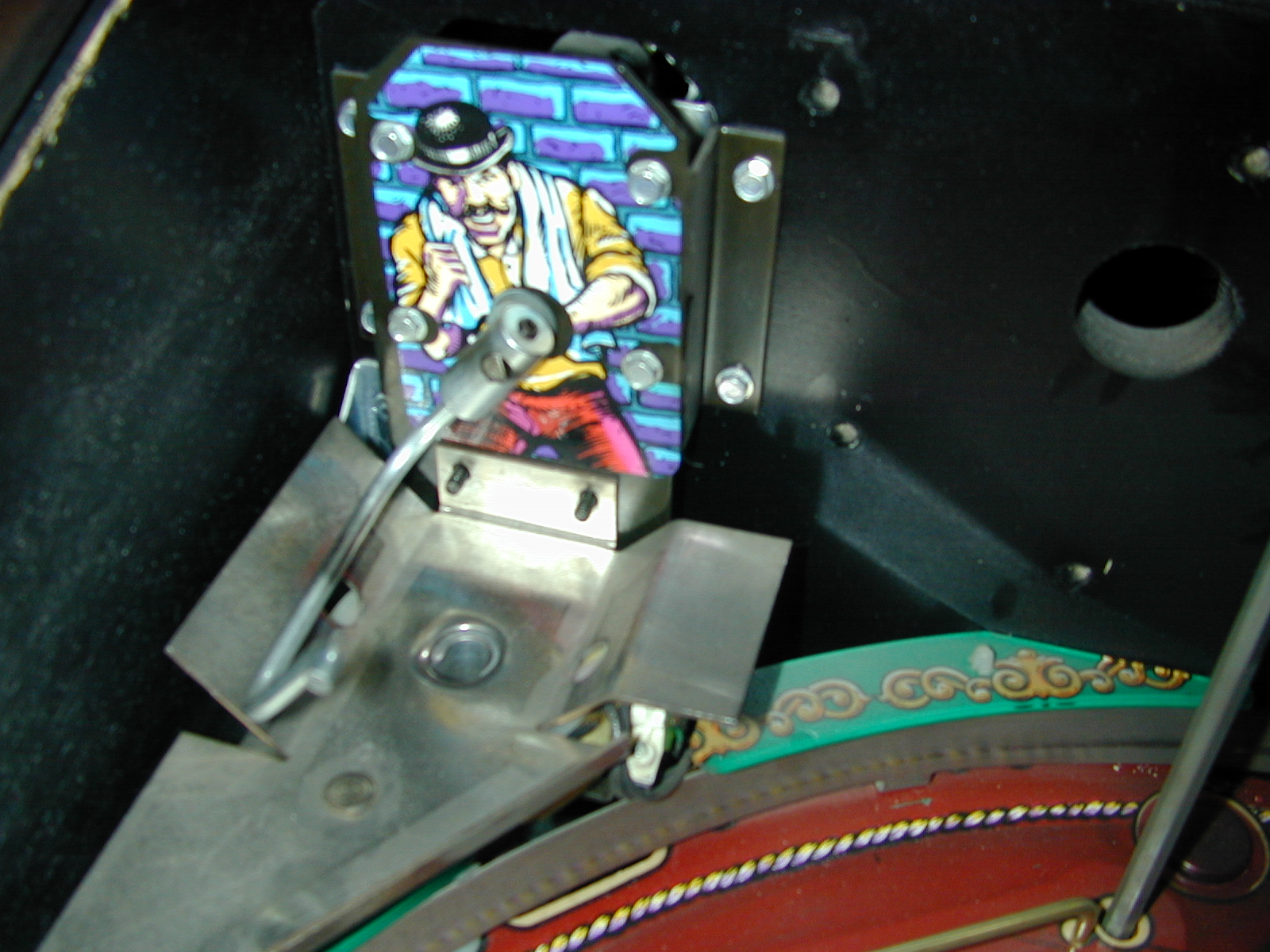

Jump rope - 1 set screw		 36

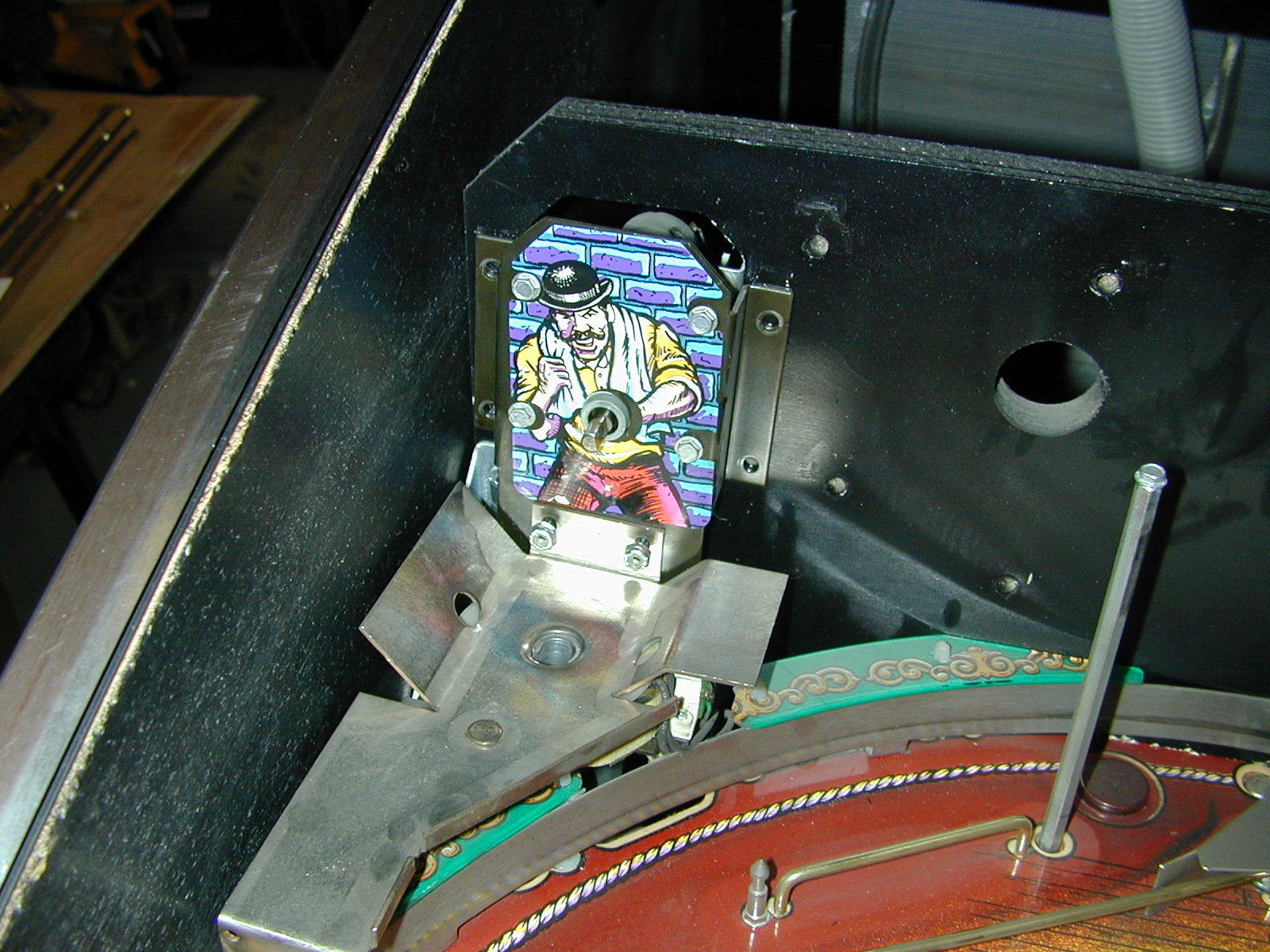

Jump rope assembly - 4 MS, 1 WS, 5 CON
