 Champion Pub Playfield Teardown

[First] [Prev] [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
49

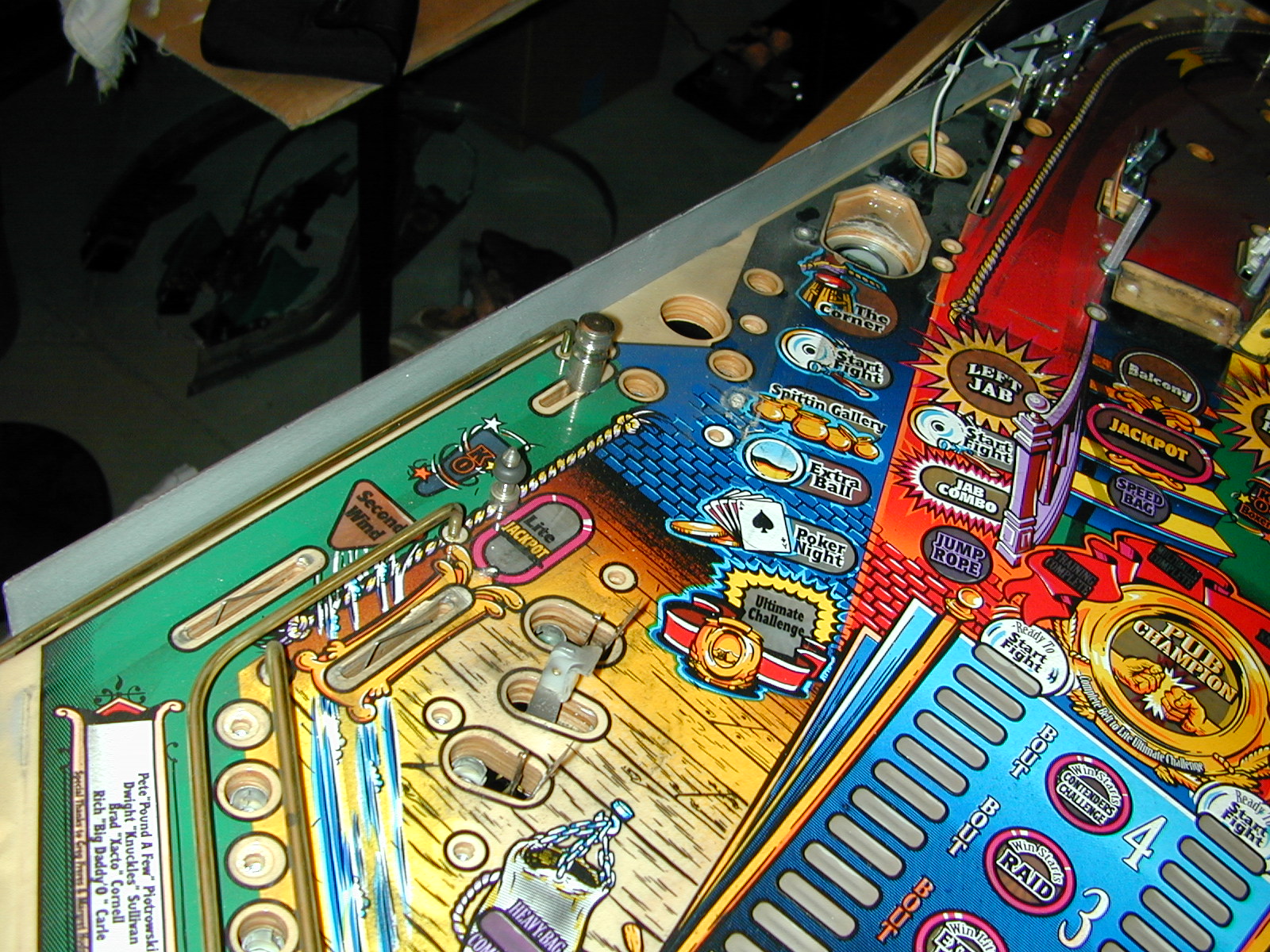

Three gold ball guides on lower left		 50

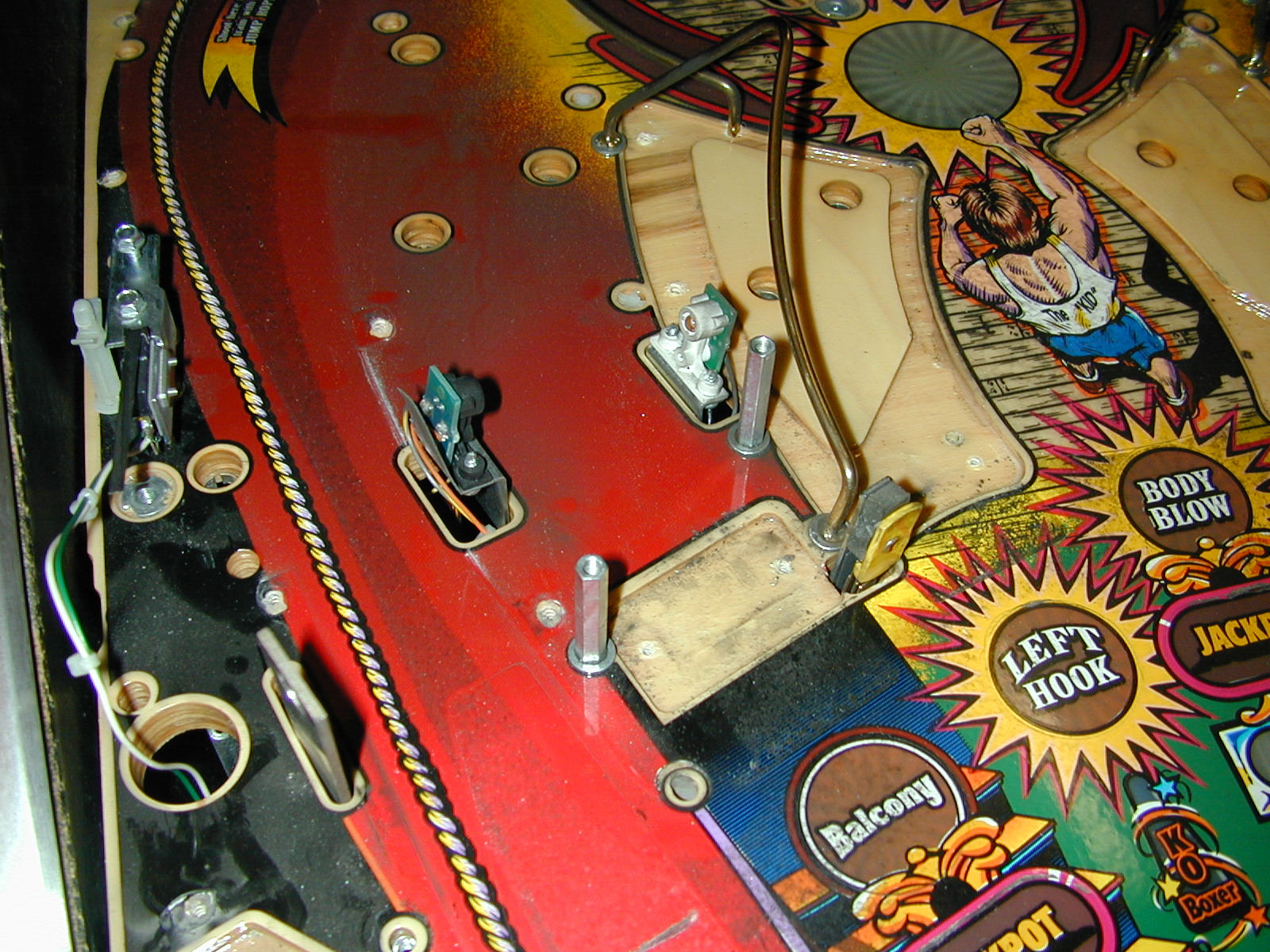

Two standoffs behind main ramp entrance with washers		 51
(switch on standoff on upper left of playfield removed prior)

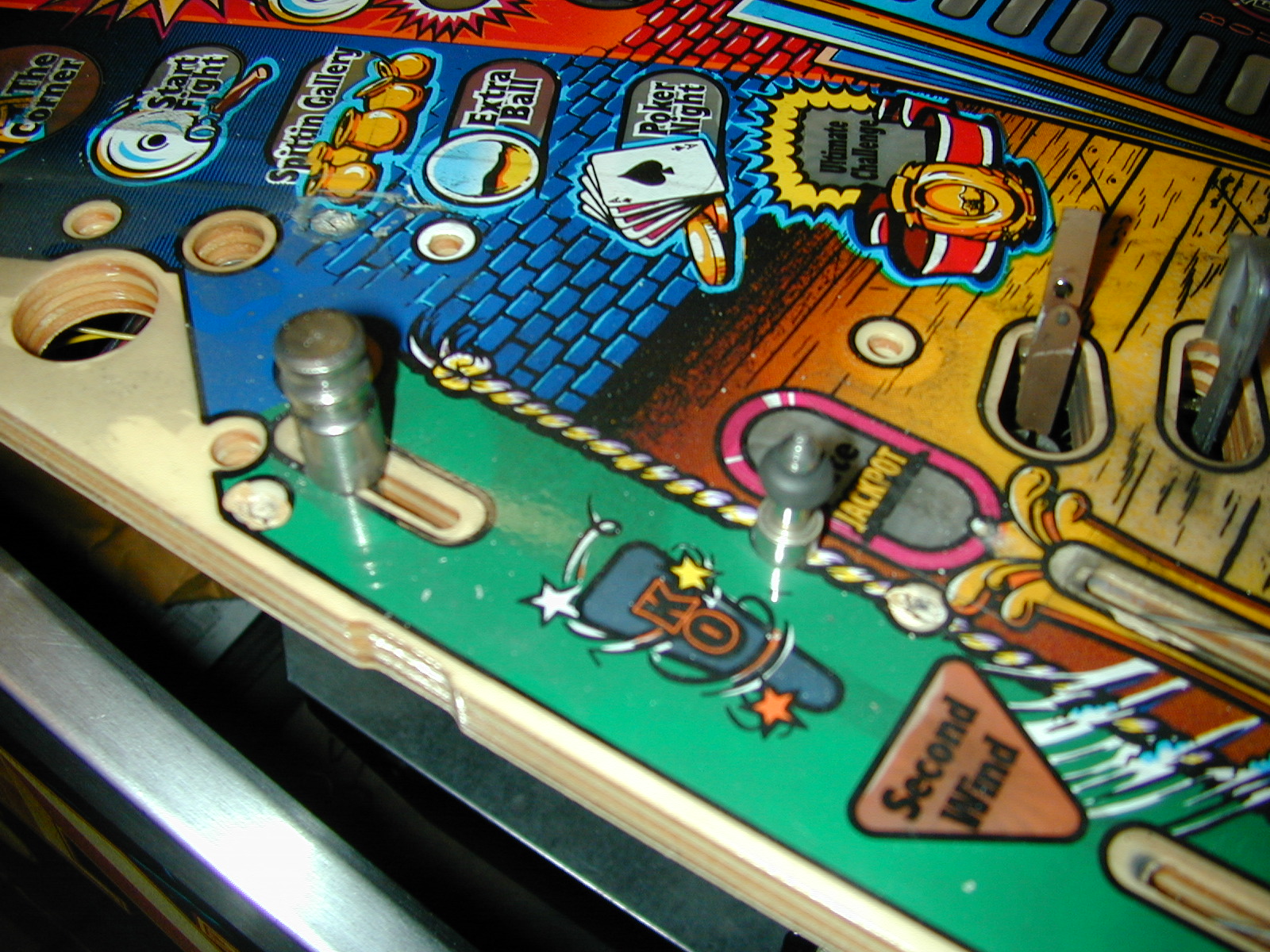

Left in/outlane post and post above left outlane

 52
Left and right punch ramp gold guides - 4 nuts, 8 washers
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
53

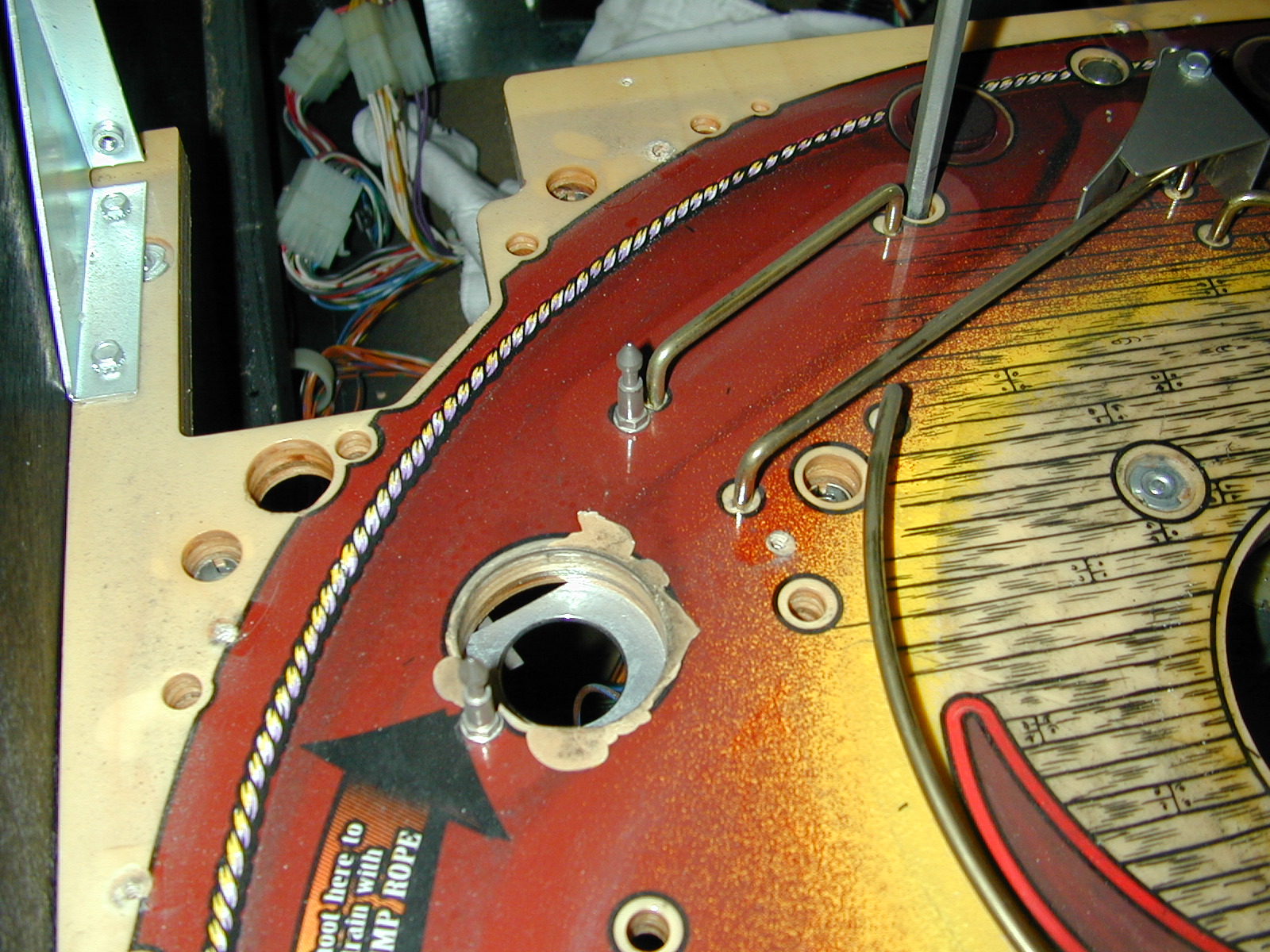

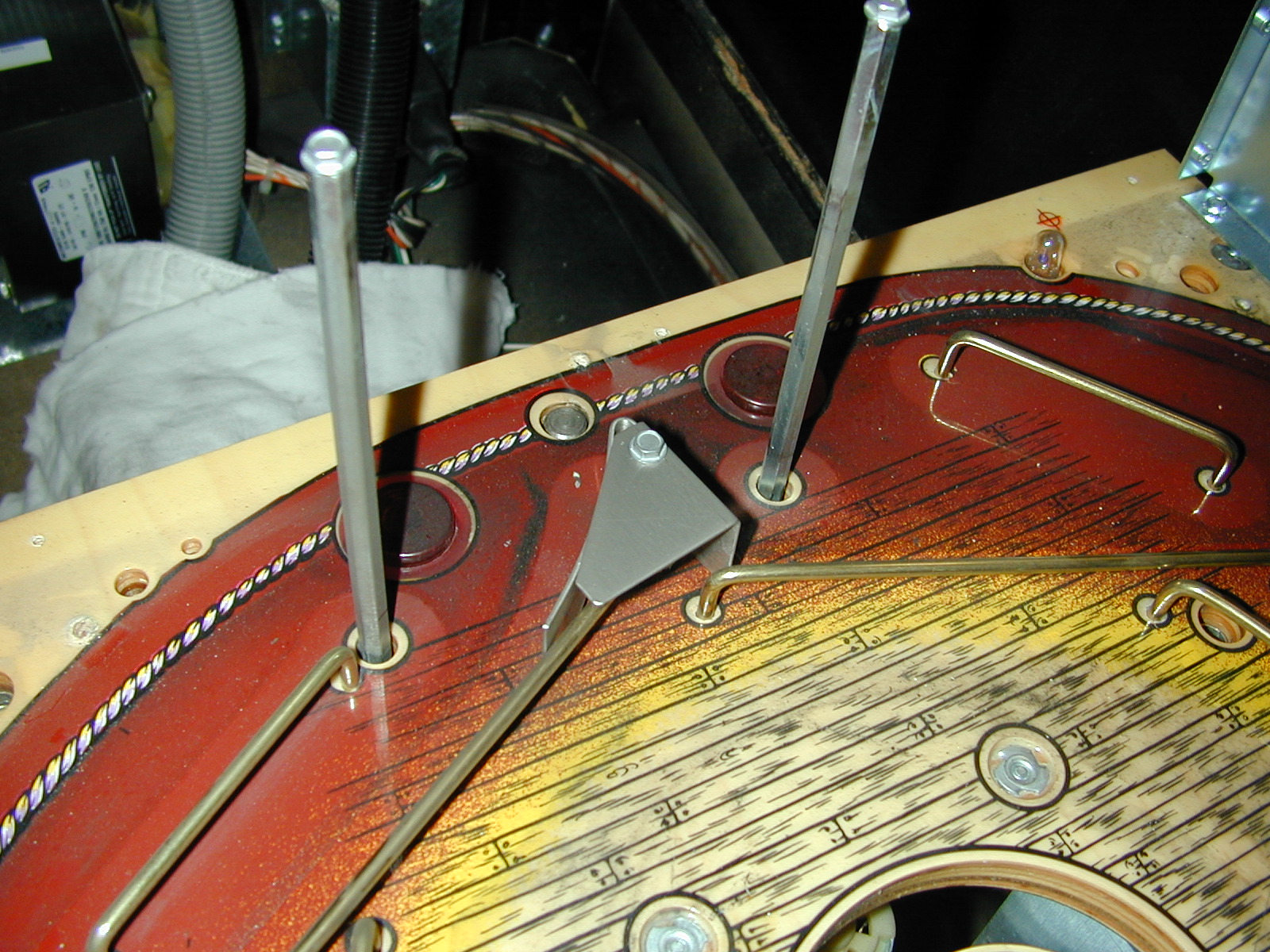

Two metal posts below and above jump rope hole upper left		 54

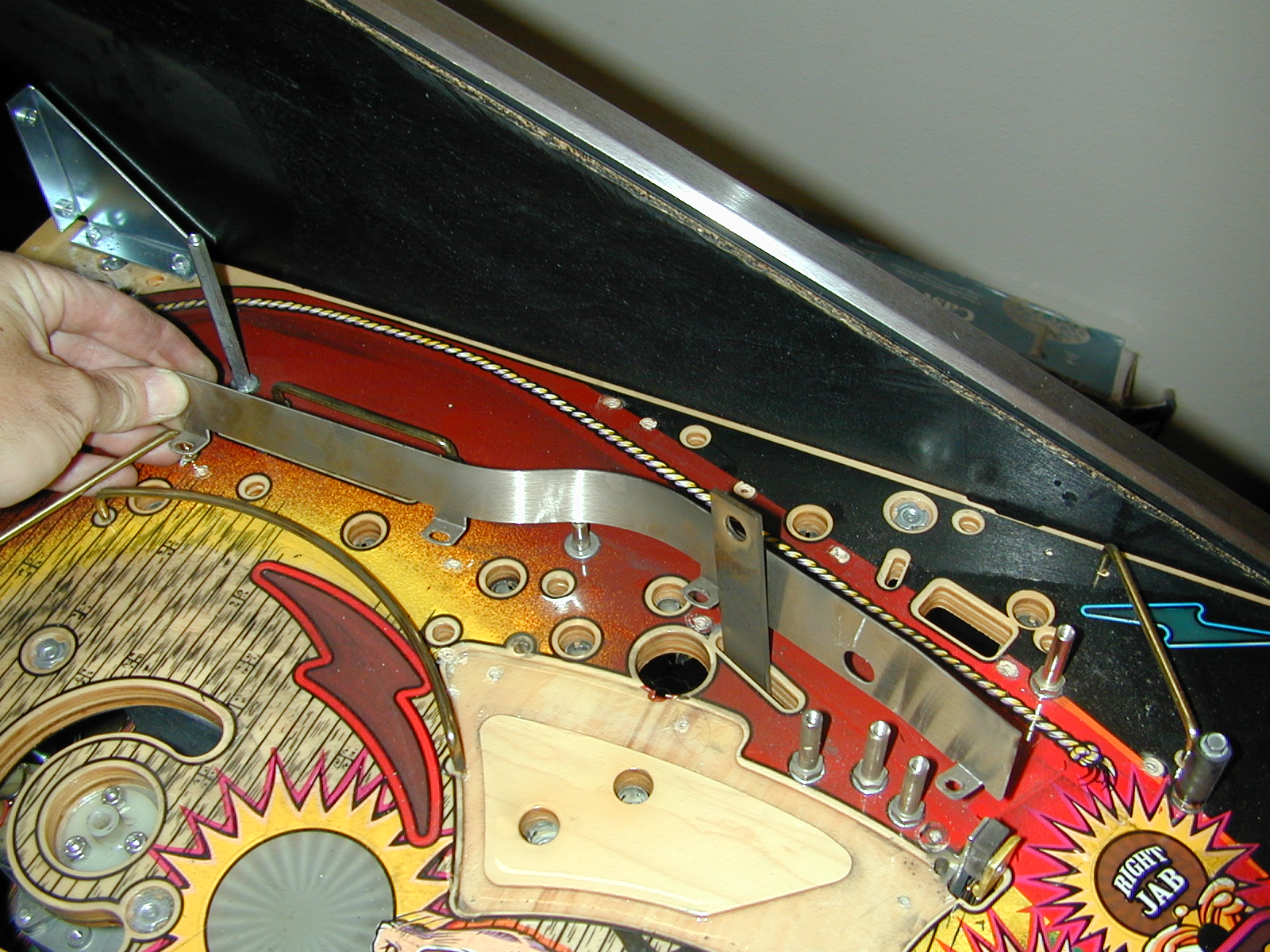

Metal ball guide in top center - 1 MS		 55
Right loop inside metal guide - 4 WS		 56

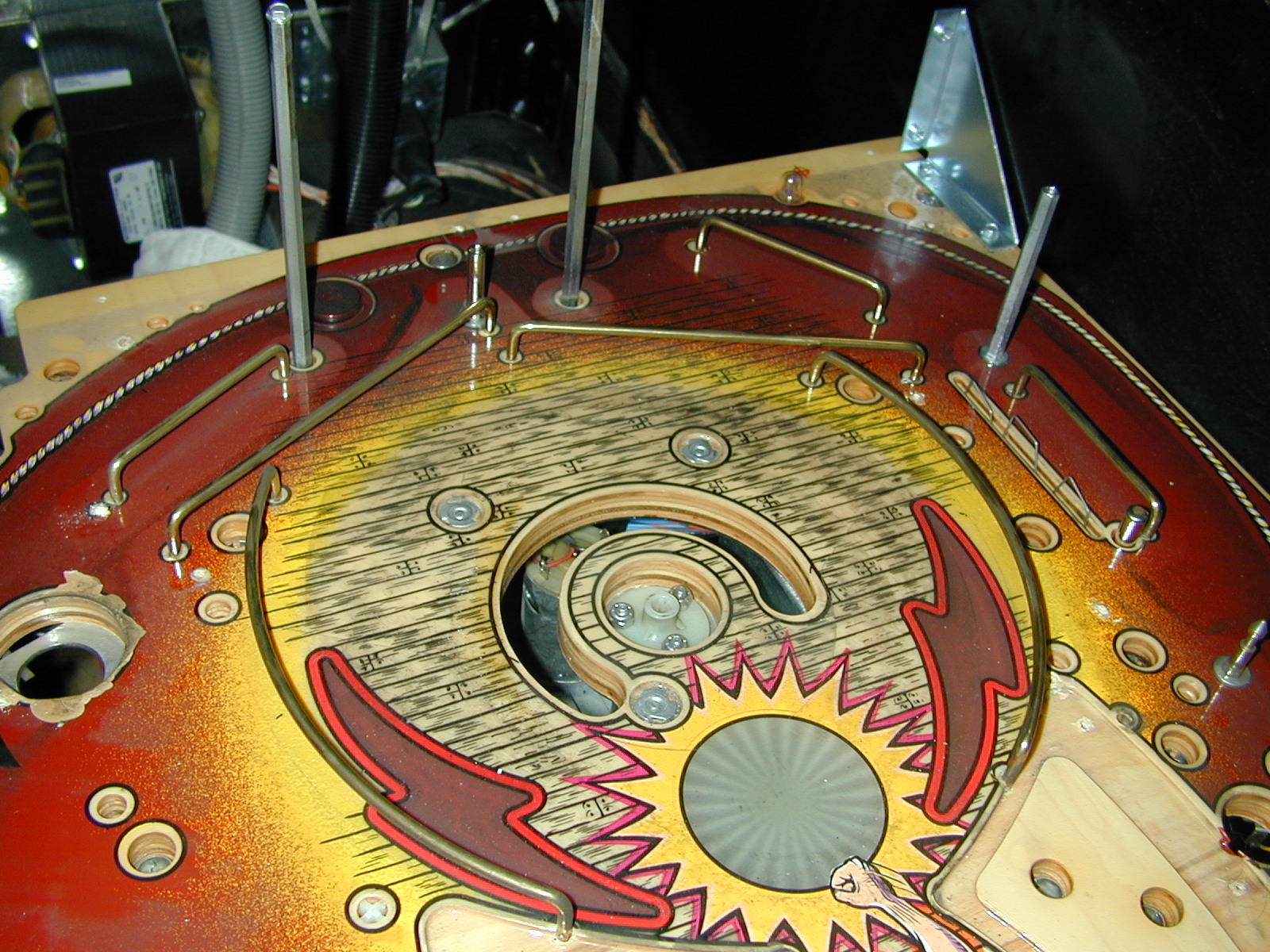

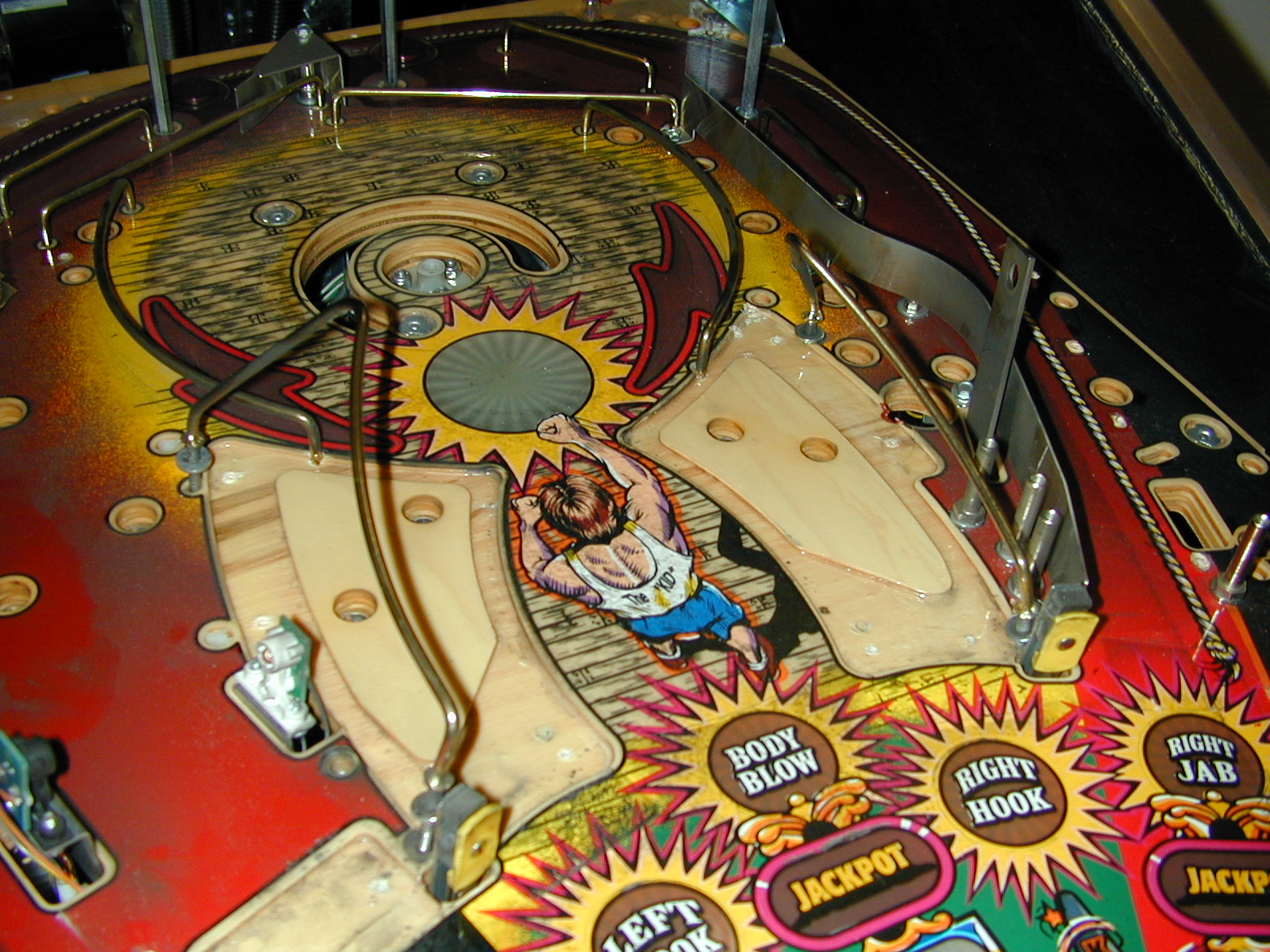

Seven gold guides in top of playfield
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
57

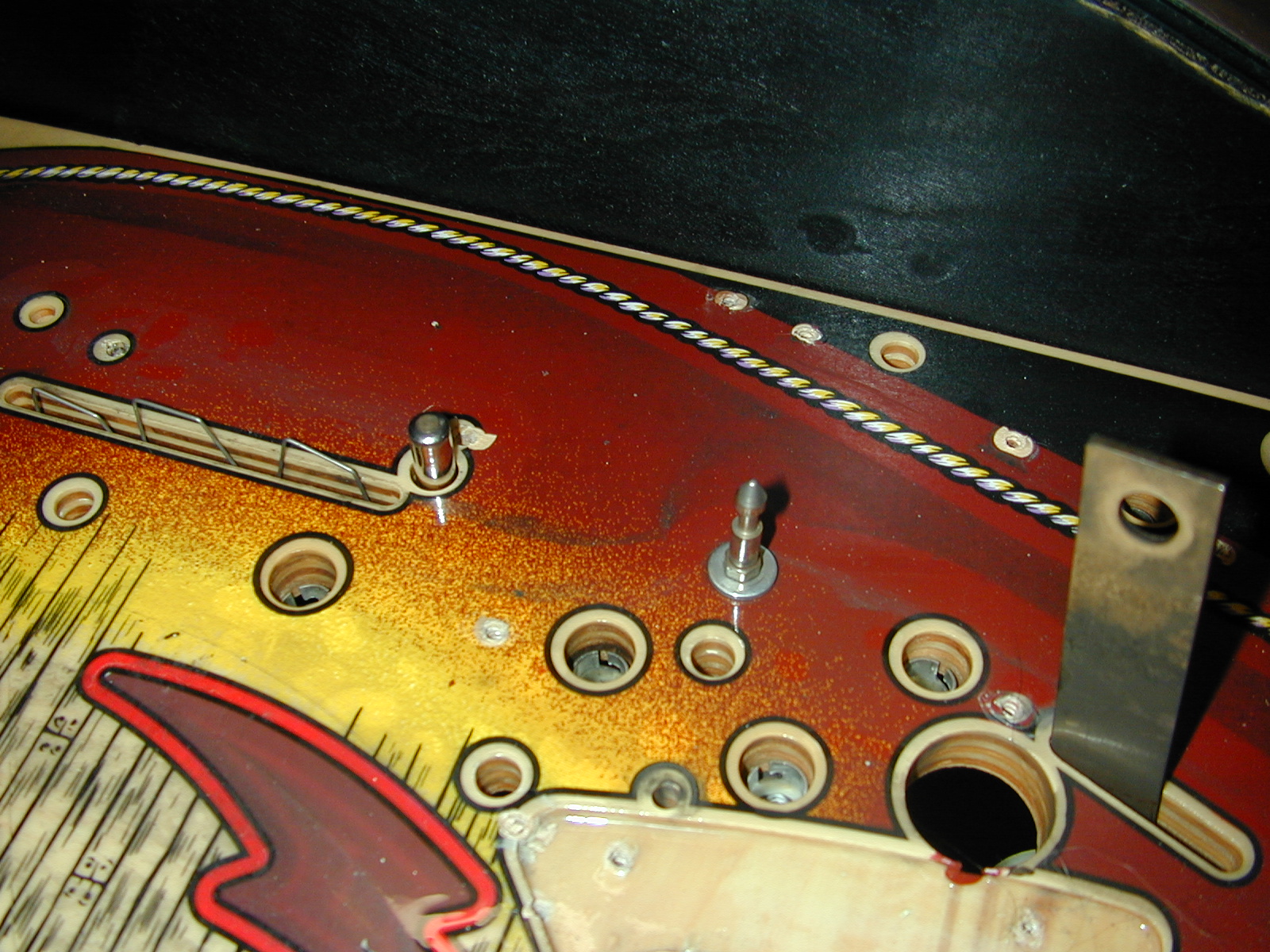

Gold guide to right of "Right Jab"		 58

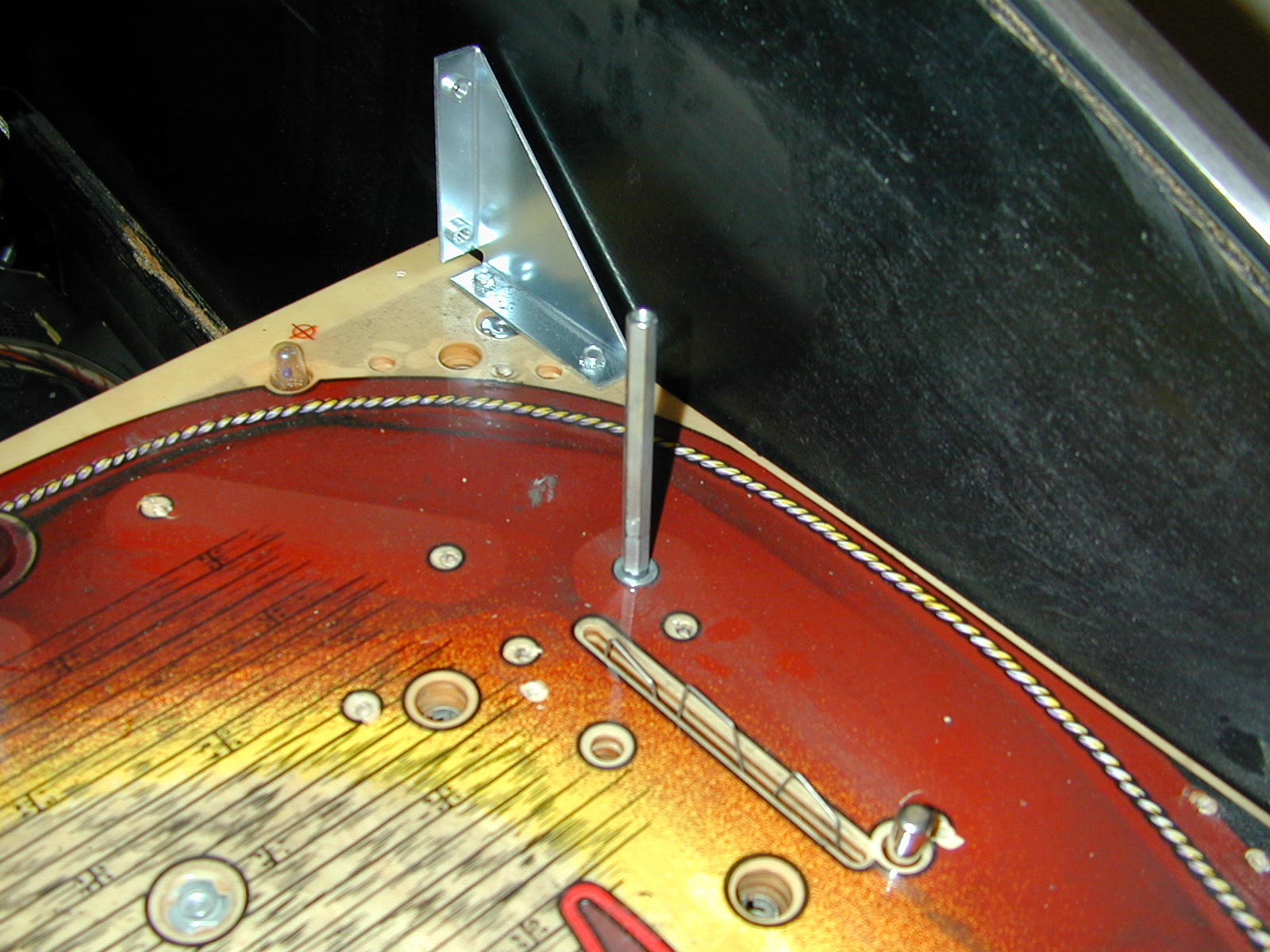

Standoff in upper right corner		 59
Metal post below lock post - 1 MS/washer		 60

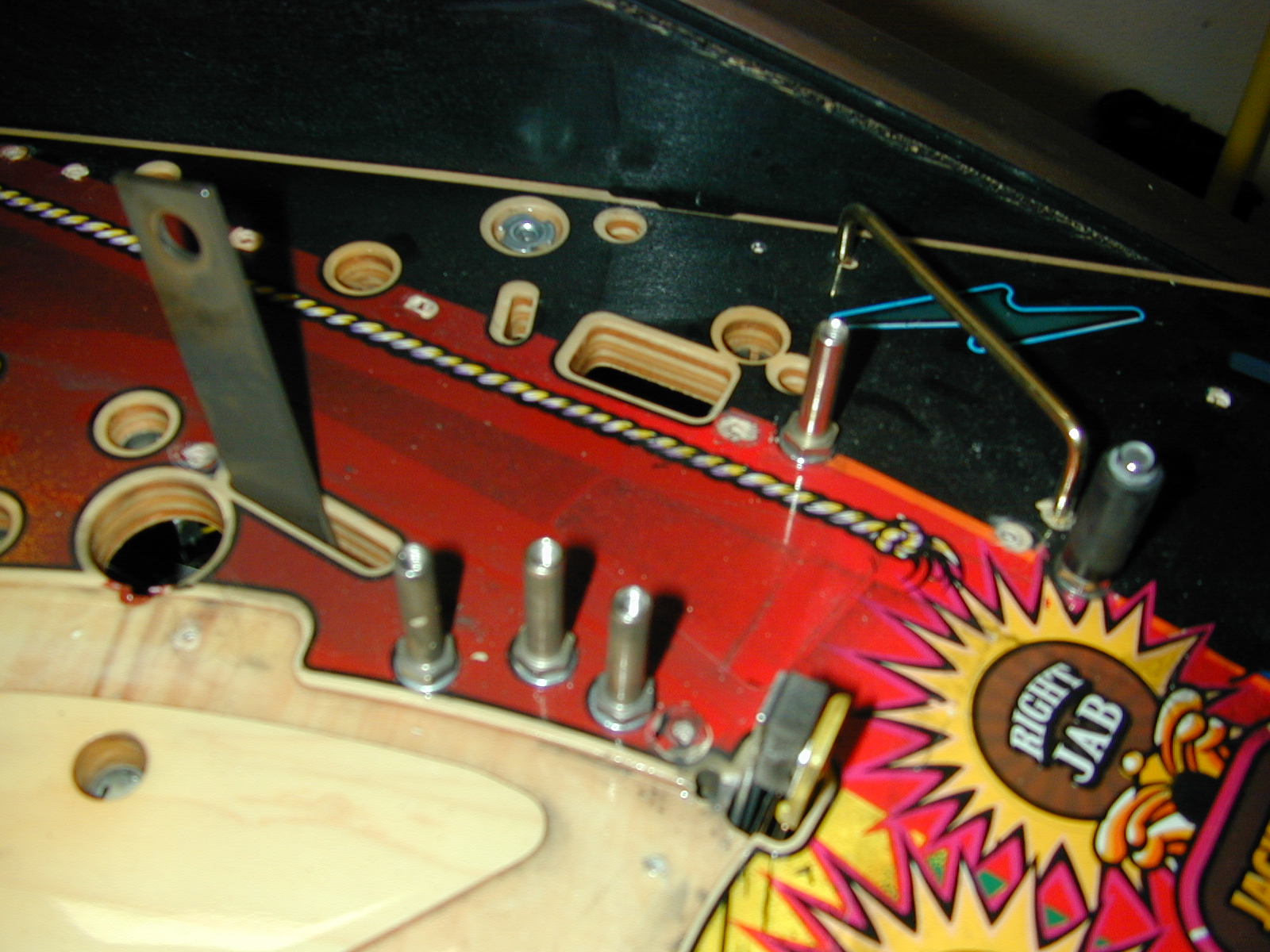

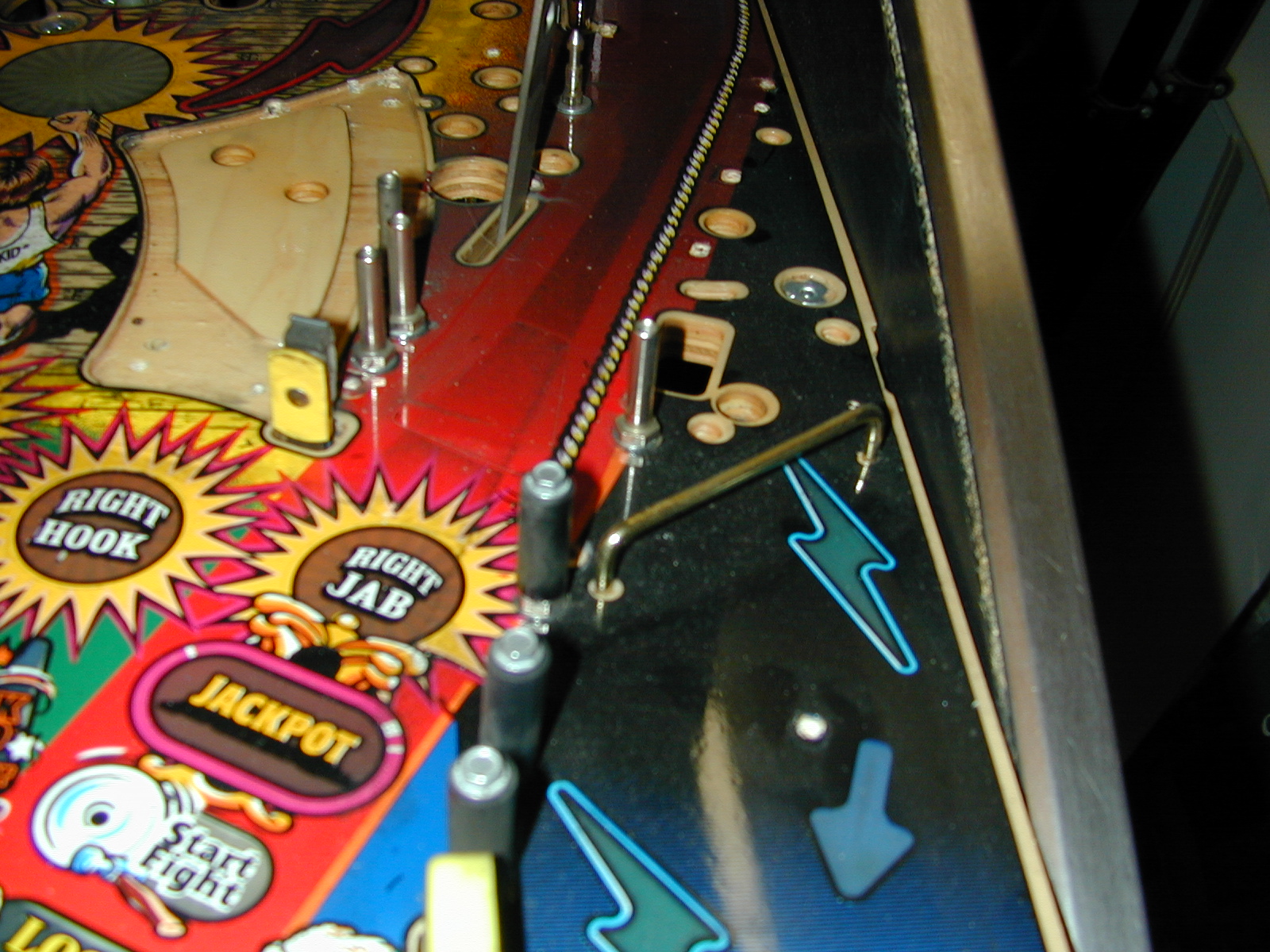

Four posts around right jab ramp area
