85
Post on lower left front of boat cutout – 1 nut with washer		 86

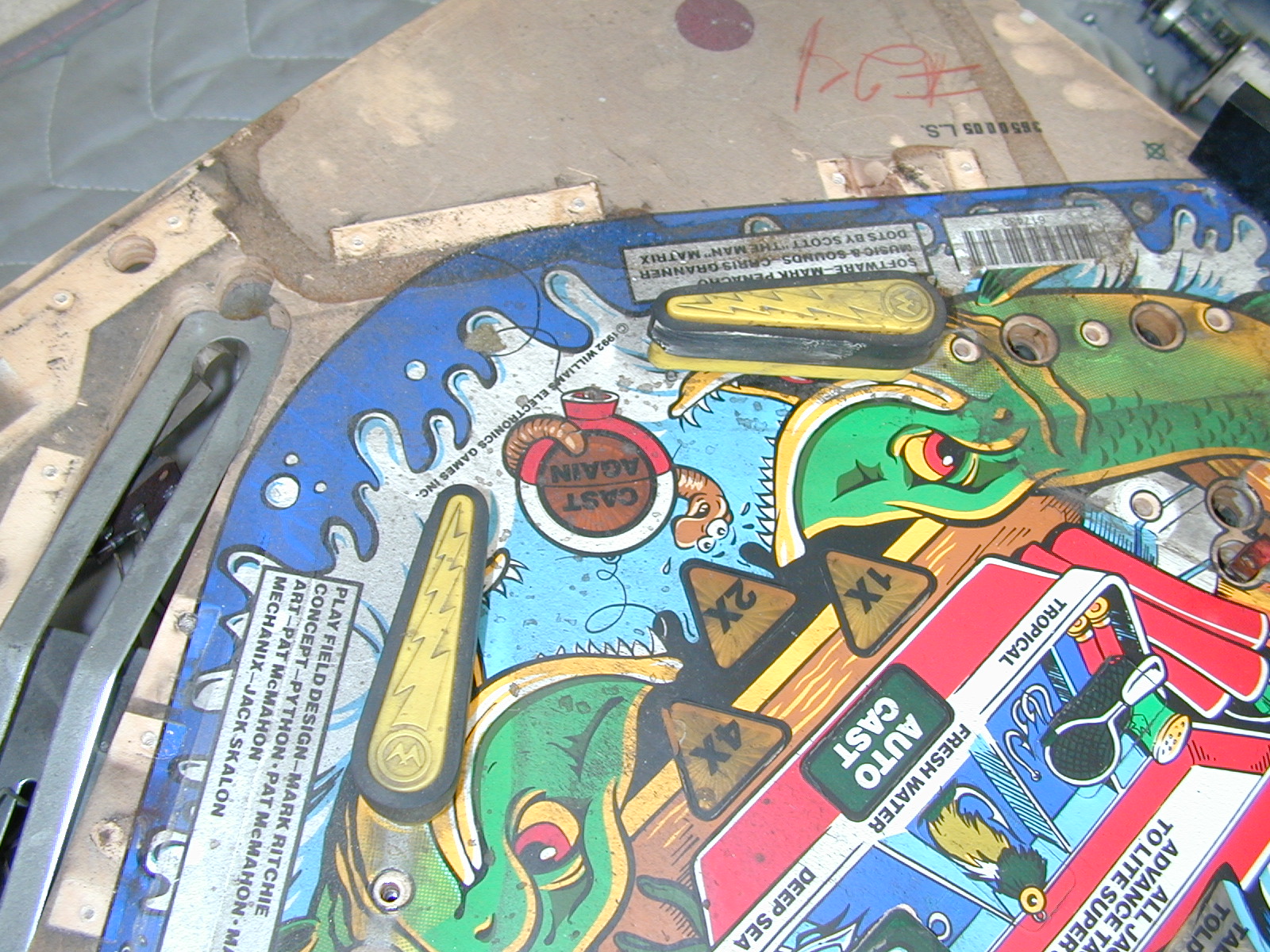

2 flipper bats with rubber rings		 87

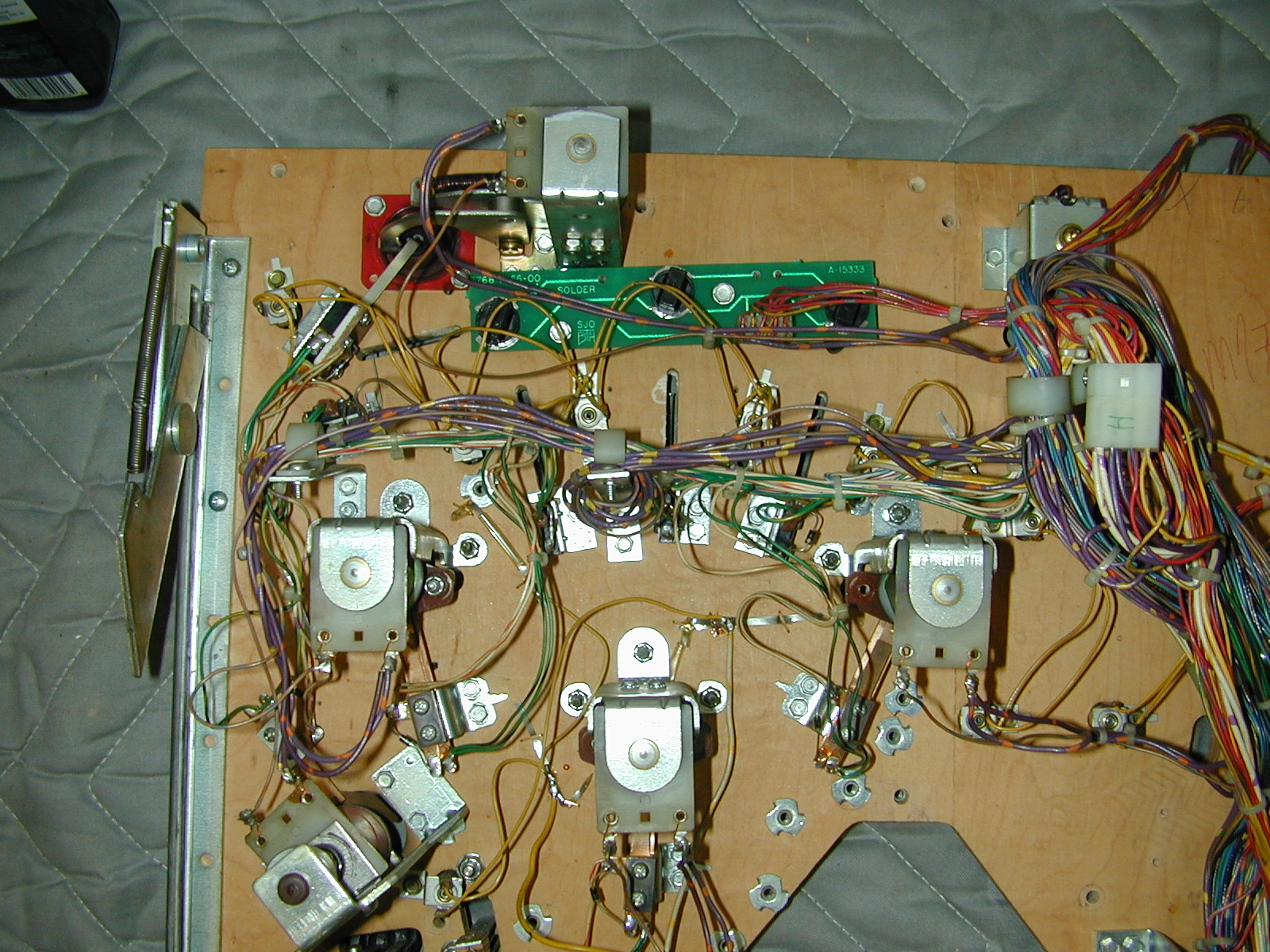

Picture of wiring harness for reference		 88

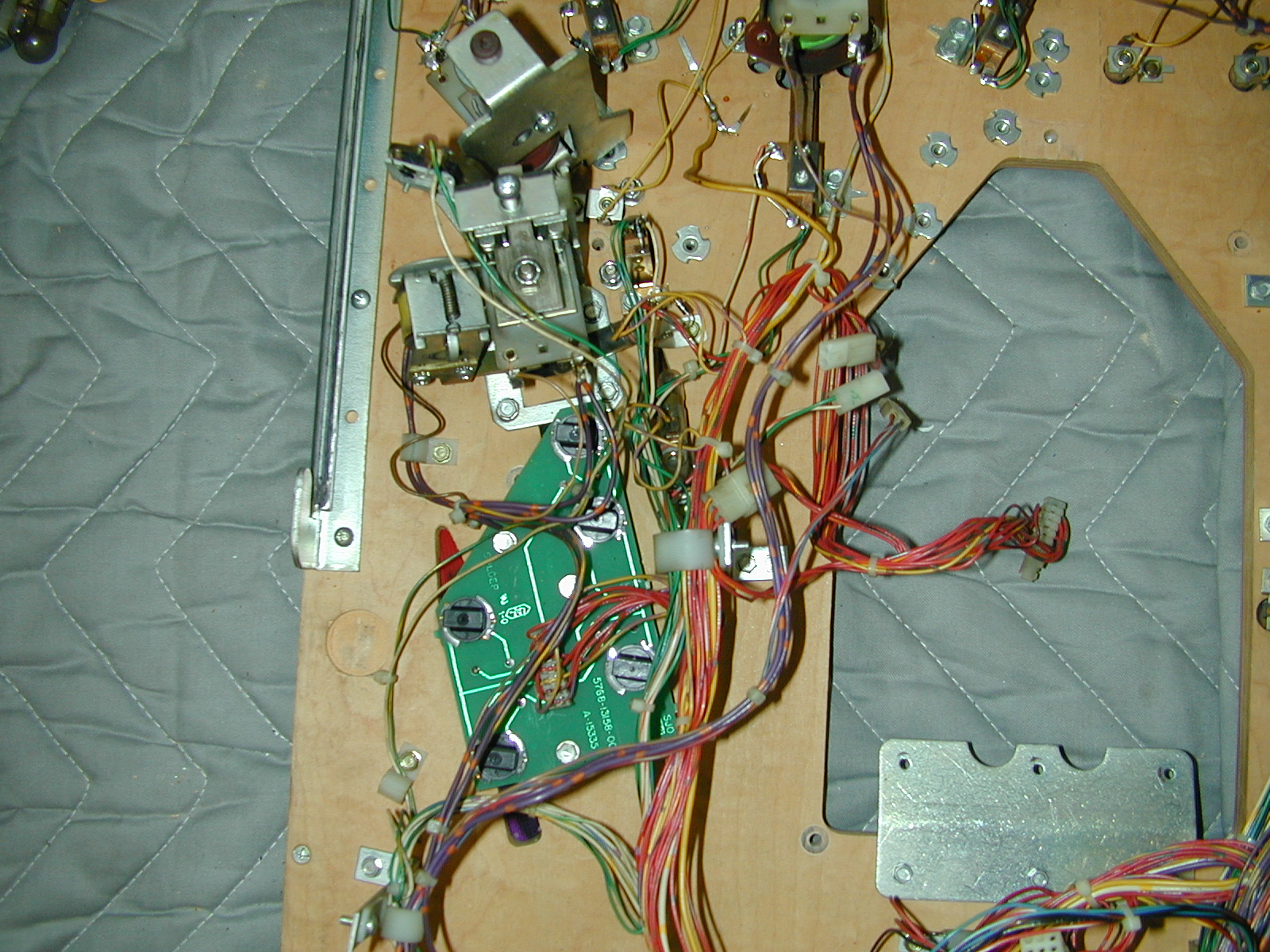

Picture of wiring harness for reference
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
89

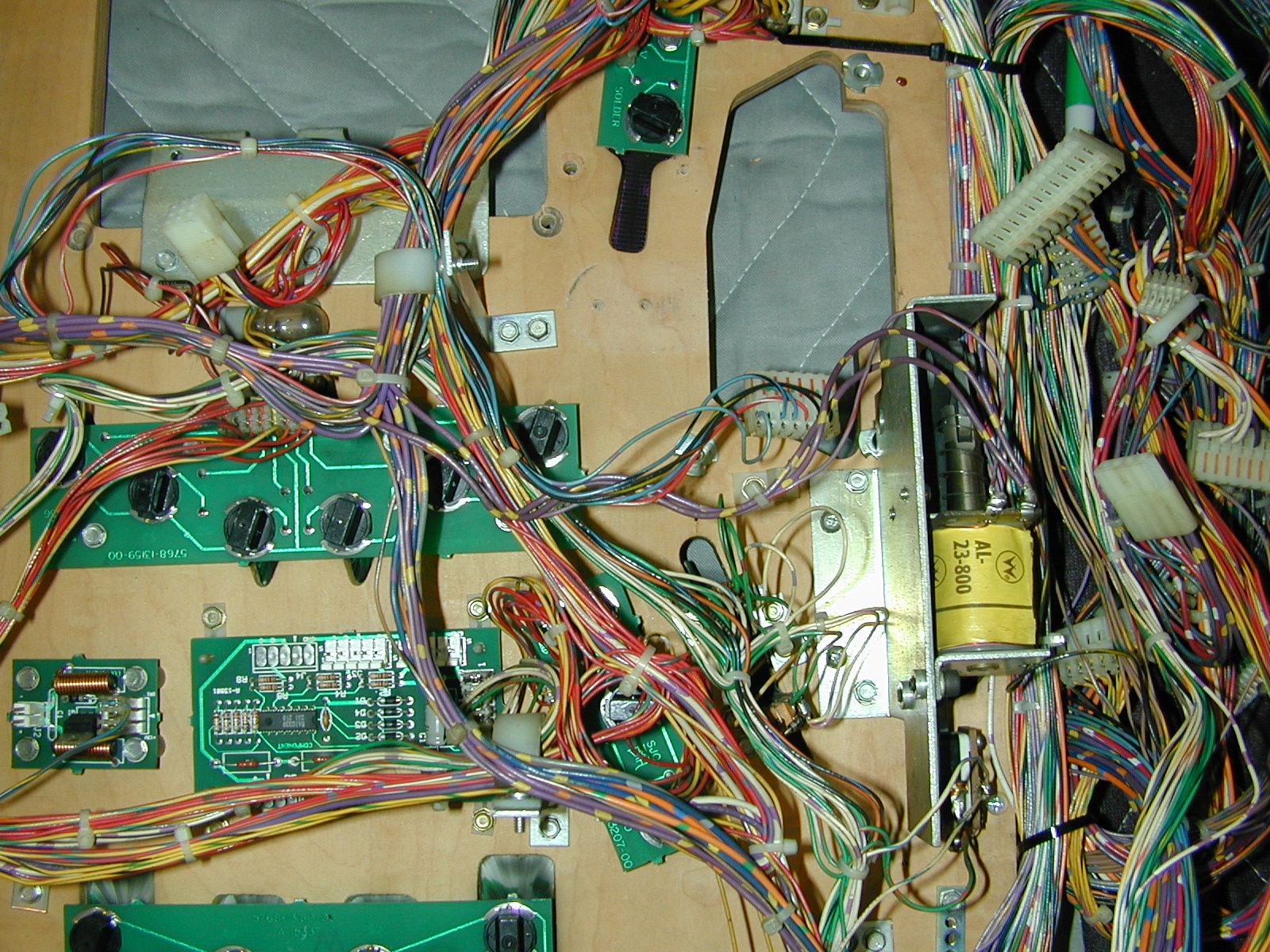

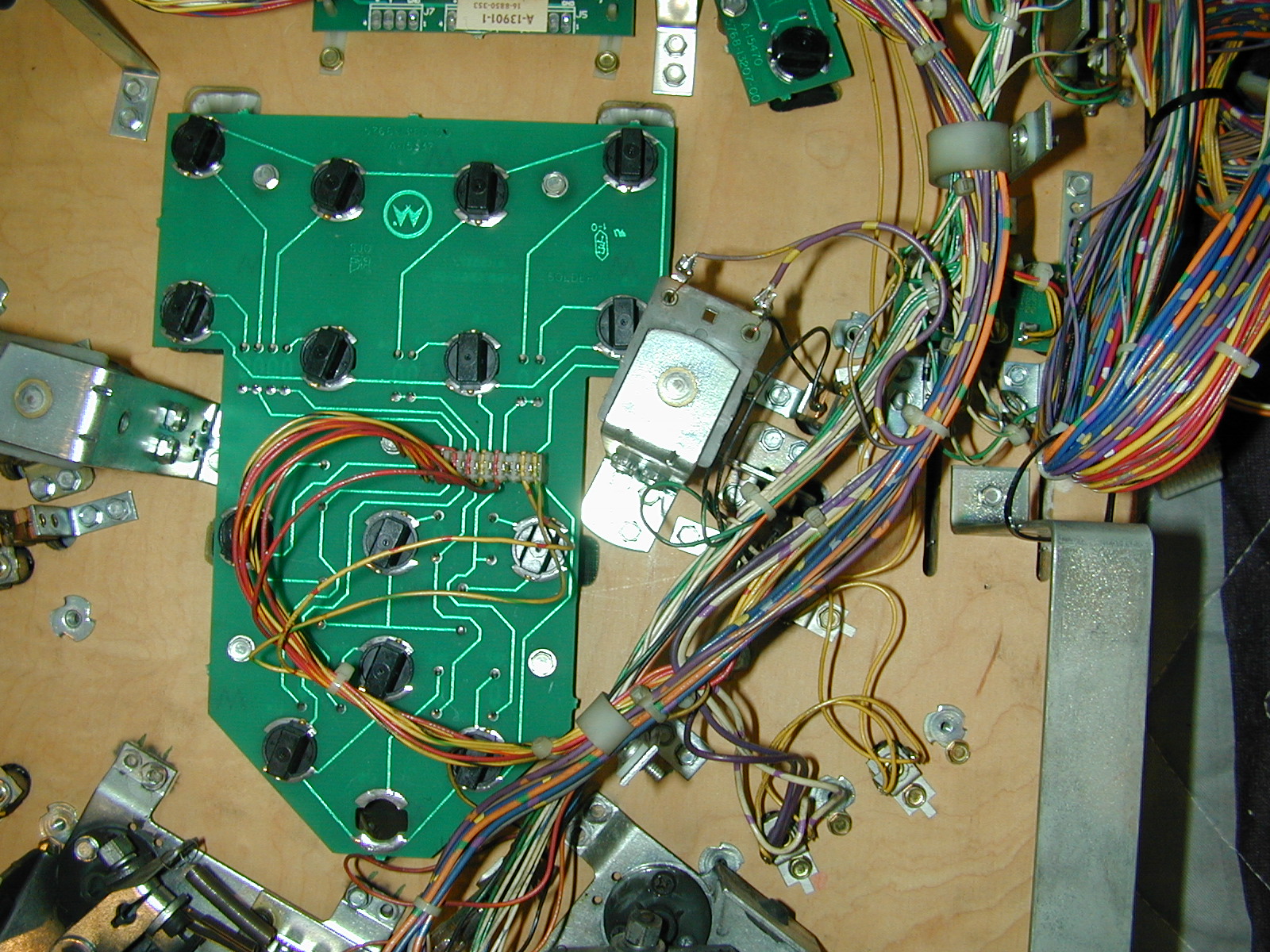

Picture of wiring harness for reference		 90

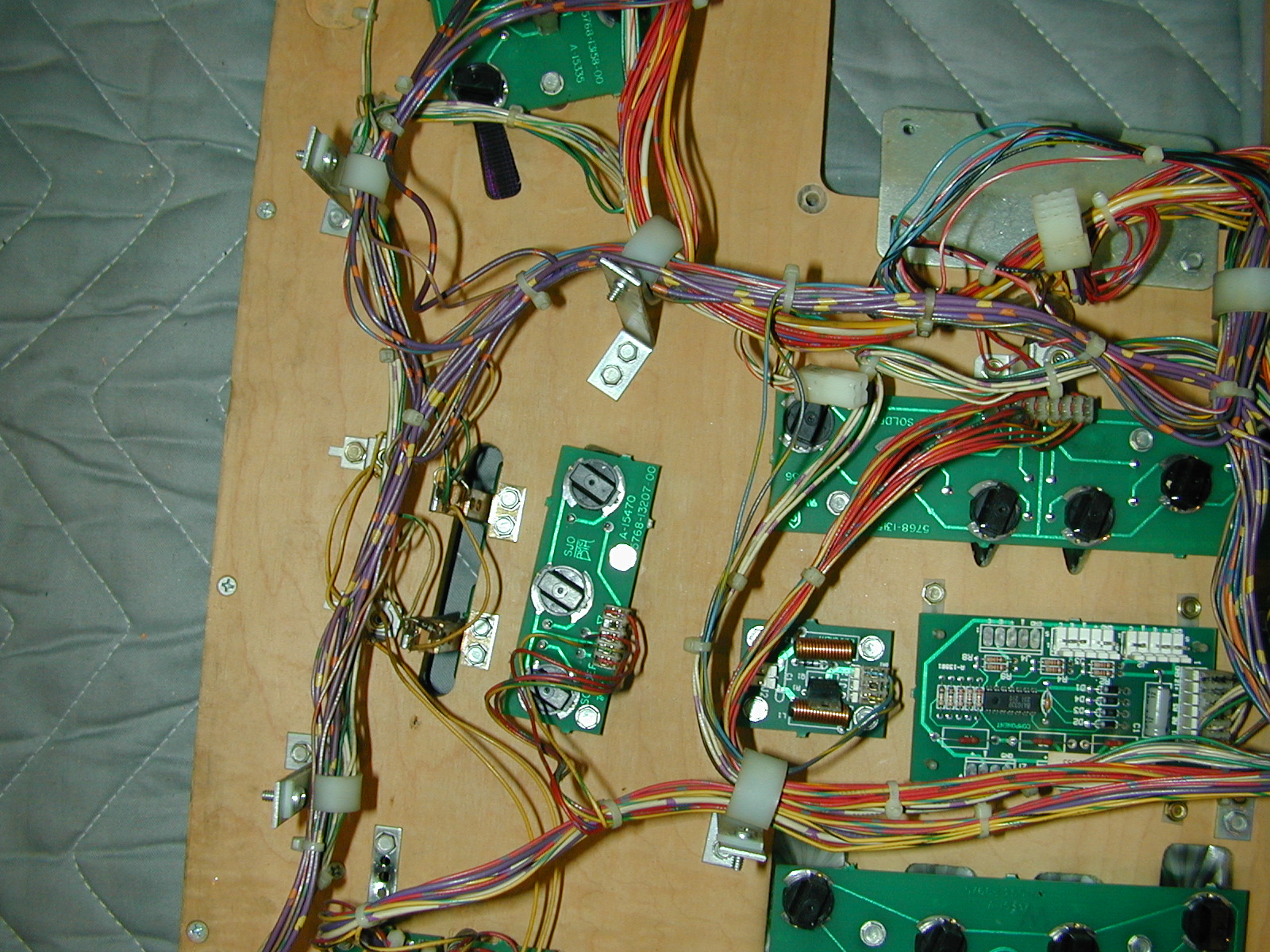

Picture of wiring harness for reference		 91

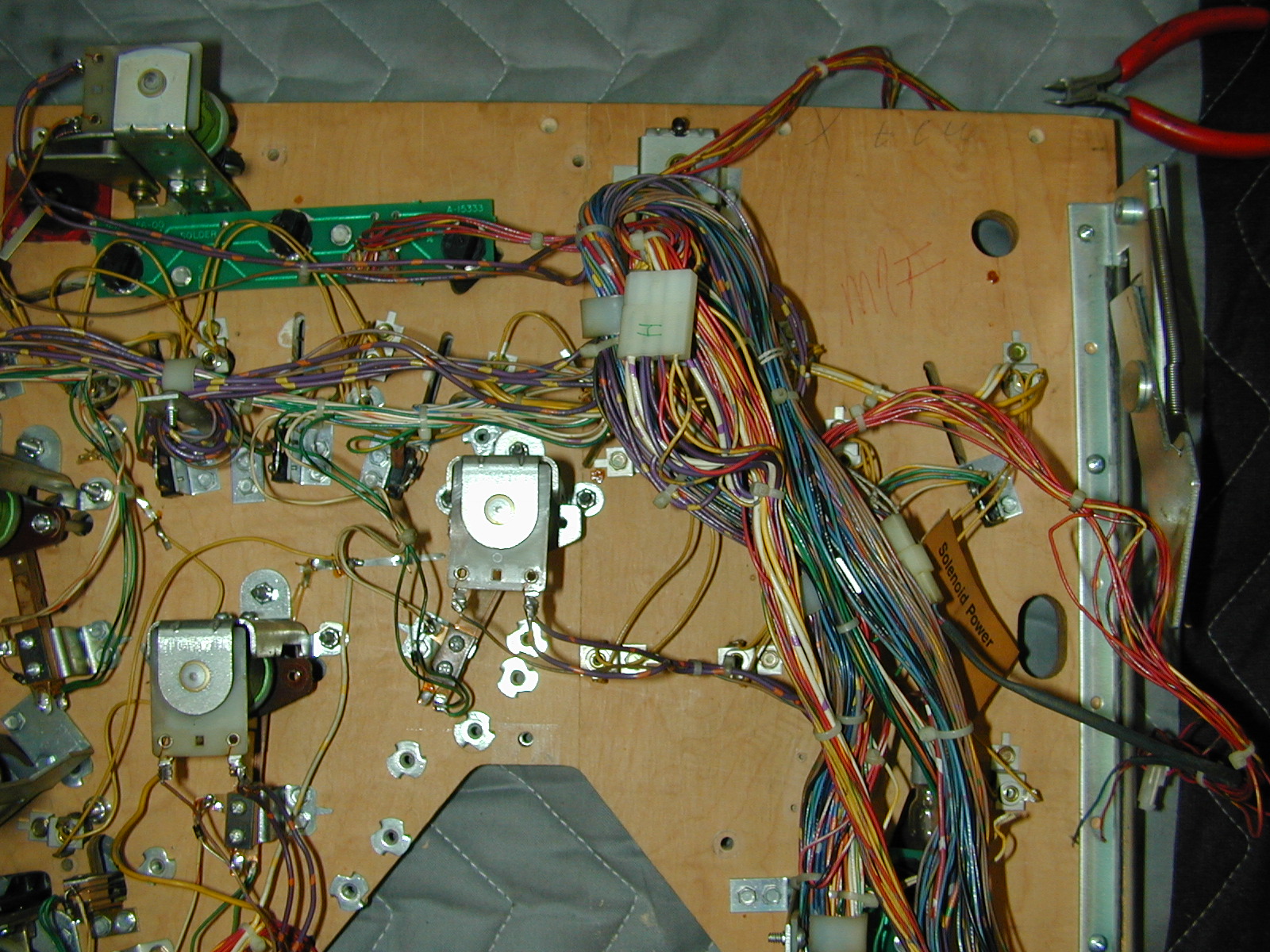

Picture of wiring harness for reference		 92
Picture of wiring harness for reference
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
93
Picture of wiring harness for reference		 94
Picture of wiring harness for reference		 95
Picture of wiring harness for reference		 96
Picture of wiring harness for reference

No pictures for the following -

  1. Support brackets – front only – 2 WS

  2. Wiring harness removal

  3. Left and right slide brackets – 4 WS, 4 MS

  4. Support brackets – 4 nuts and bolts

  5. Right side wood – 9 WS

  6. Left top side wood – 5 WS

  7. Right lower wood – 3 WS

  8. Left bottom side wood – 3 WS

  9. 2 posts below upper right shark – 2 nuts and washers – rubber on bottom post

  10. 9 pop bumper studs

  11. Boat bracket – 3 WS

  12. 2 lower outlane post adjustment brackets – 4 WS
