Playfield Teardown Pictures


[First] [Prev] [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
73

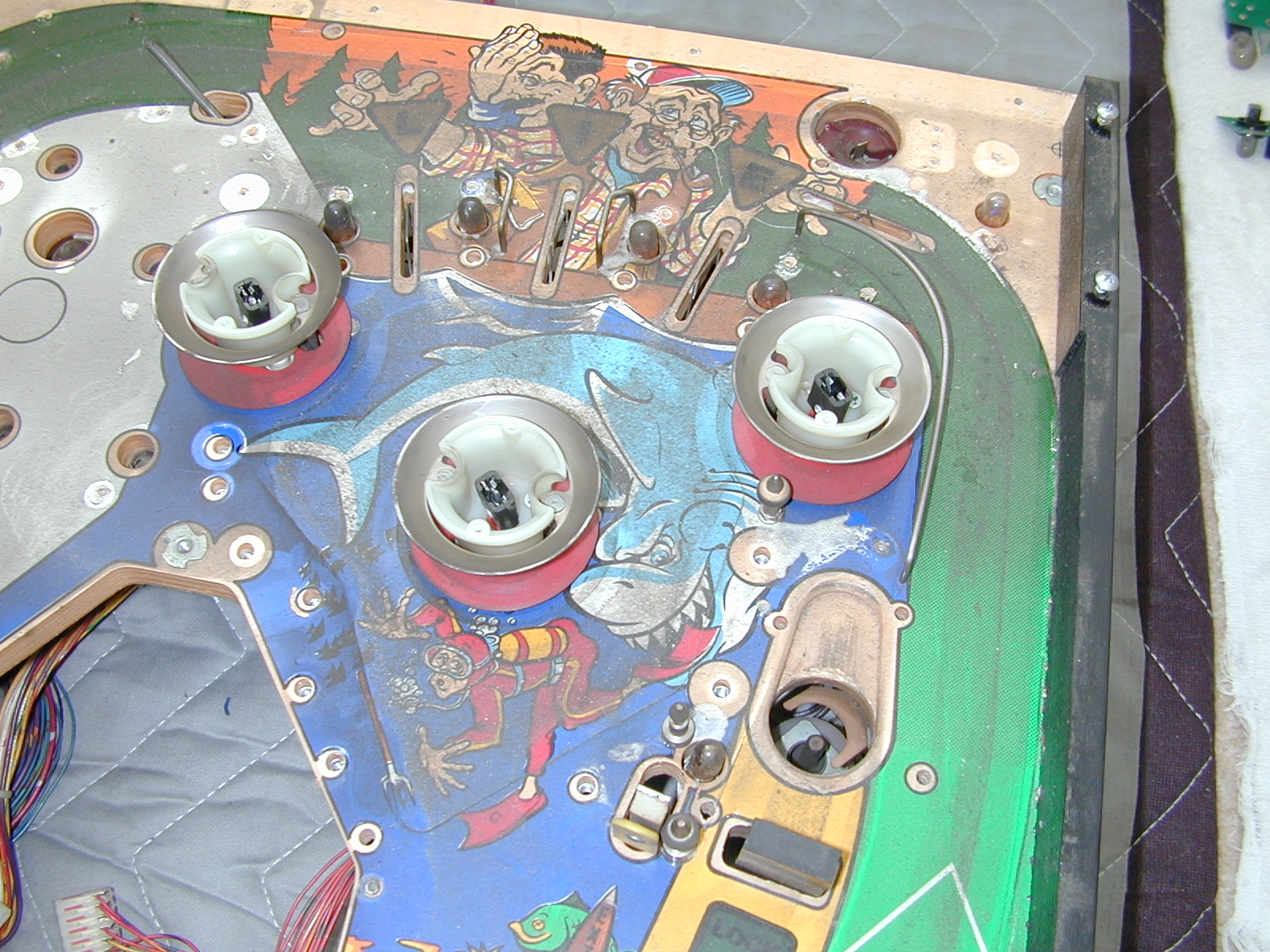

3 pop bumper #555 bulbs		 74

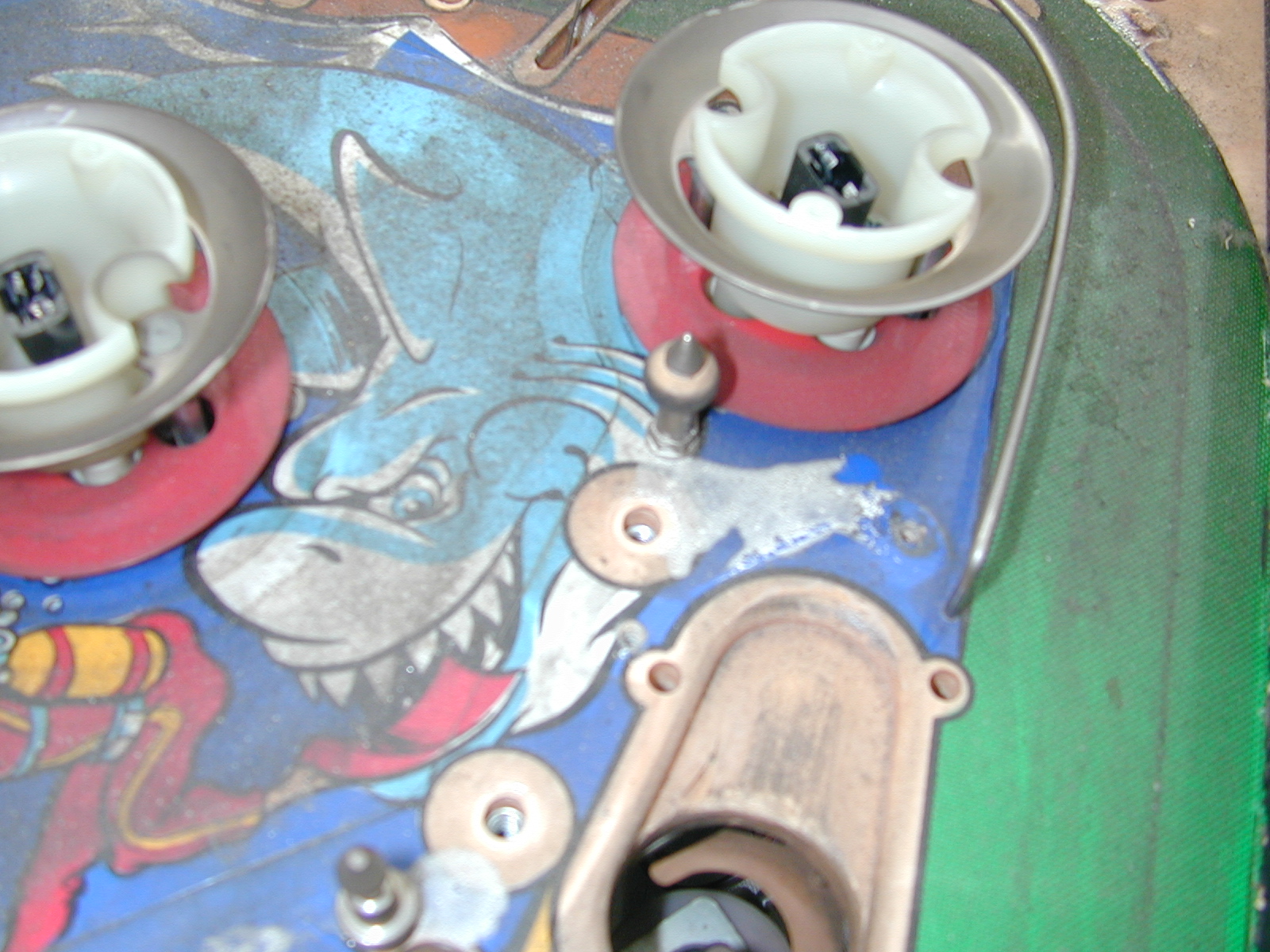

6 #44 bulbs – 4 rollover, 1 upper right corner, 1 behind target to left of boathouse		 75
Metal post with rubber ring below right pop bumper – 1 WS		 76

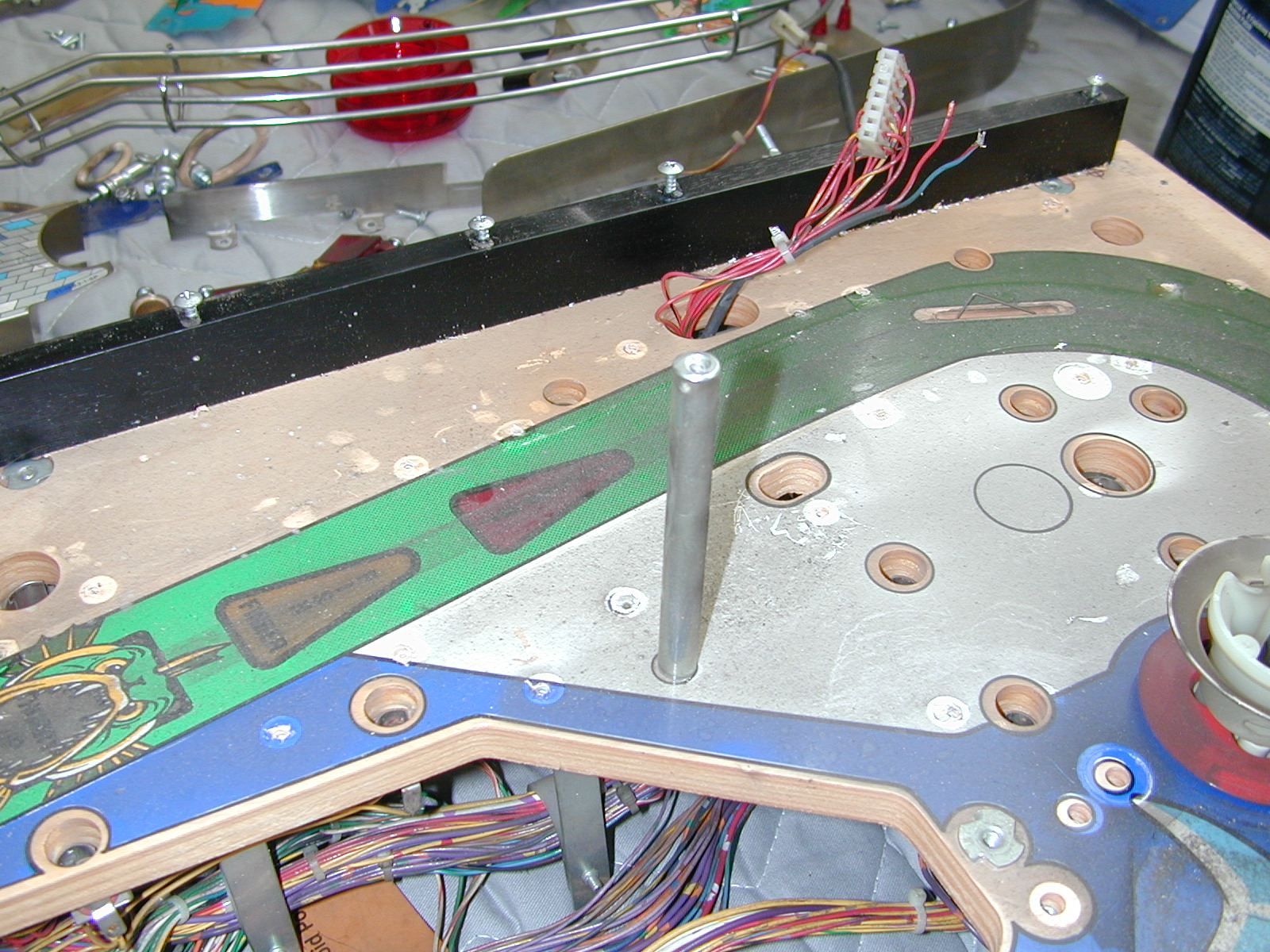

Long metal post behind boat cutout – 1 nut
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
77

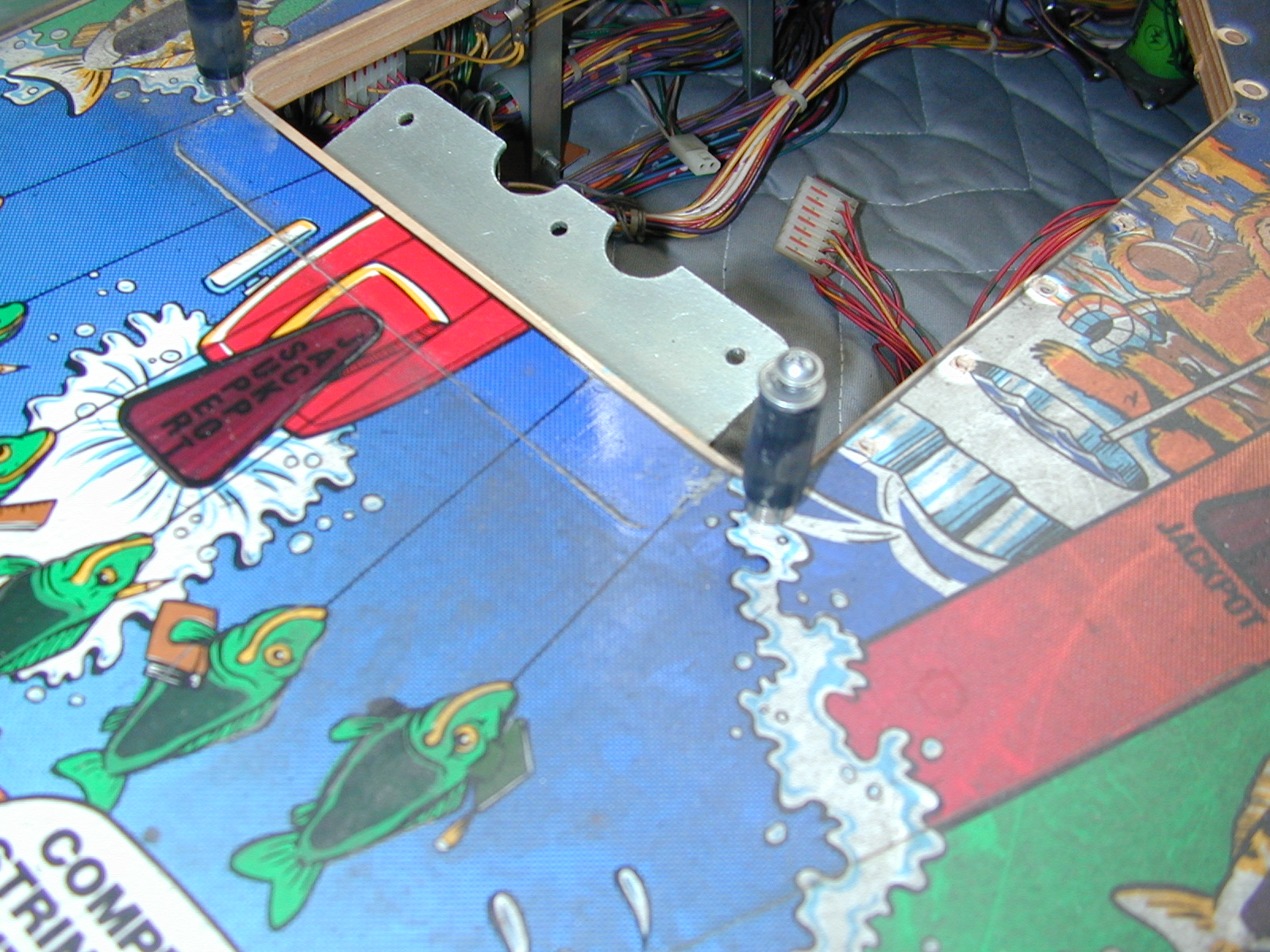

Post with black sleeve right bottom front corner of boat cutout – 1 nut with washer		 78

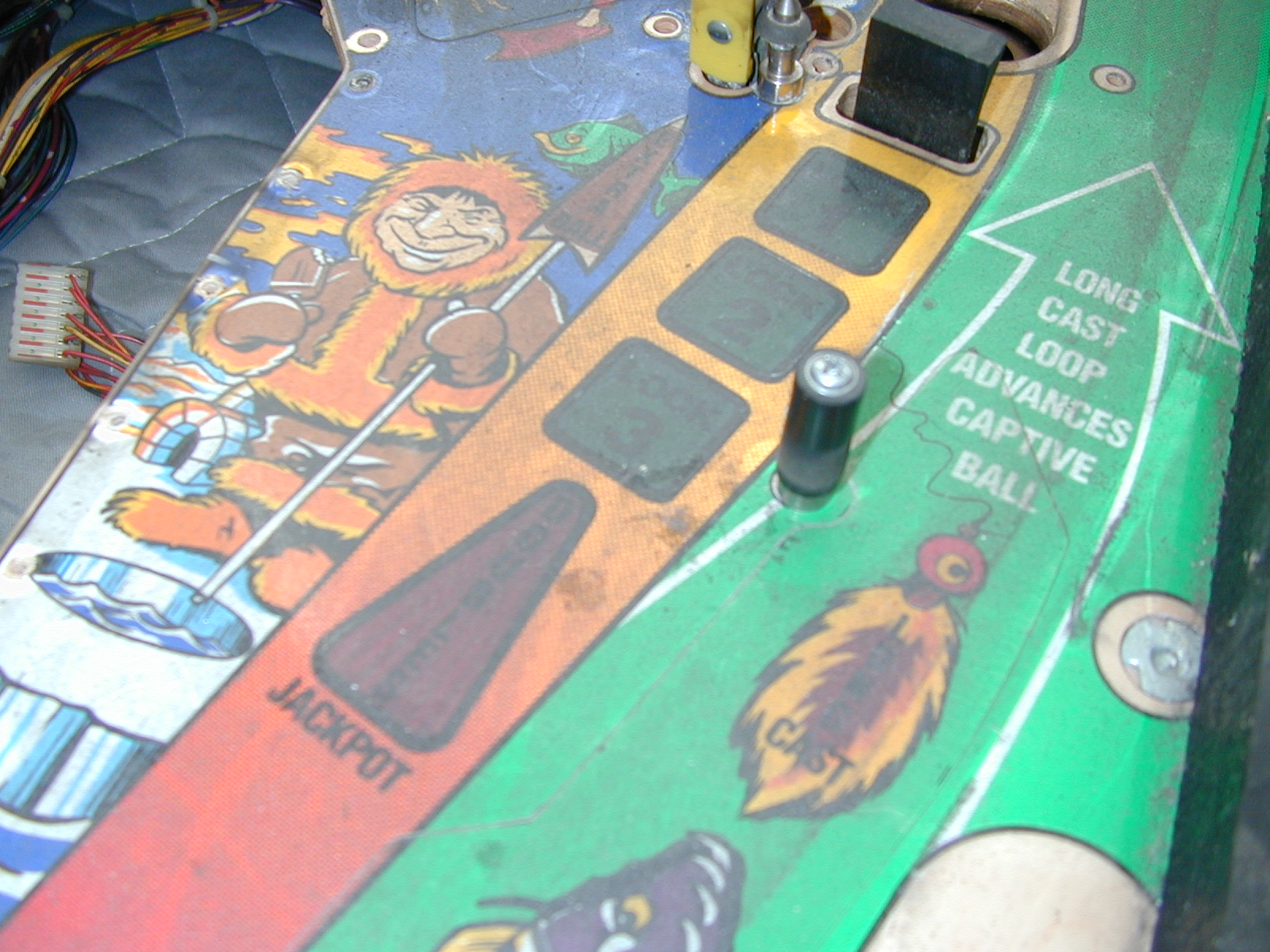

Post with black sleeve to right of “LOCK 3” (lower hole) – 1 nut with washer		 79

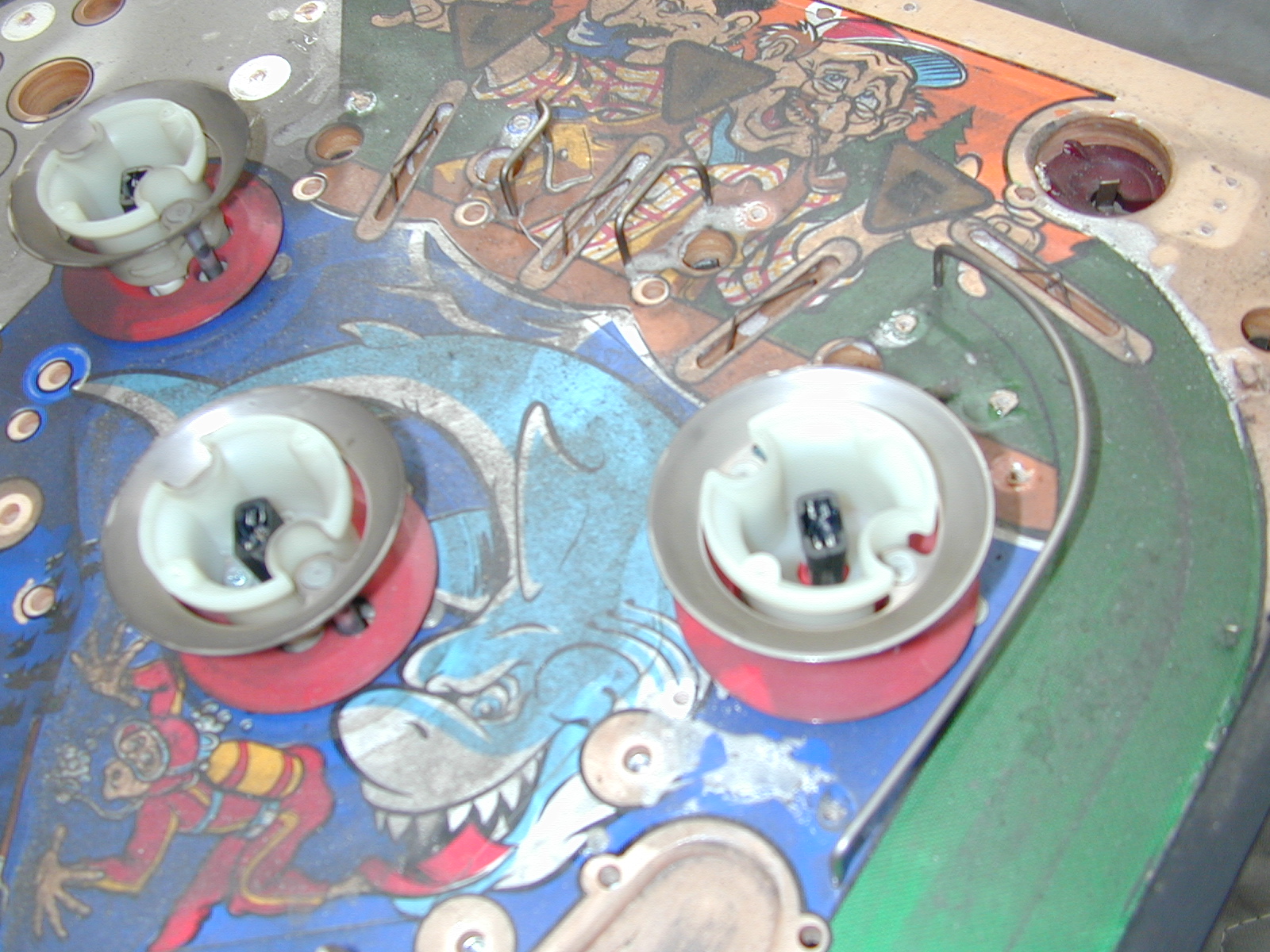

3 wire guides above pop bumpers		 80

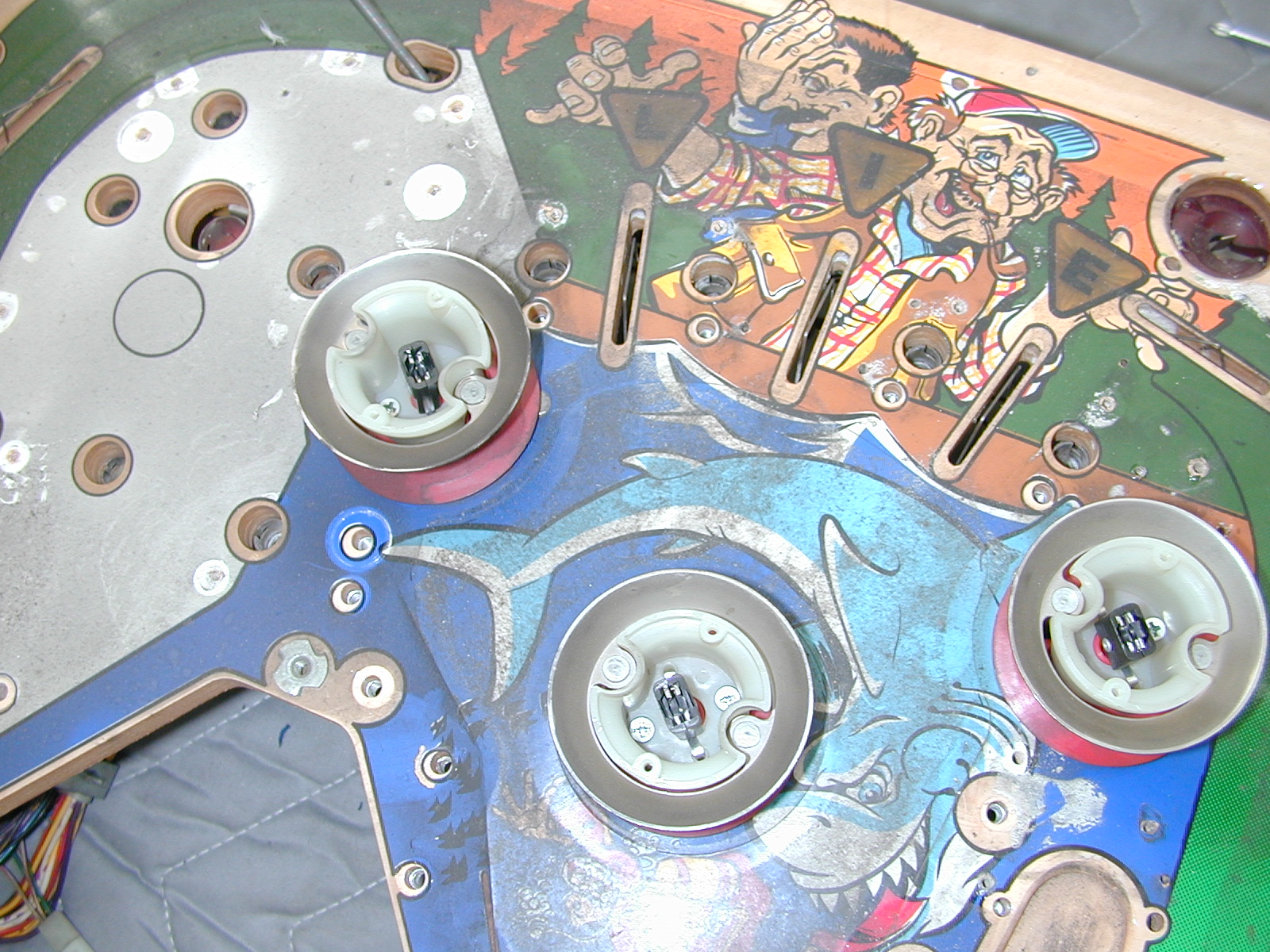

3 pop bumper 555 sockets
Click to enlarge Click to enlarge Click to enlarge Click to enlarge

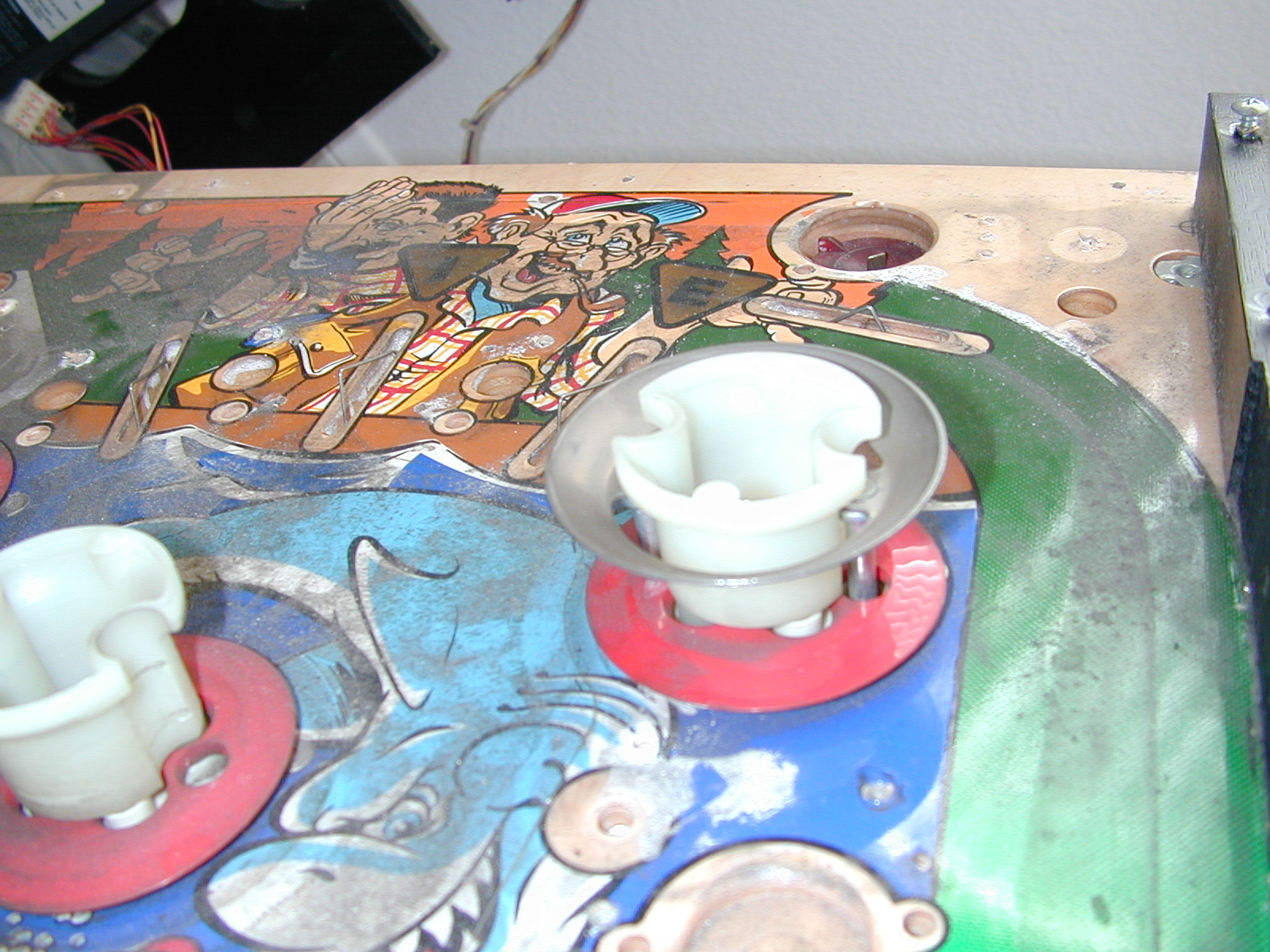

81

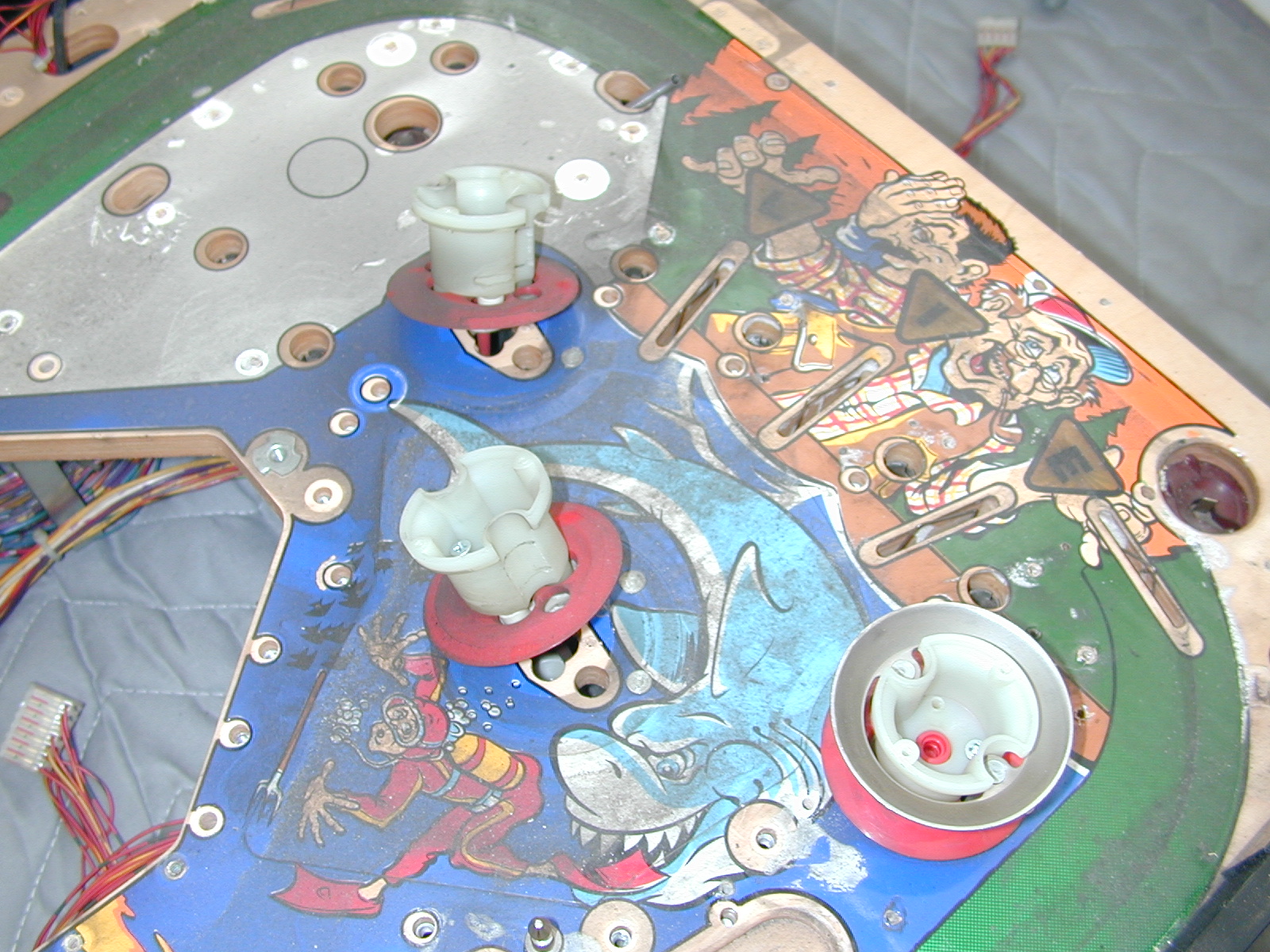

3 pop bumper rings – 6 nuts		 82

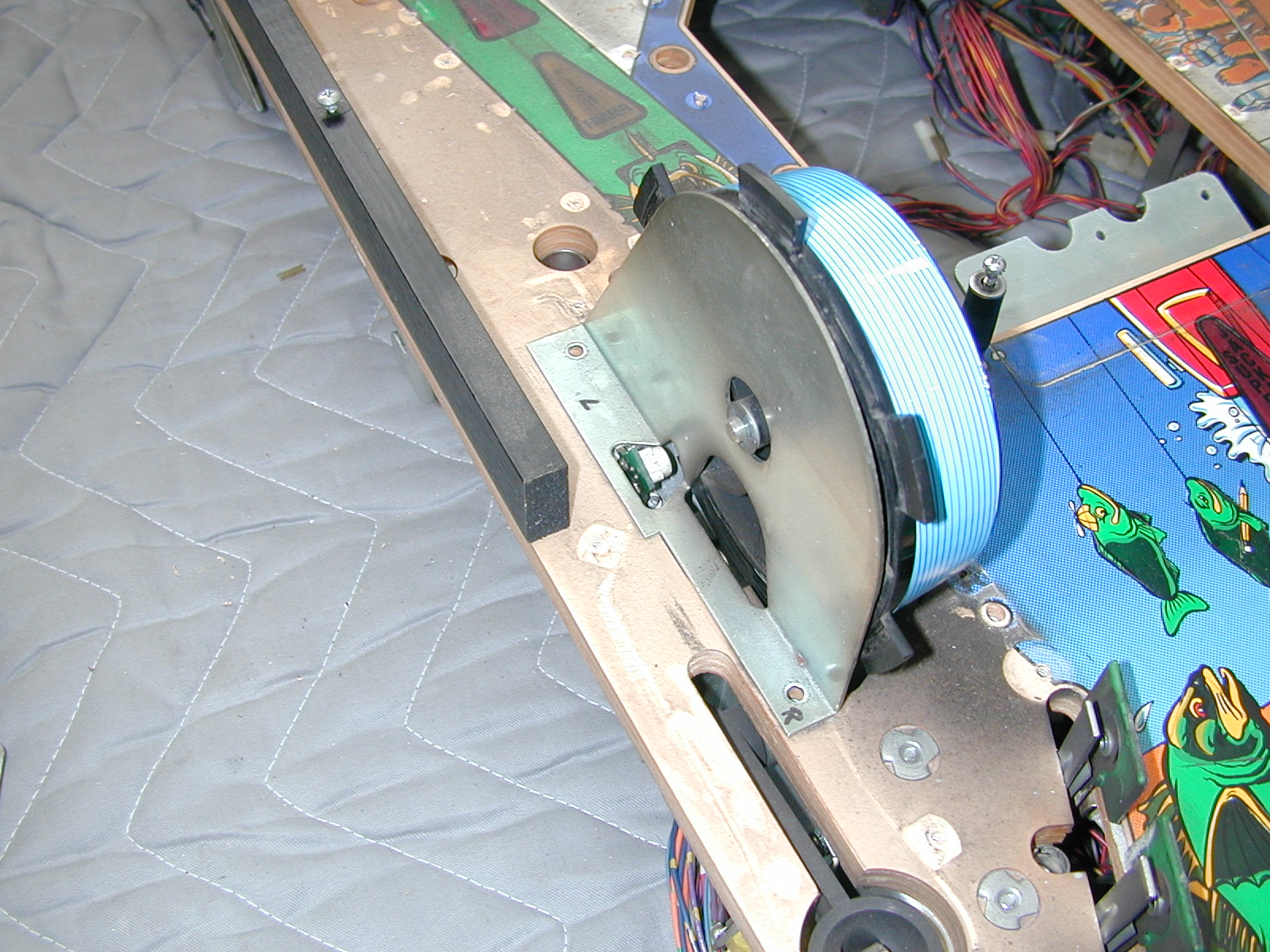

3 pop bumper body/wafer/base assemblies – 6 WS		 83
Reel bracket on left – 2 MS		 84

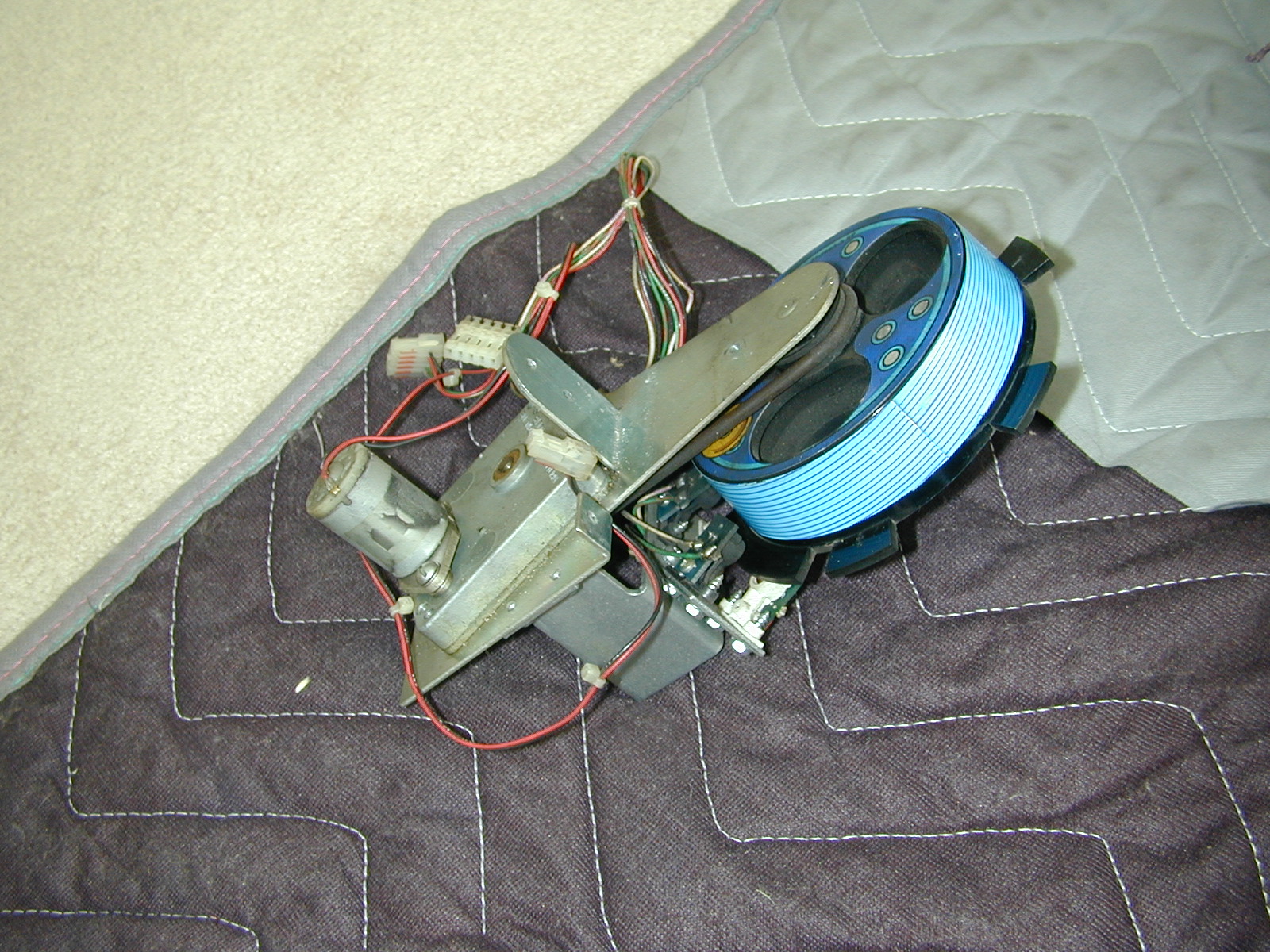

Reel assembly – 3 WS, disconnect J2/J3 opto and J2 motor
