Playfield Teardown

Pinball Home

Restorations

Playfield Teardown Pictures



Click to enlarge Click to enlarge Click to enlarge Click to enlarge
1

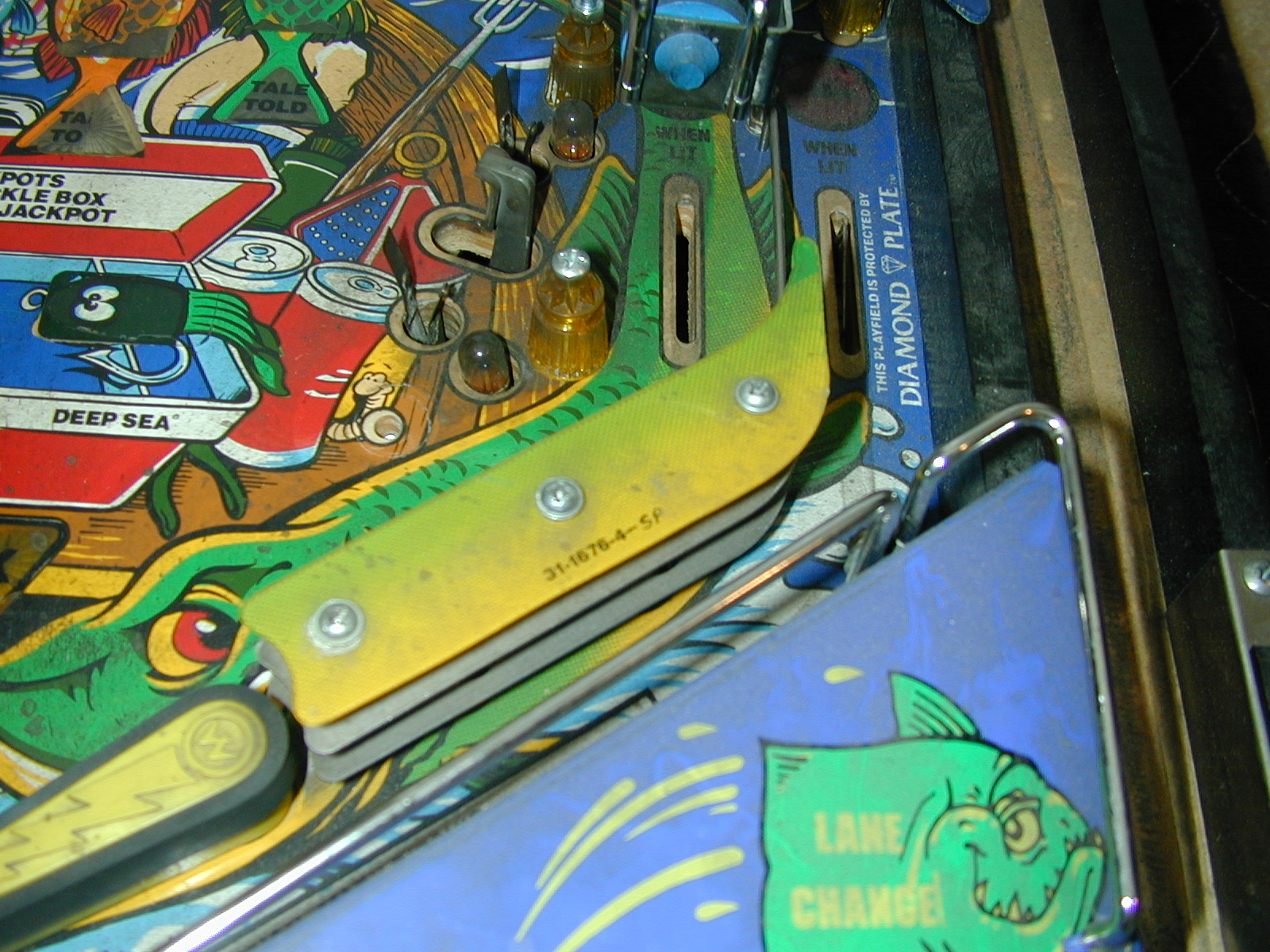

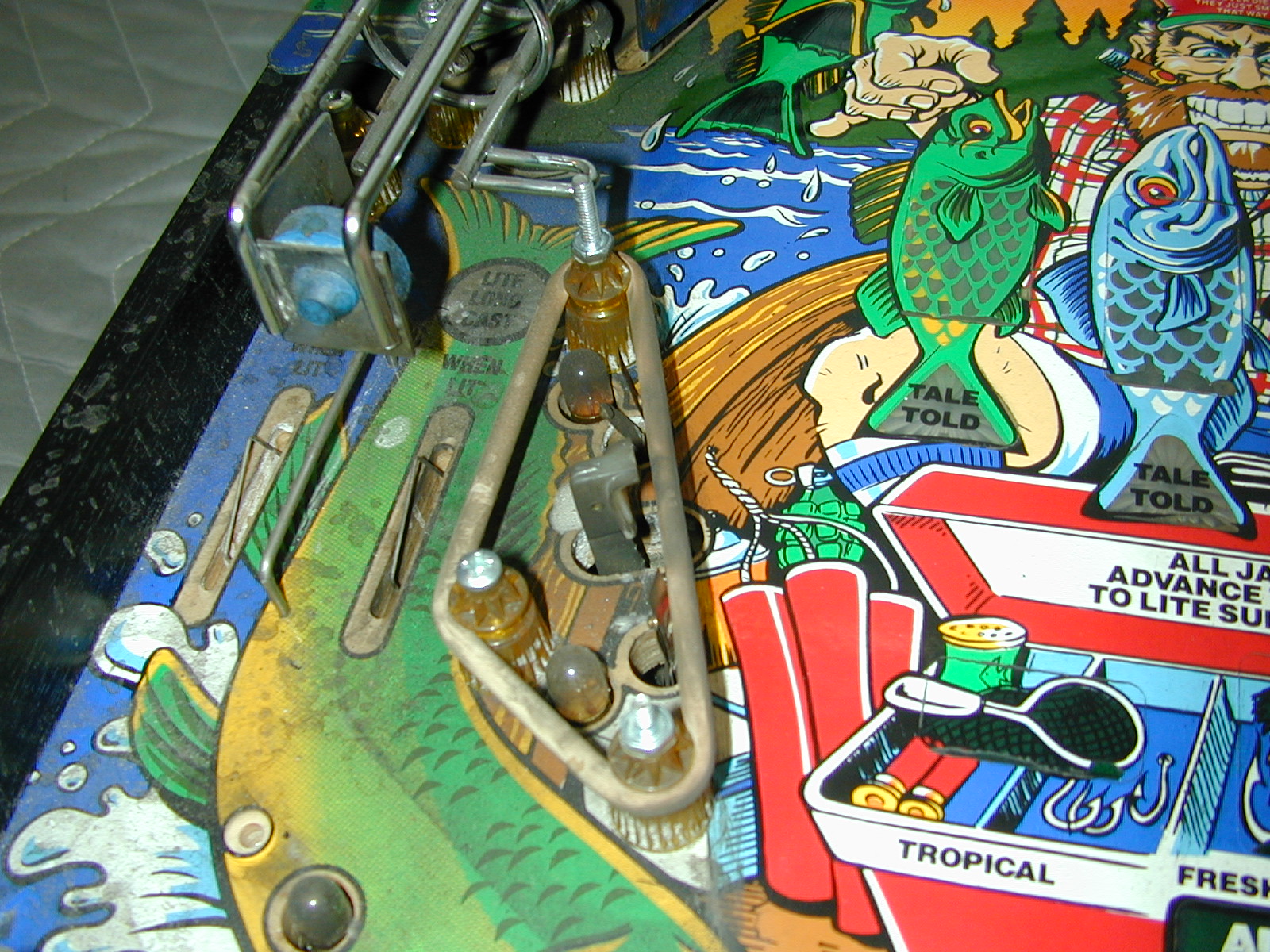

Left sling assembly - 3 MS (Machine Screws)
2

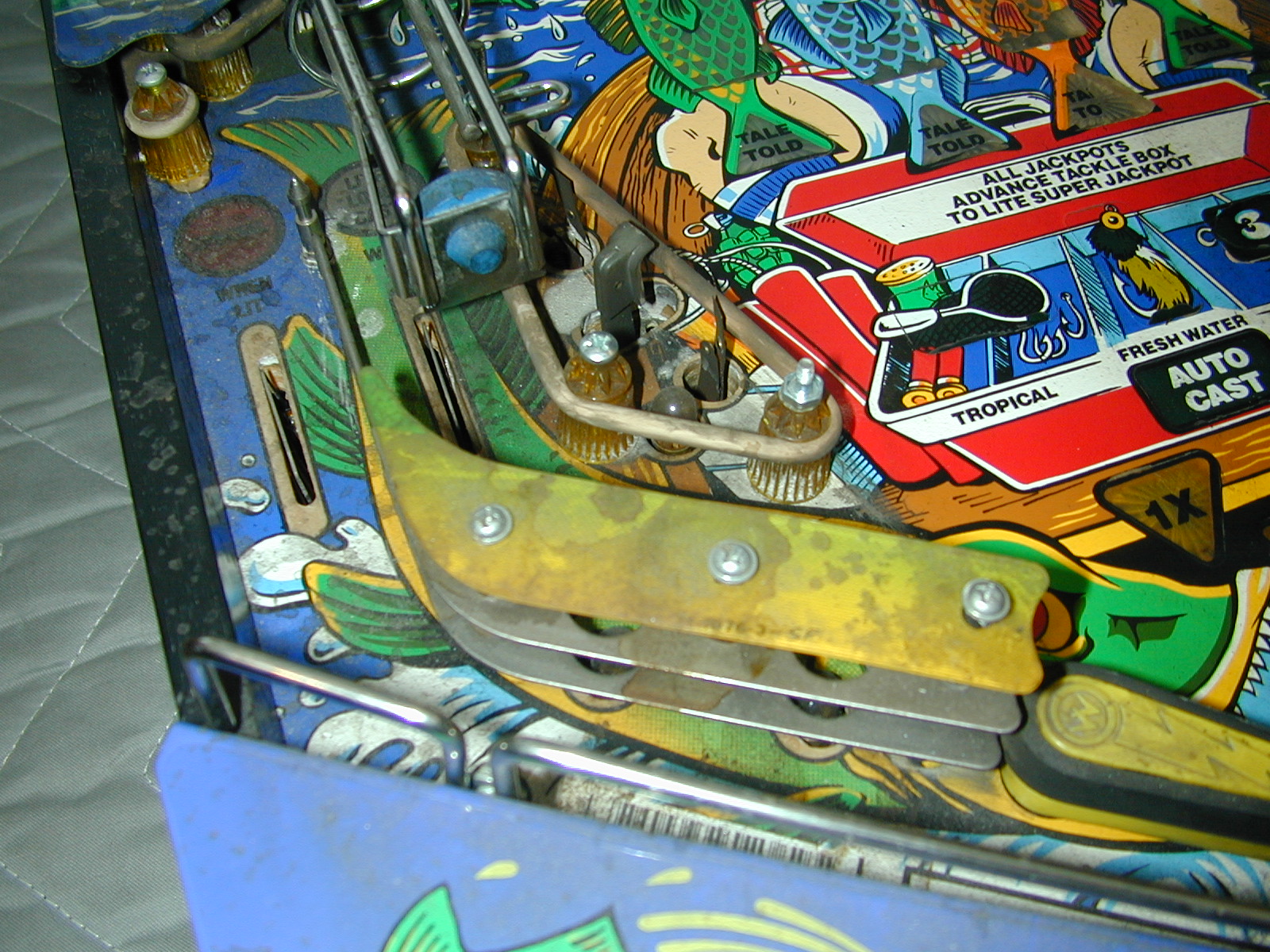

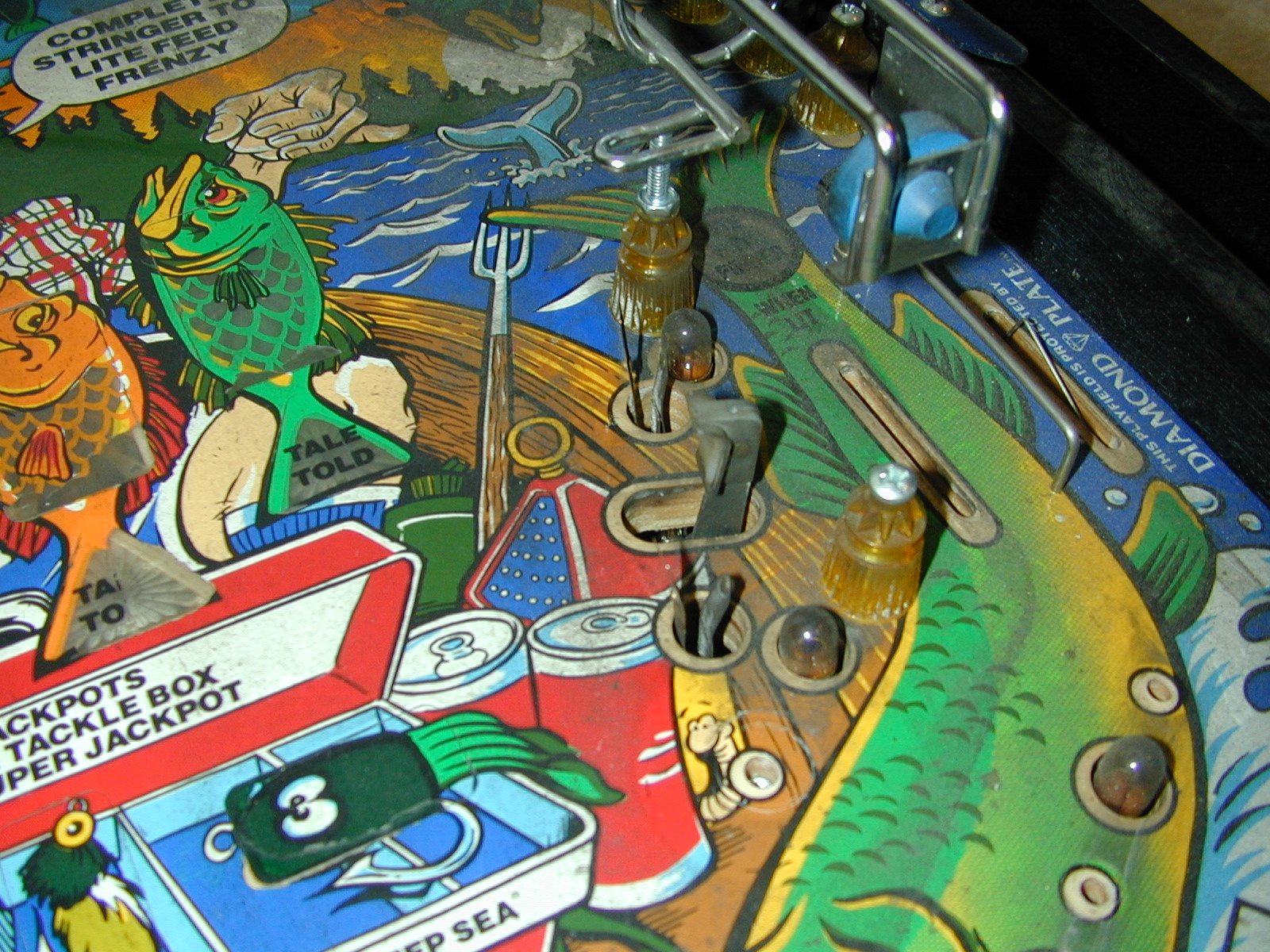

Right sling assembly 3 MS
3
Left sling 3 star posts with rubber ring 2 MS, 1 WS (Wood Screw), long stud on top, short stud on bottom
4

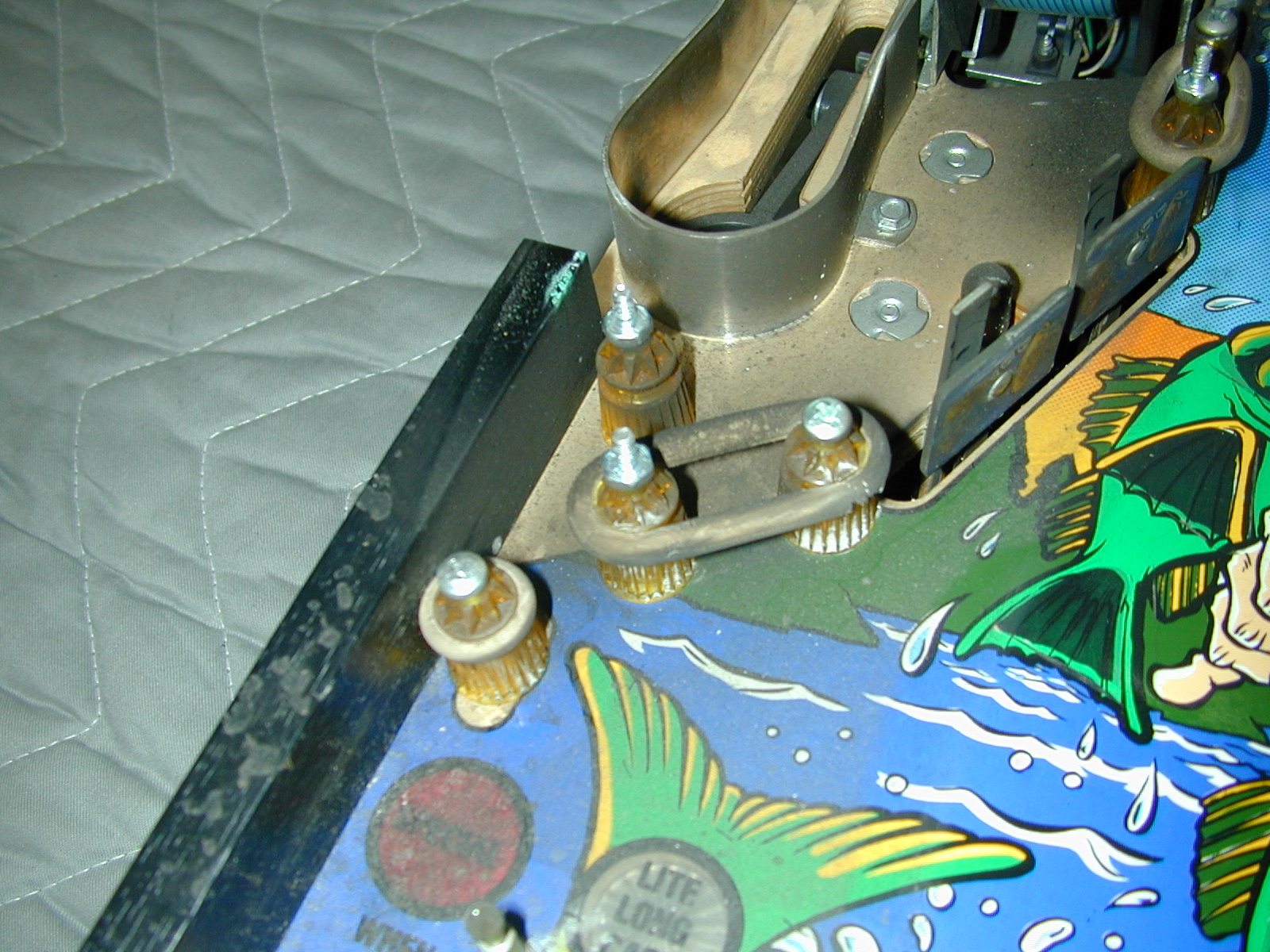

Right sling 3 star posts with rubber ring 2 MS, 1WS, long stud on top, short stud on bottom
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
5

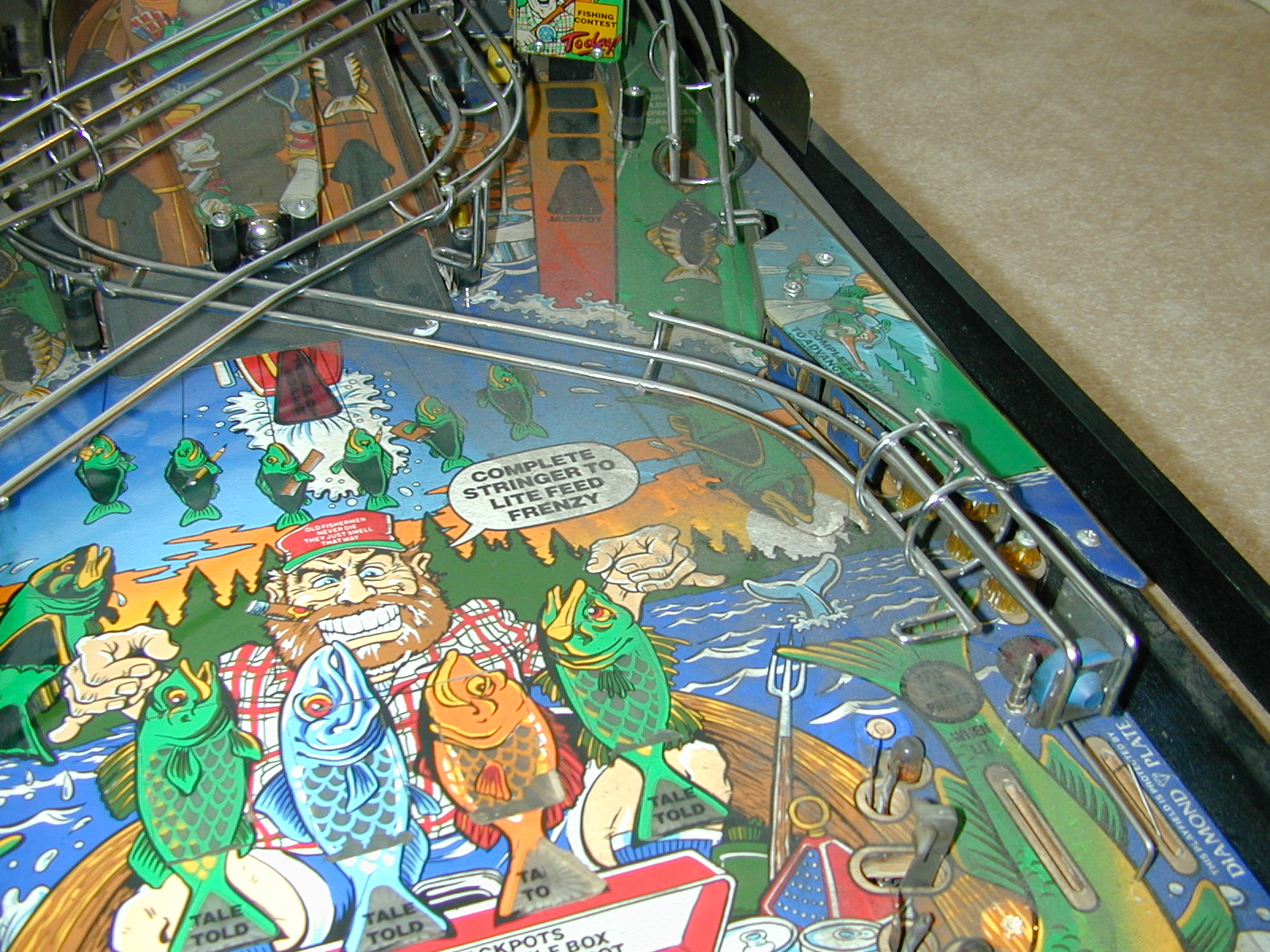

Wire ramp to left inlane 1 MS
6

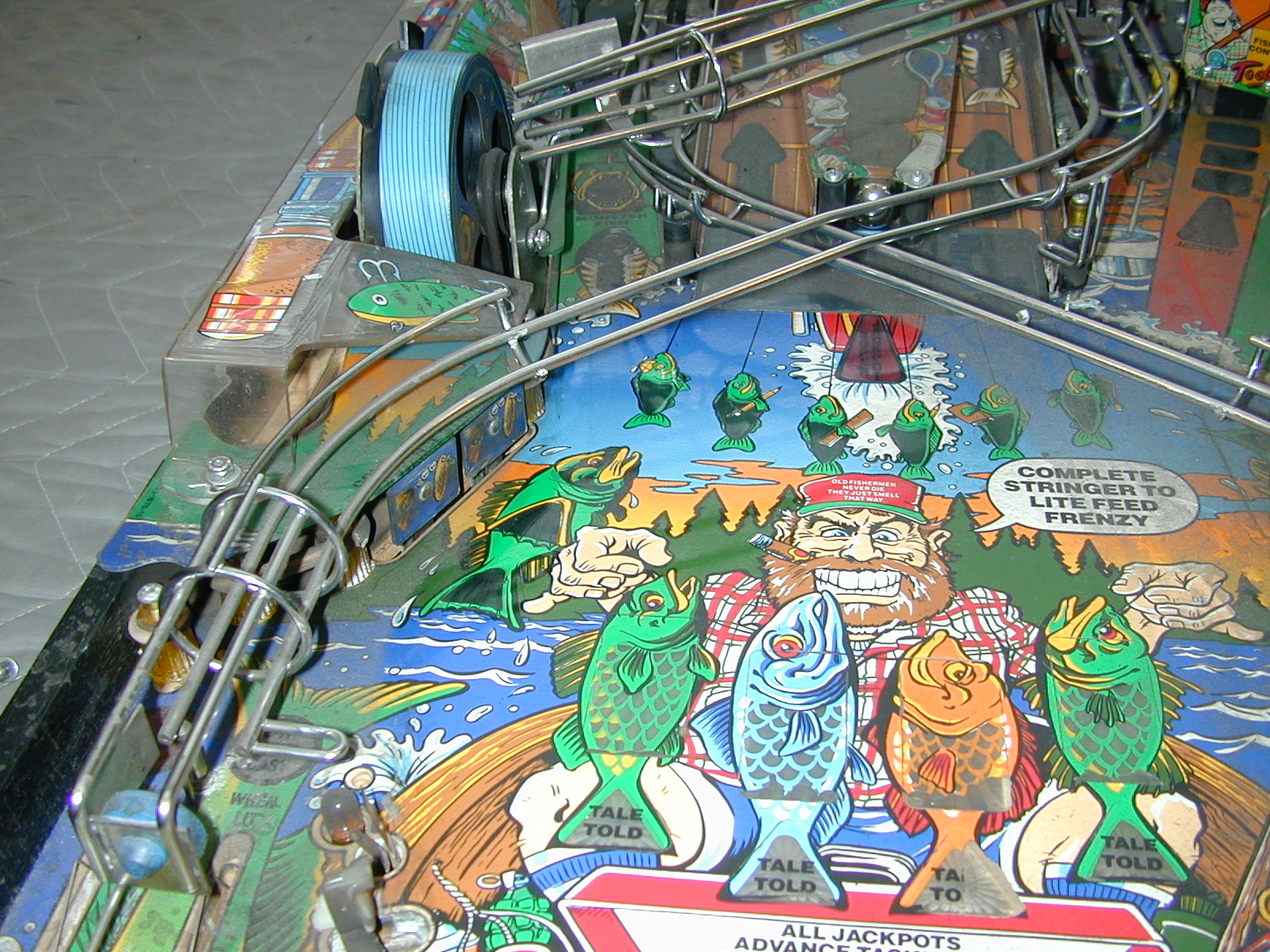

Wire ramp to right inlane 1 MS
7

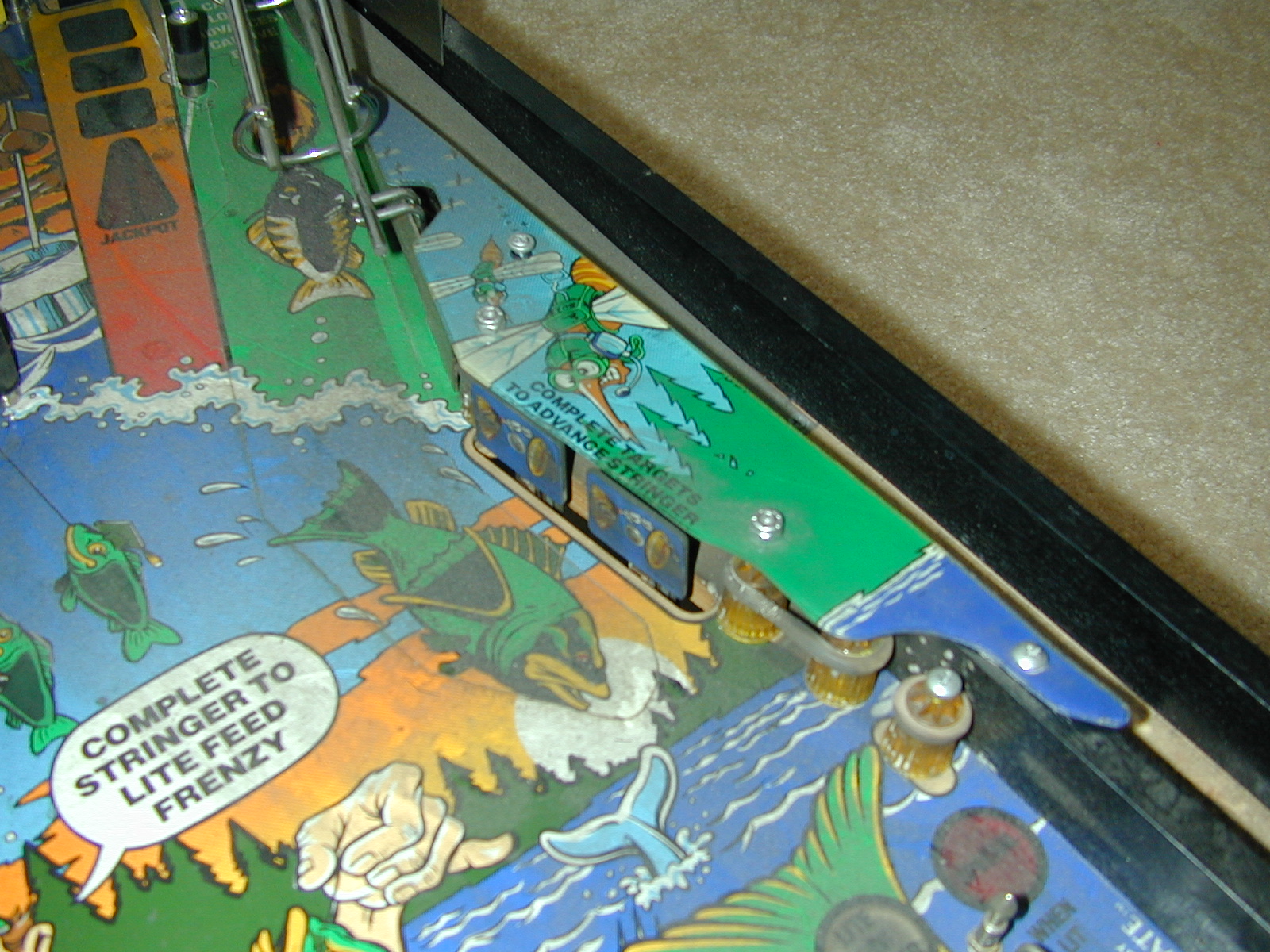

Plastic above right 2 targets 2 WS, 2 nuts
8

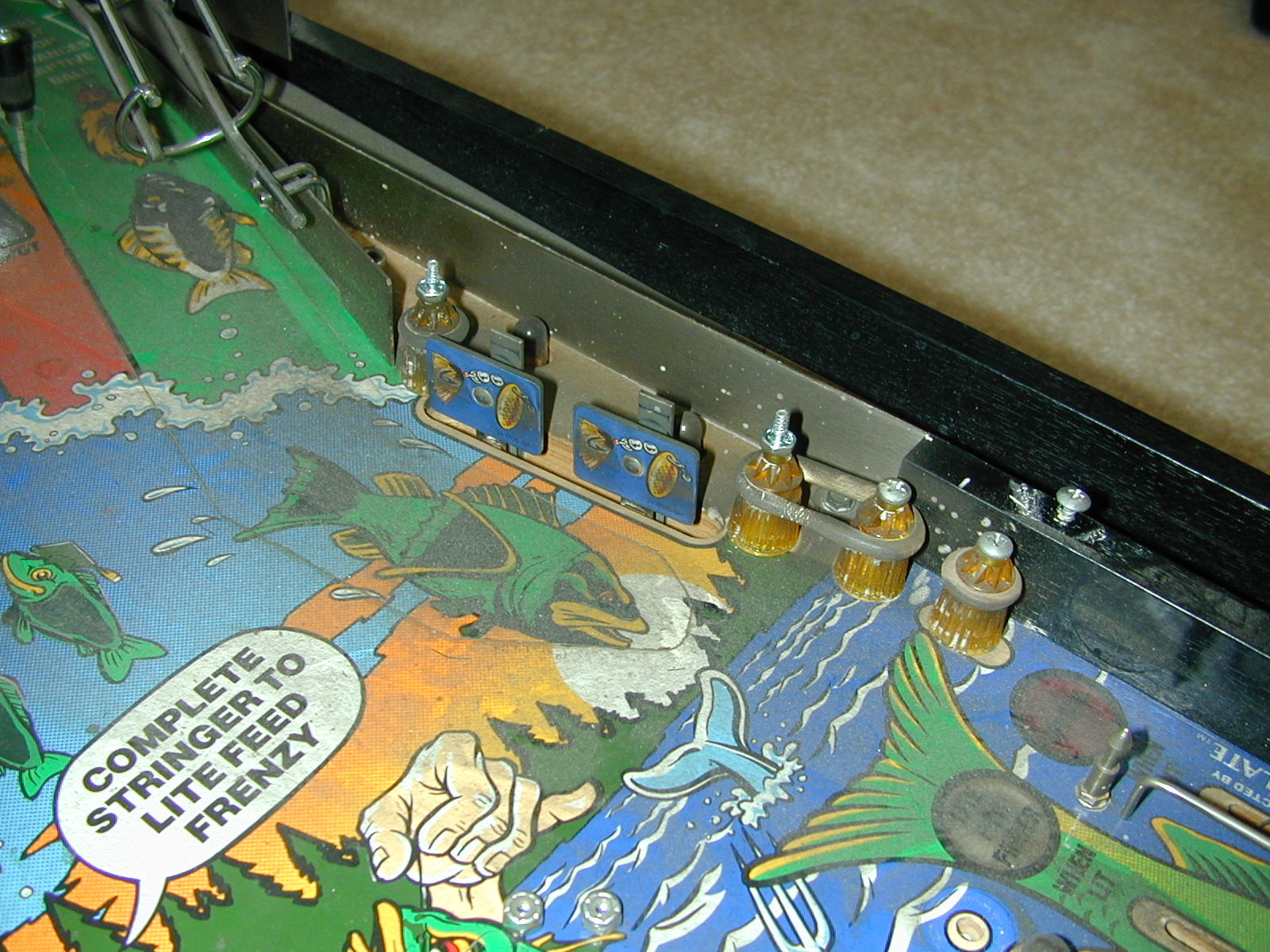

4 star posts around right targets 3WS, 1 MS, 2 studs closest to targets
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
9
Lower arch 2 WS
10

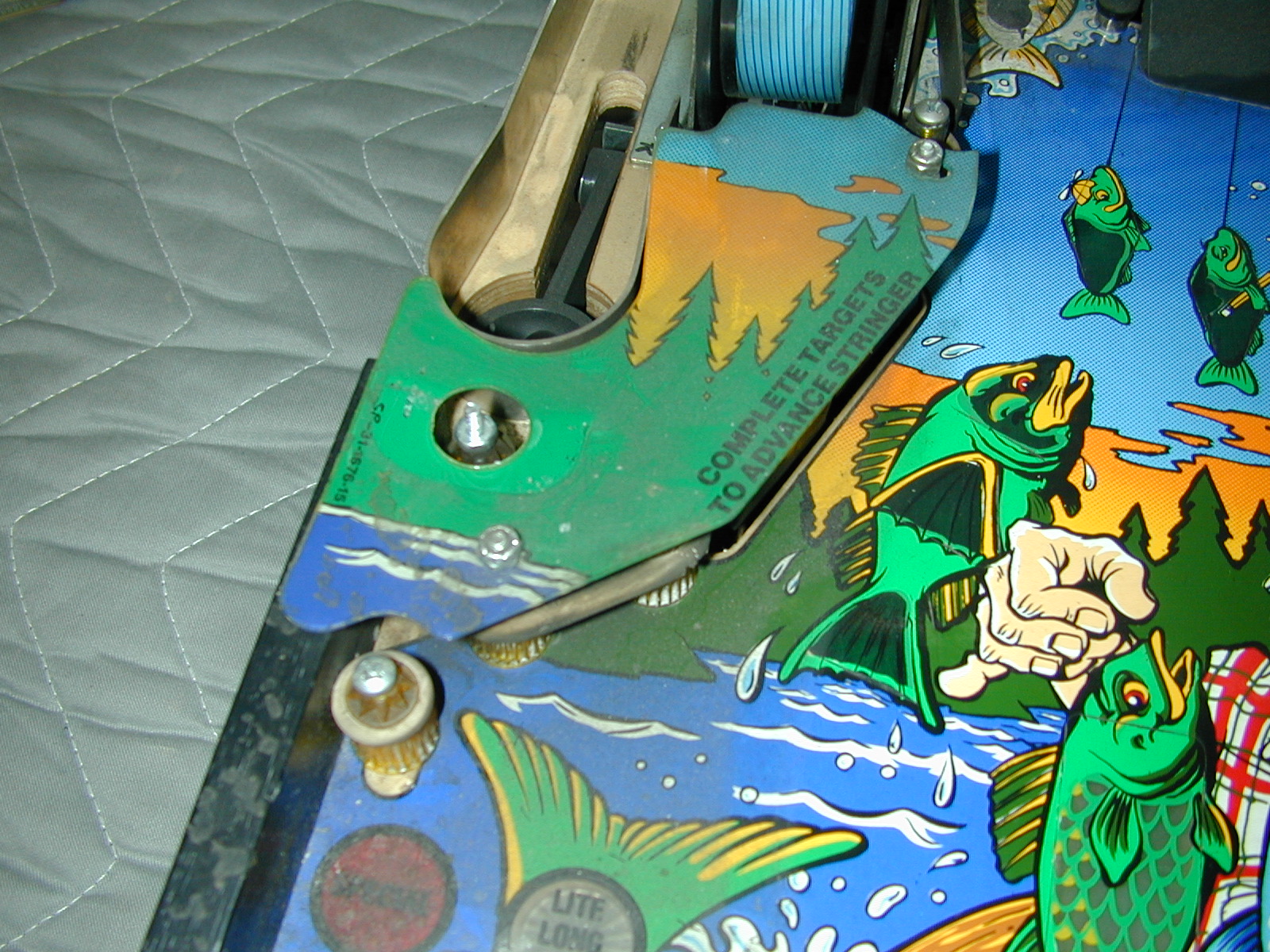

Rod and reel plastic cover 3 MS, 1 nut w/washer
11
plastic (-15) behind left 2 targets 2 nuts
12
4 star posts to left of left 2 targets 1 MS, 3 WS stud on middle and behind
