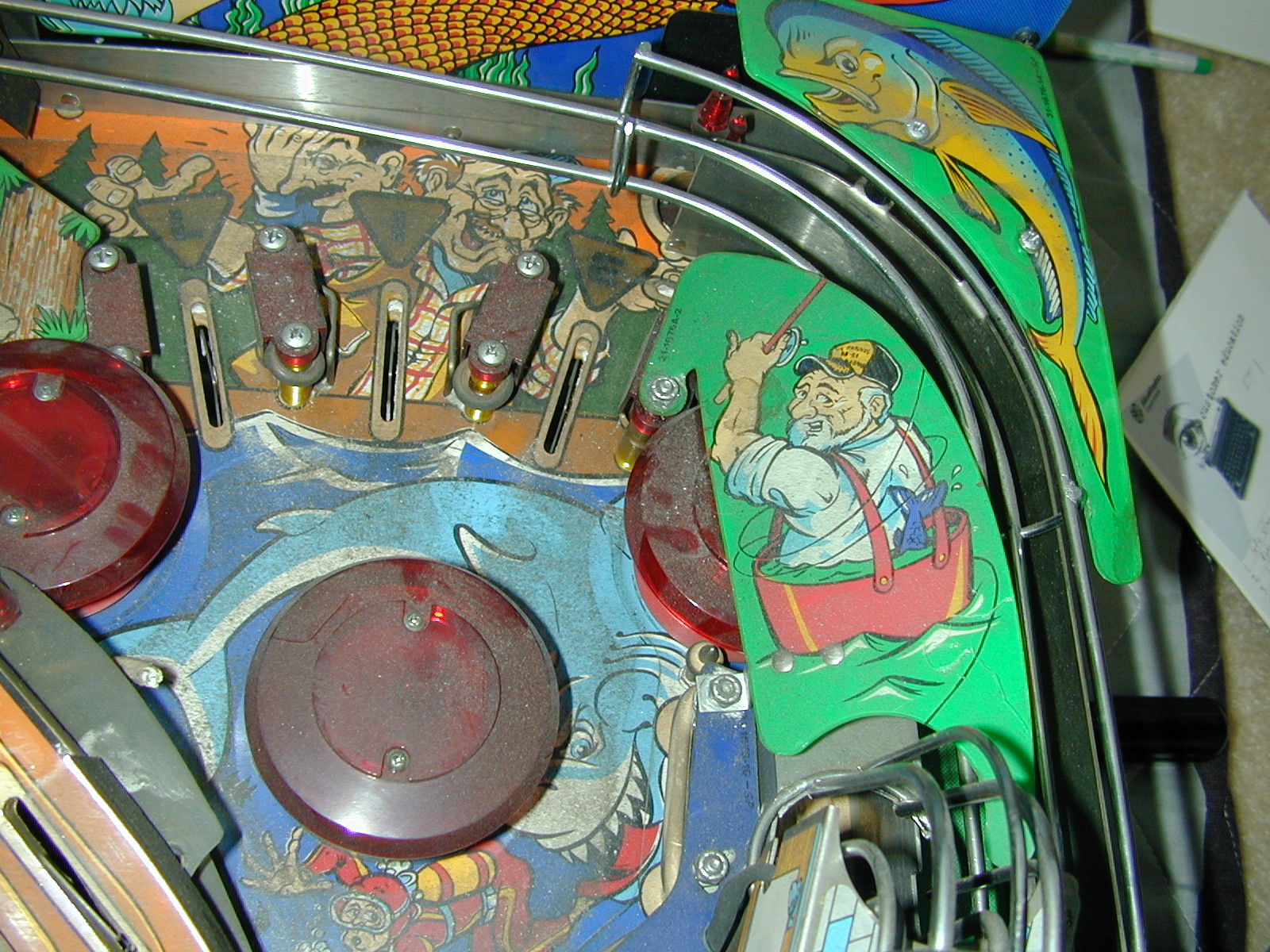

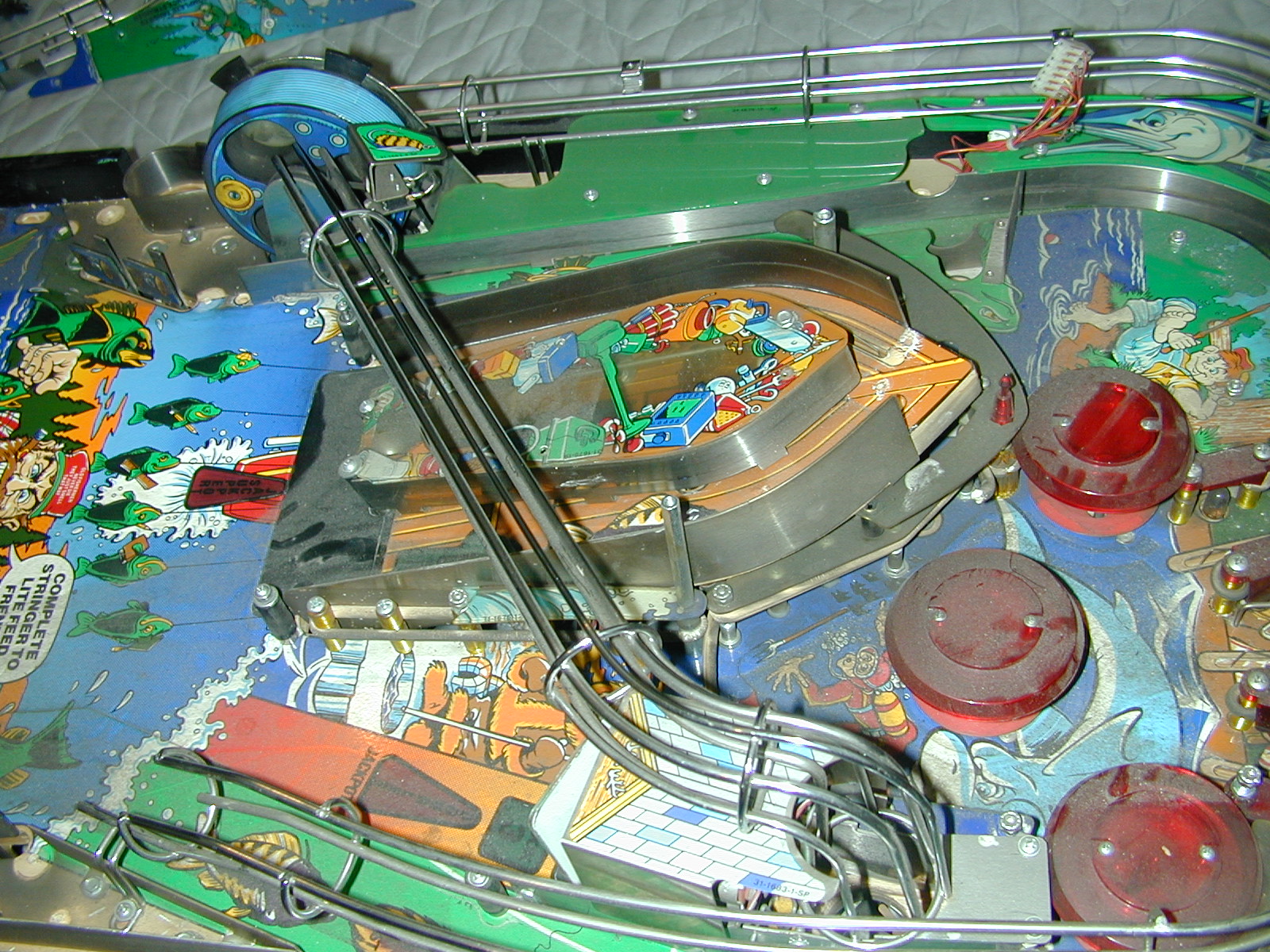

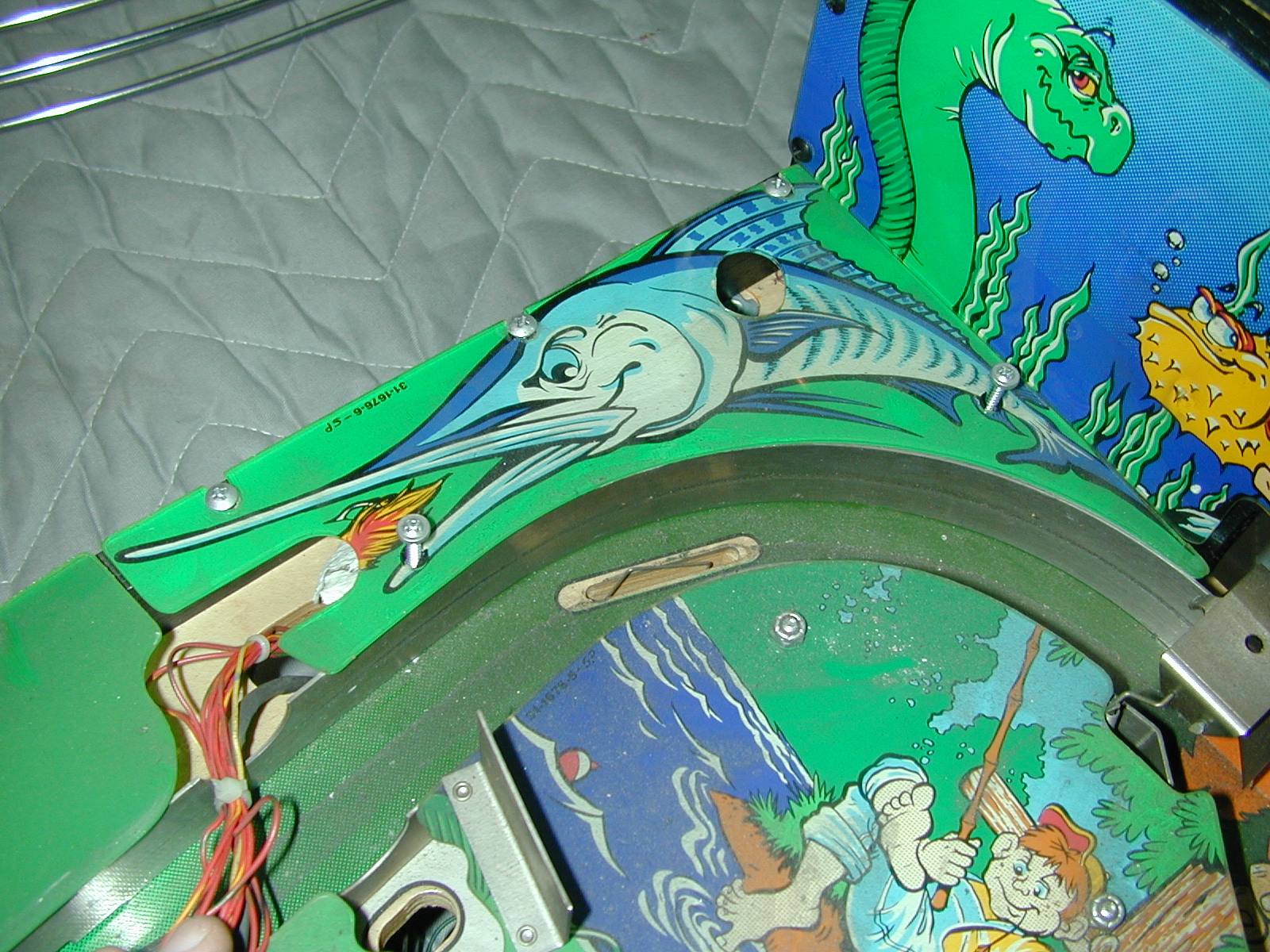

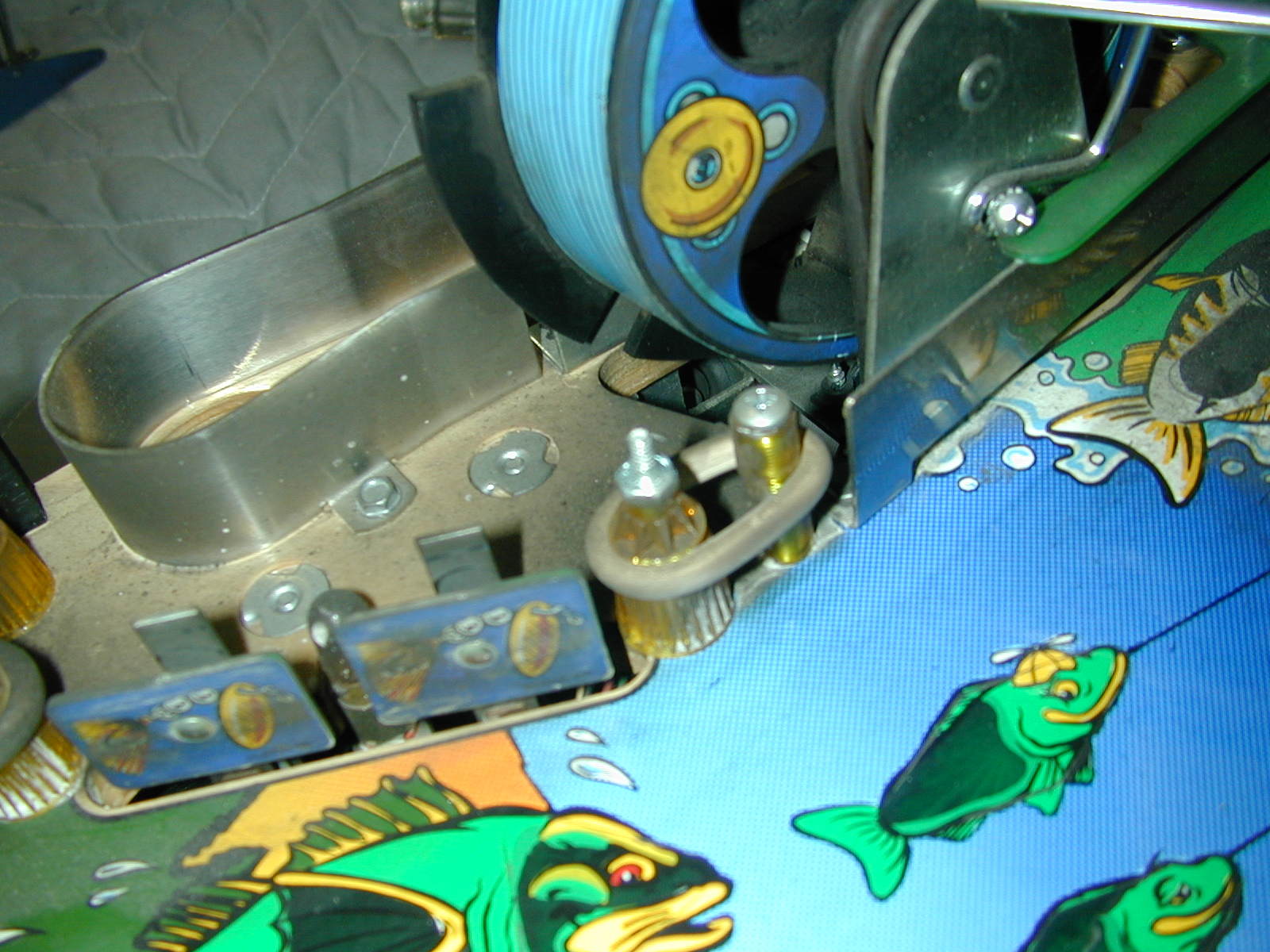

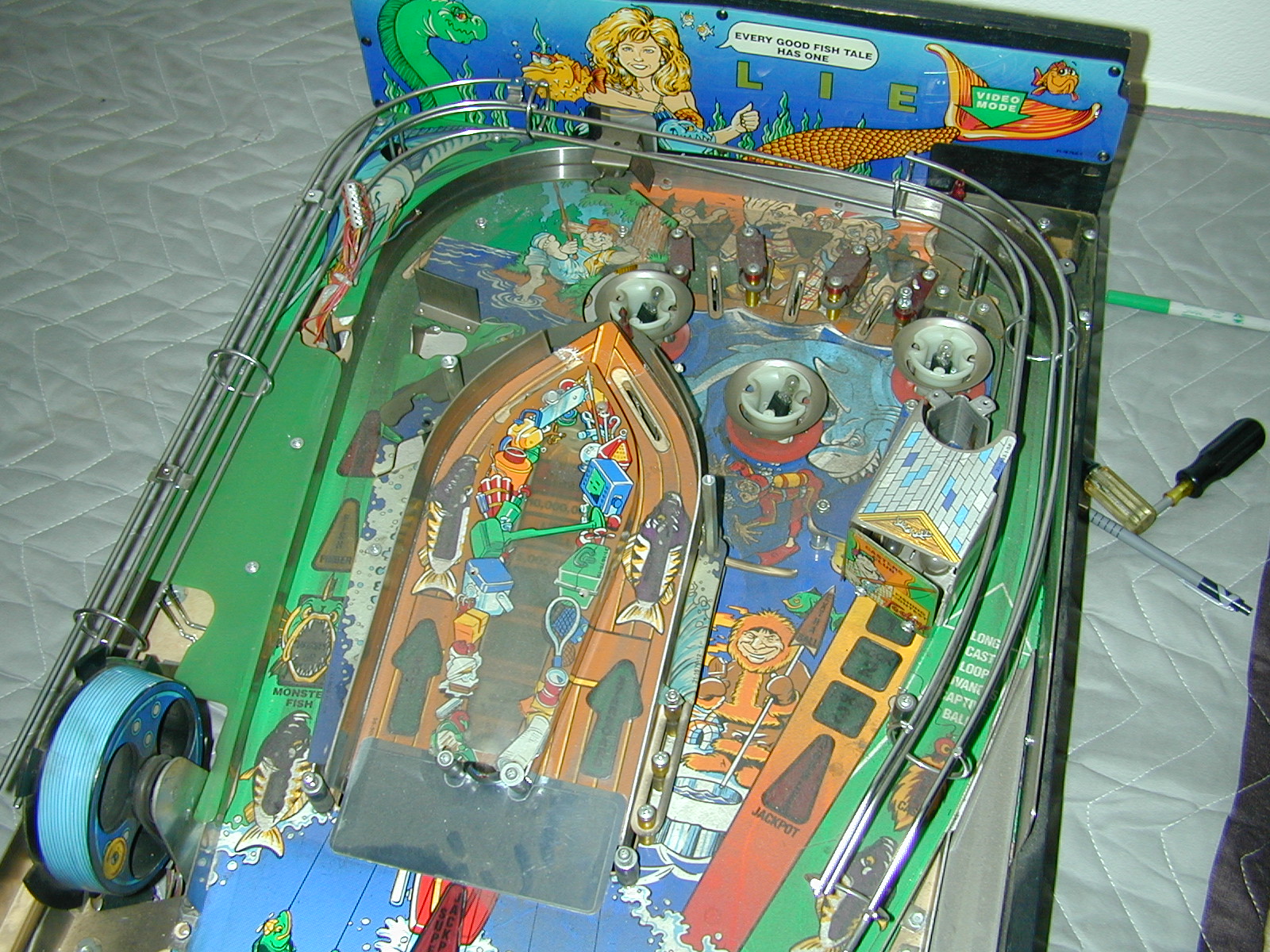

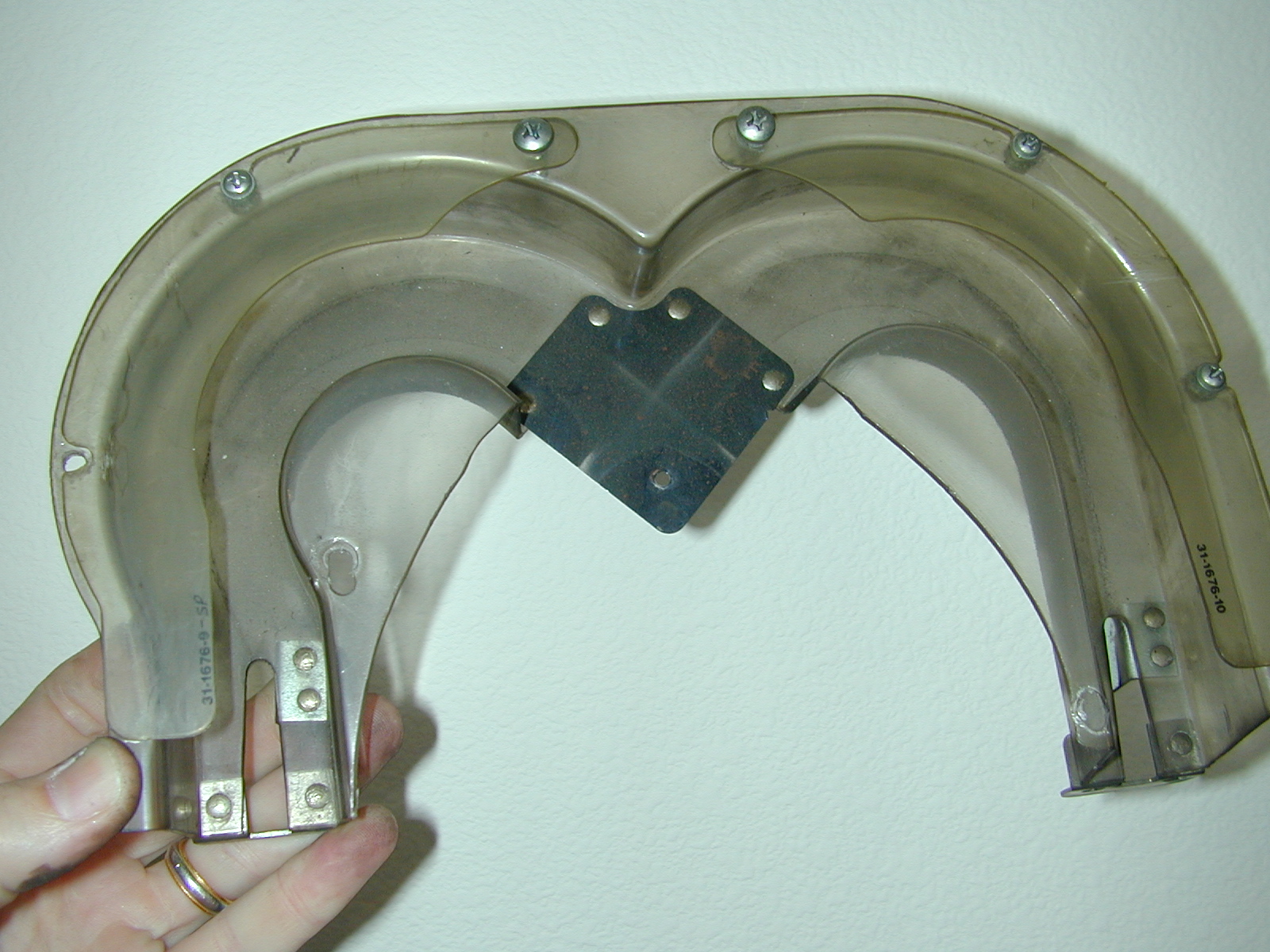

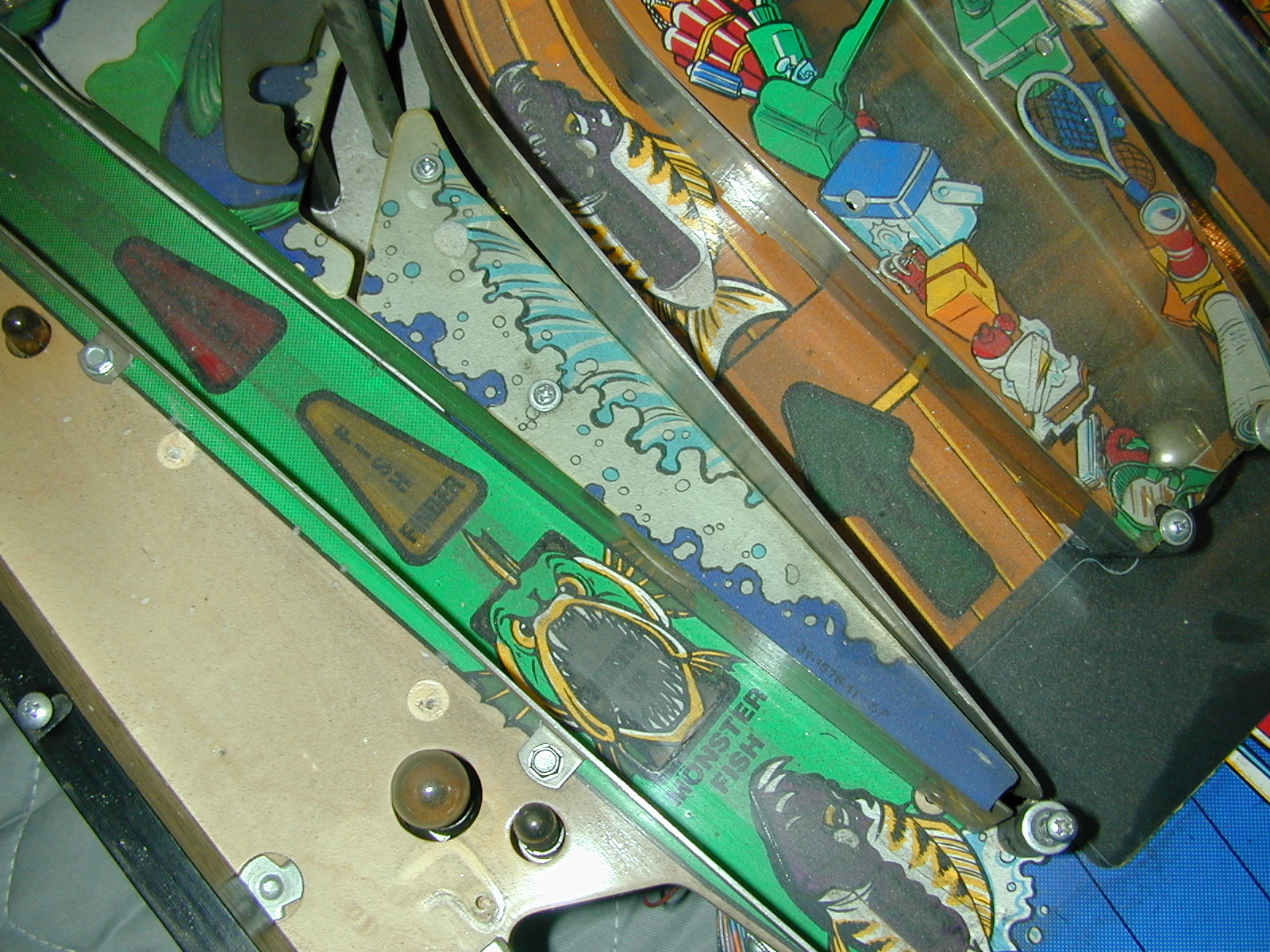

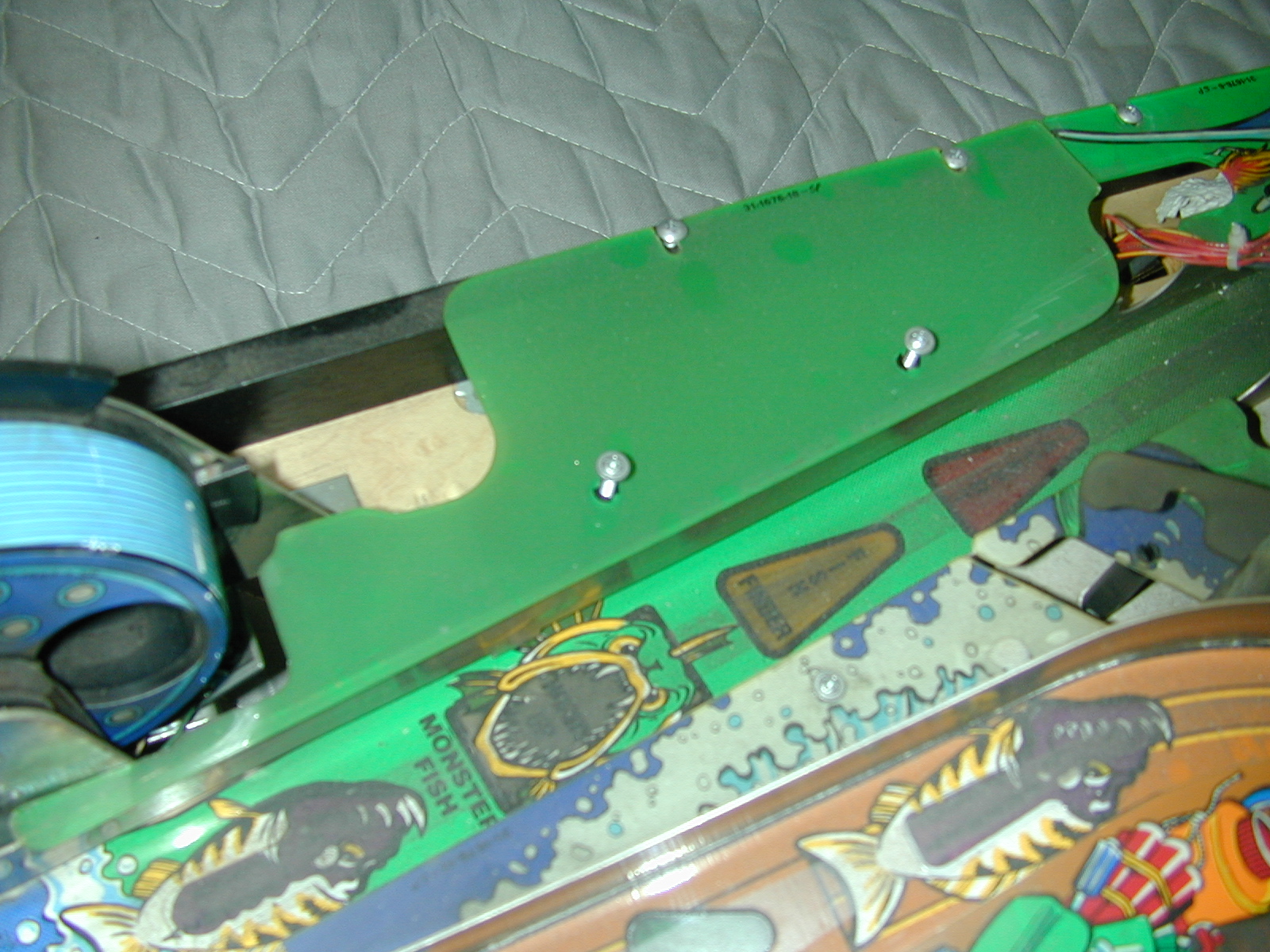

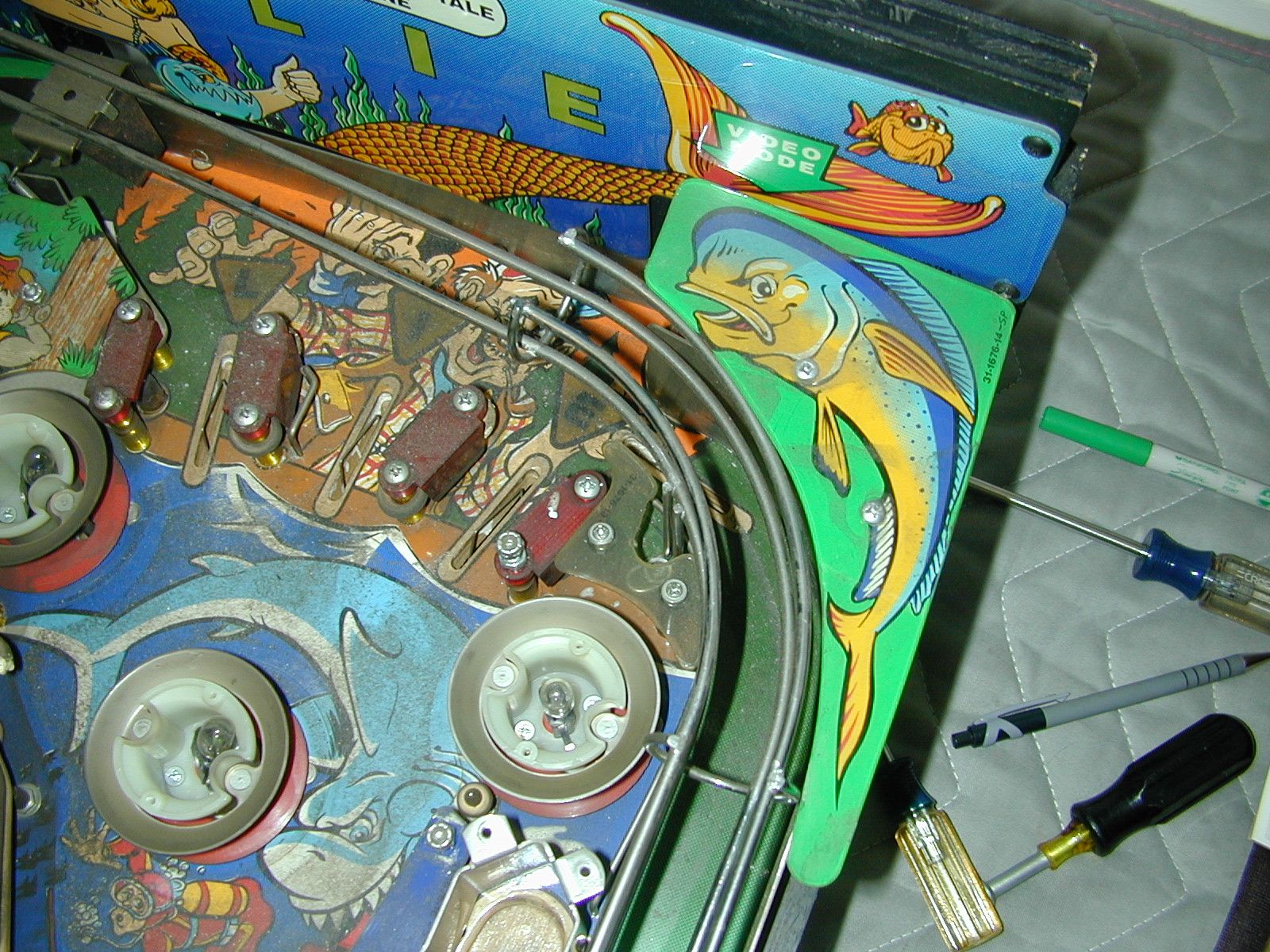

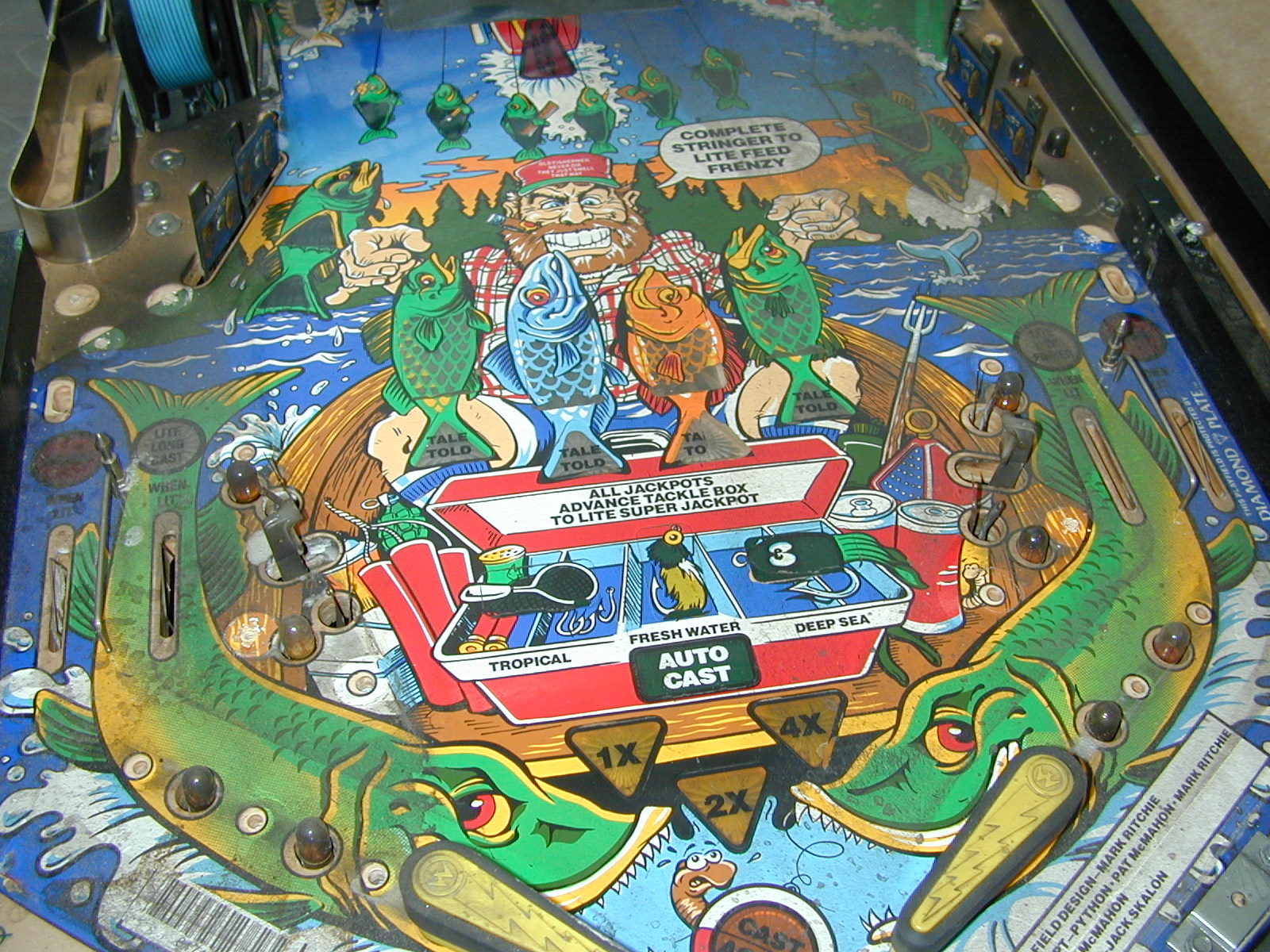

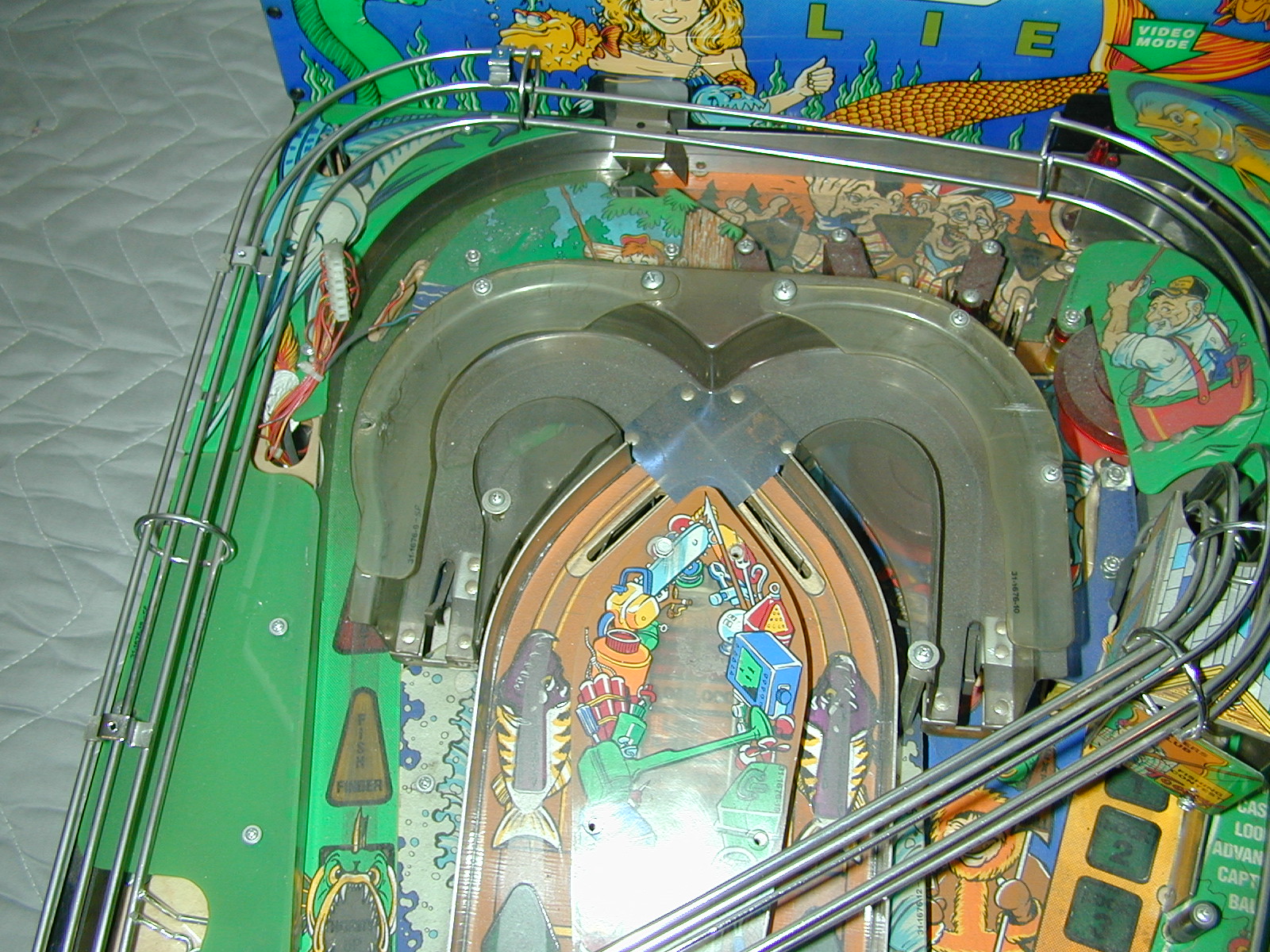

13 2 posts to right of left 2 targets – 1 MS, 1 WS – upper is straight post 14 Lower playfield #44 bulbs (5 on left, 6 on right) 15 Boat ramp – 2 MS, 1 WS, 2 connectors (CON) 16 Picture of ramp 17 Plastic assembly (-2) over right pop bumper (PB) – 2 nuts 18 Wire ramp into reel on left – 3 MS, 1 CON 19 3 PB caps – 6 WS 20 Plastic (-14) in upper right corner – 2 MS 21 Wire ramp loop around back – 4 WS 22 Green plastic (-18) above reel – 4 WS 23 Shark plastic (-6) in upper left corner – 5 WS 24 Plastic (-11) to left of boat ramp – 2 upper WS (MS on bottom loose for ramp)
