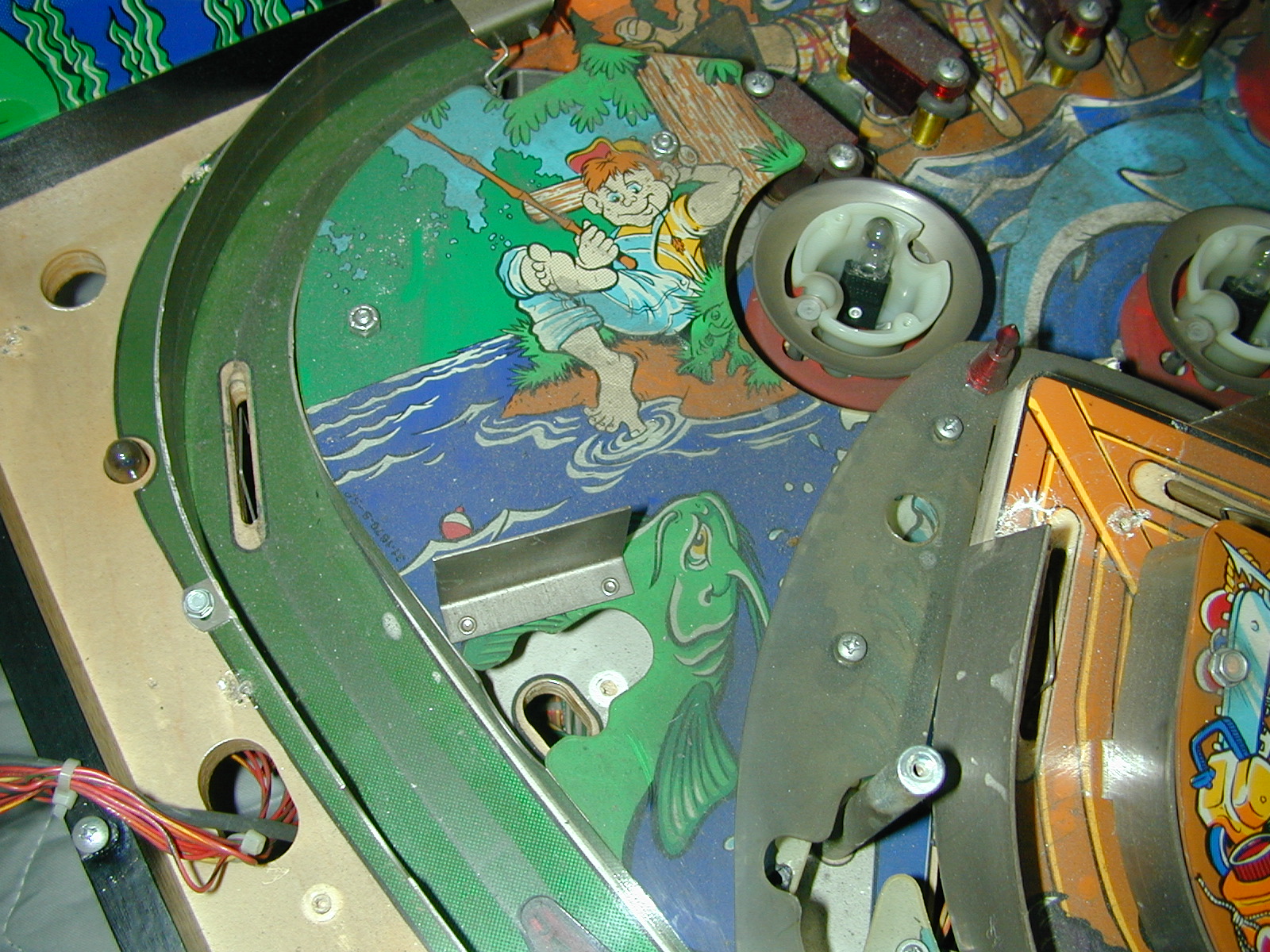

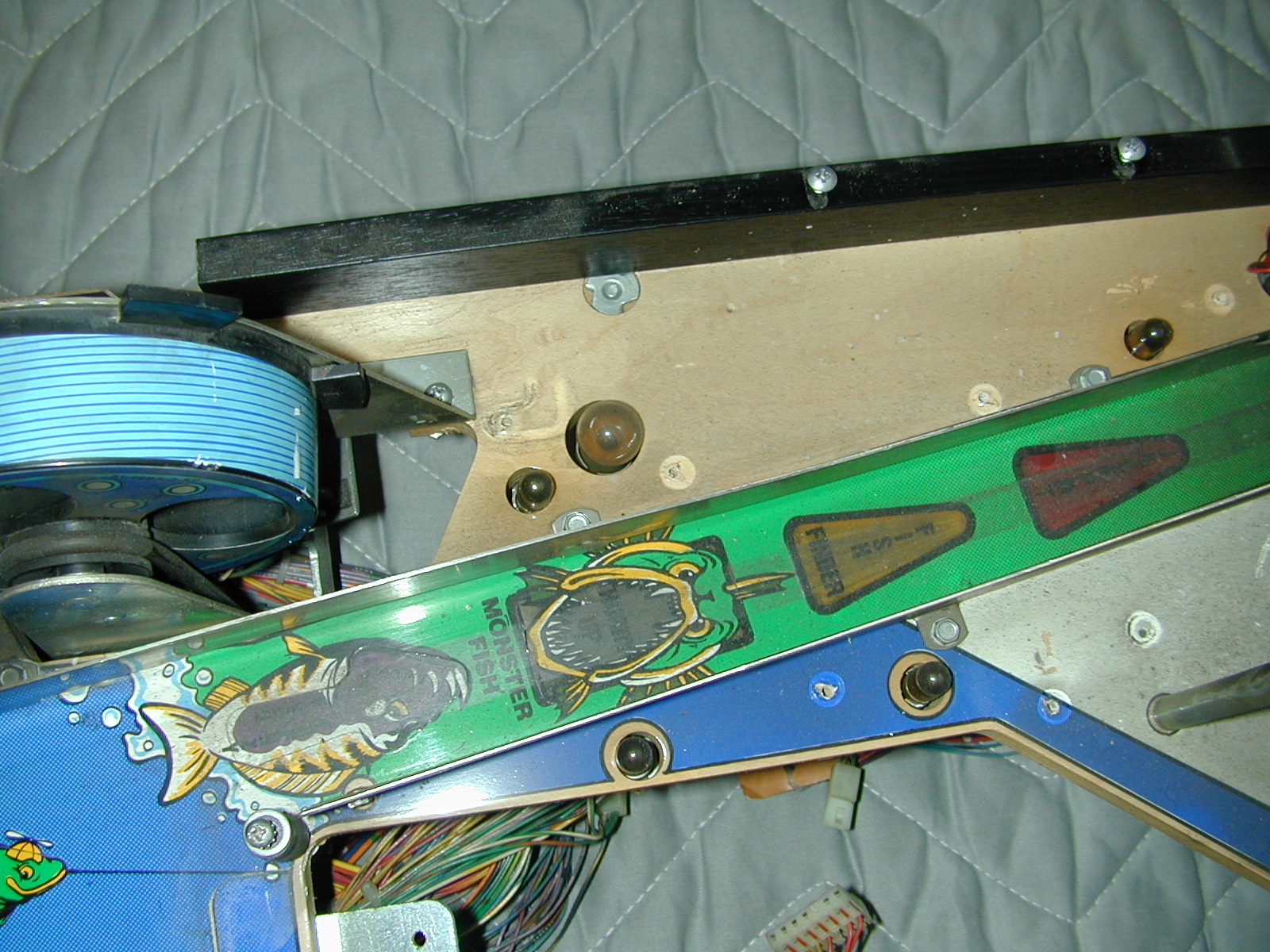

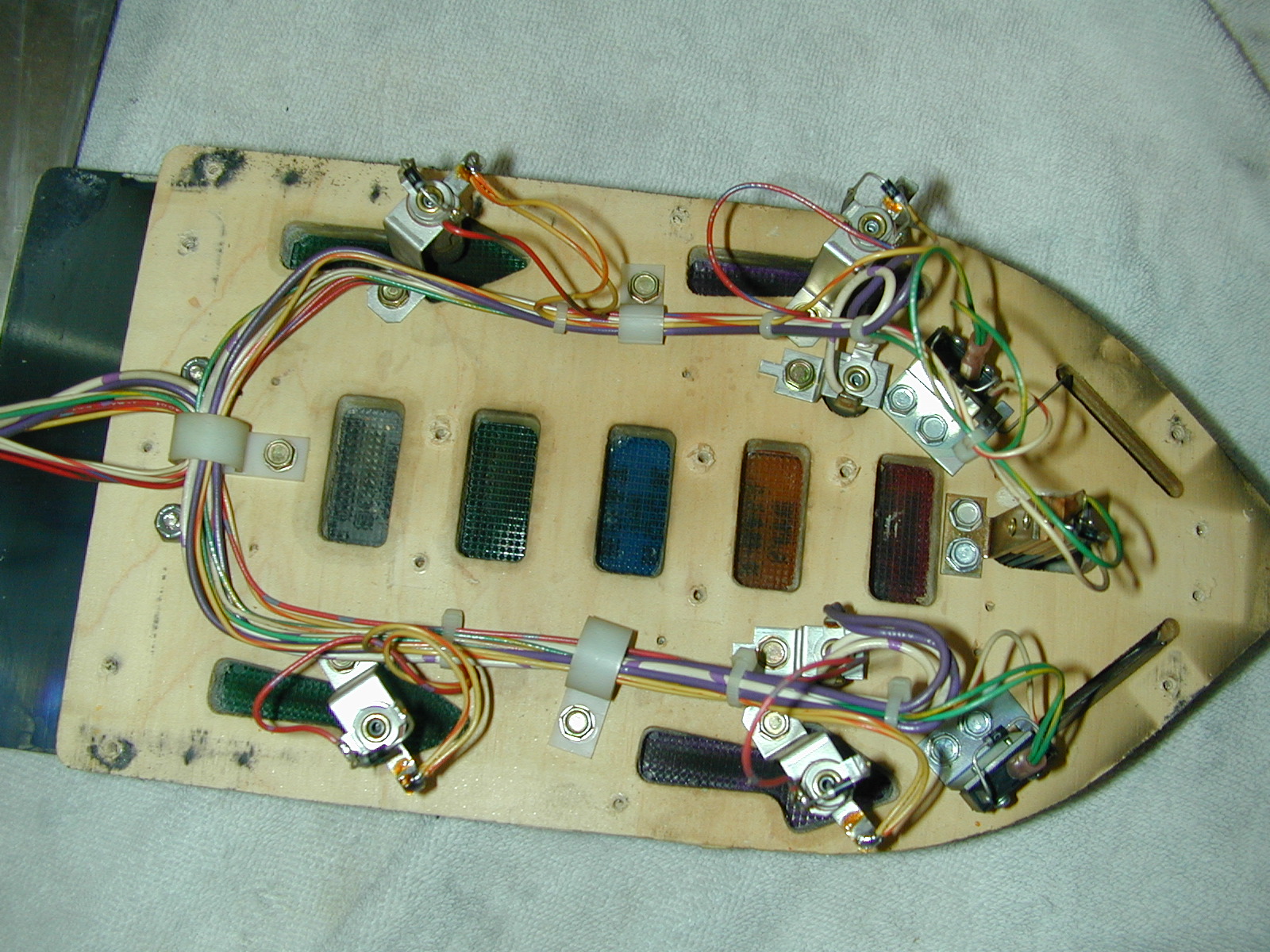

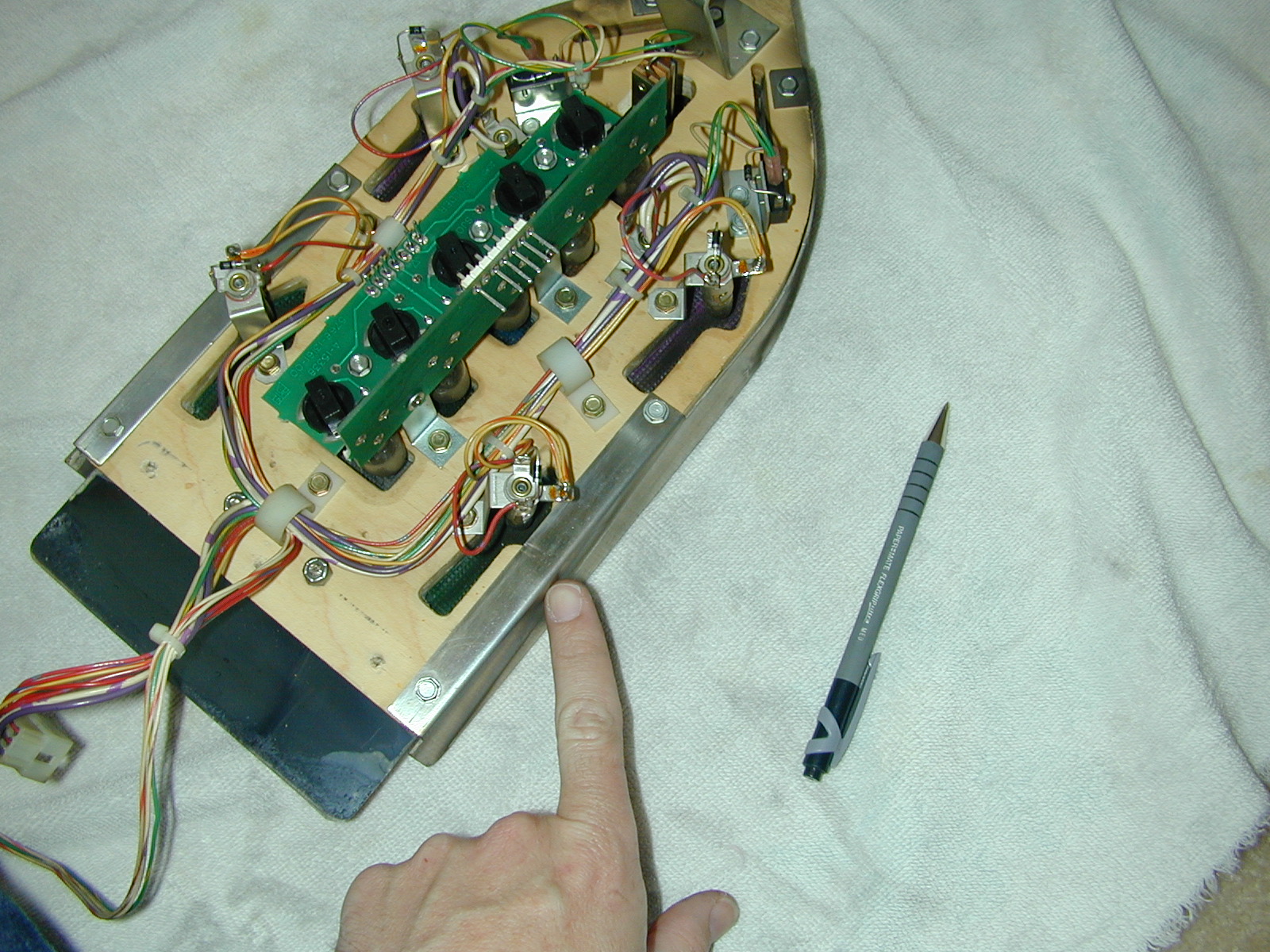

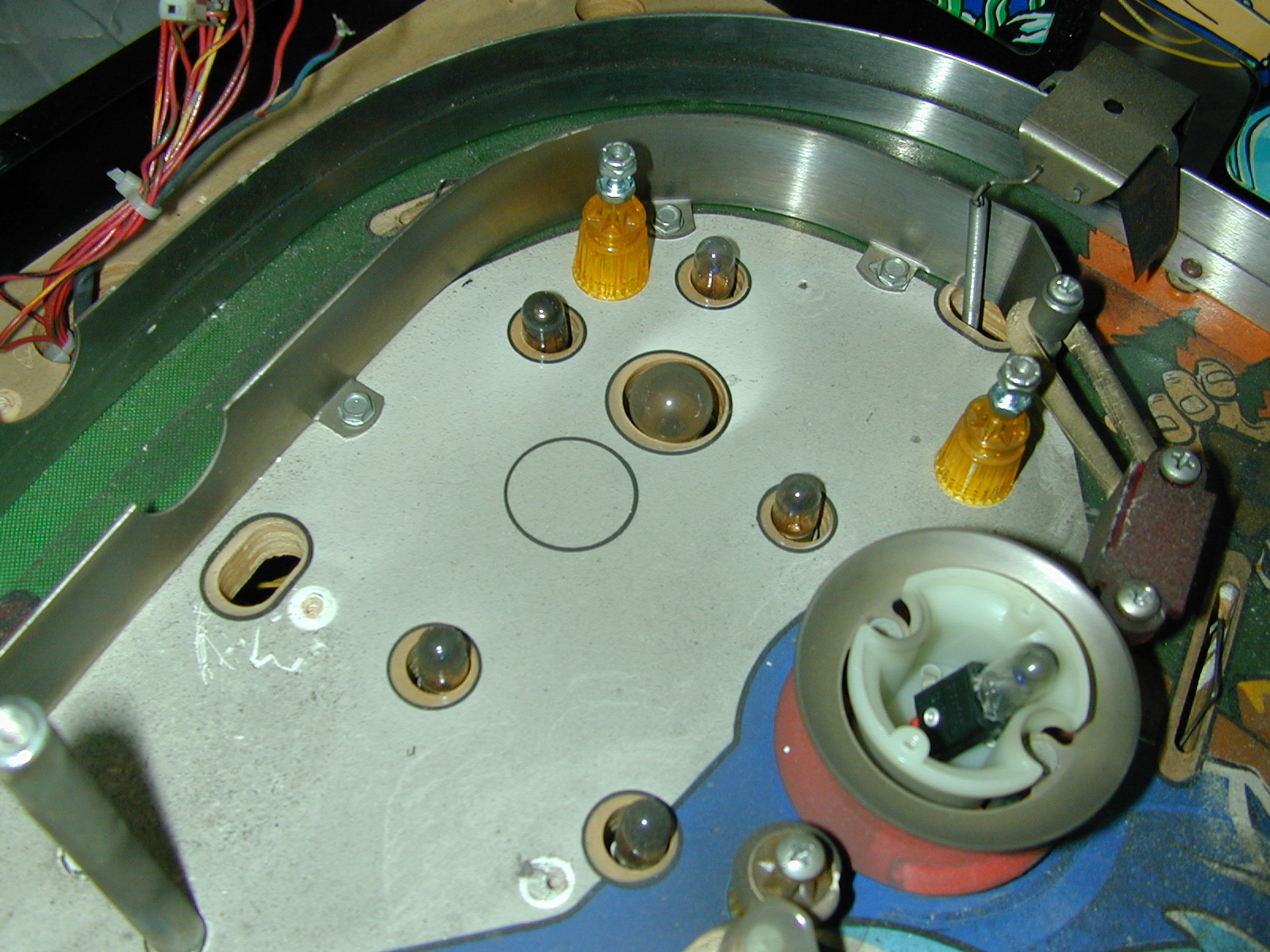

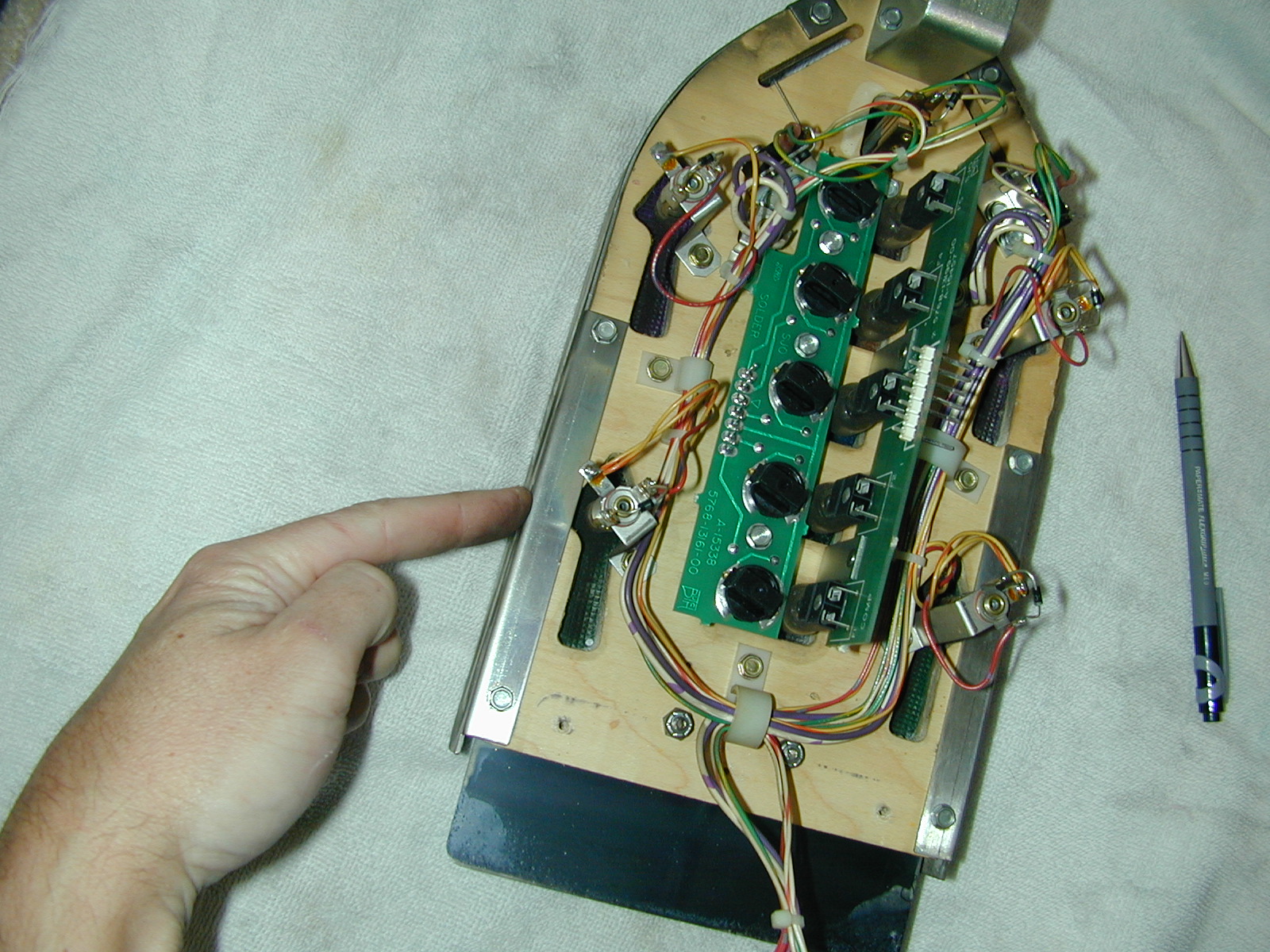

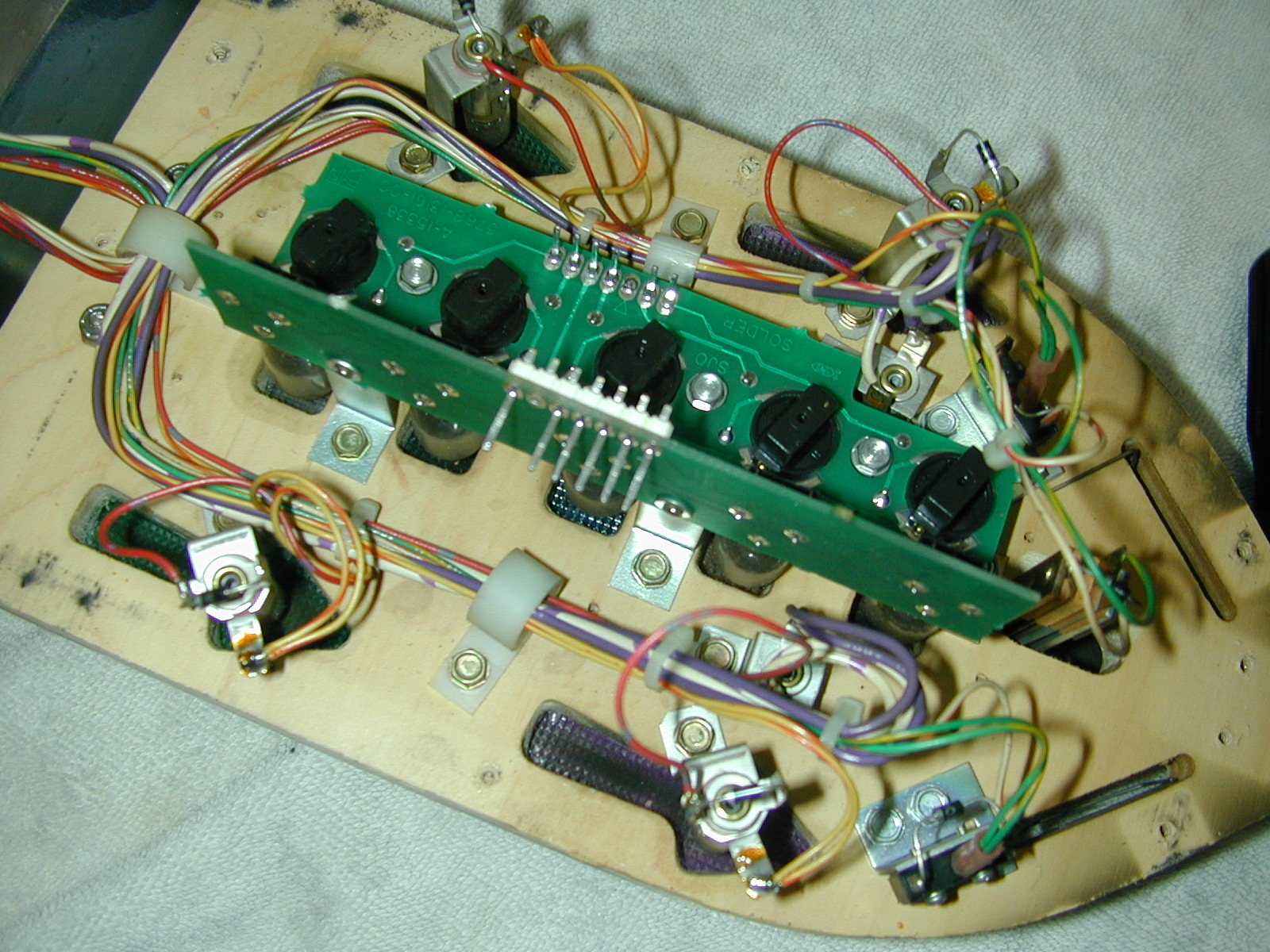

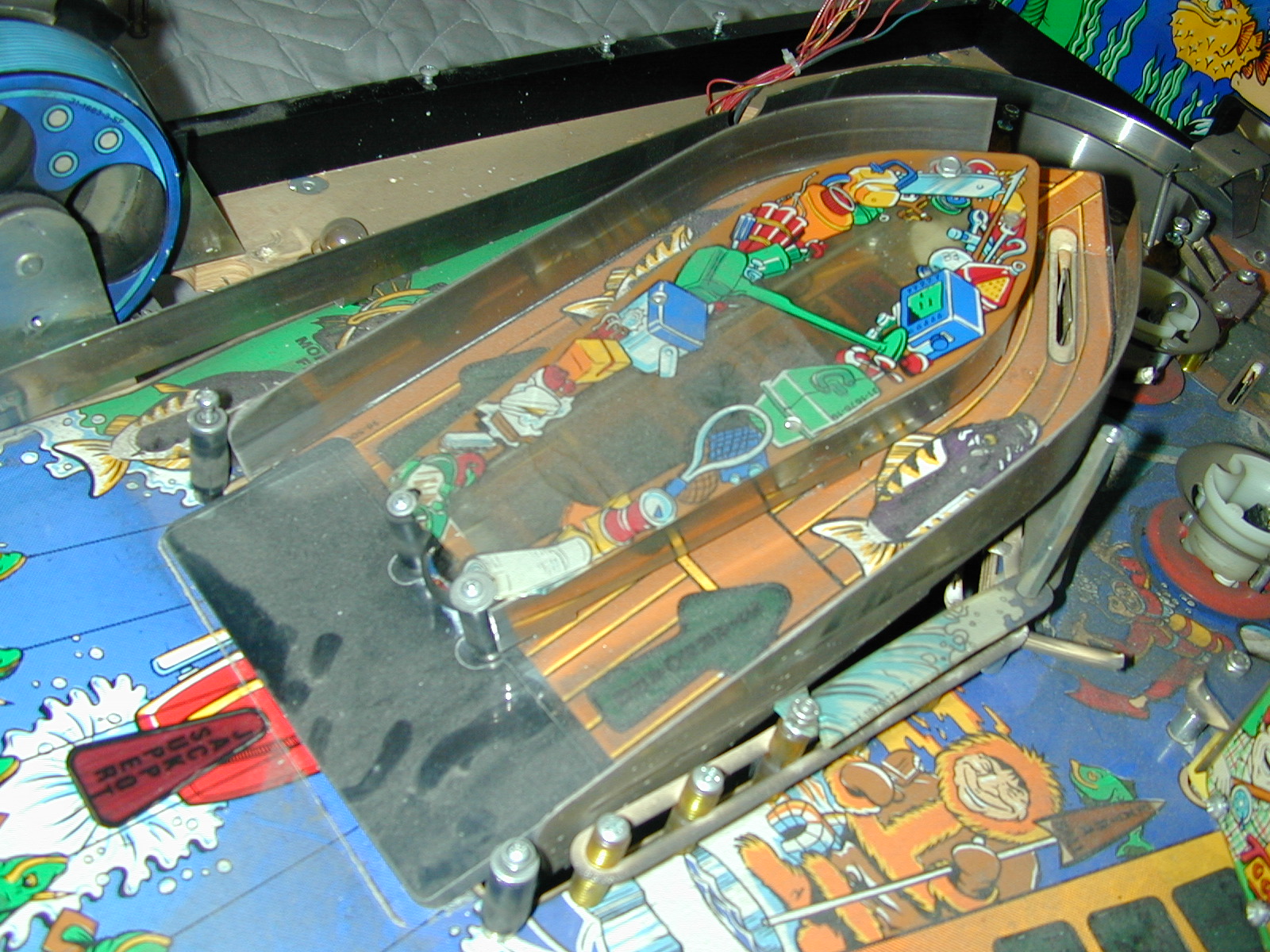

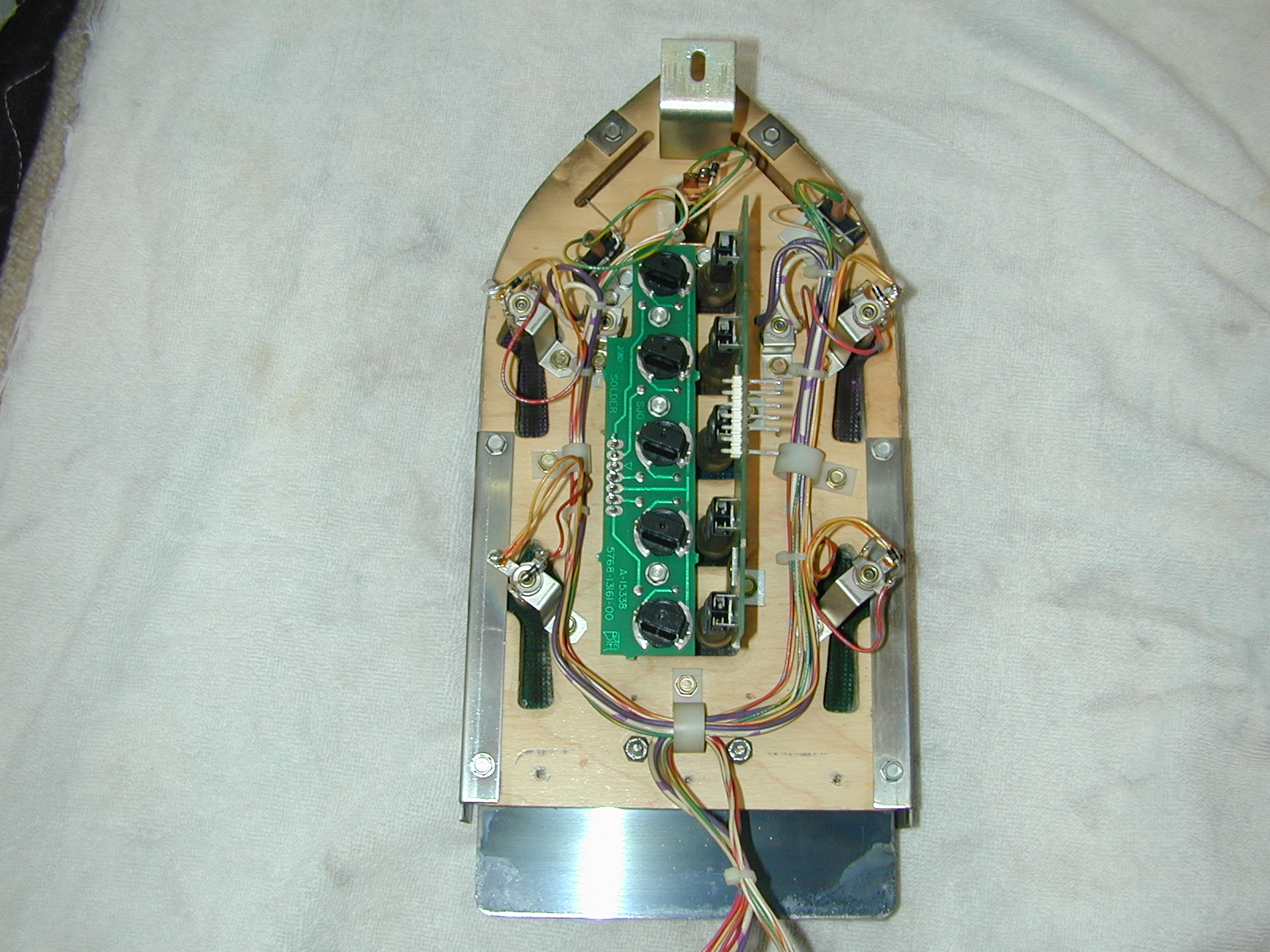

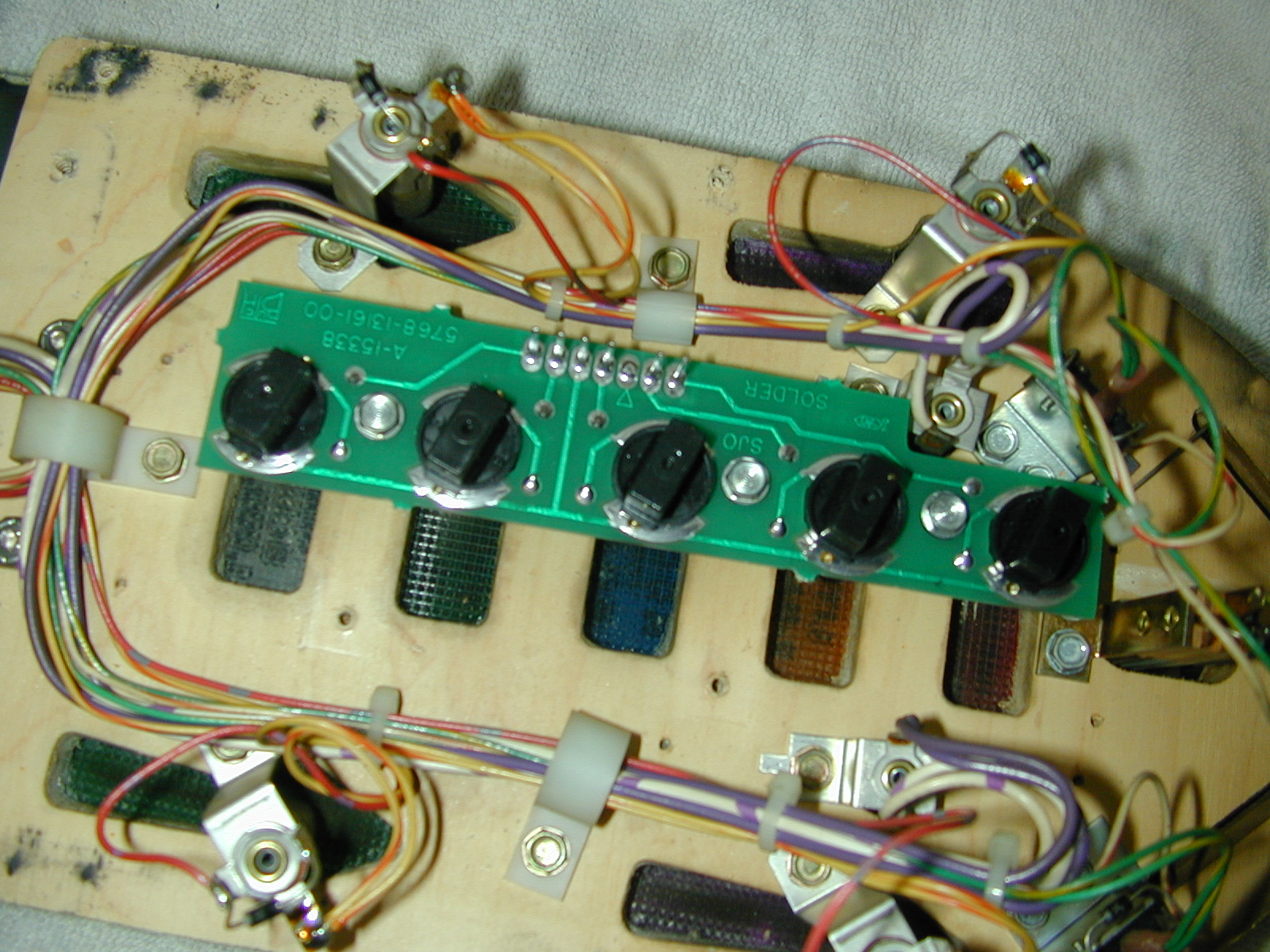

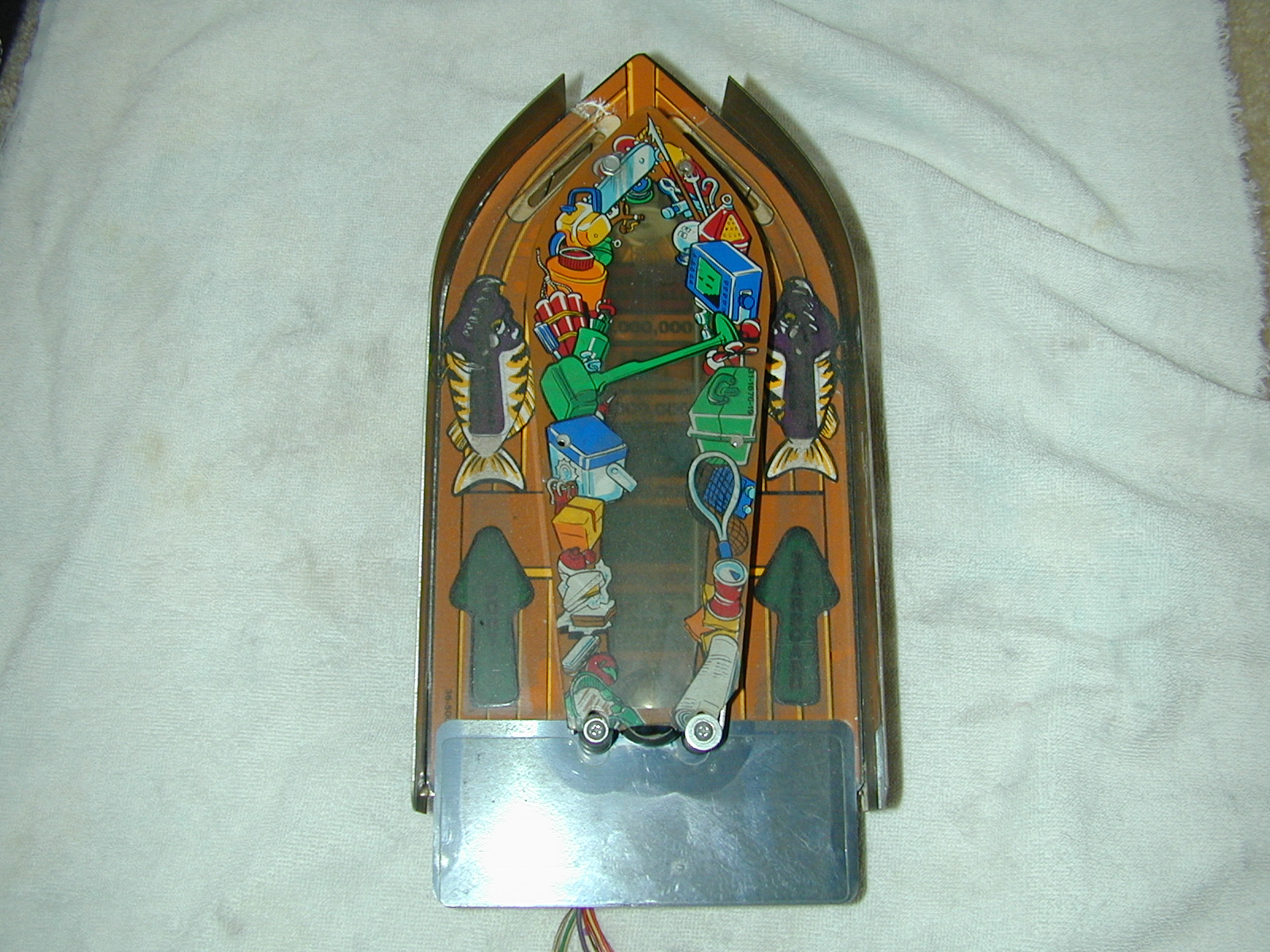

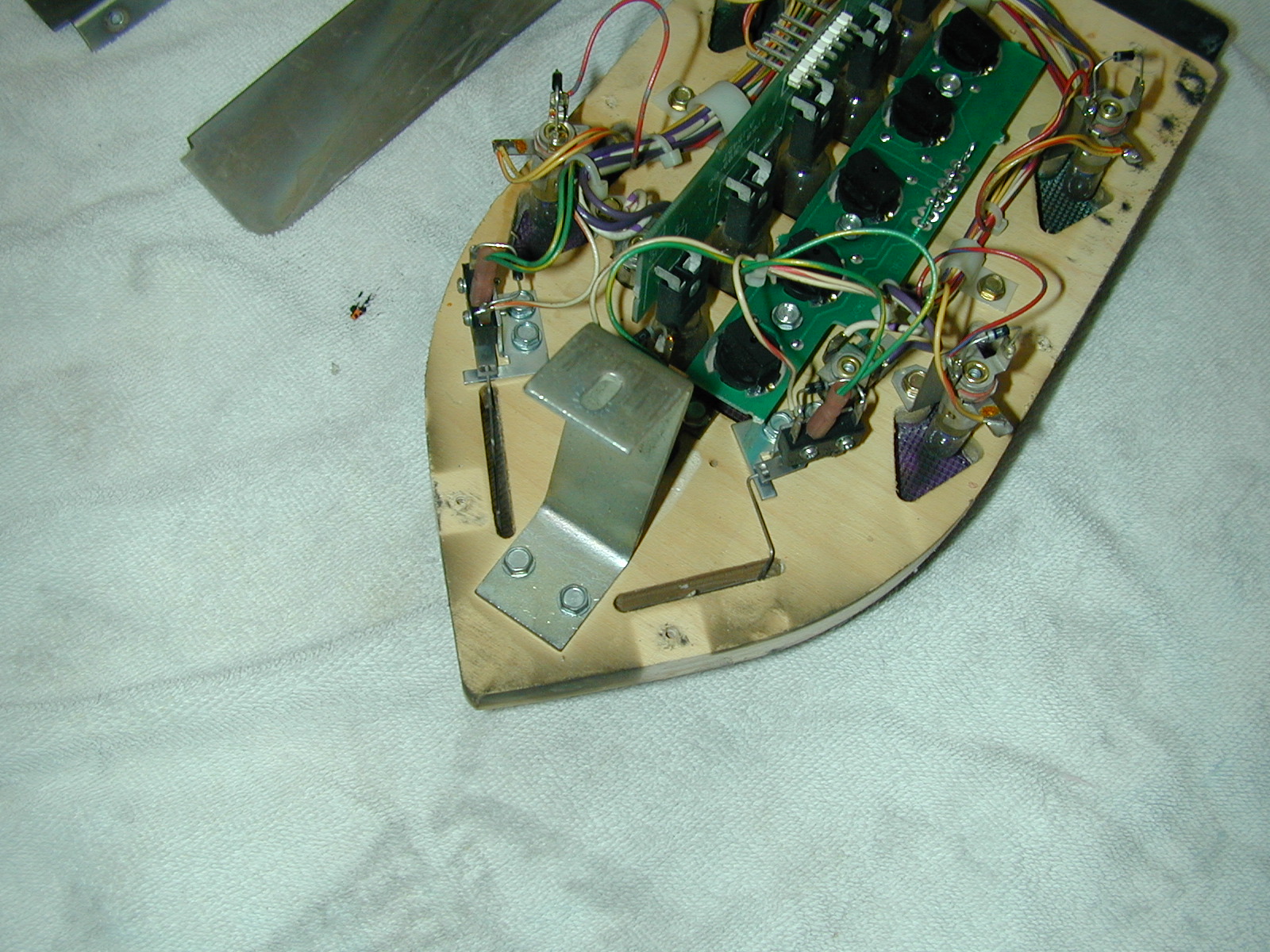

25 Plastic (-5) to left of left pop bumper – 2 nuts, 2 WS 26 Boat assembly – 3 WS, 1 MS, 3 CON and 15338 board 27 5 #44s, 1 #89 to left of left pop bumper 28 2 #44s to left of boat, 3 #44s & 1 #89 above reel 29 Boat picture for reference 30 Boat picture for reference 31 Boat disassembly start – right stainless steel guide – 3 WS 32 Left stainless steel guide – 3 WS 33 Front support – 2 WS 34 906 board – 2 short WS 35 555 board – 3 WS 36 Lamp and switch harness – 15 WS, long WS on switches, short WS on lamps
