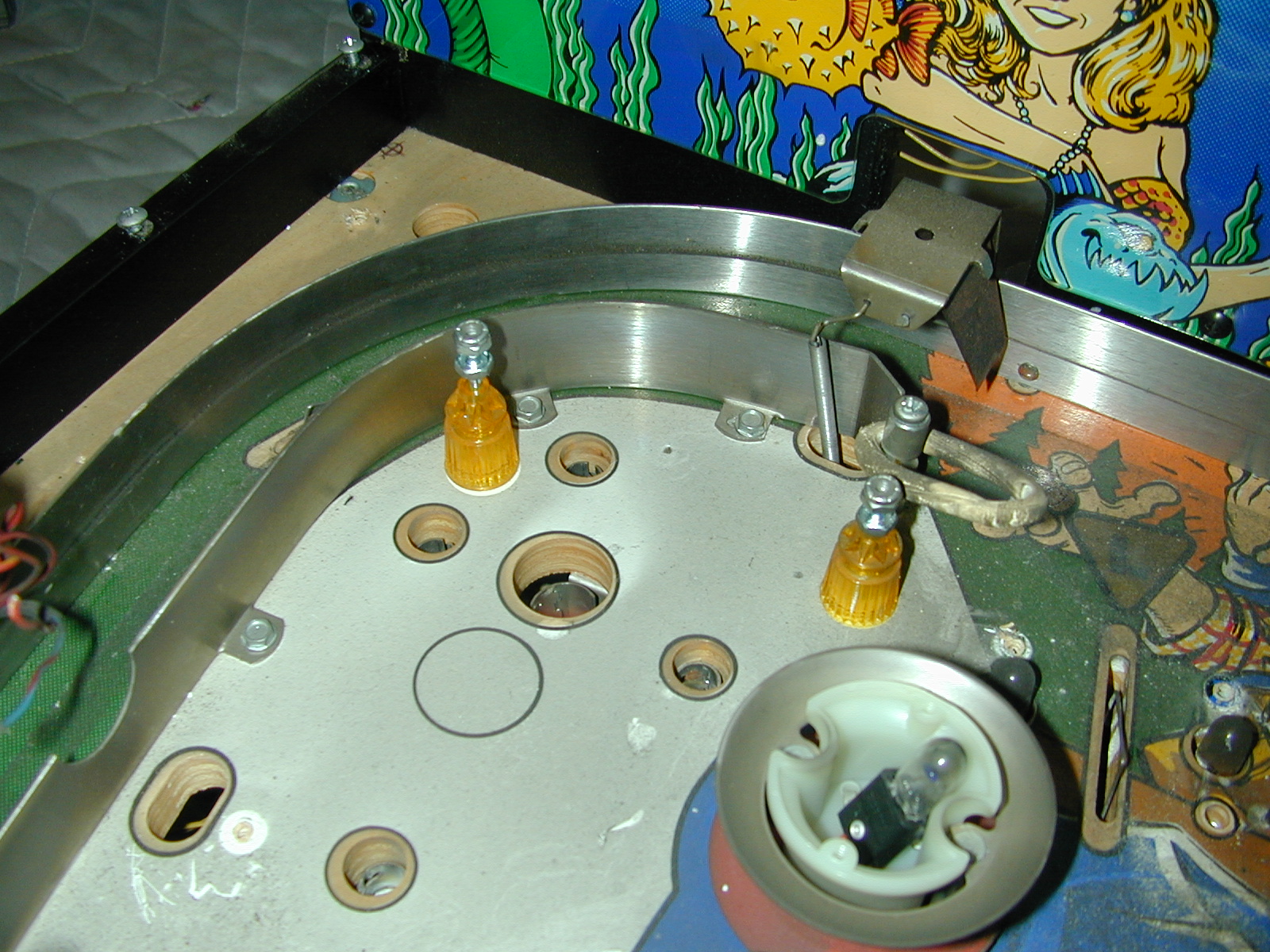

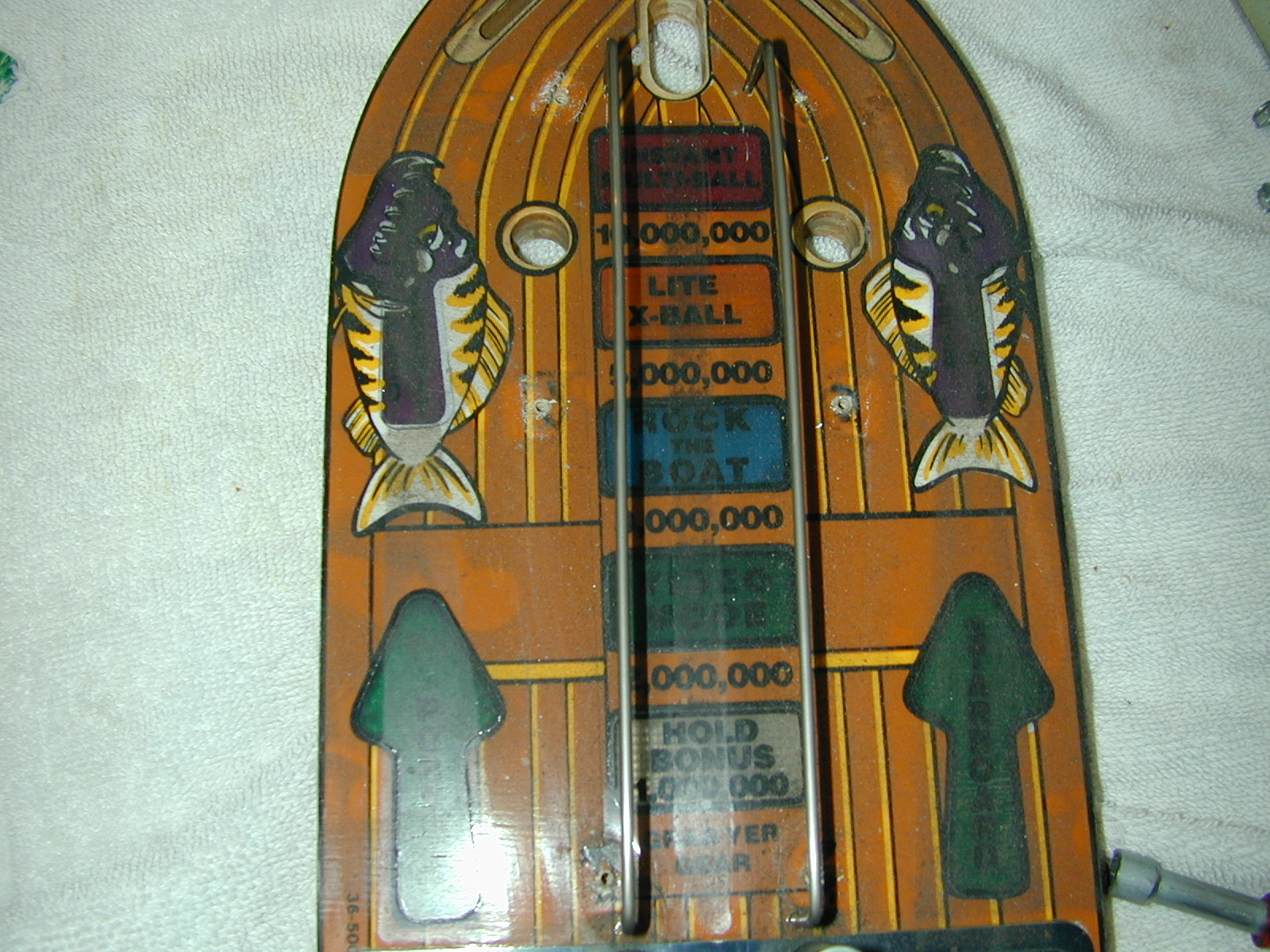

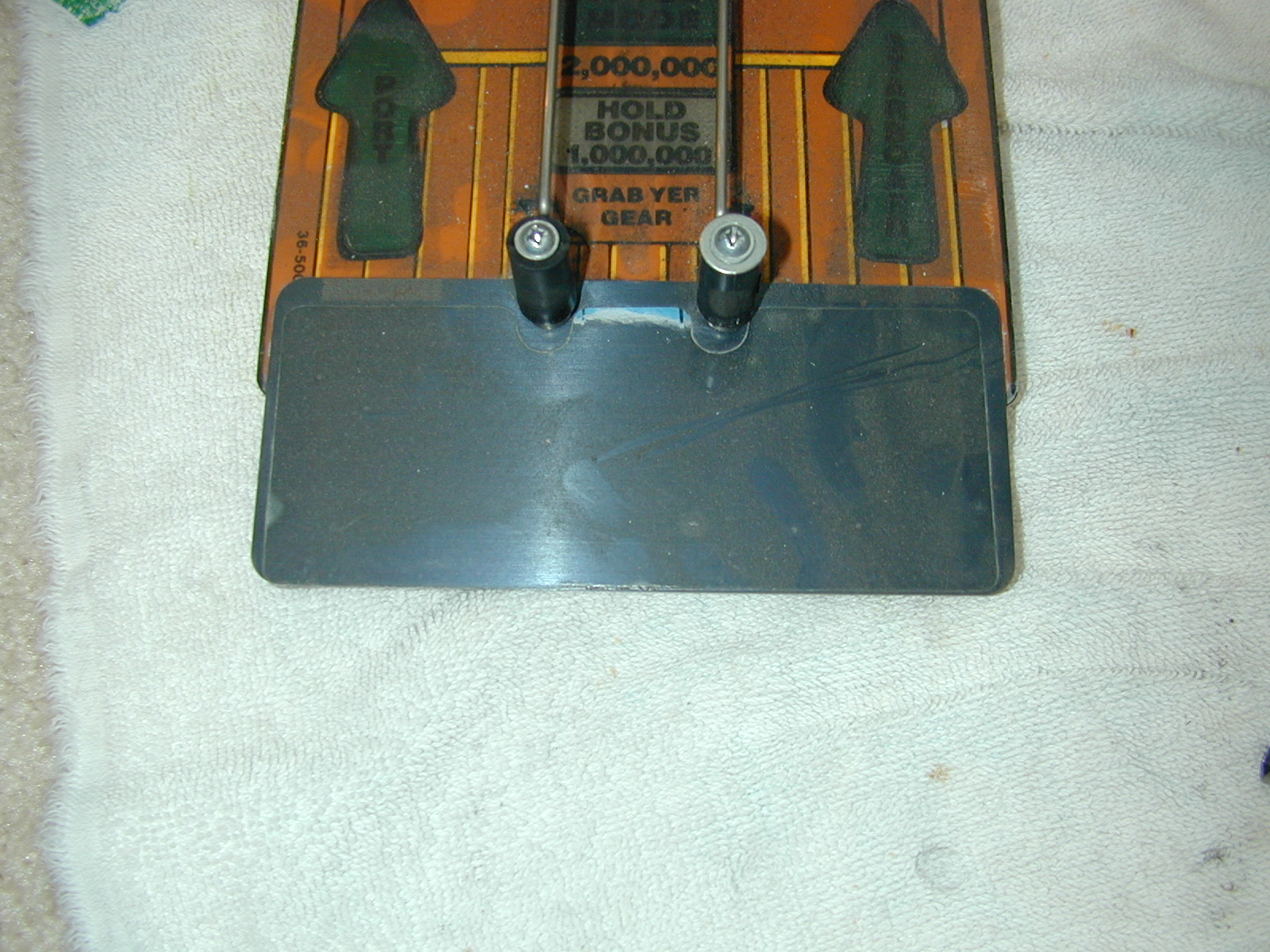

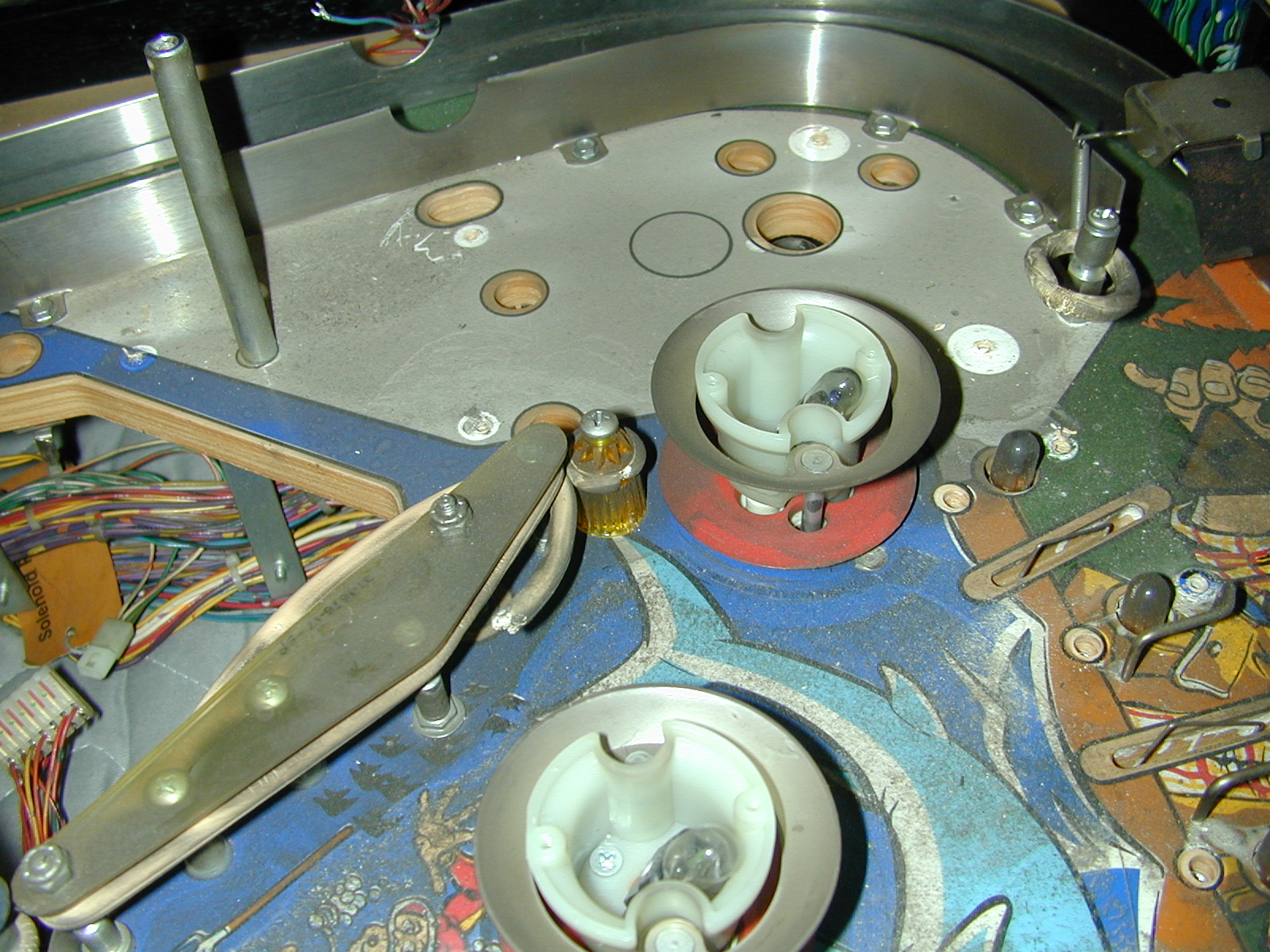

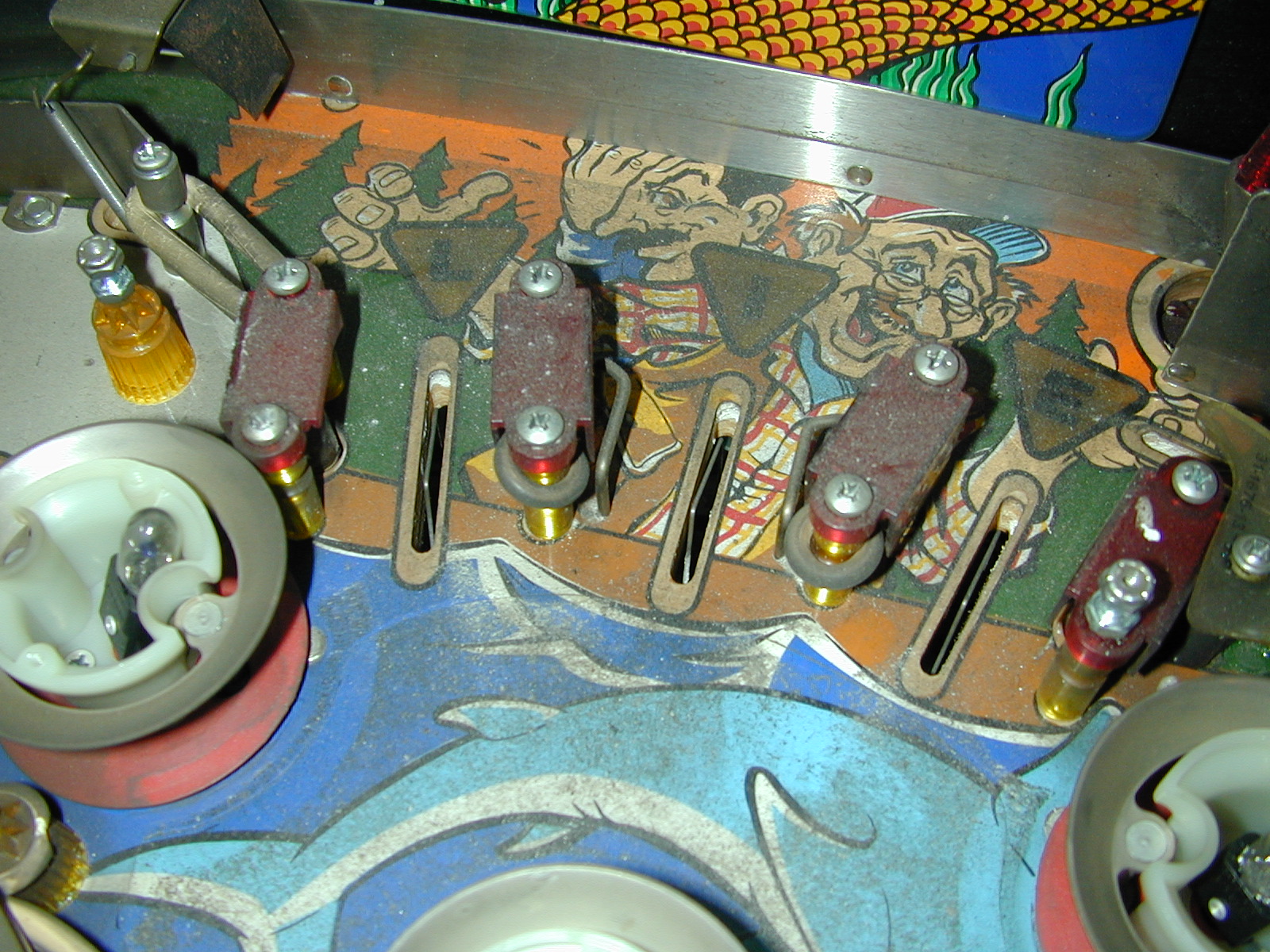

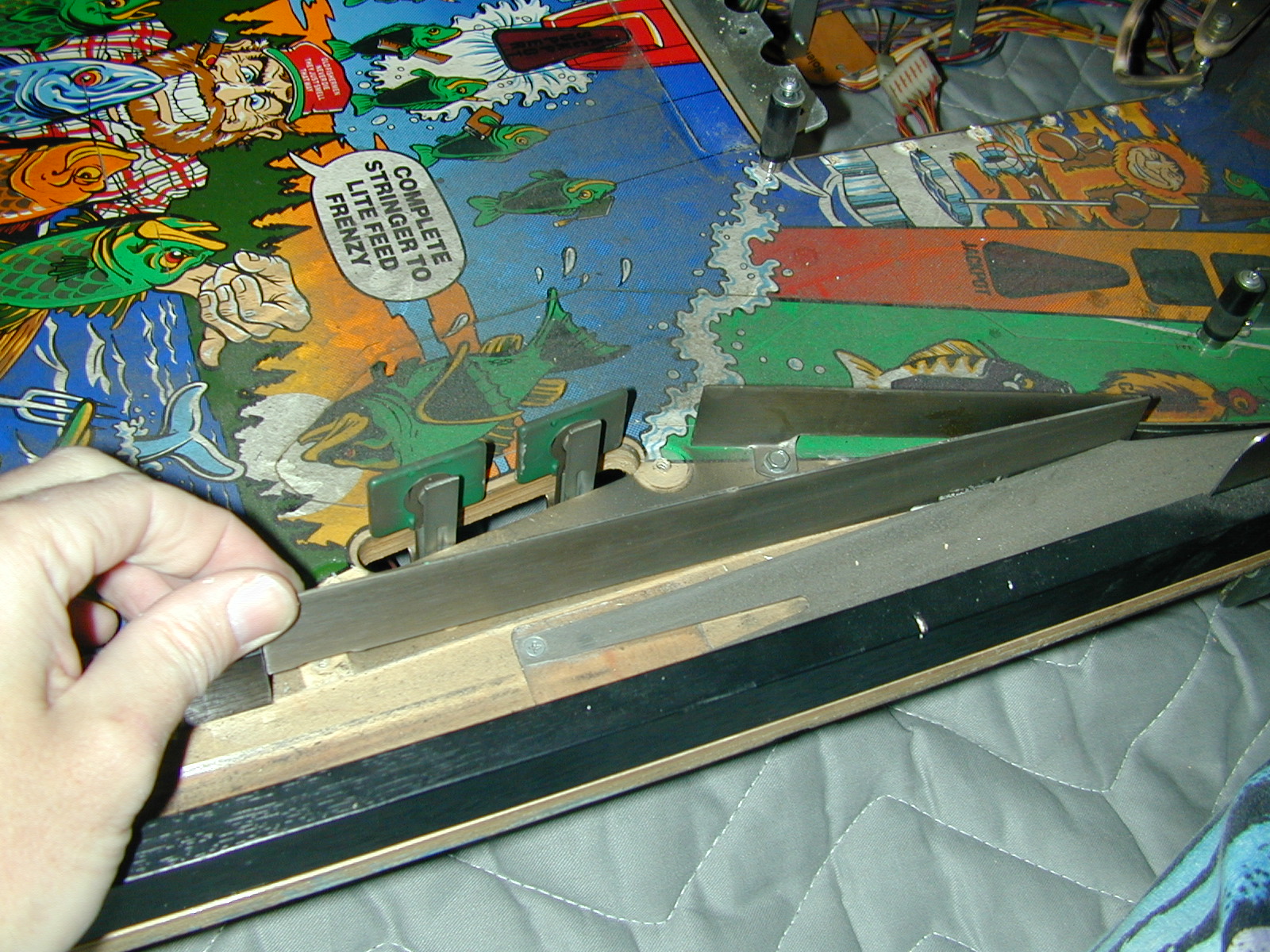

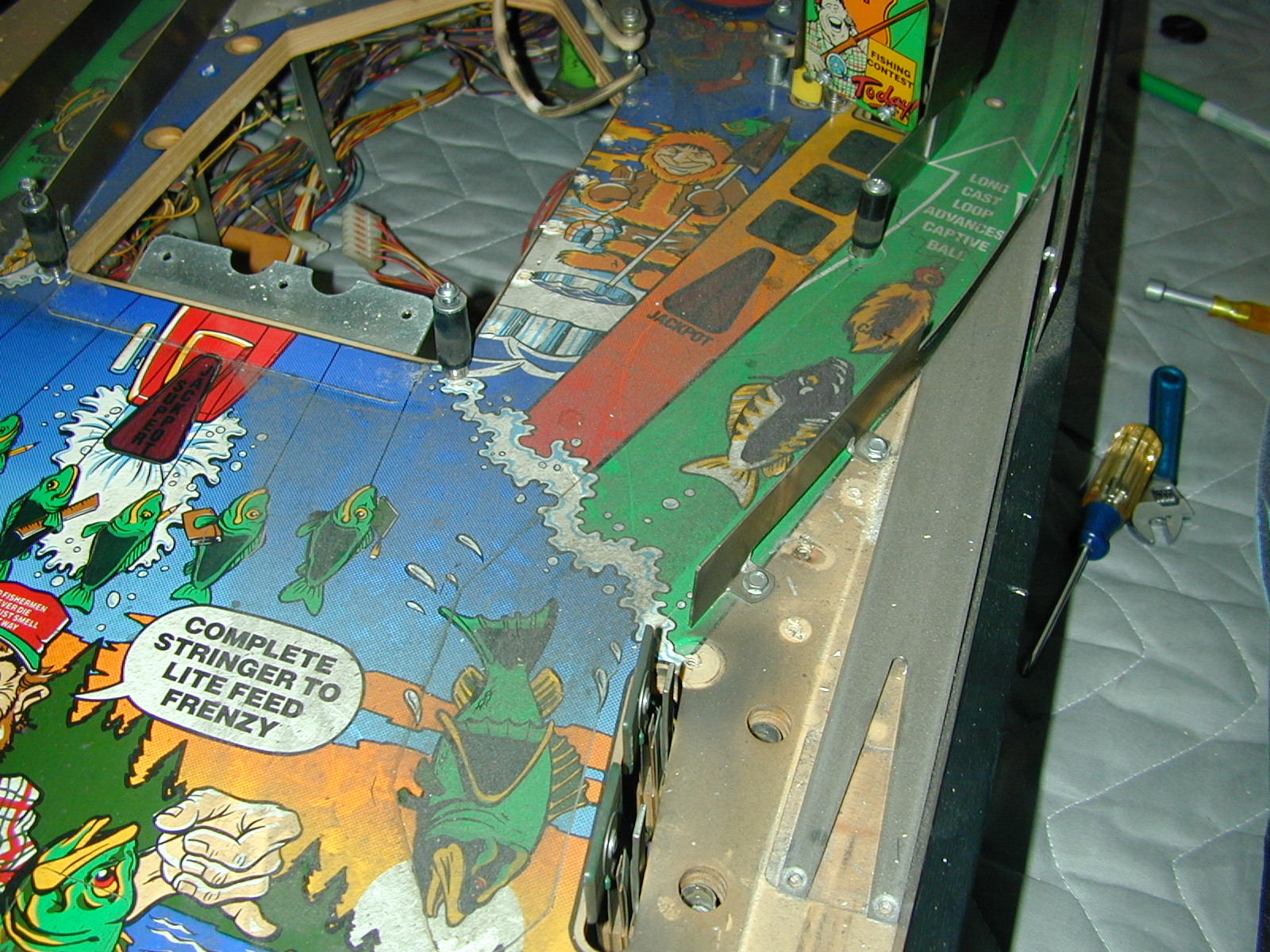

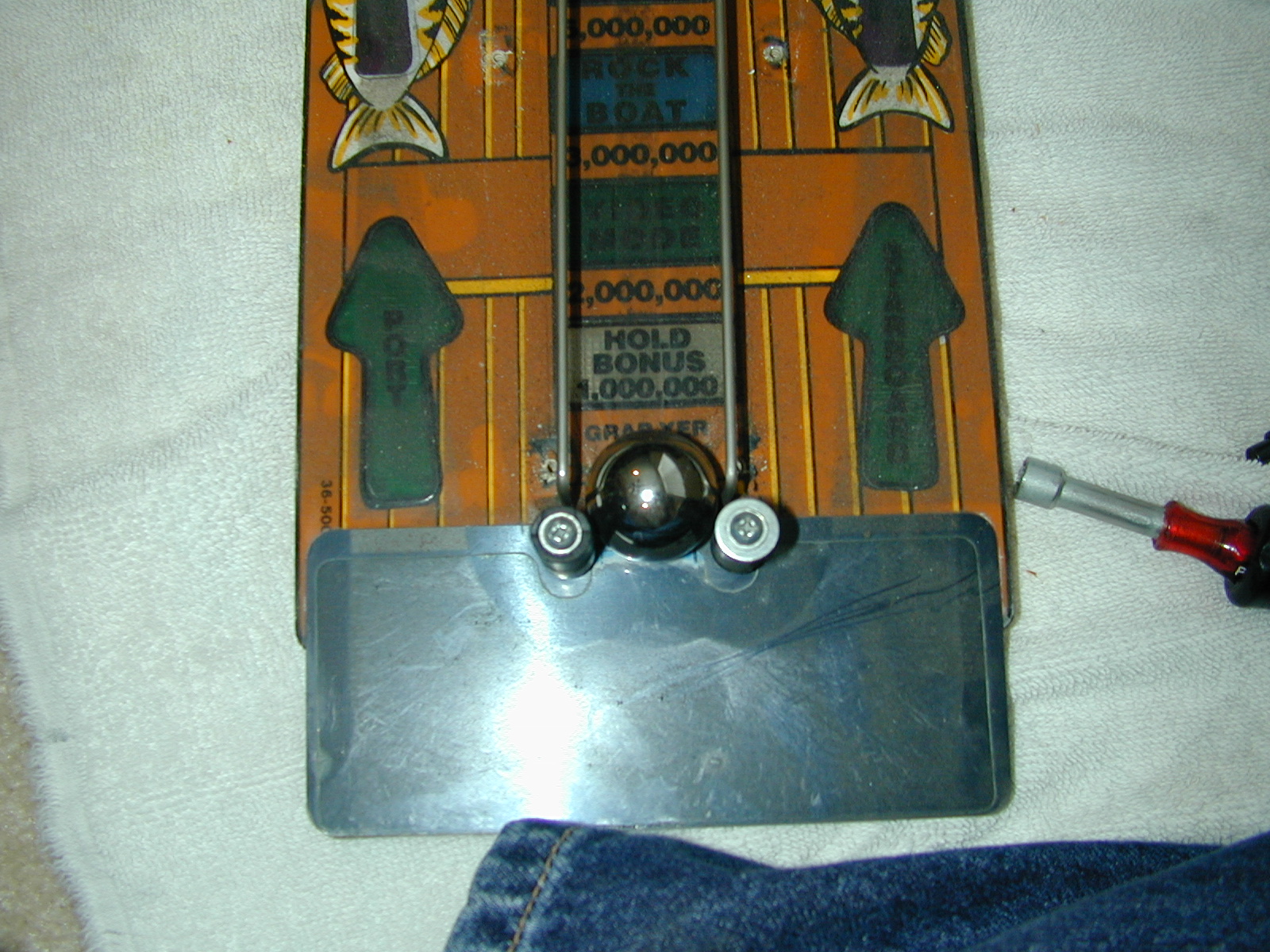

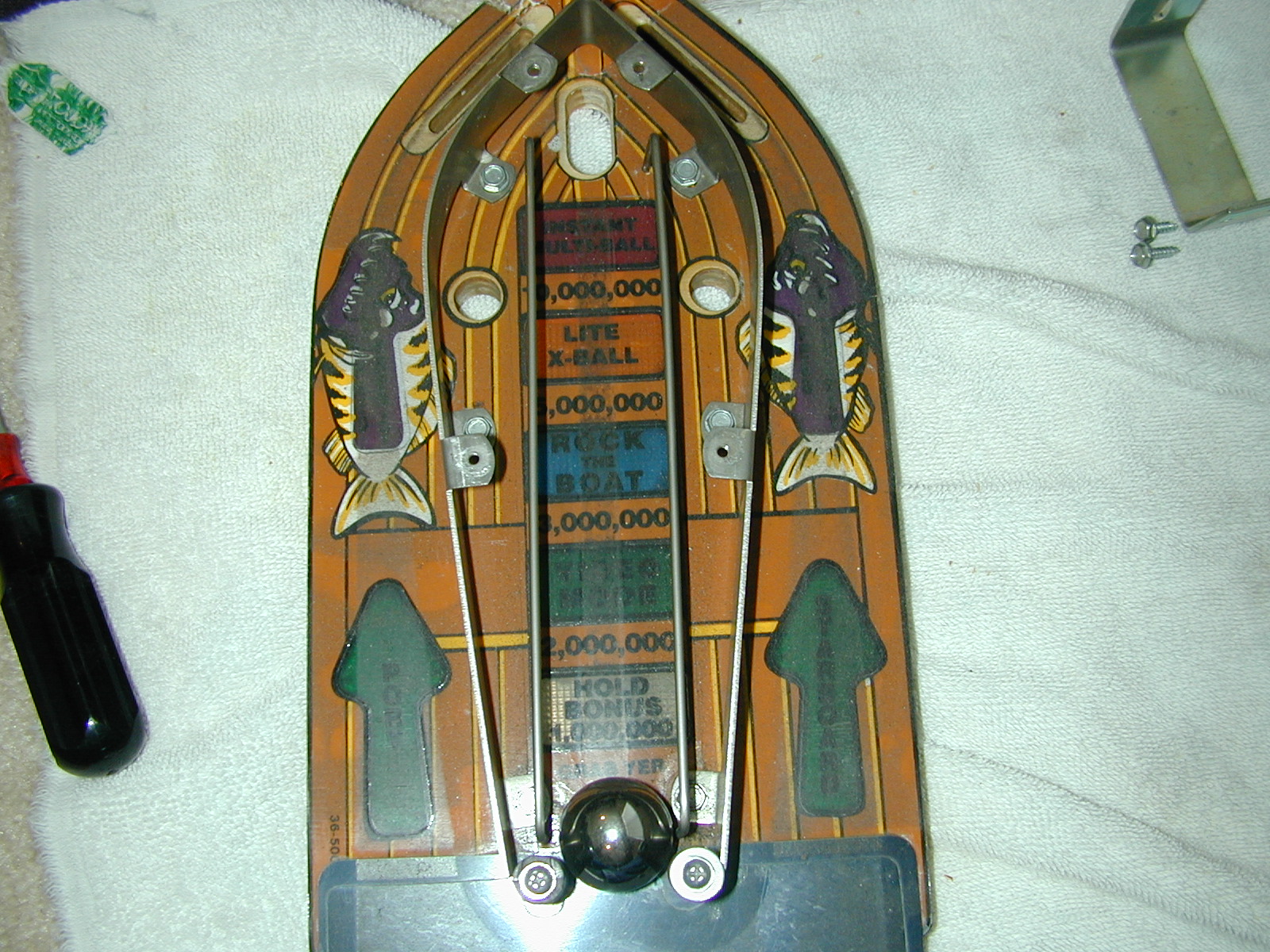

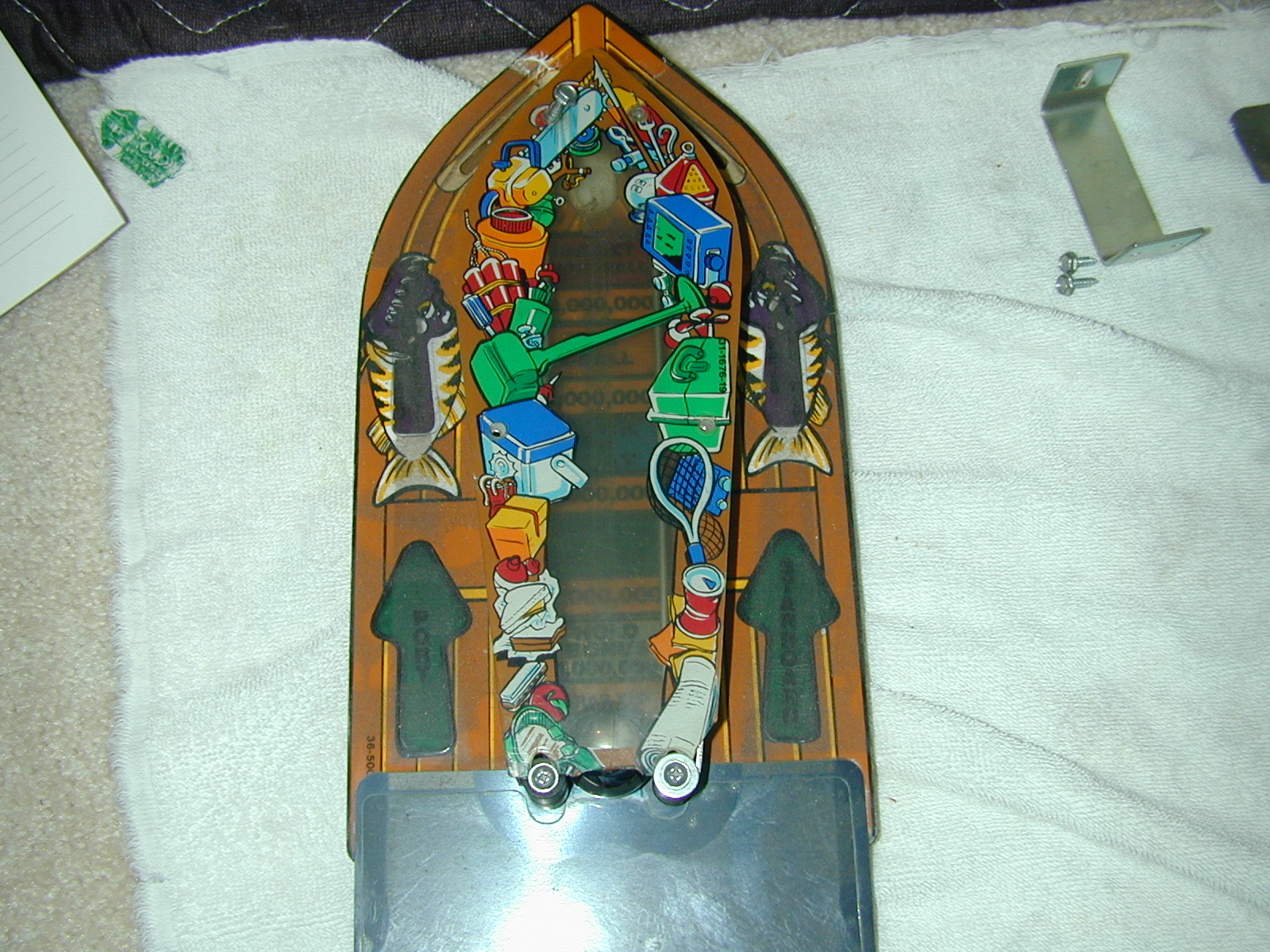

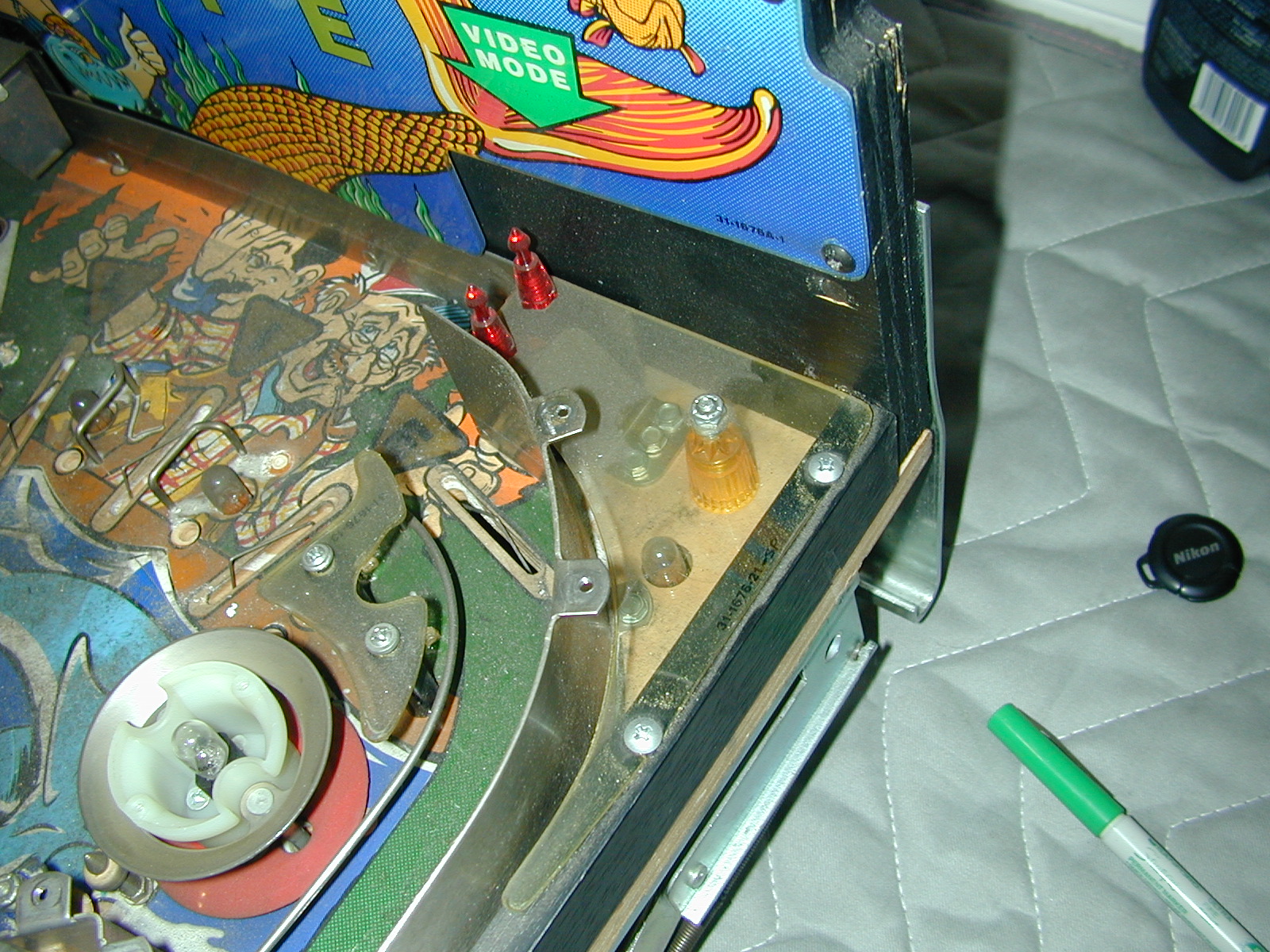

37 Plastic (-19) – 6 MS 38 Inner stainless steel guide – 6 WS 39 Captive ball 40 2 wire rails 41 2 posts w/flap – 2 nuts (end of boat disassembly) 42 4 upper lane guides – 4 MS, 4 WS stud w/nut lower right, long rubber ring around upper left post and metal post 43 2 star posts to upper left of left pop bumper – 2 WS – studs with nuts on both 44 Star post below left pop bumper – 1 MS 45 6 star posts to right of boat with rubber ring and plastic (-12), metal post on top with stud and standoff, 3rd from bottom with stud and nut 46 Metal guide to left of shooter lane – 2 WS 47 Shooter lane metal with V-groove – 2 WS 48 Clear plastic (-21) in upper right corner – 2 WS, 1 star post with stud and nut
