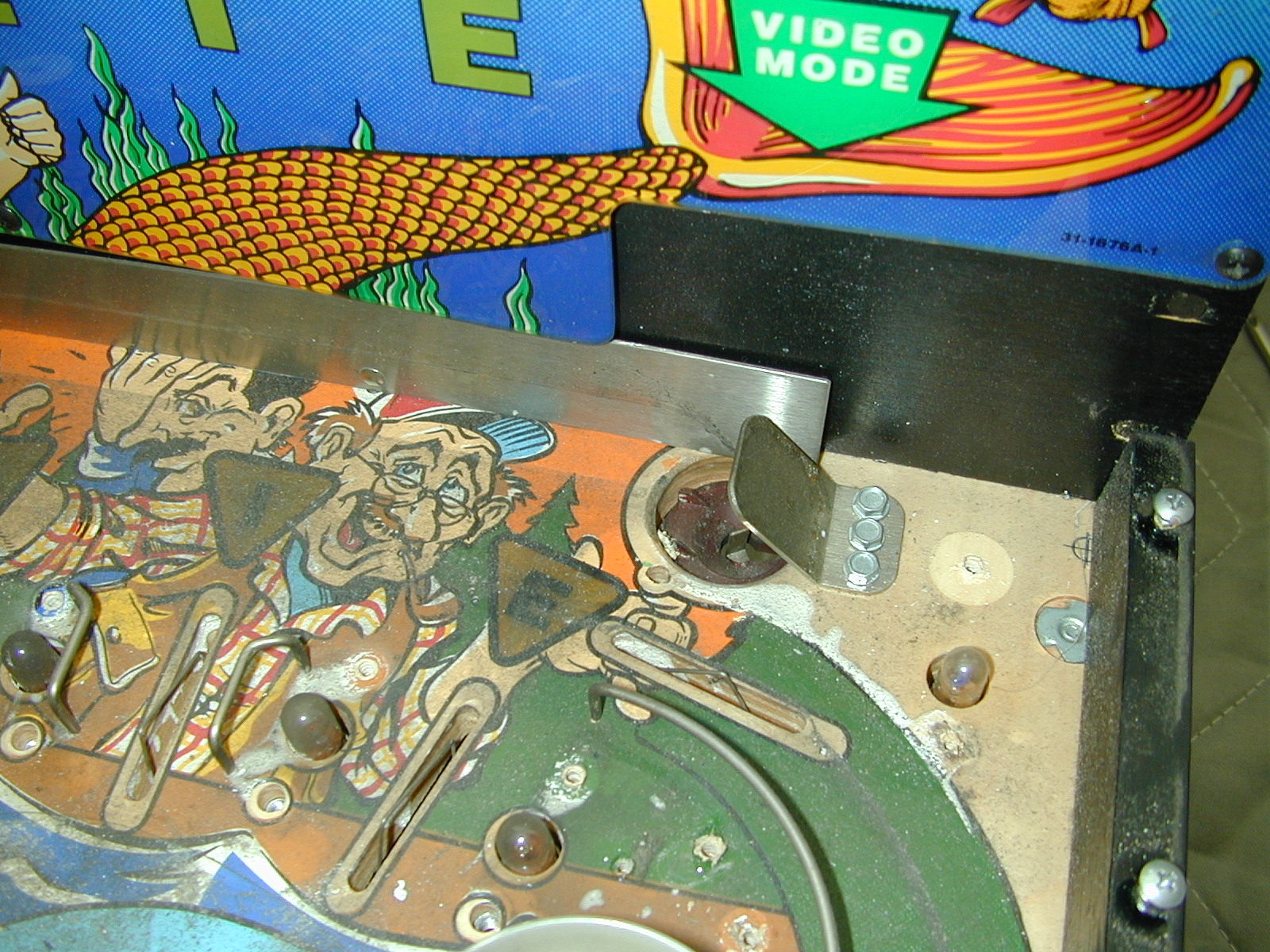

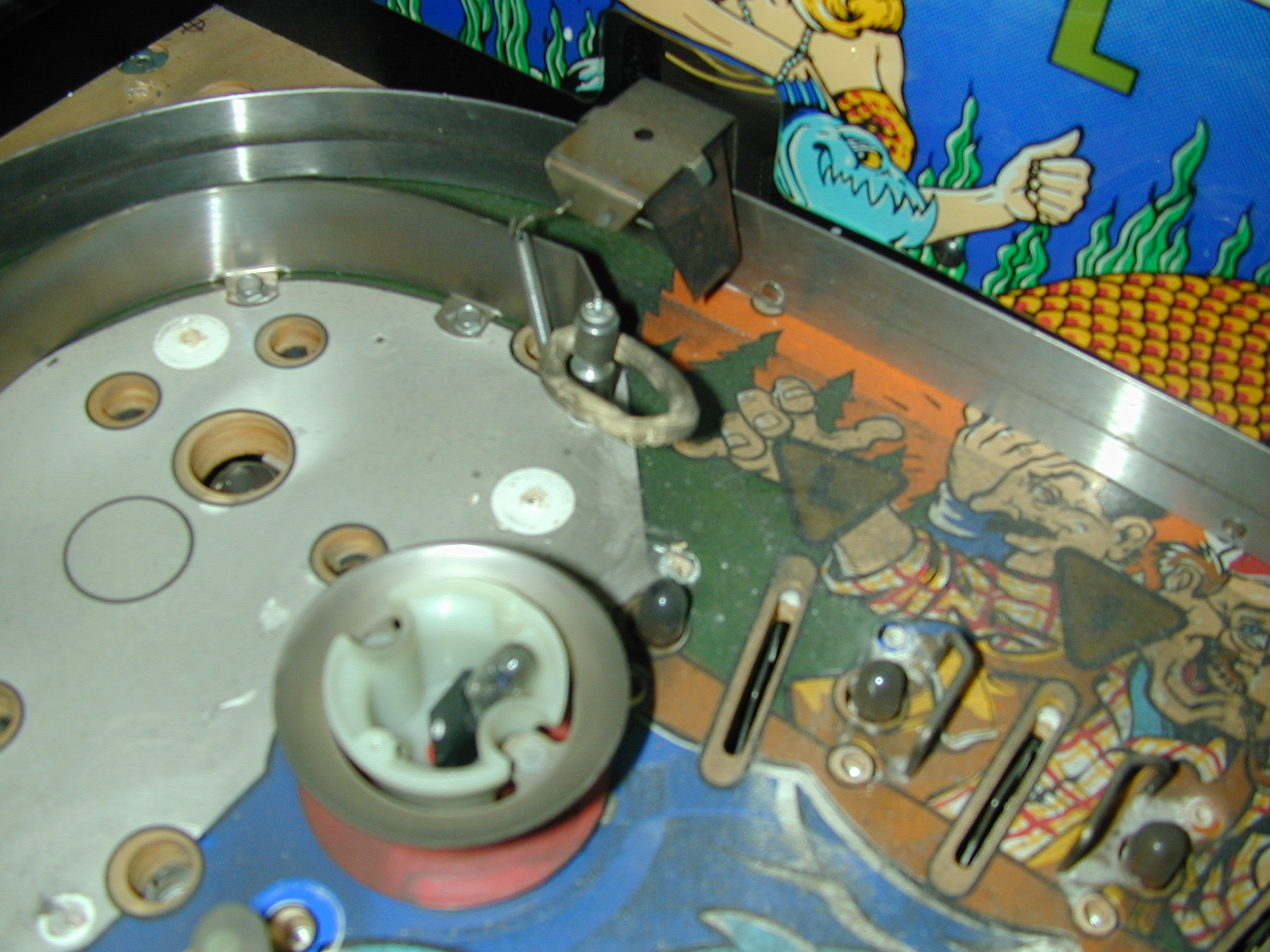

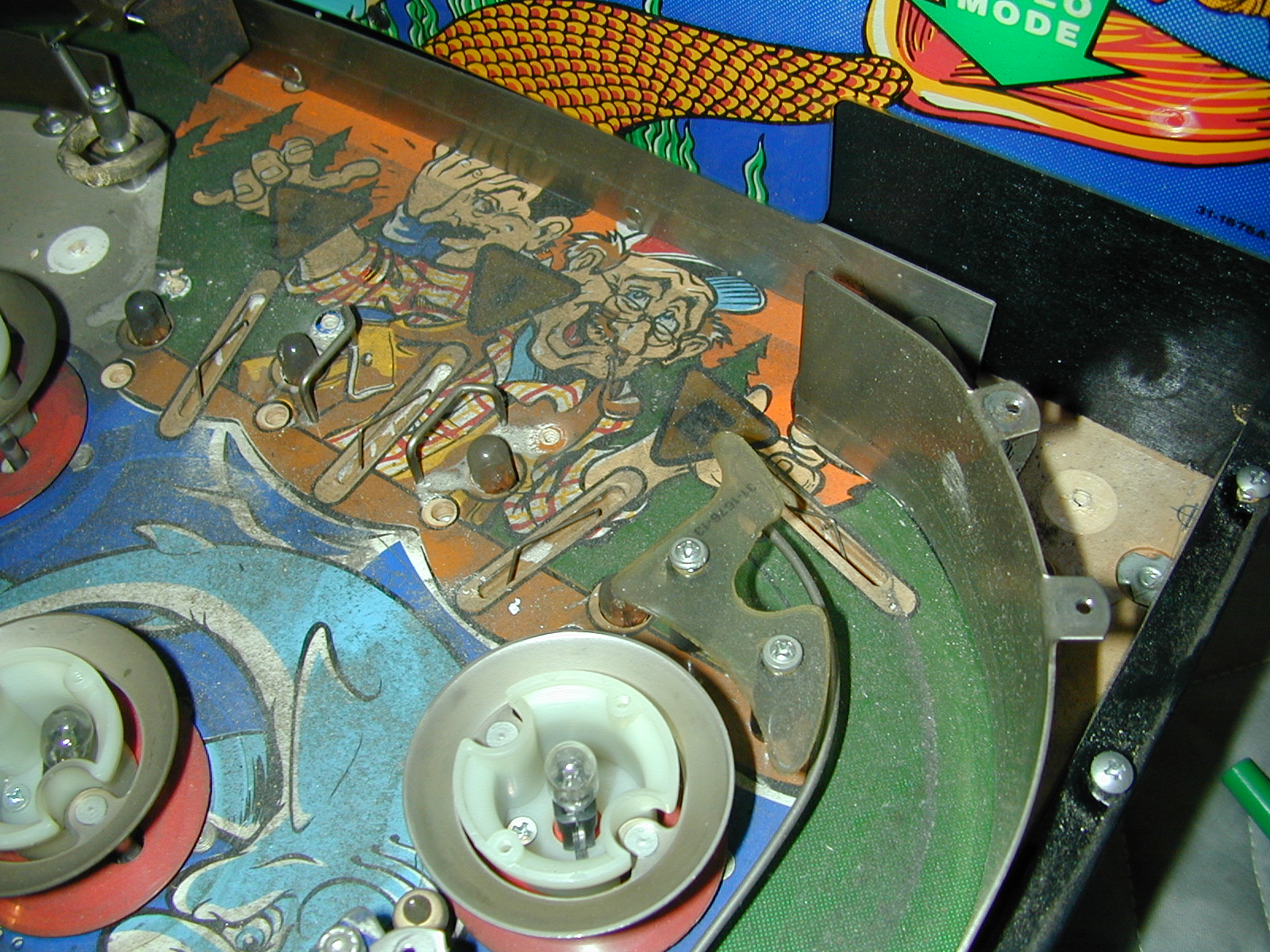

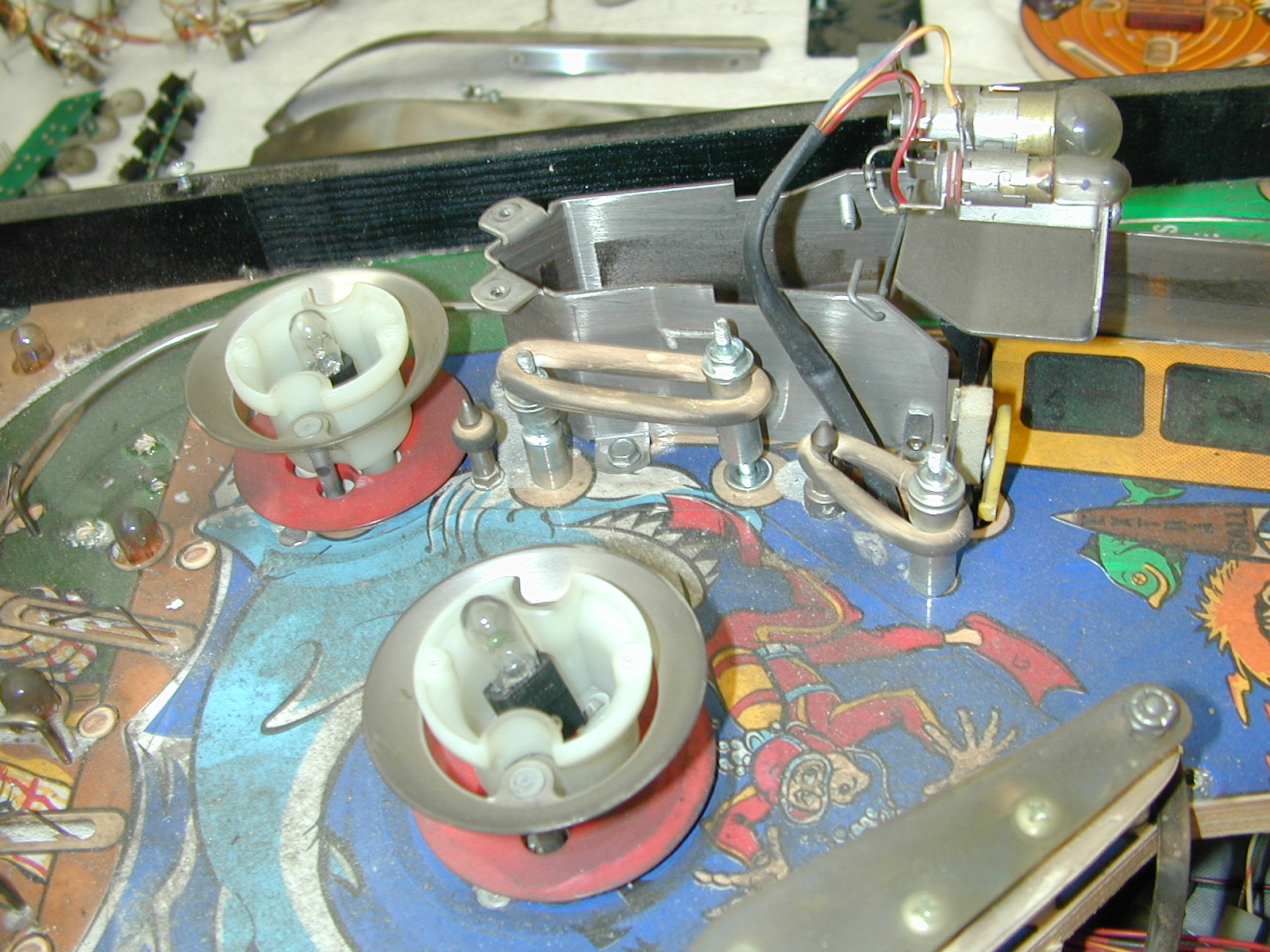

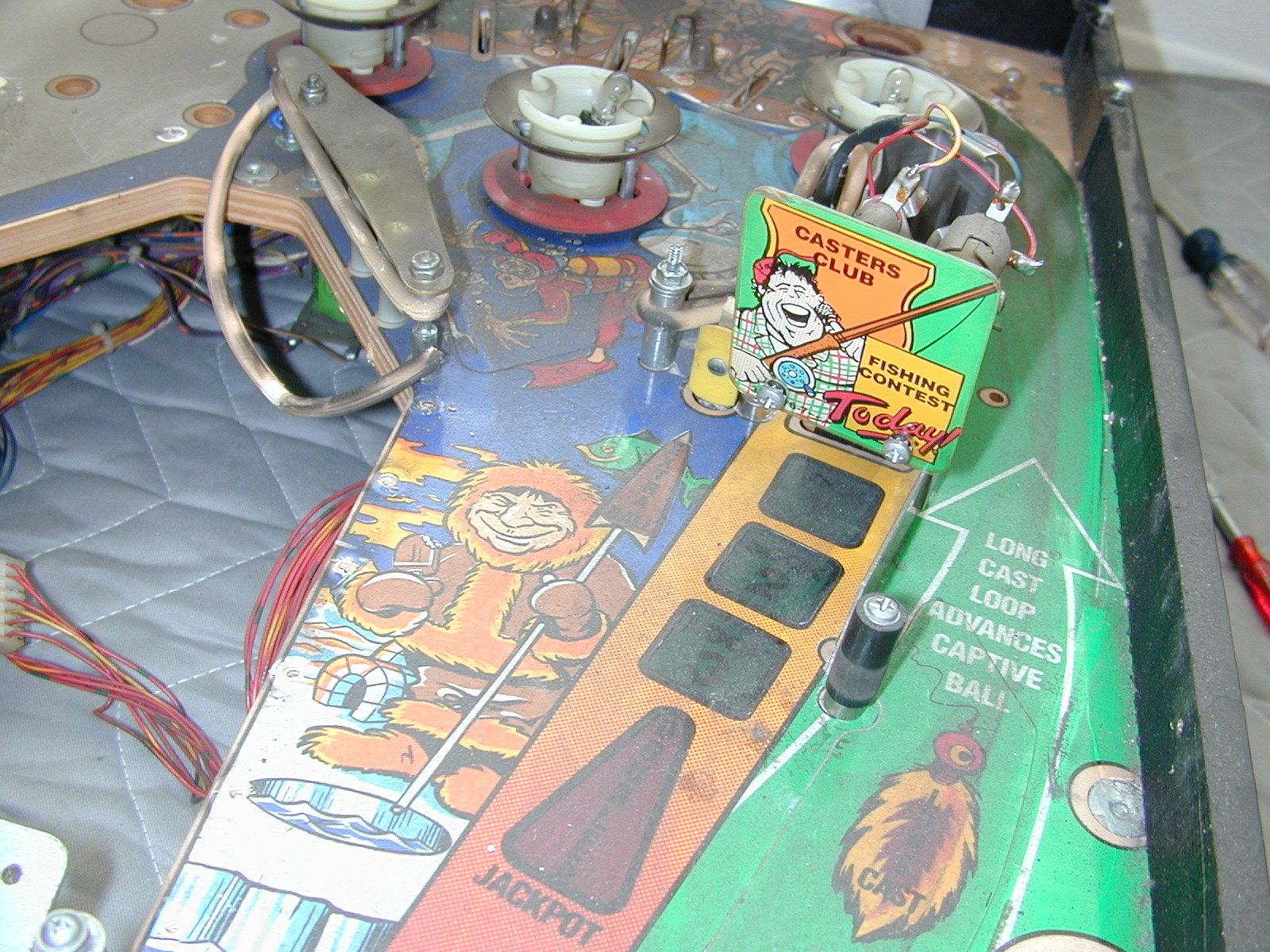

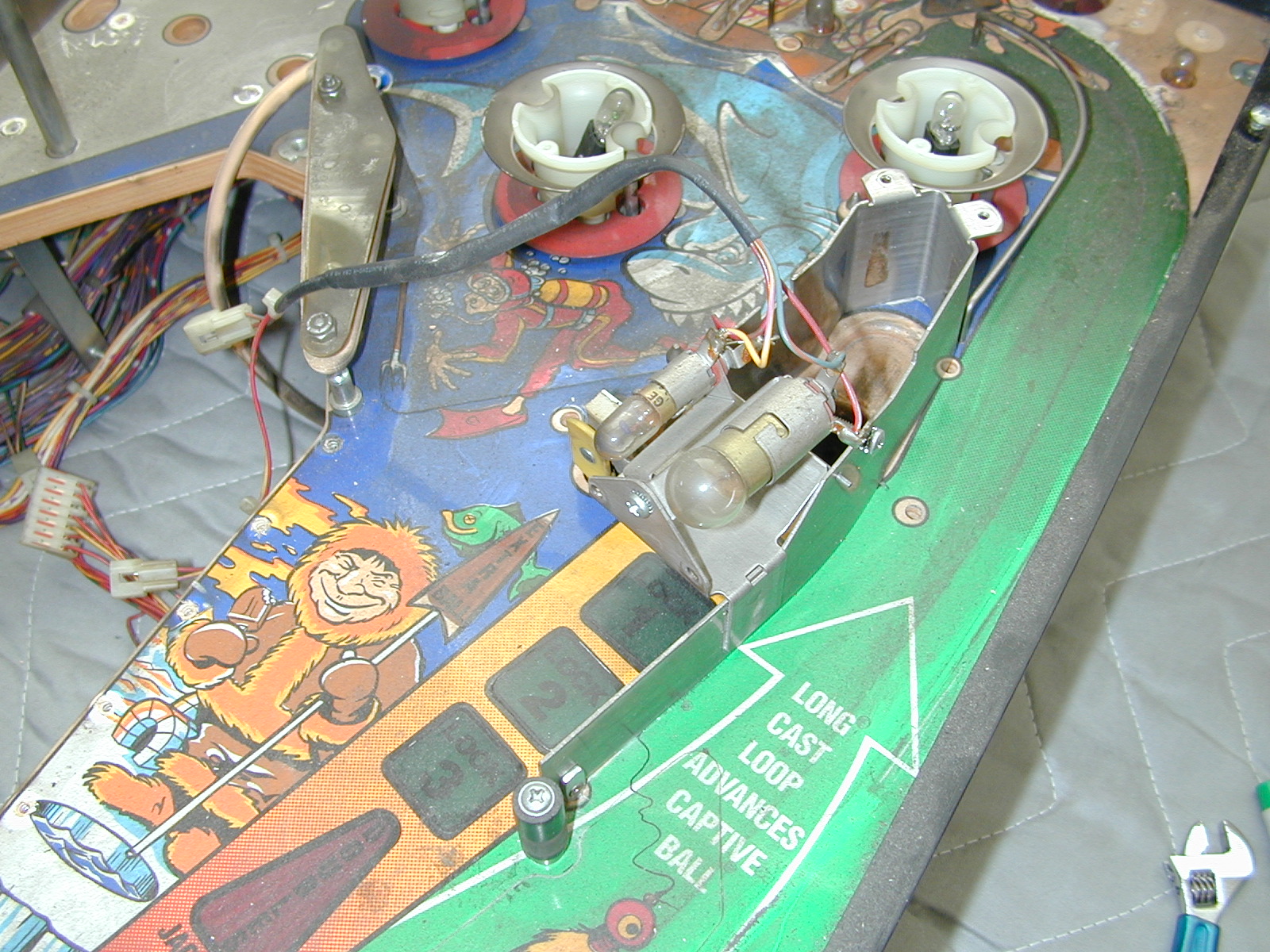

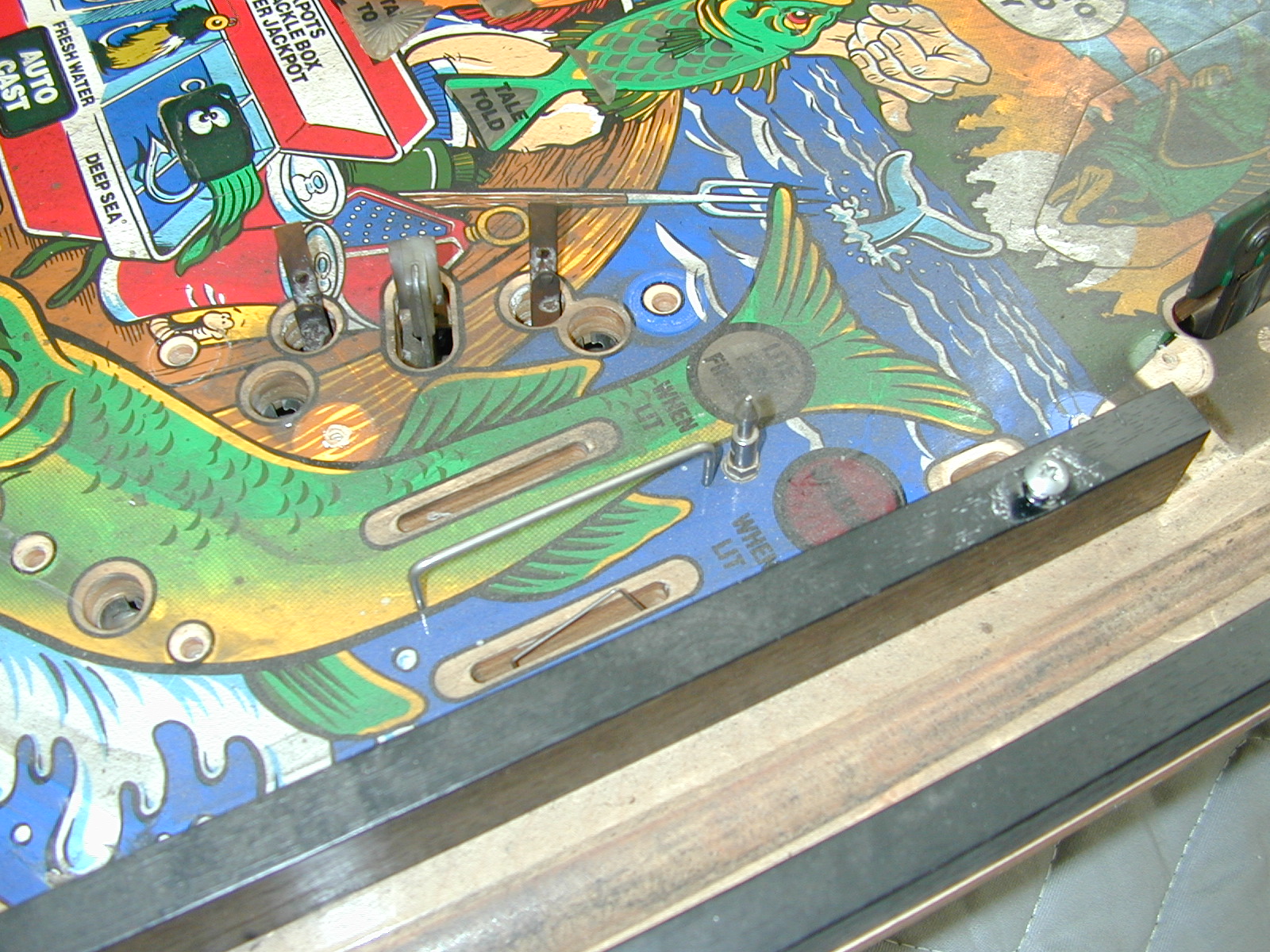

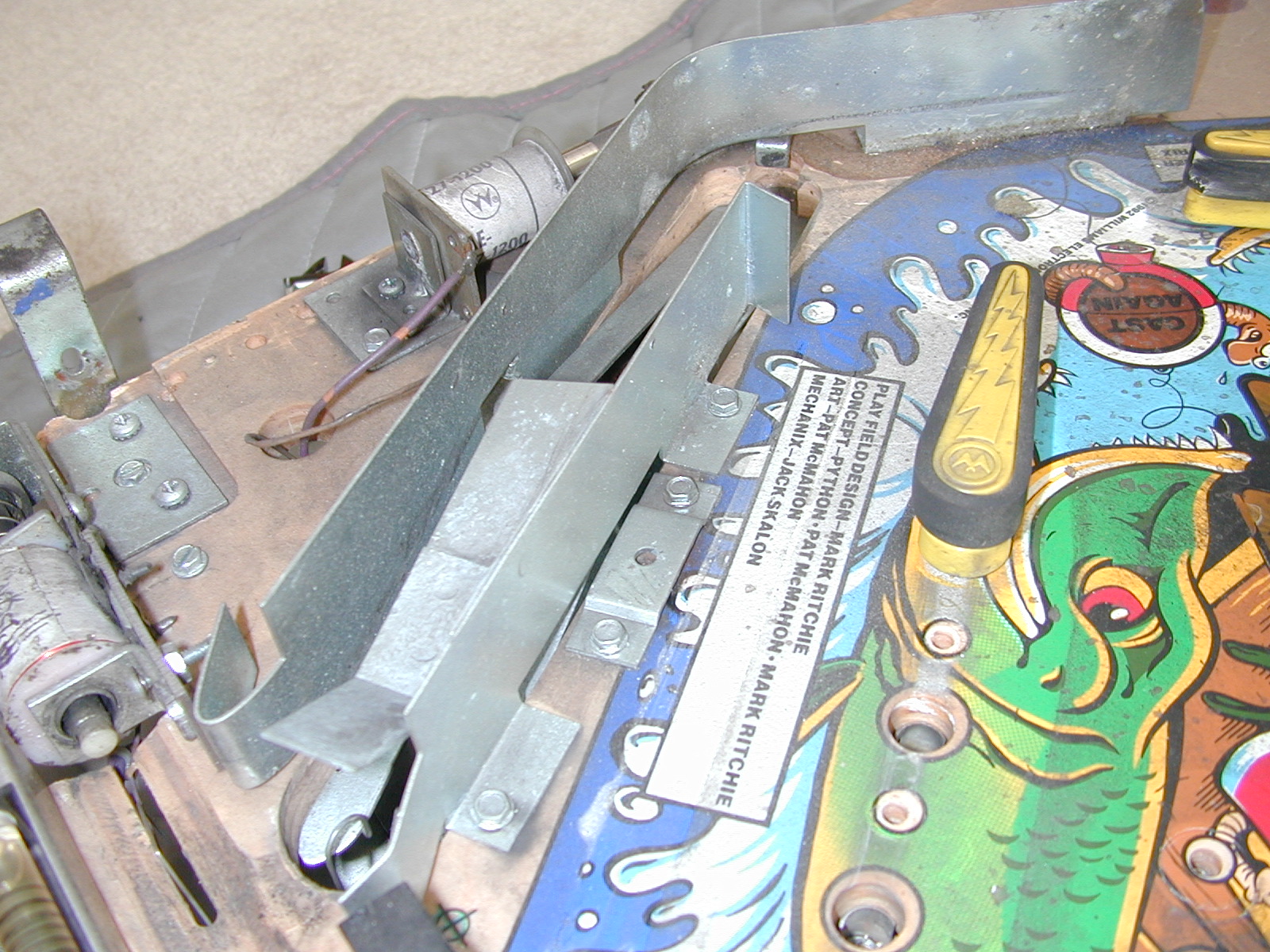

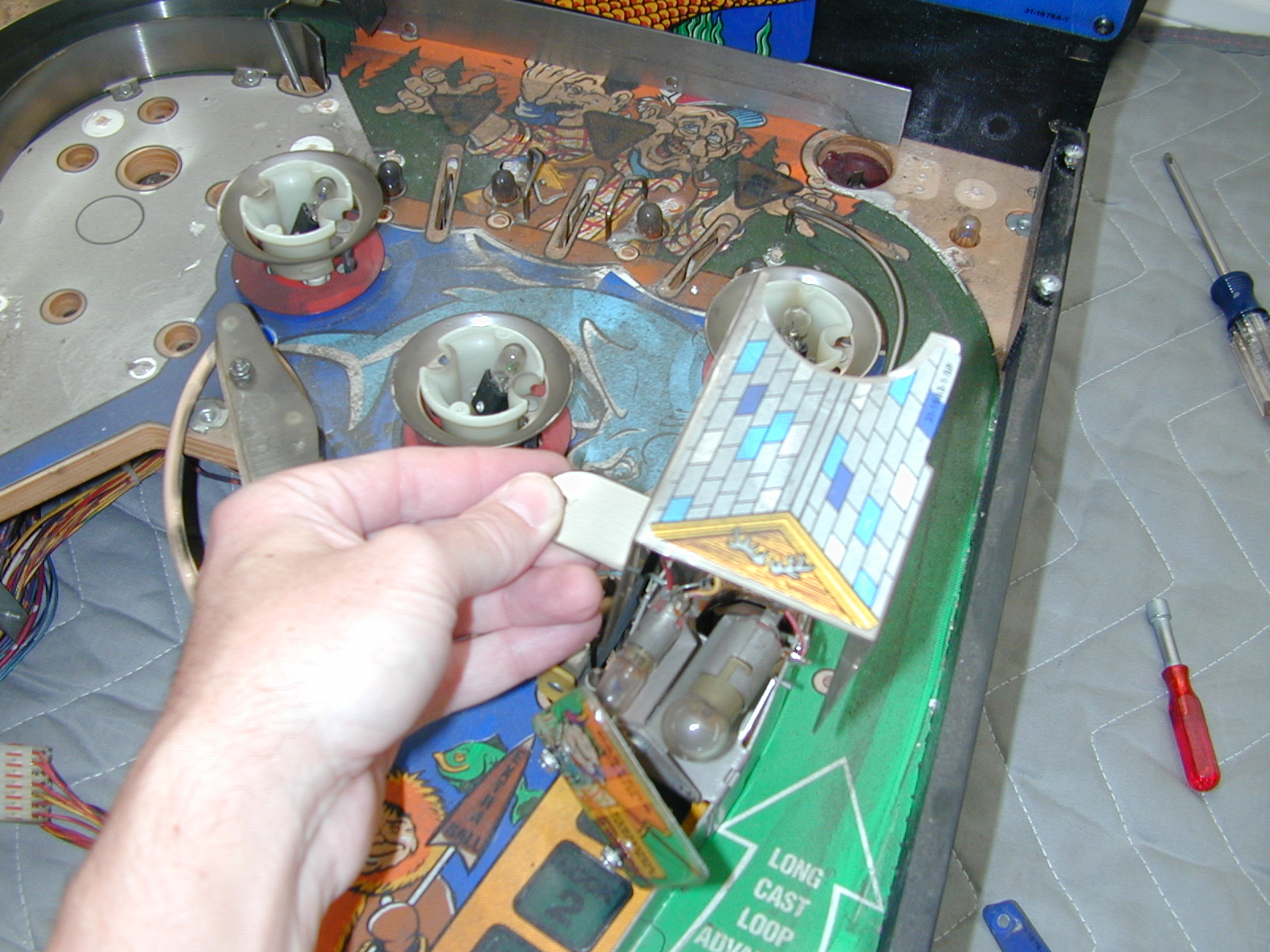

49 Clear plastic (-13) above right pop bumper – 2 WS 50 Metal post with long rubber ring below upper left gate – 1 WS 51 Metal guide in upper right outer loop – 4 WS 52 Upper right sink hole deflector – 3 WS 53 Plastic (-16) below right pop bumper – 3 nuts, only tighten bottom 2 54 Boathouse cover – 2 MS? 55 Boathouse sign – 3 nuts 56 3 metal posts to left of boathouse – 3 MS, 2 rubber rings 57 Boathouse metal guide – 2 WS, 2 nuts under playfield with washers 58 Metal post above right in/outlane, metal wire guide 59 Metal guide above ball trough – 2 WS 60 Metal guide below ball trough – 4 WS
