Playfield Teardown

Pinball Home Restorations Backbox Decal Replacement Using the Dry Method Playfield Teardown Pictures

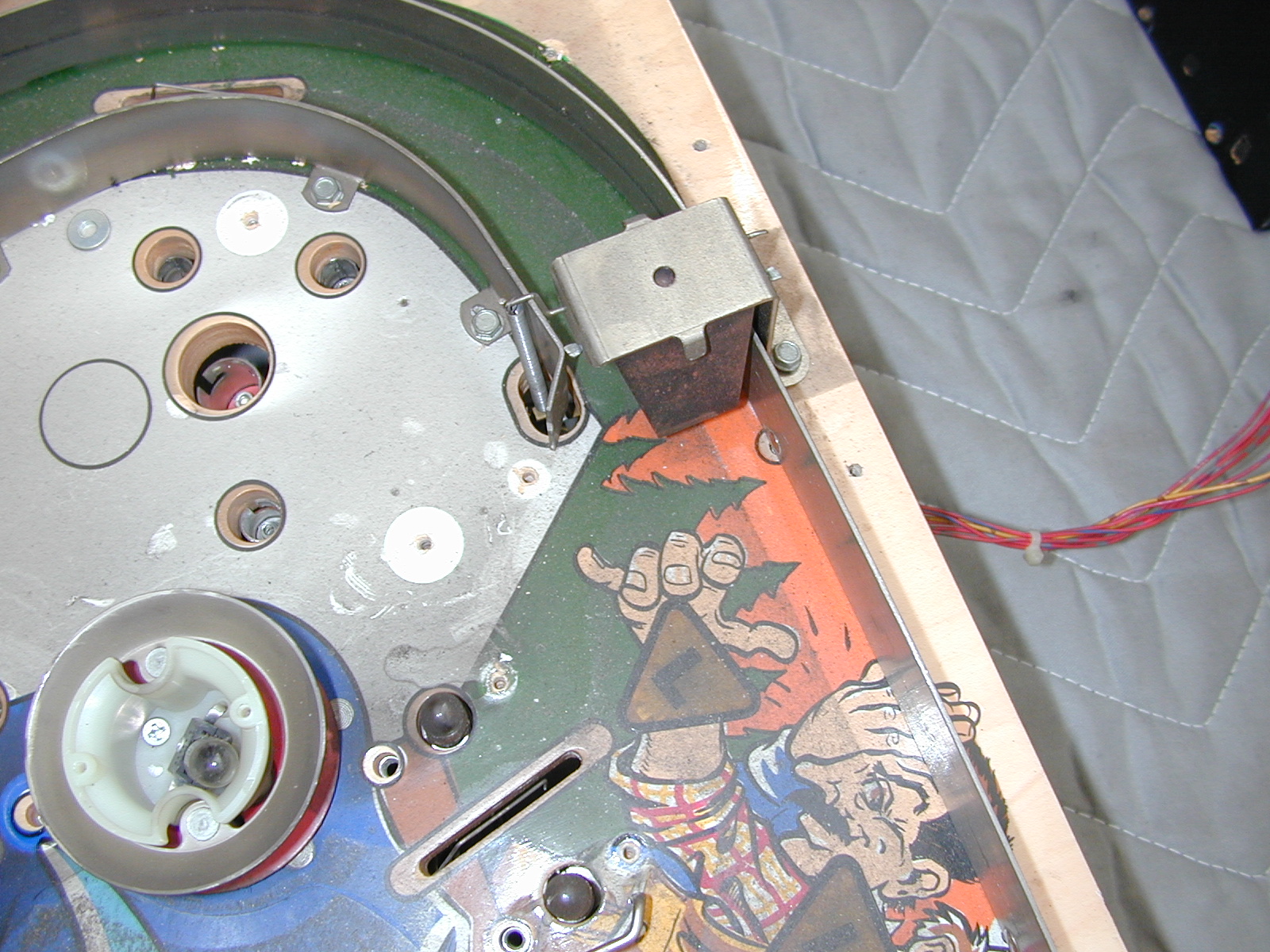

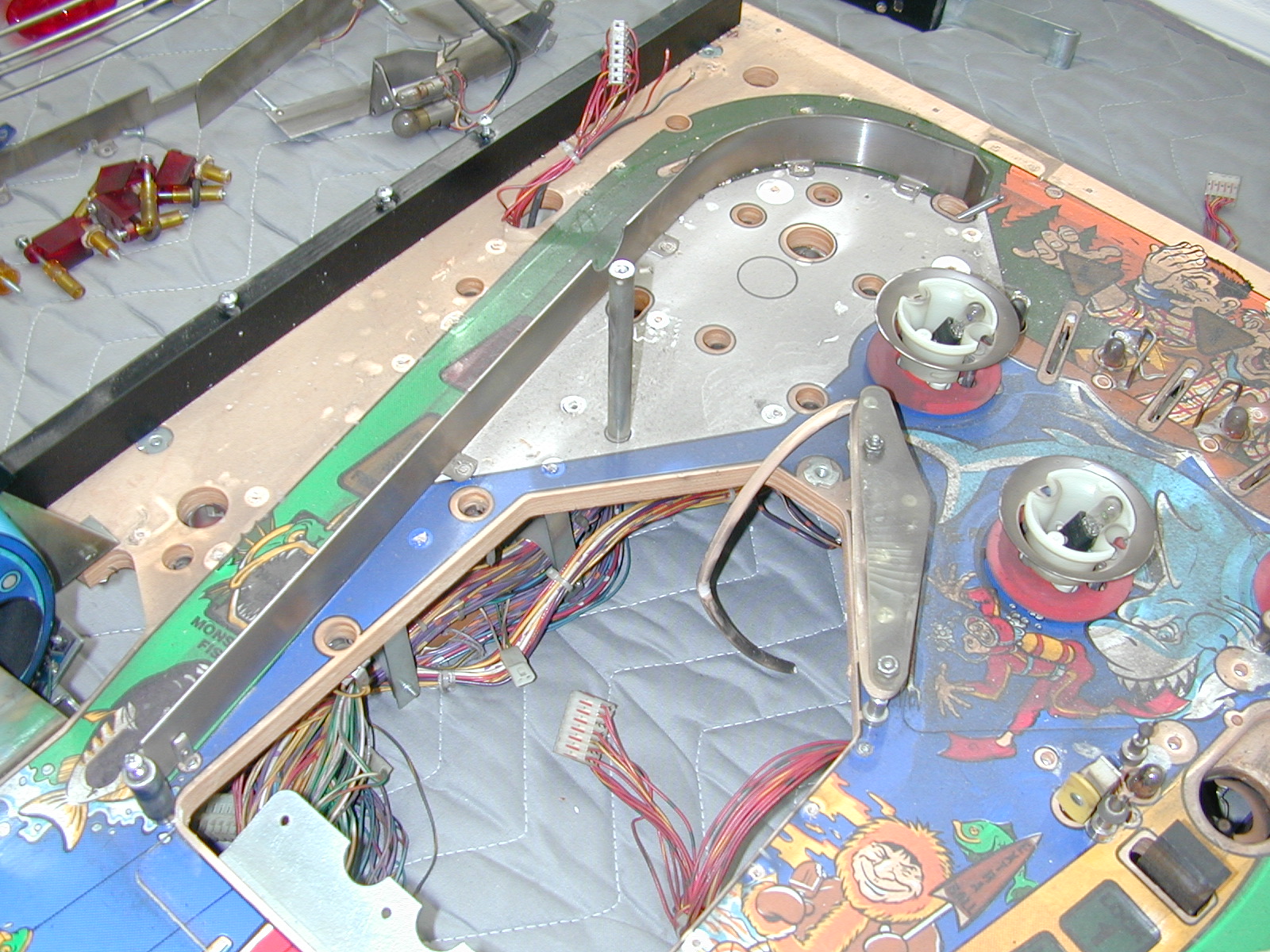

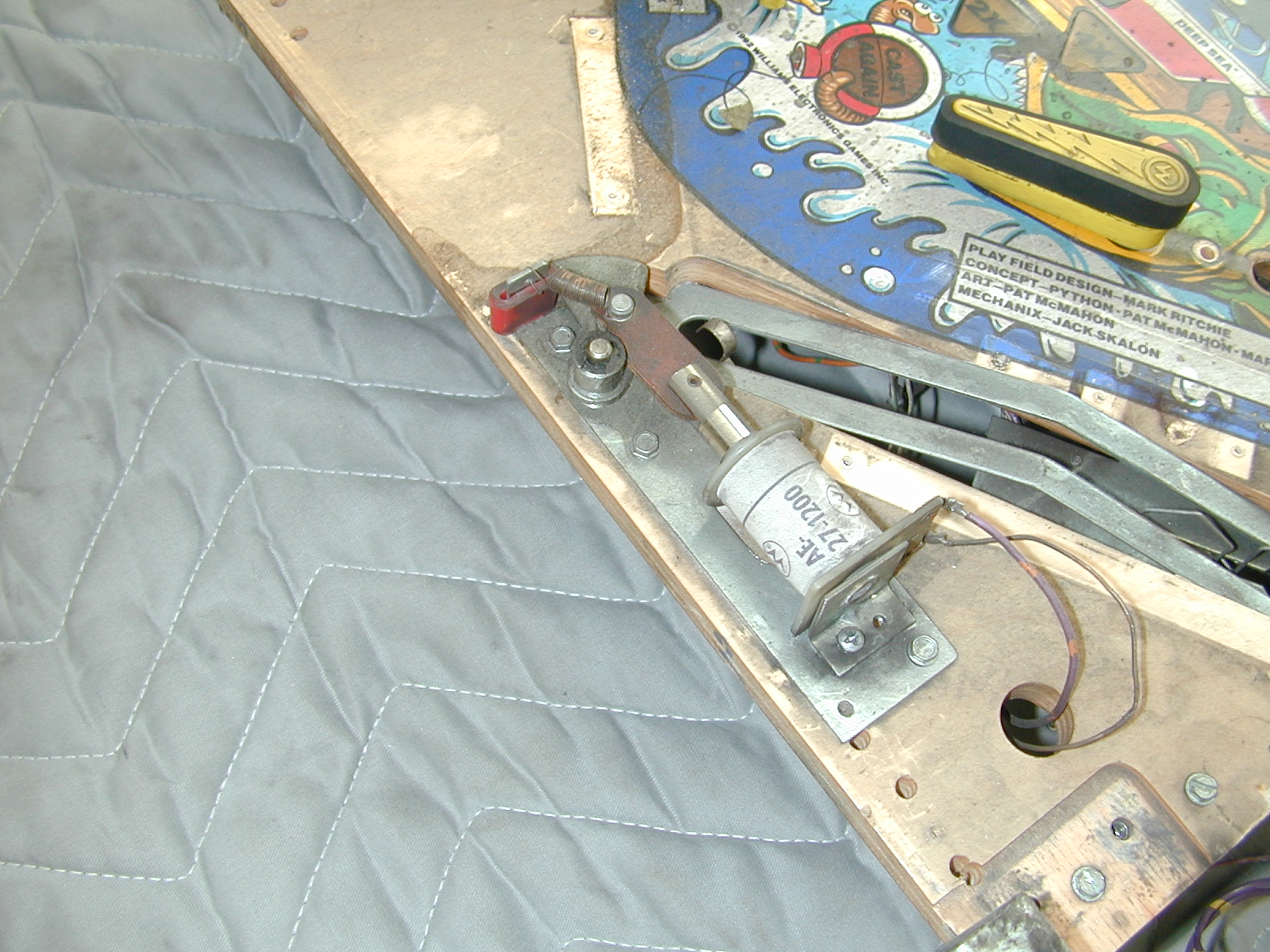

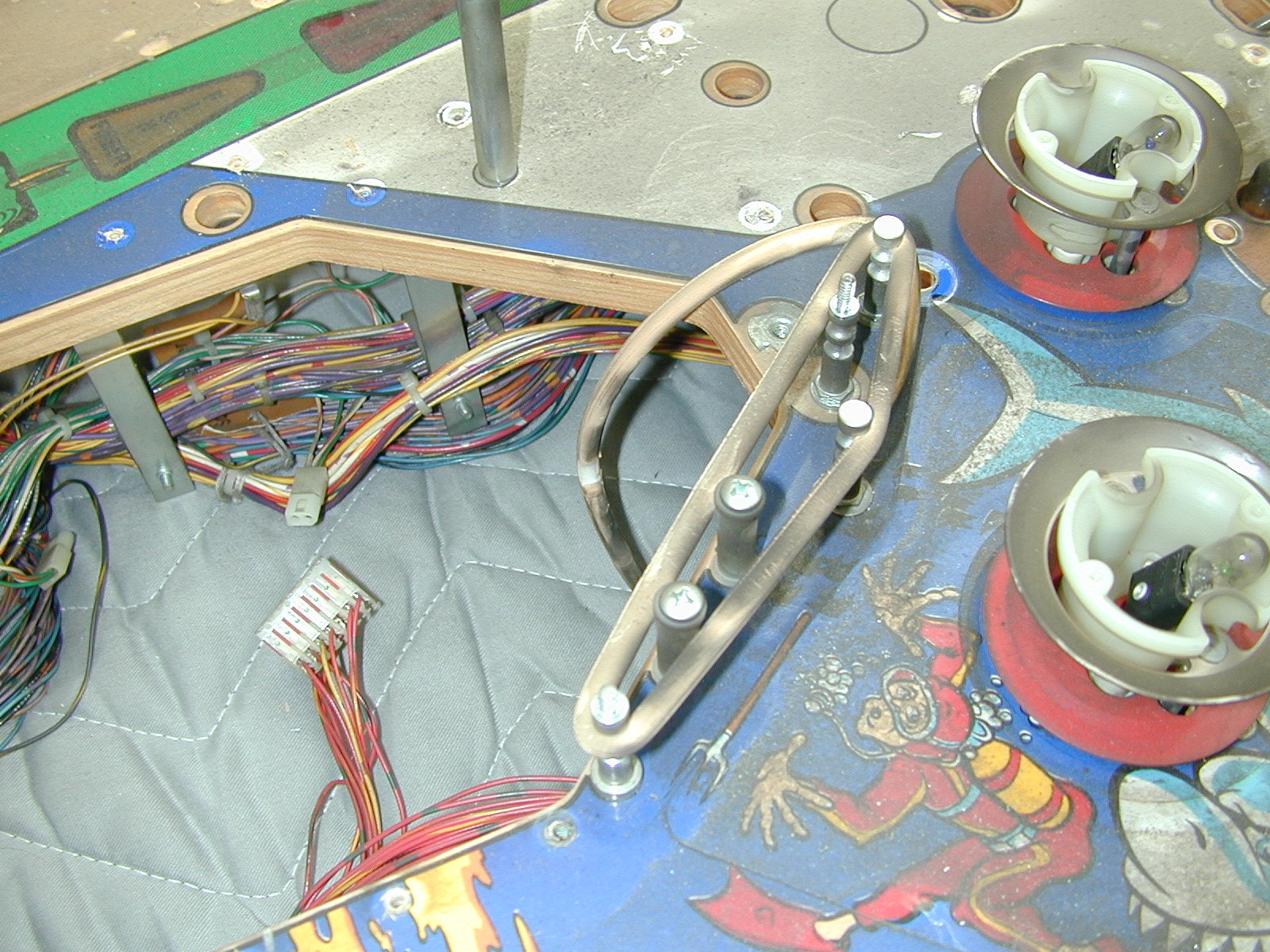

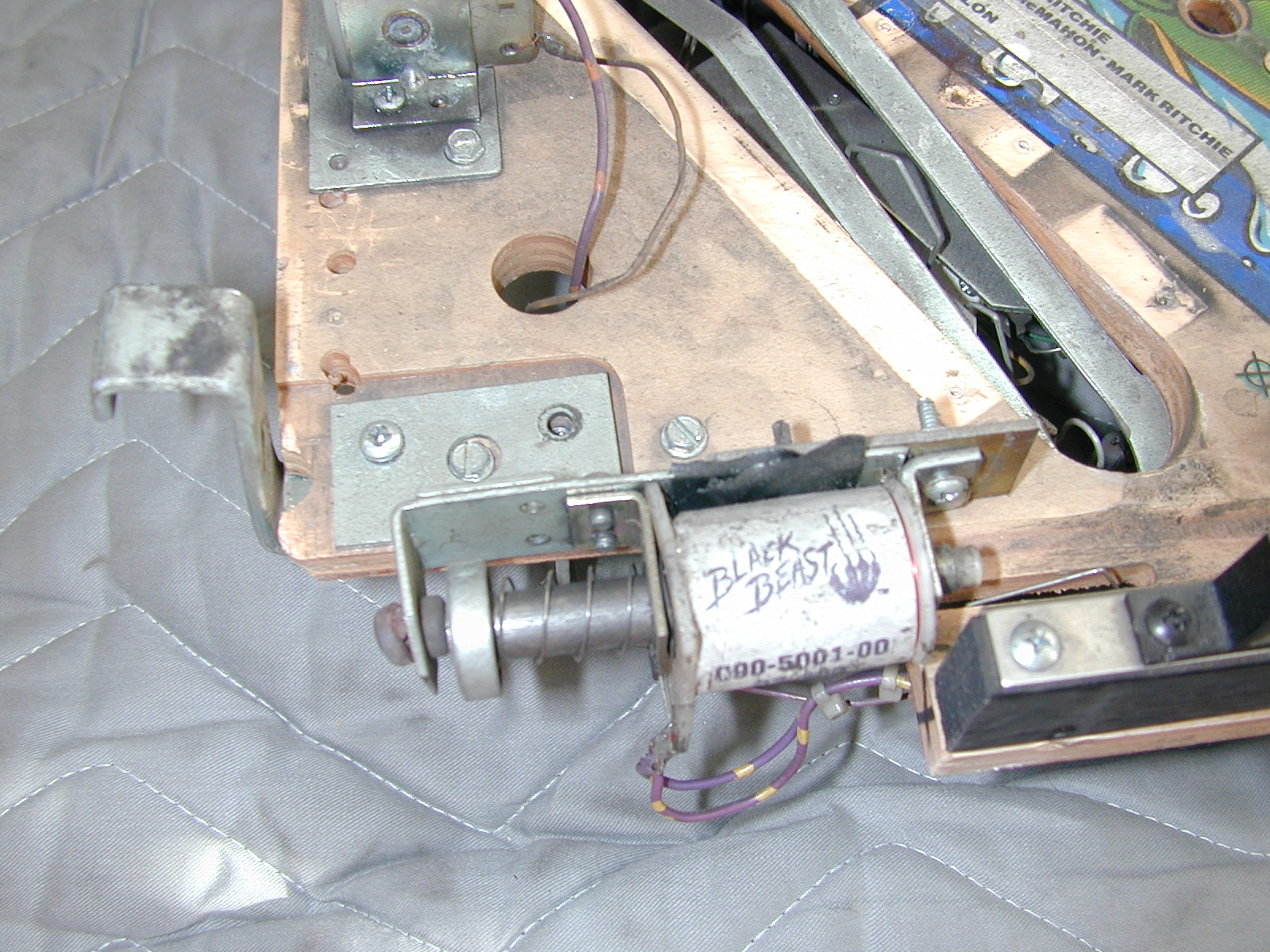

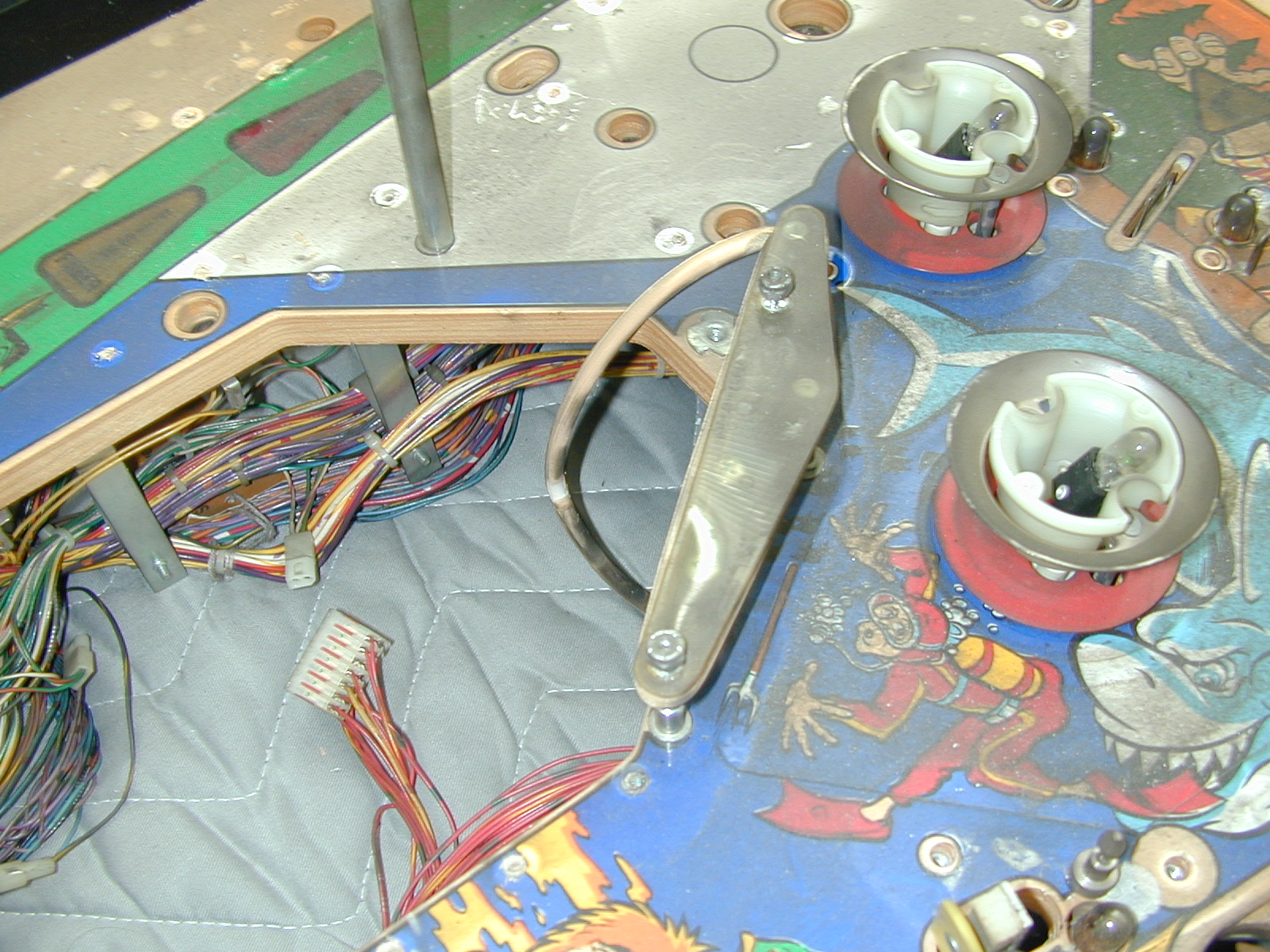

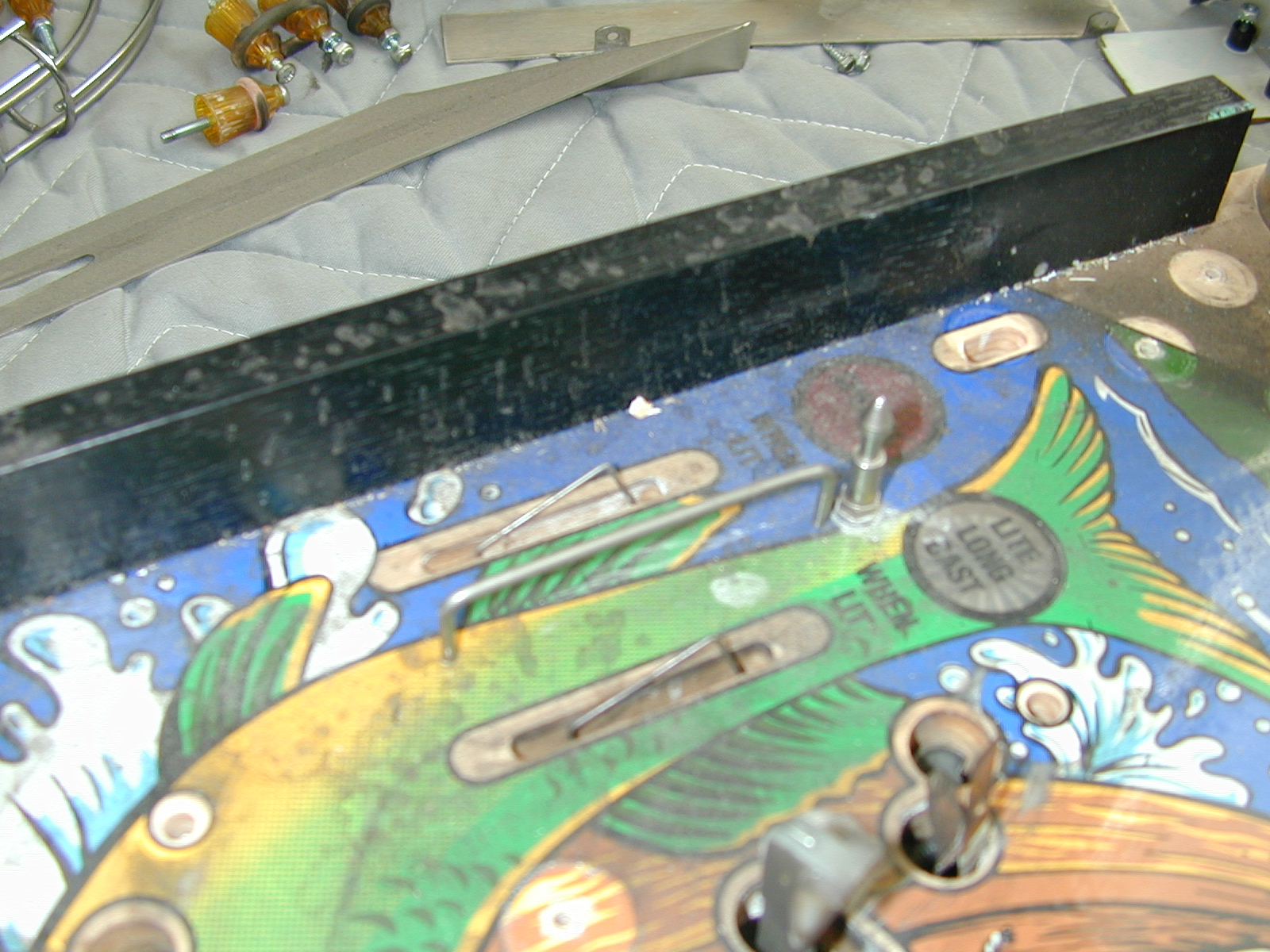

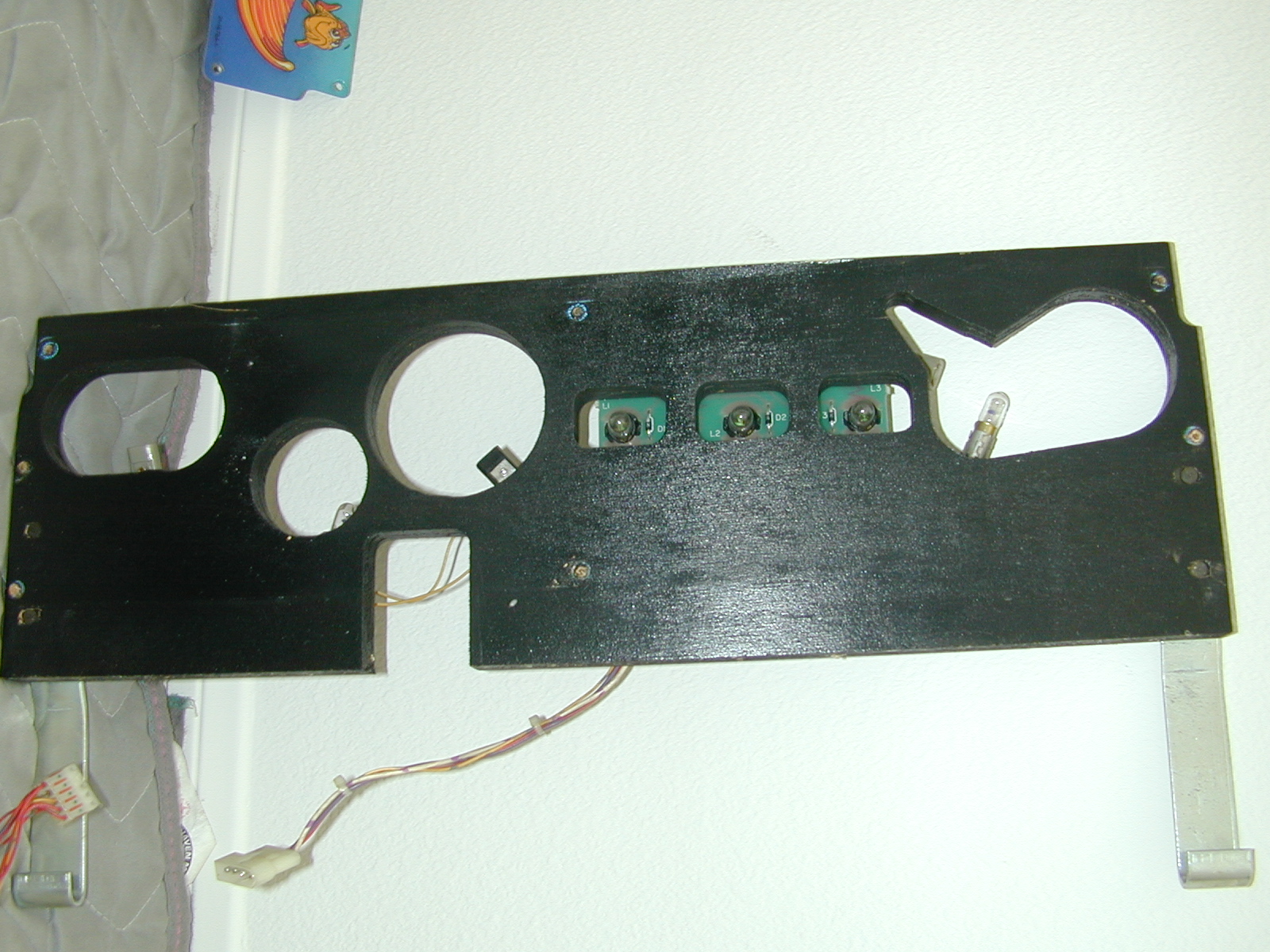

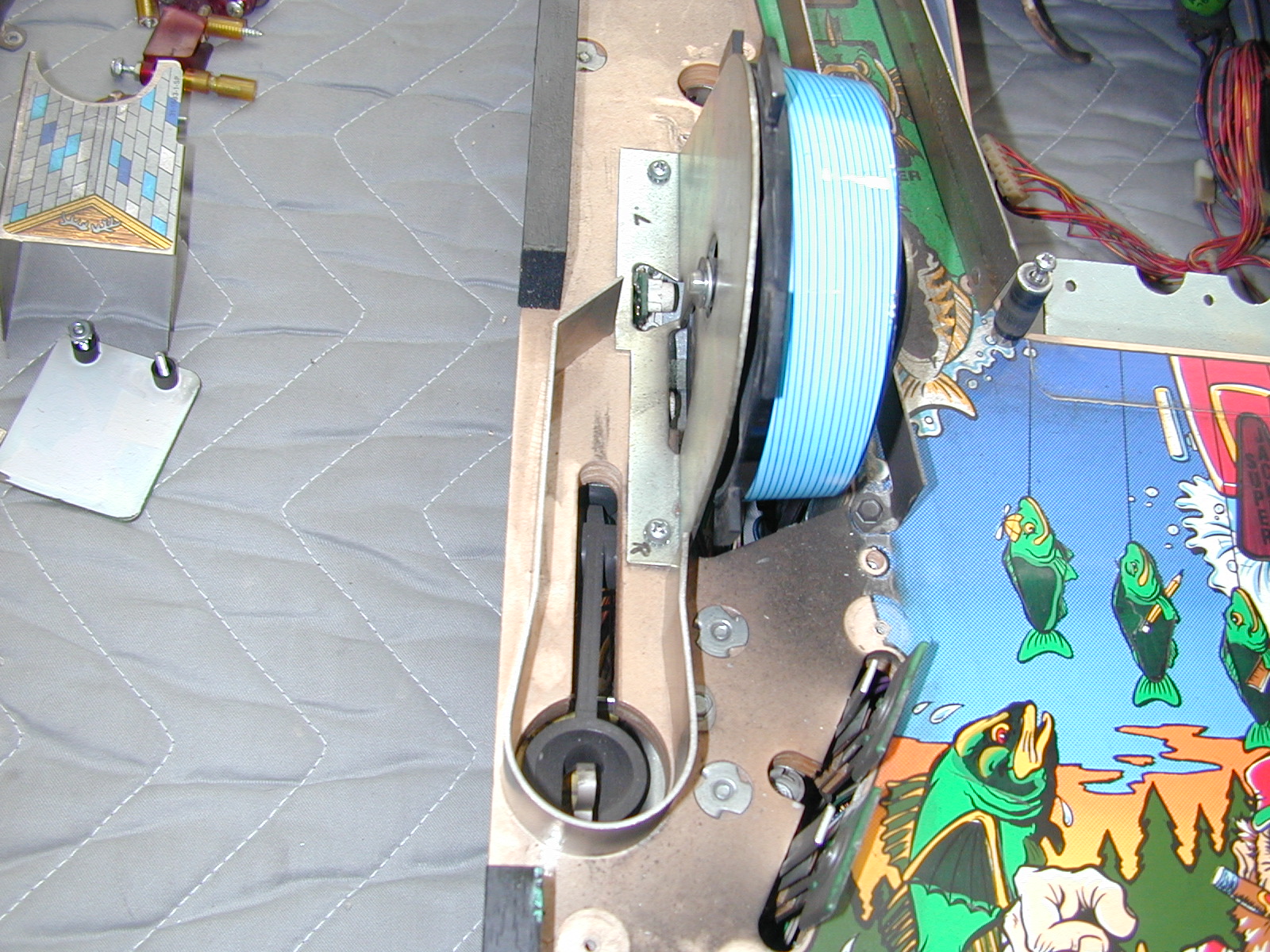

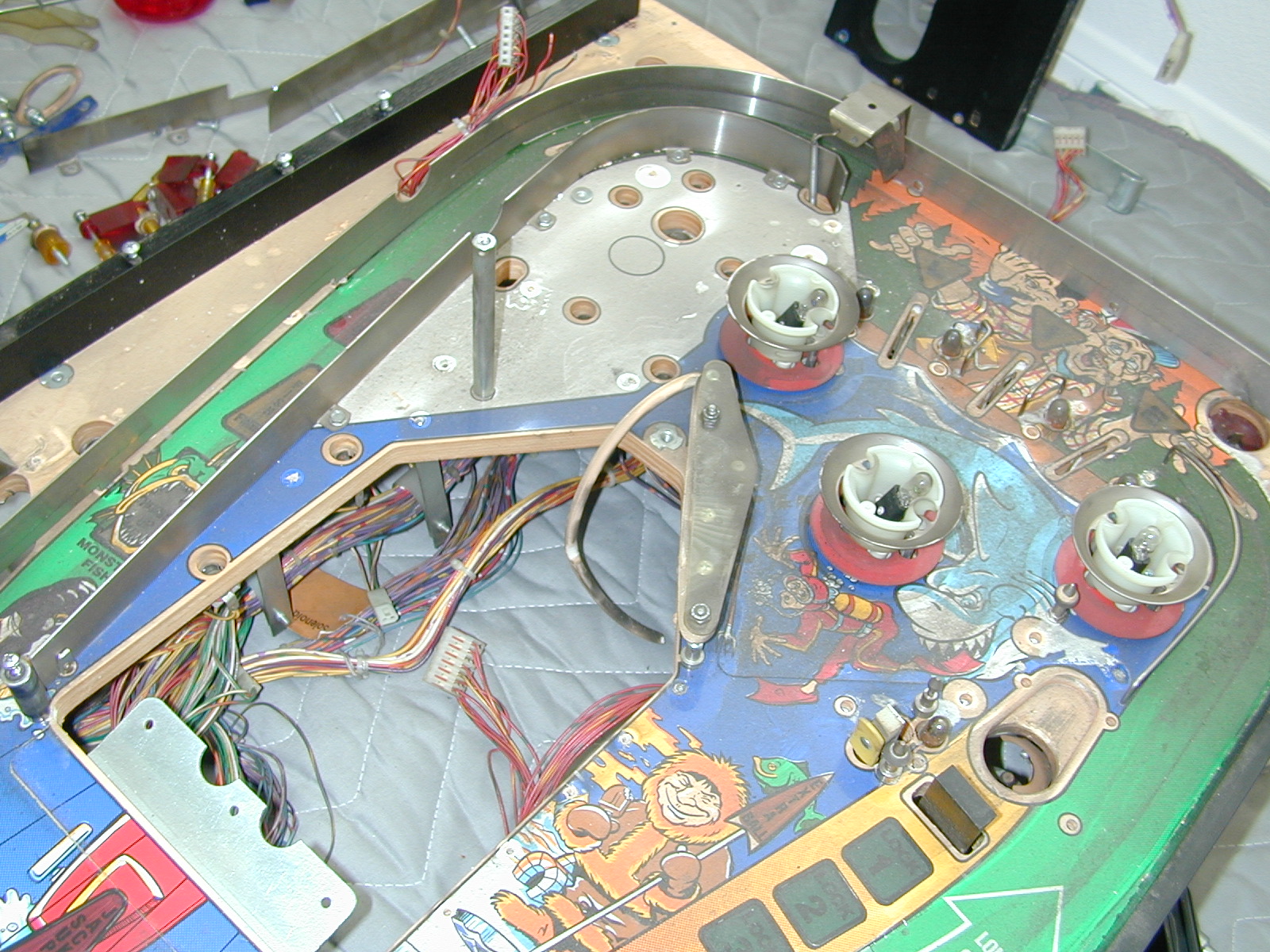

61 2 apron hold down brackets – 4 WS 62 Metal post and wire guide in left in/outlane 63 Shooter coil assembly – 2 MS, pur/yel non-banded, pur/brn banded side of diode 64 Trough kicker assembly – 3 WS 65 Reel catapult metal guide – 2 WS 66 Large plastic on backboard – 7 WS 67 Backboard – 5 WS 68 Upper left metal gate with spring – 2 WS 69 Upper left outer metal guide – 5 WS, 2 nuts under playfield with washers 70 Upper left inner metal guide – 4 WS, 1 nut under playfield with washer 71 Clear plastic (-17) below left/mid pop bumper – 2 nuts 72 6 posts below left/mid PB – 5 MS, 1 nut with washer under playfield
