1

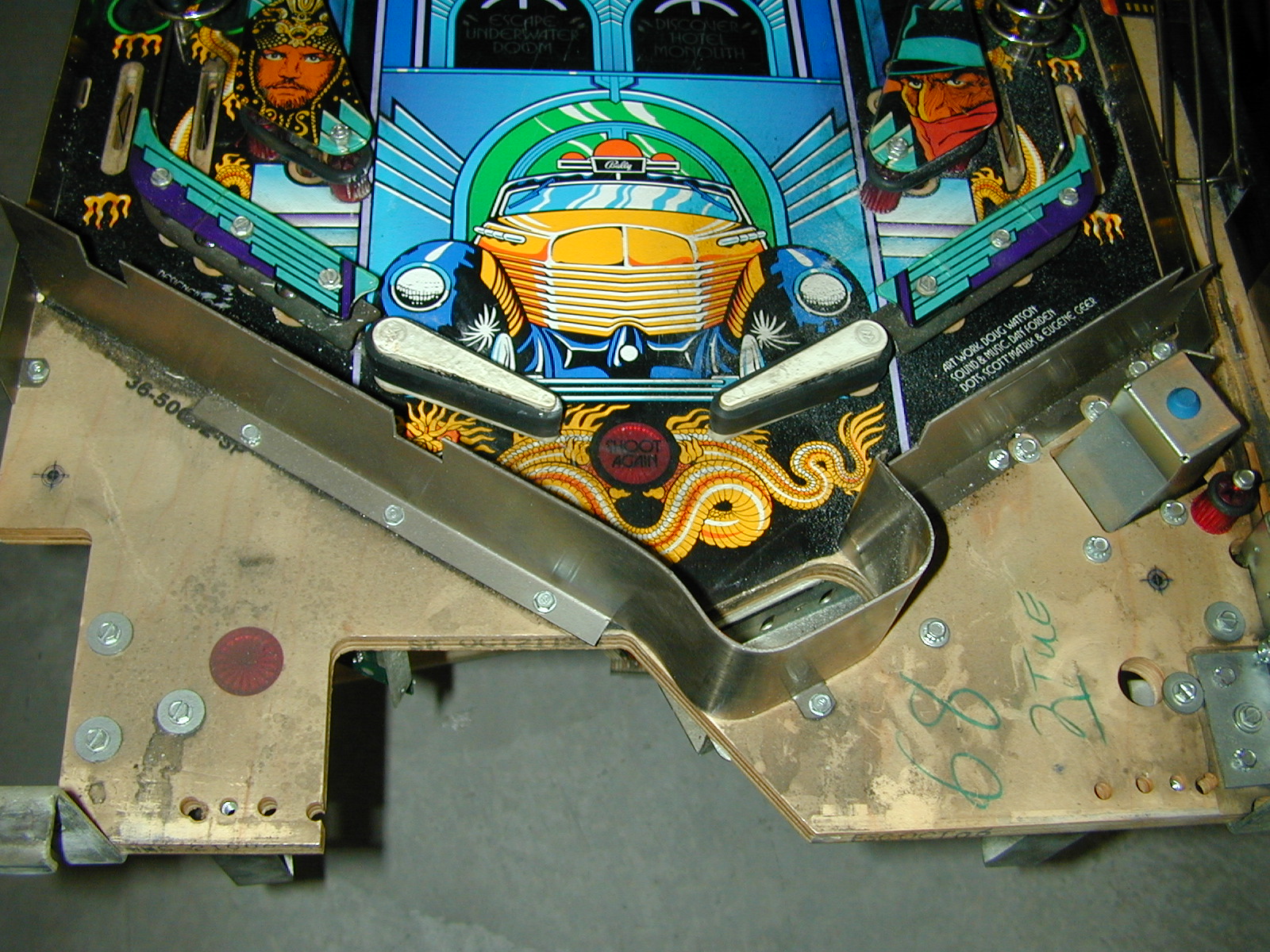

Remove apron prior to this step - 2 sheet metal screws
Lower ball return metal guide - 5 woods screws (WS), 2 machine
screws (MS)
|
2

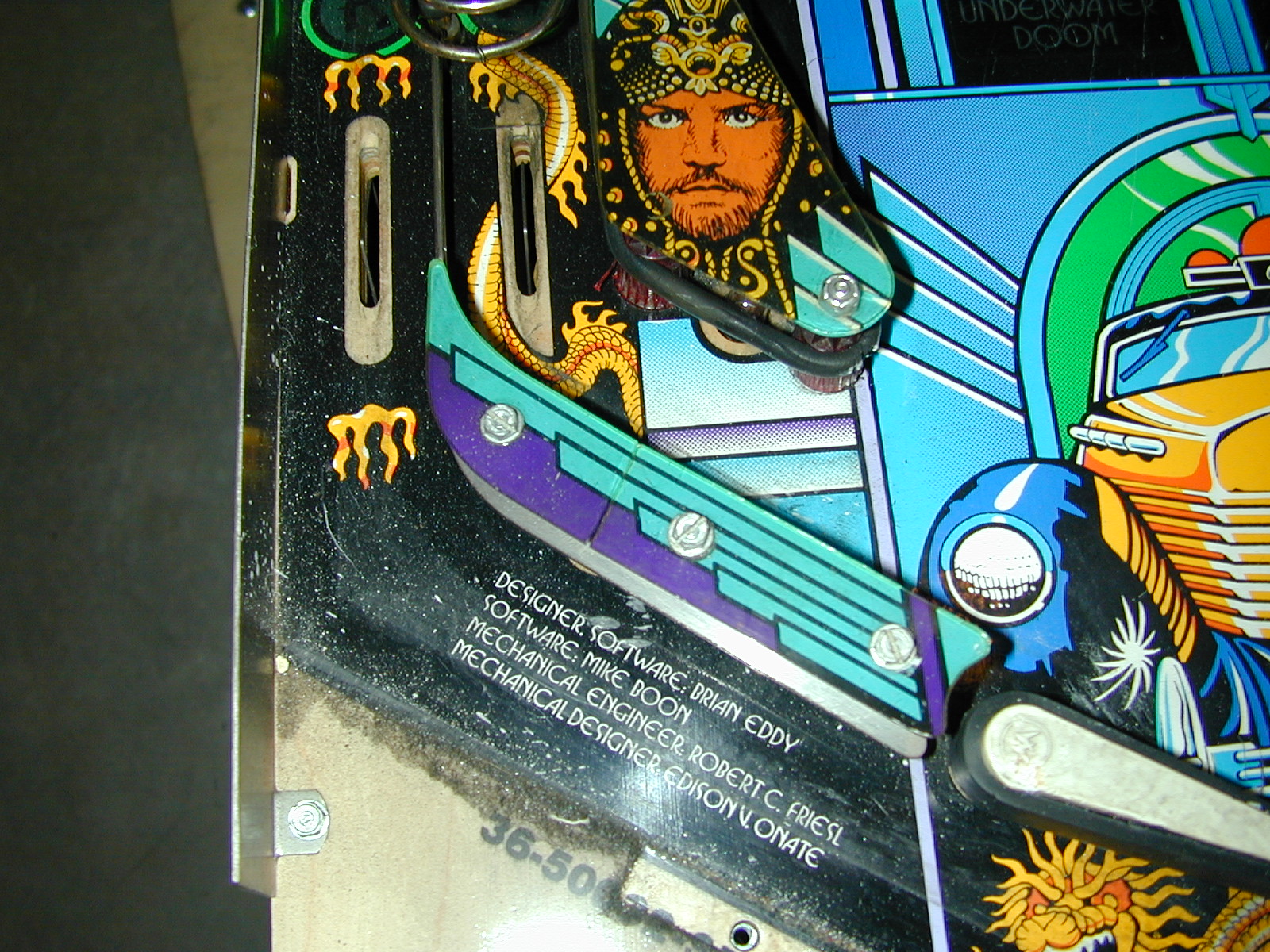

Left inlane guide - 3 MS
|
3

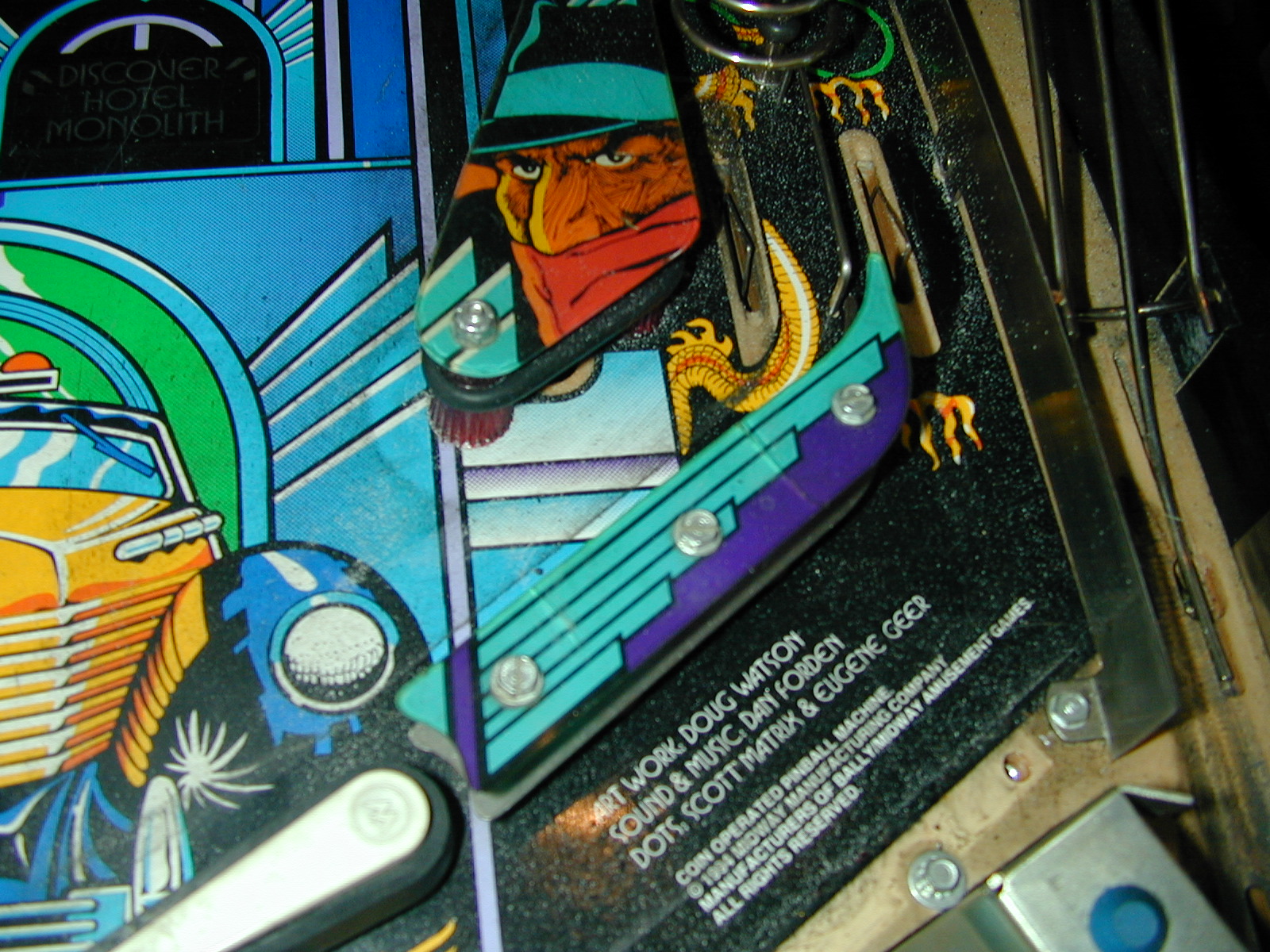

Right inlane guide - 3 MS
|
4

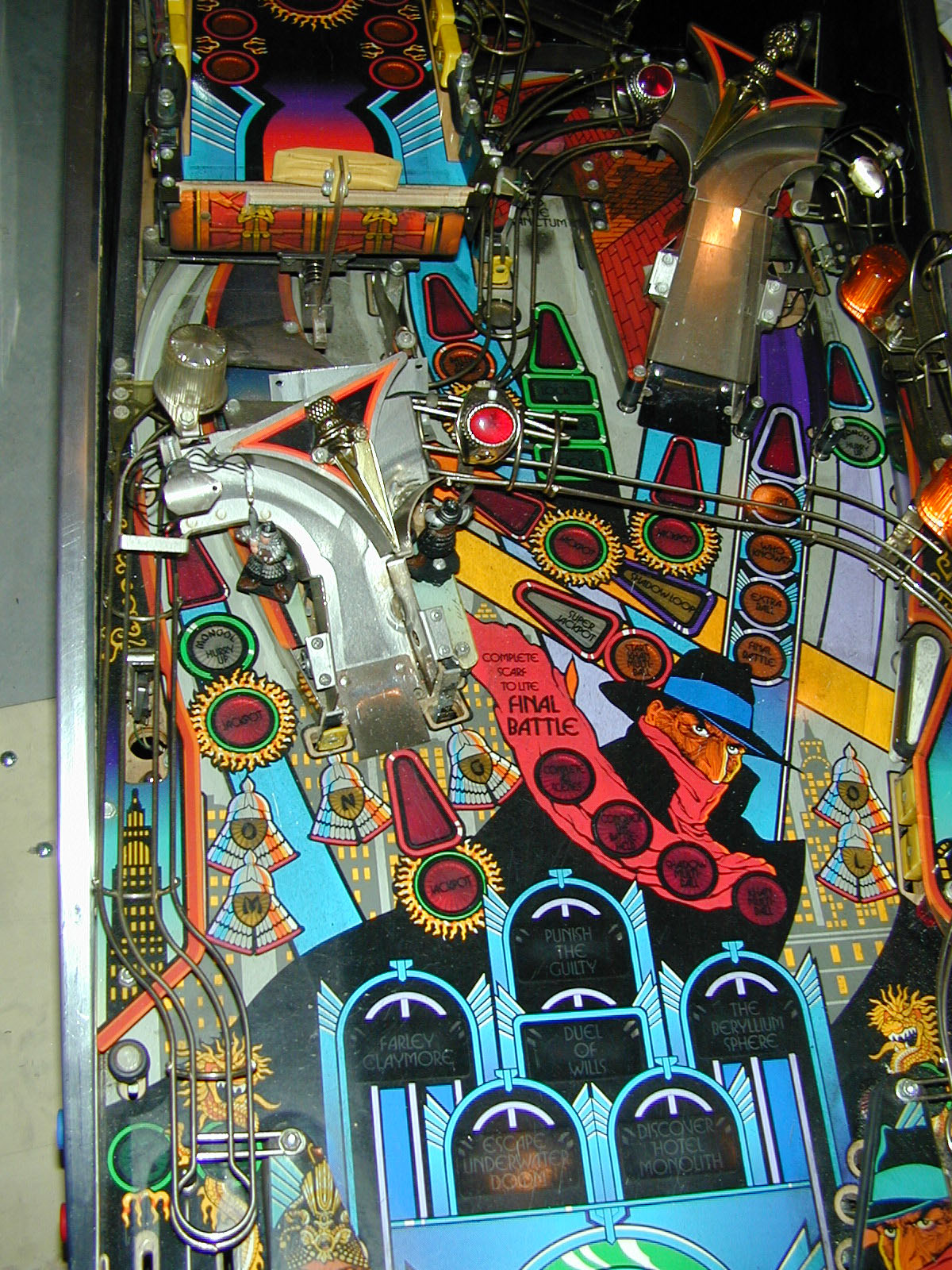

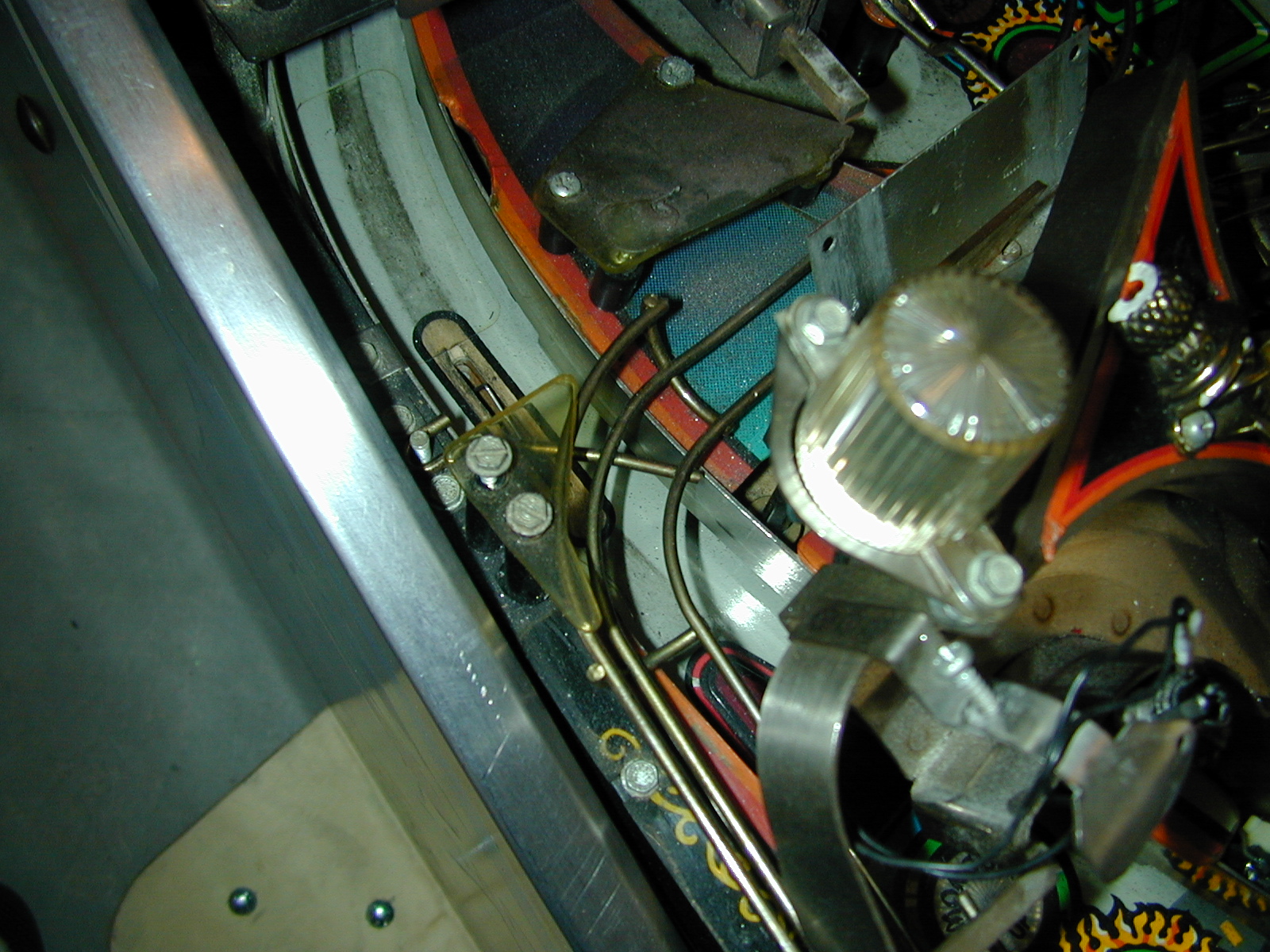

Left wire ramp - 2 nuts/washers,1 MS, 3 connectors (CON)
|
 |
 |
 |
 |
5
Plastic behind left wire ramp/phurba
|
6

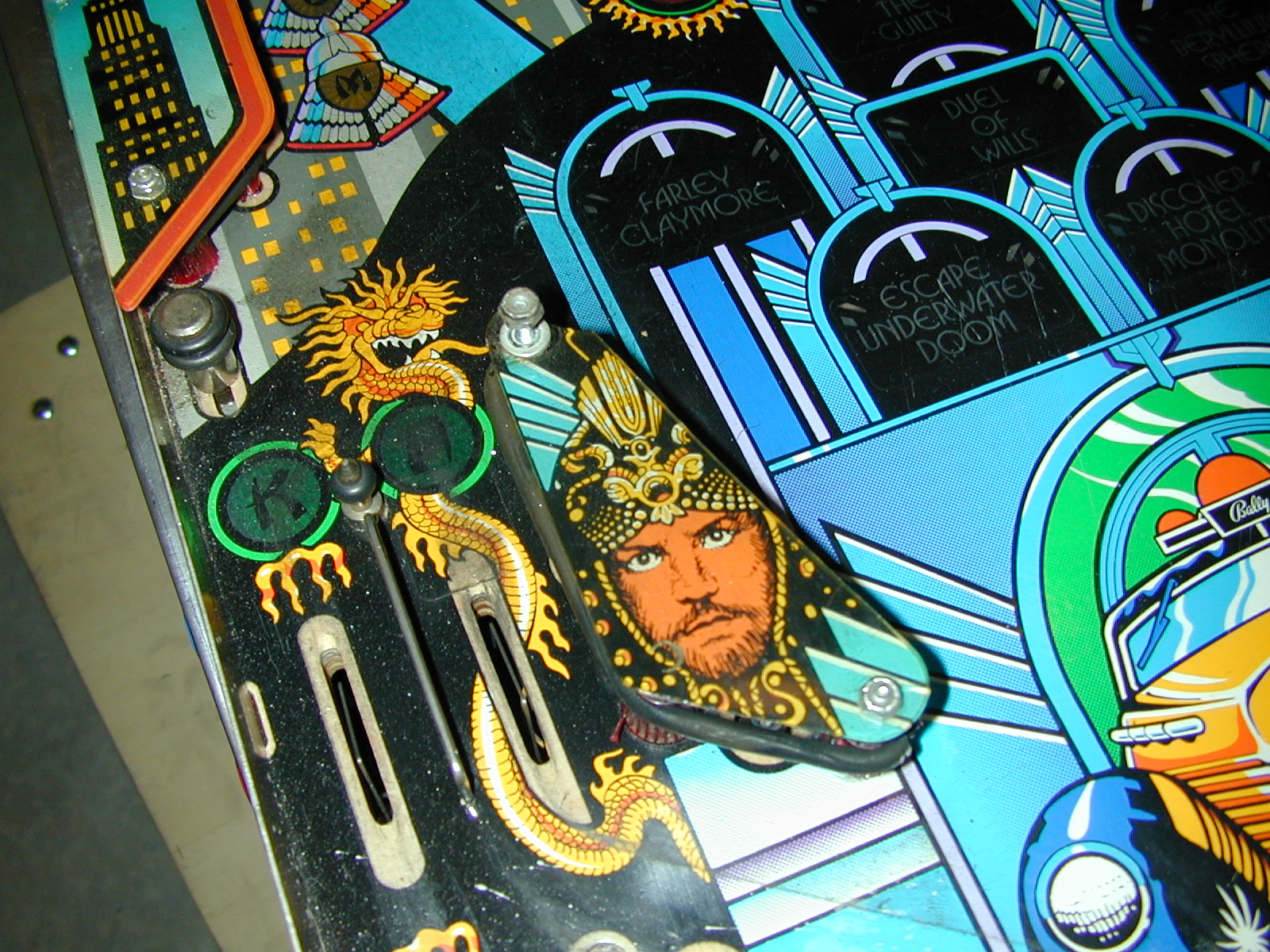

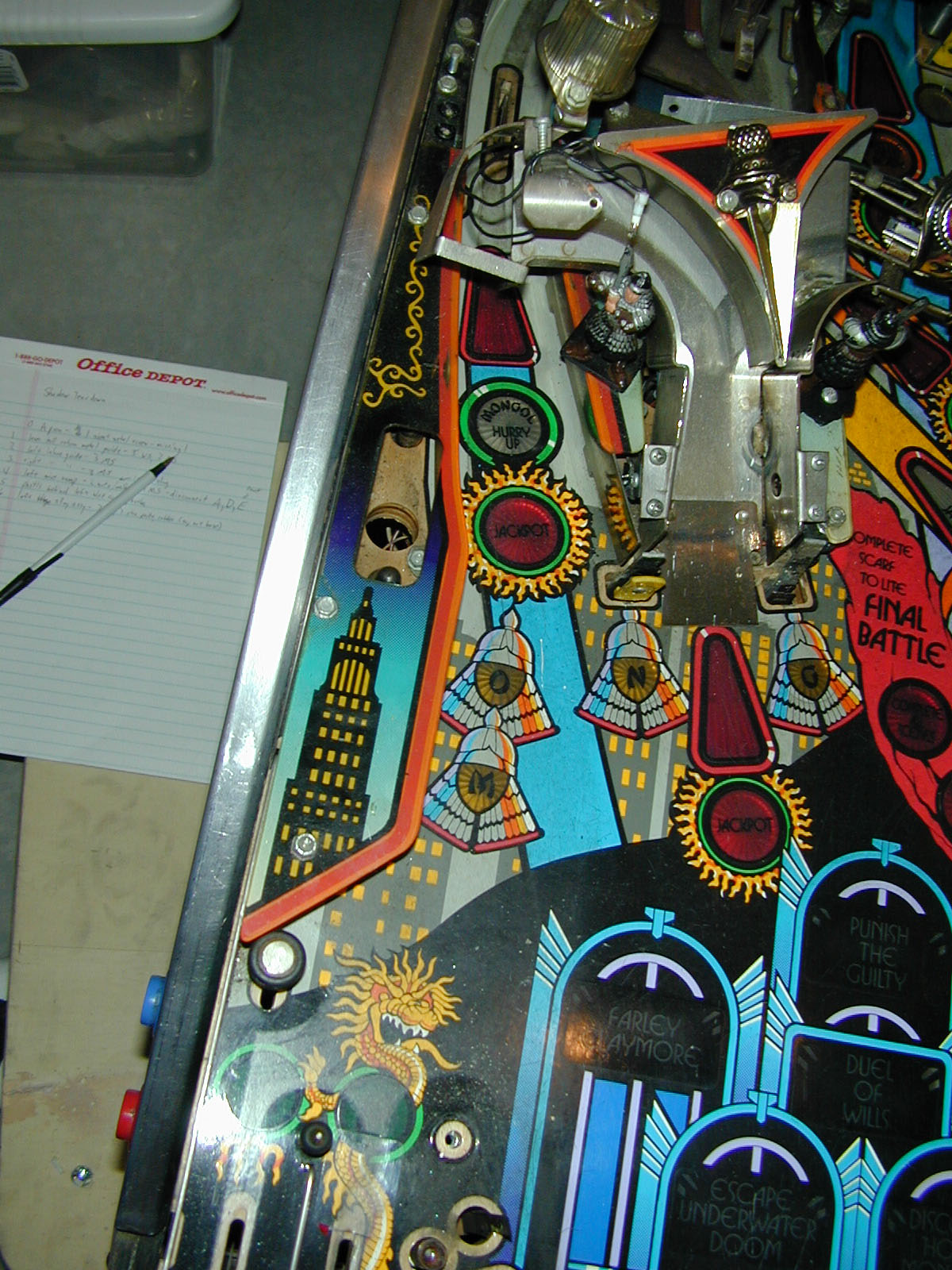

Left sling ass'y - 3 MS, 3 star posts, rubber
|
7

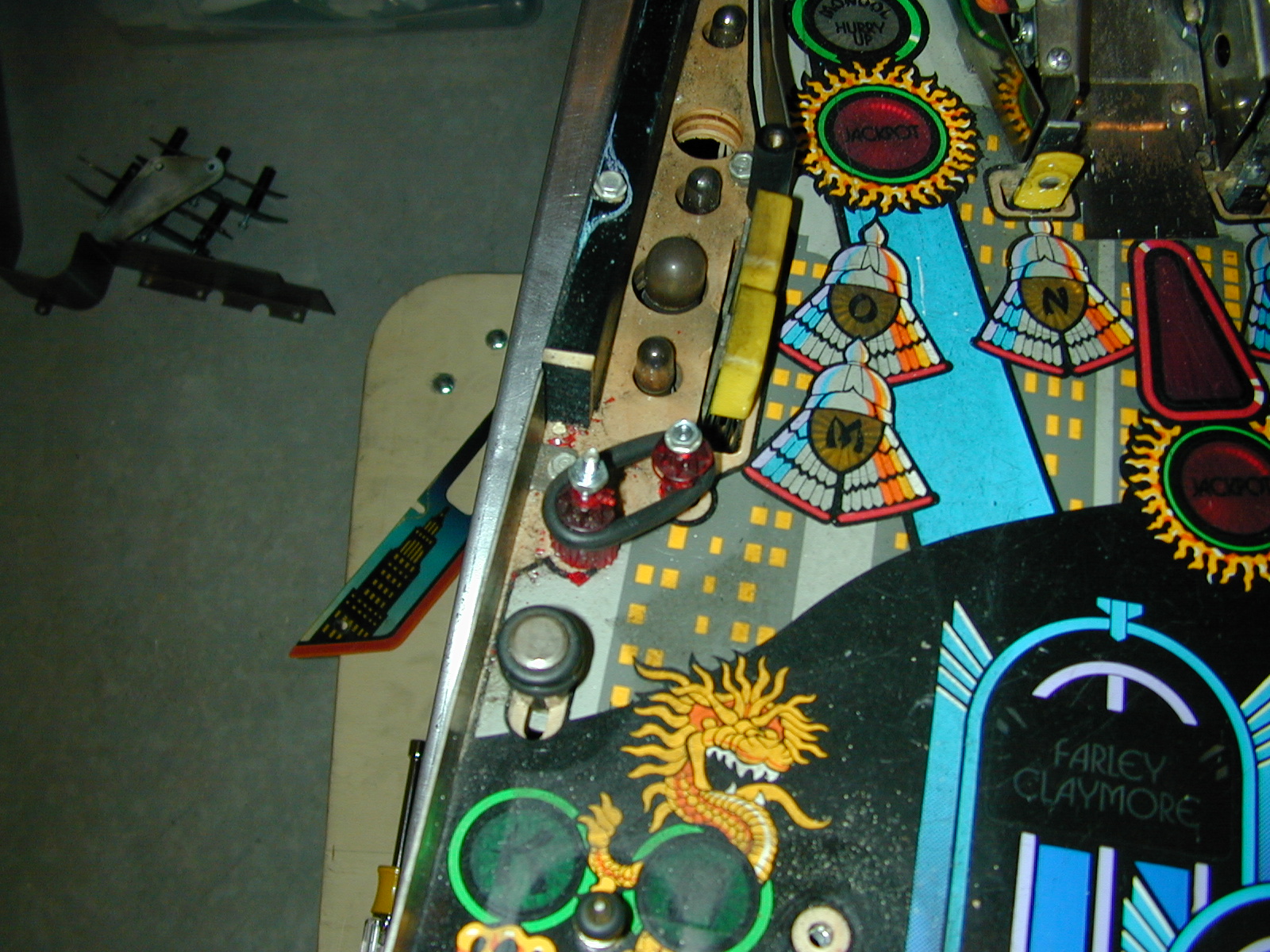

Left side plastic - 2 WS, 1 nut
|
8
Two start posts below "MO" targets - 2 MS, stud
lower, rubber ring
|
 |
 |
 |
 |
9

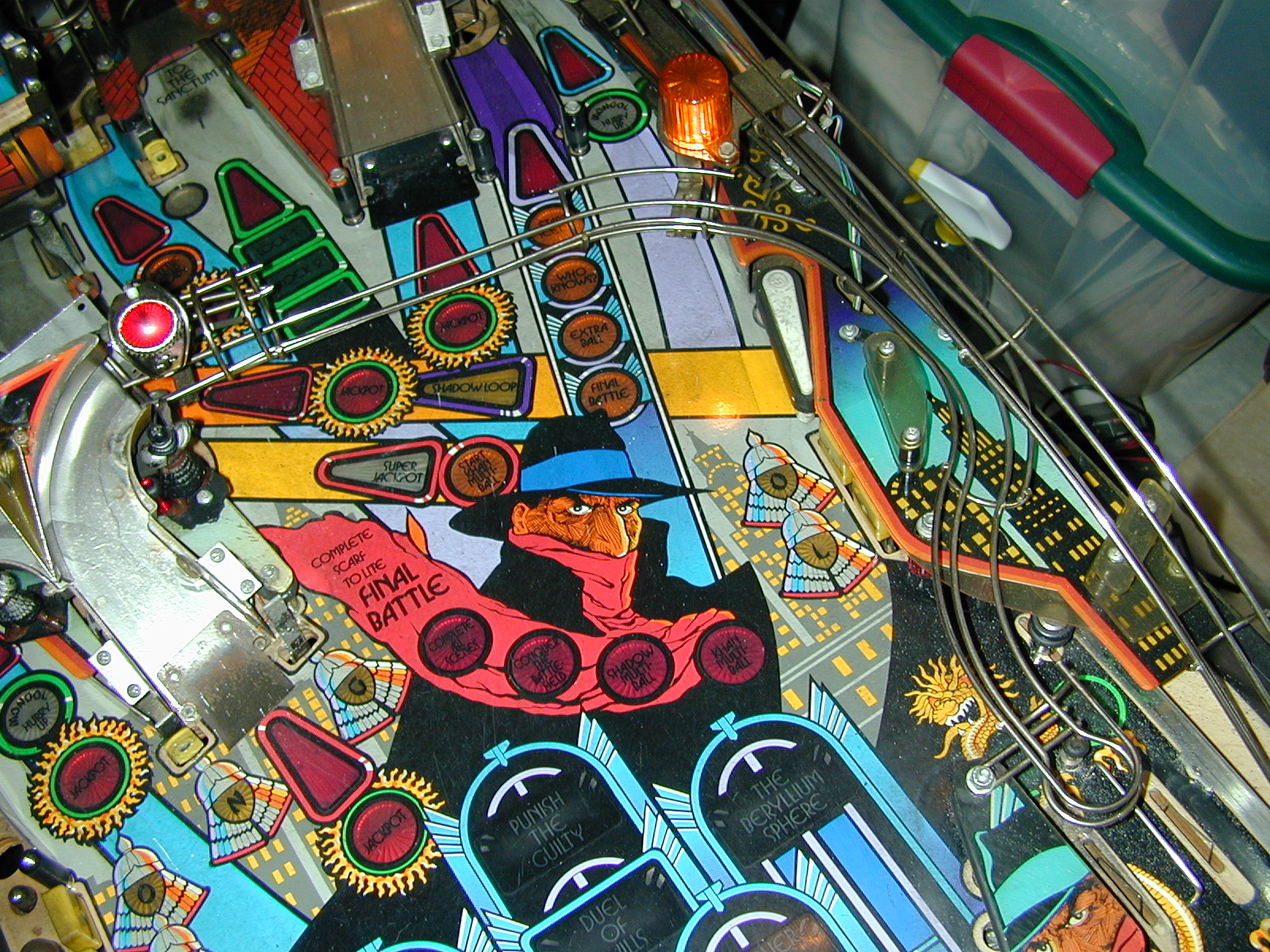

Right wire ramp - 2 CON, 3 nuts/washers
|
10

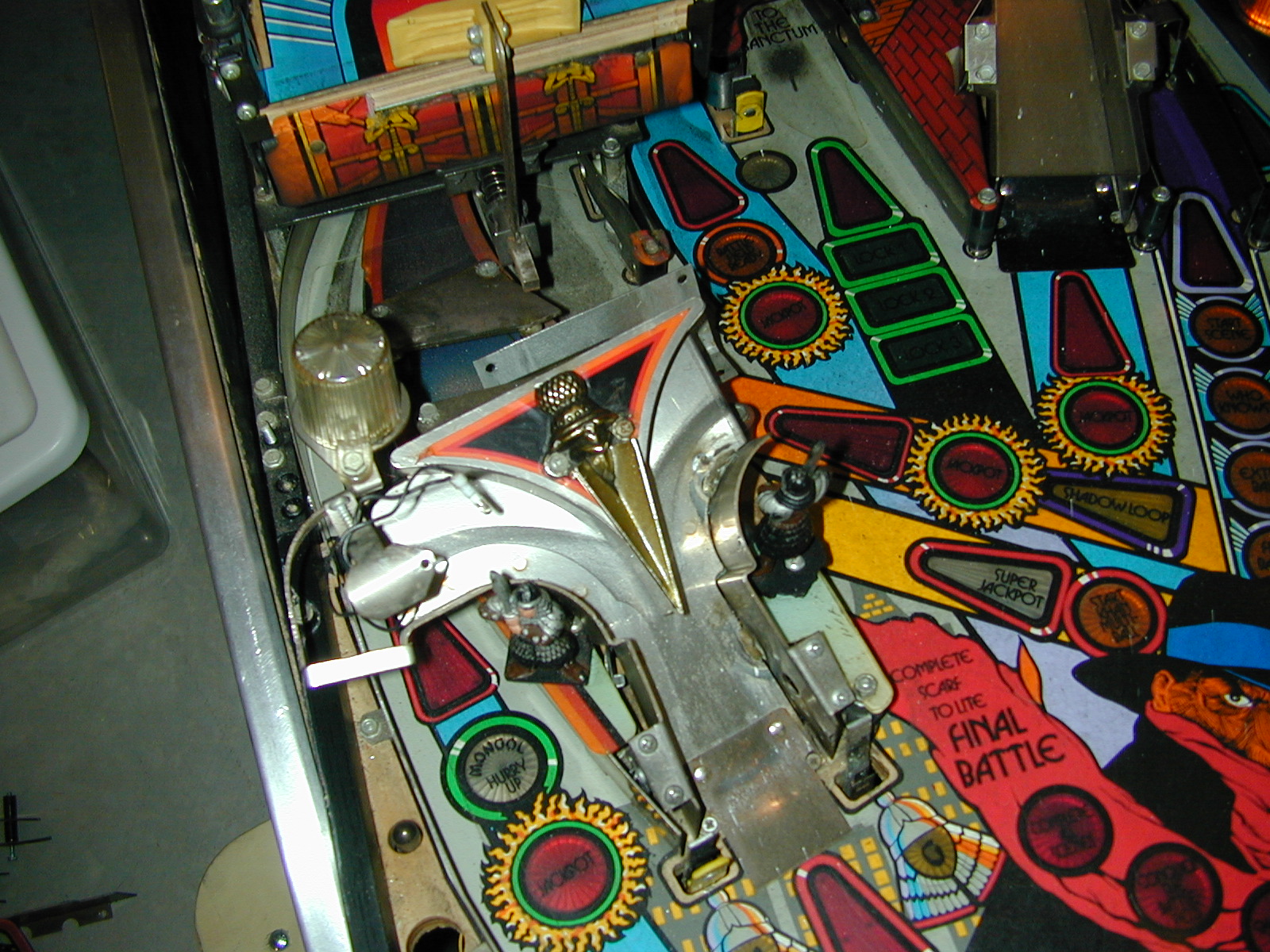

Left phurba - 1 set screw
|
11

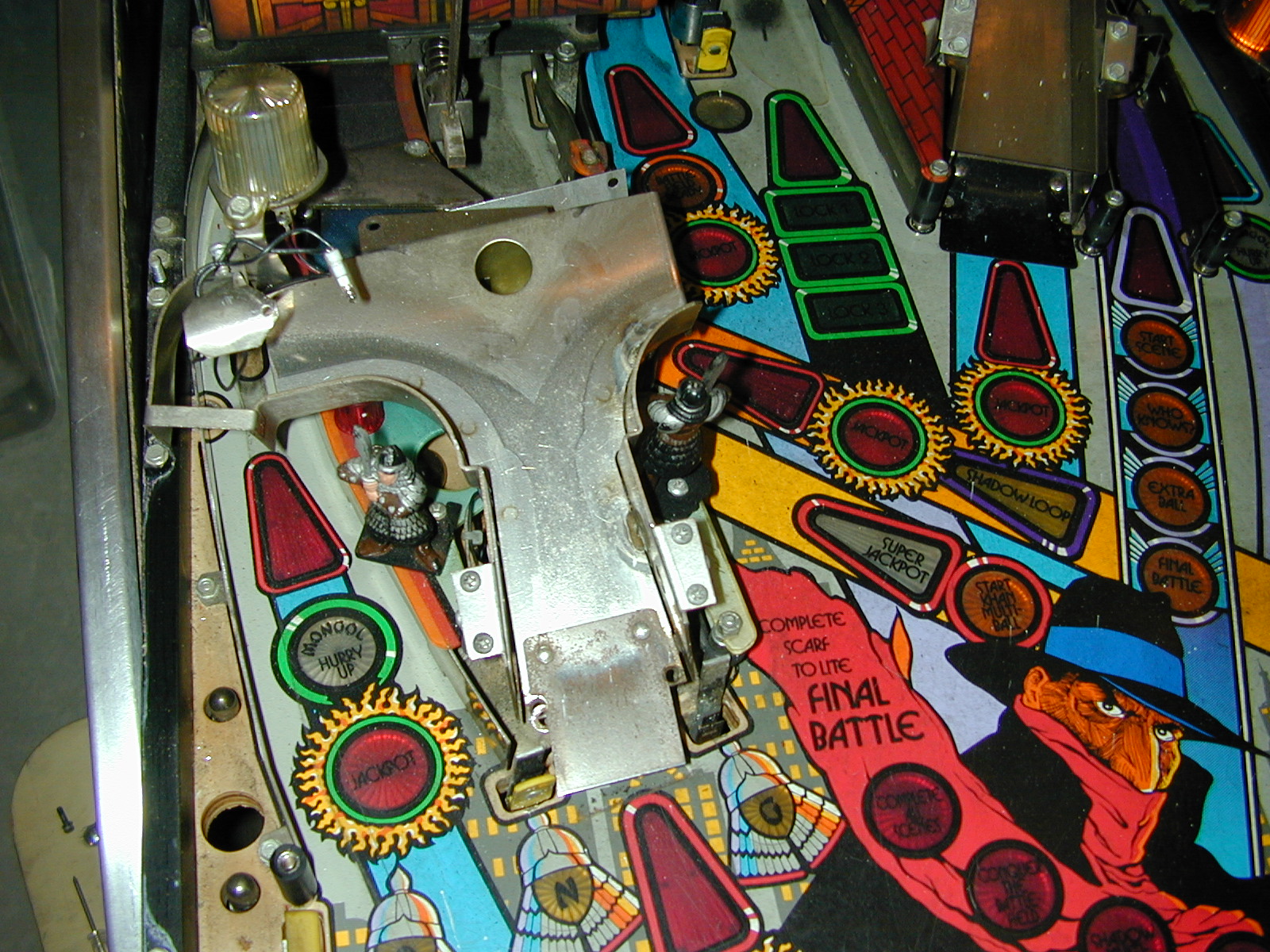

Left metal ramp - 2 WS, 1 MS, 3 CON
|
12

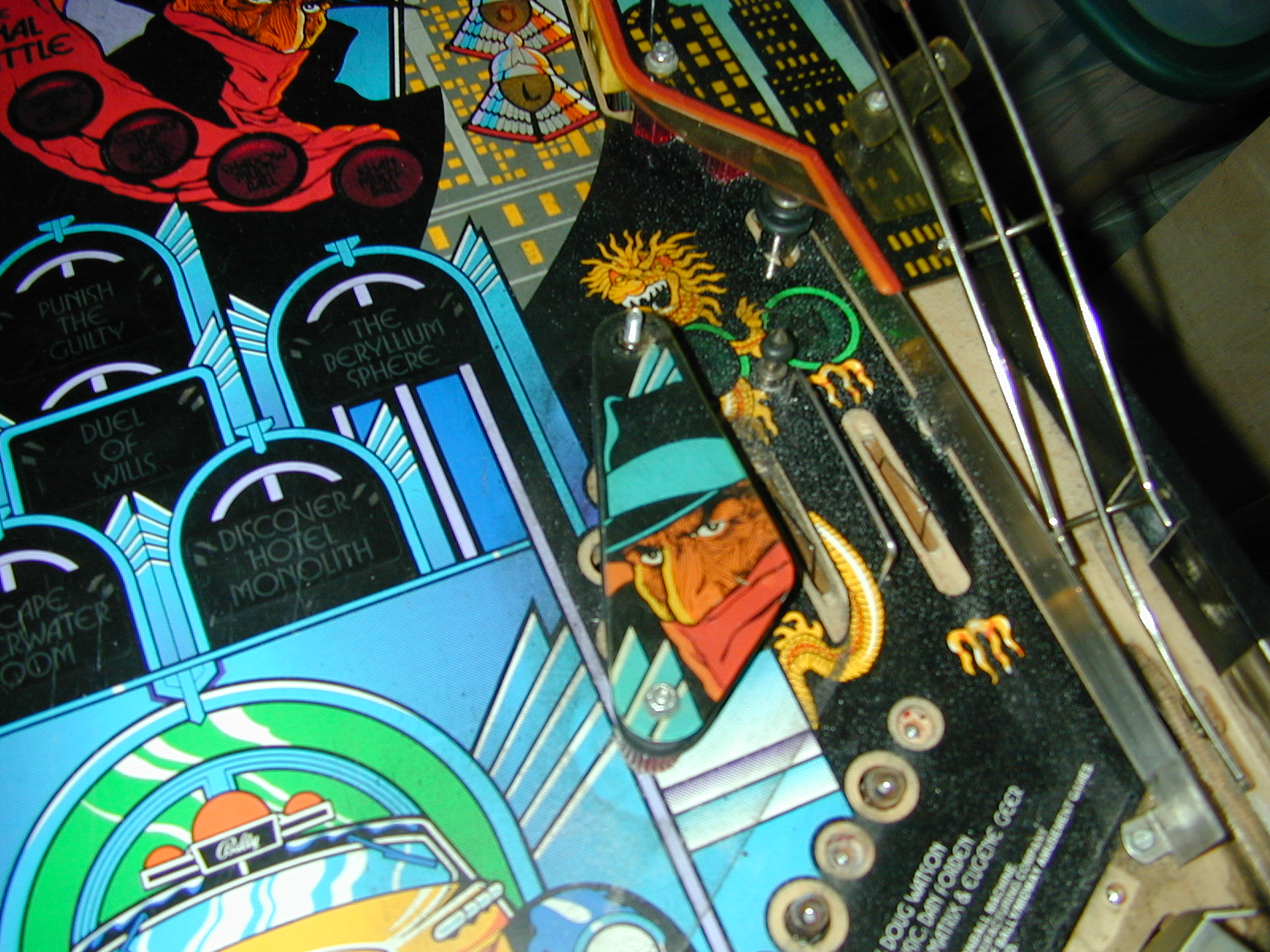

Right sling ass'y - 3 MS, stud upper, 3 start posts, rubber
|
