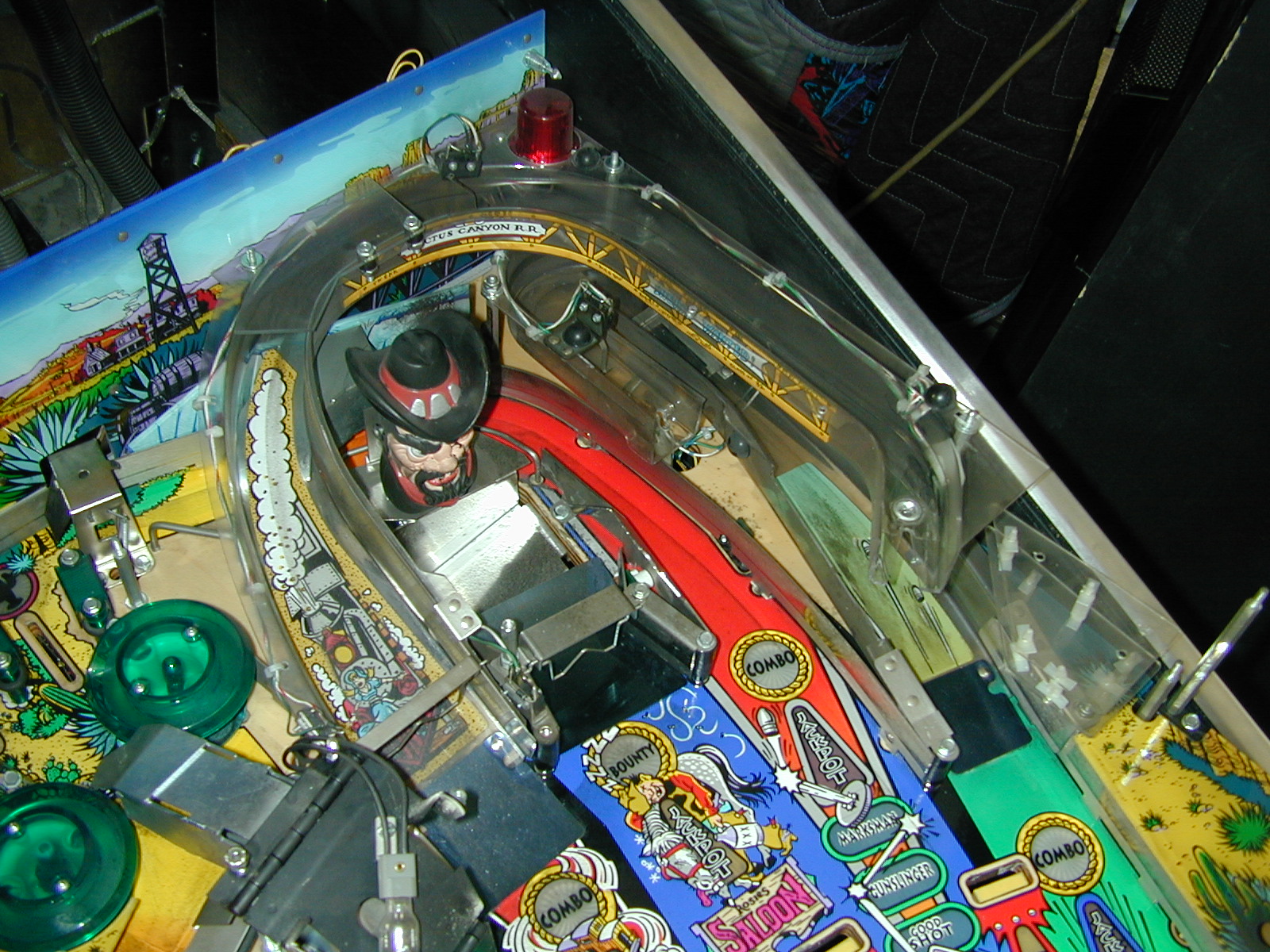

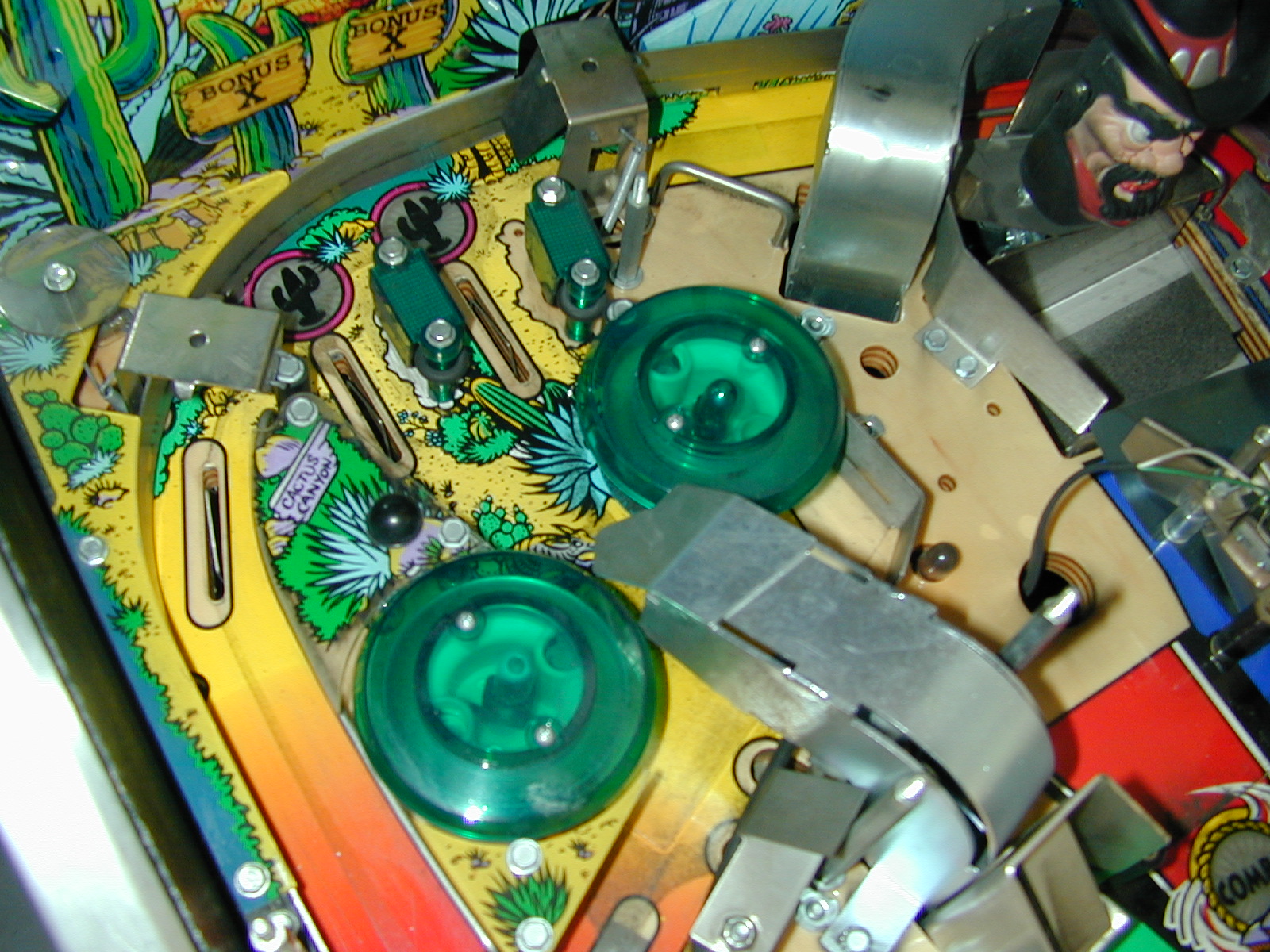

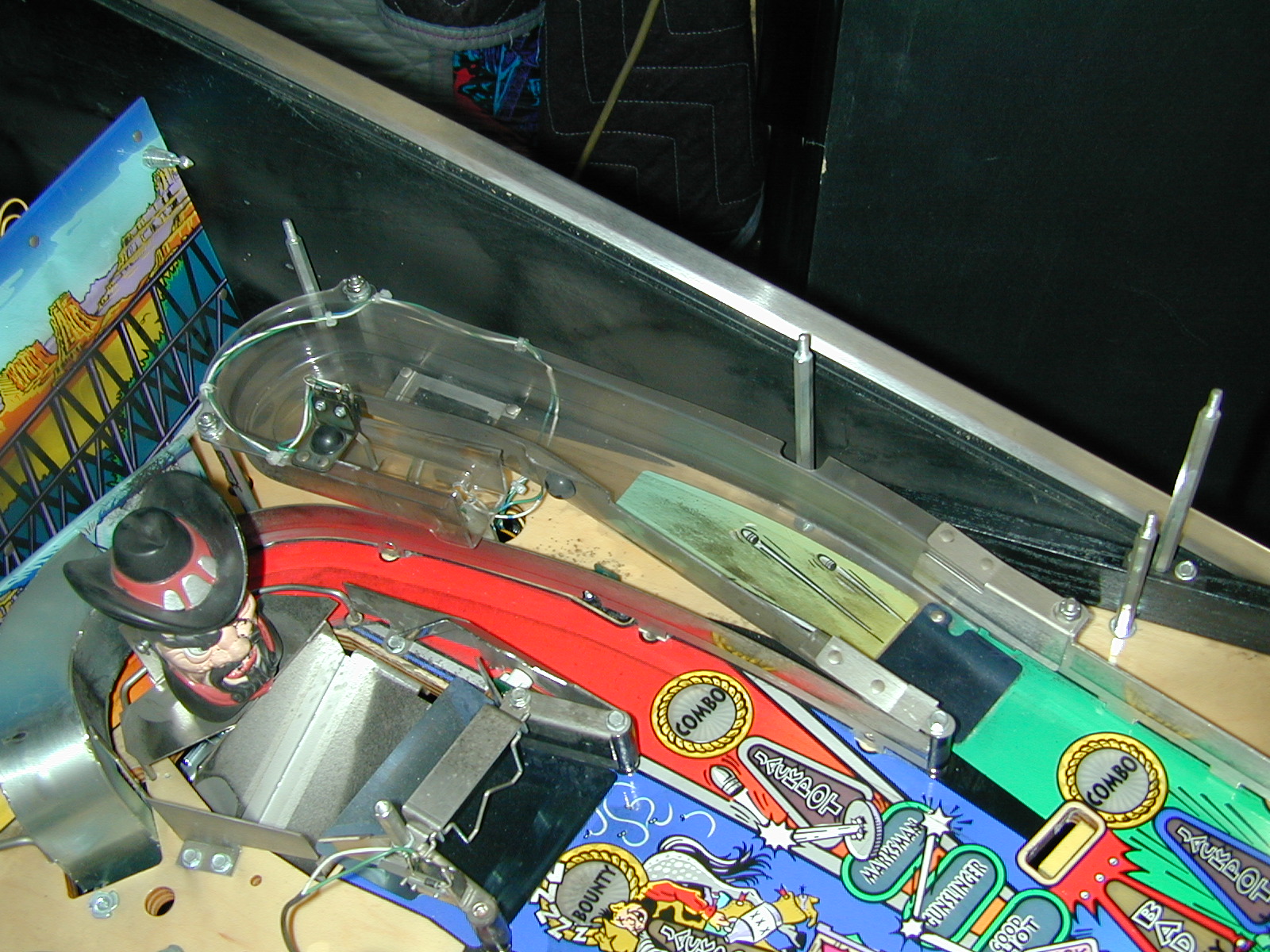

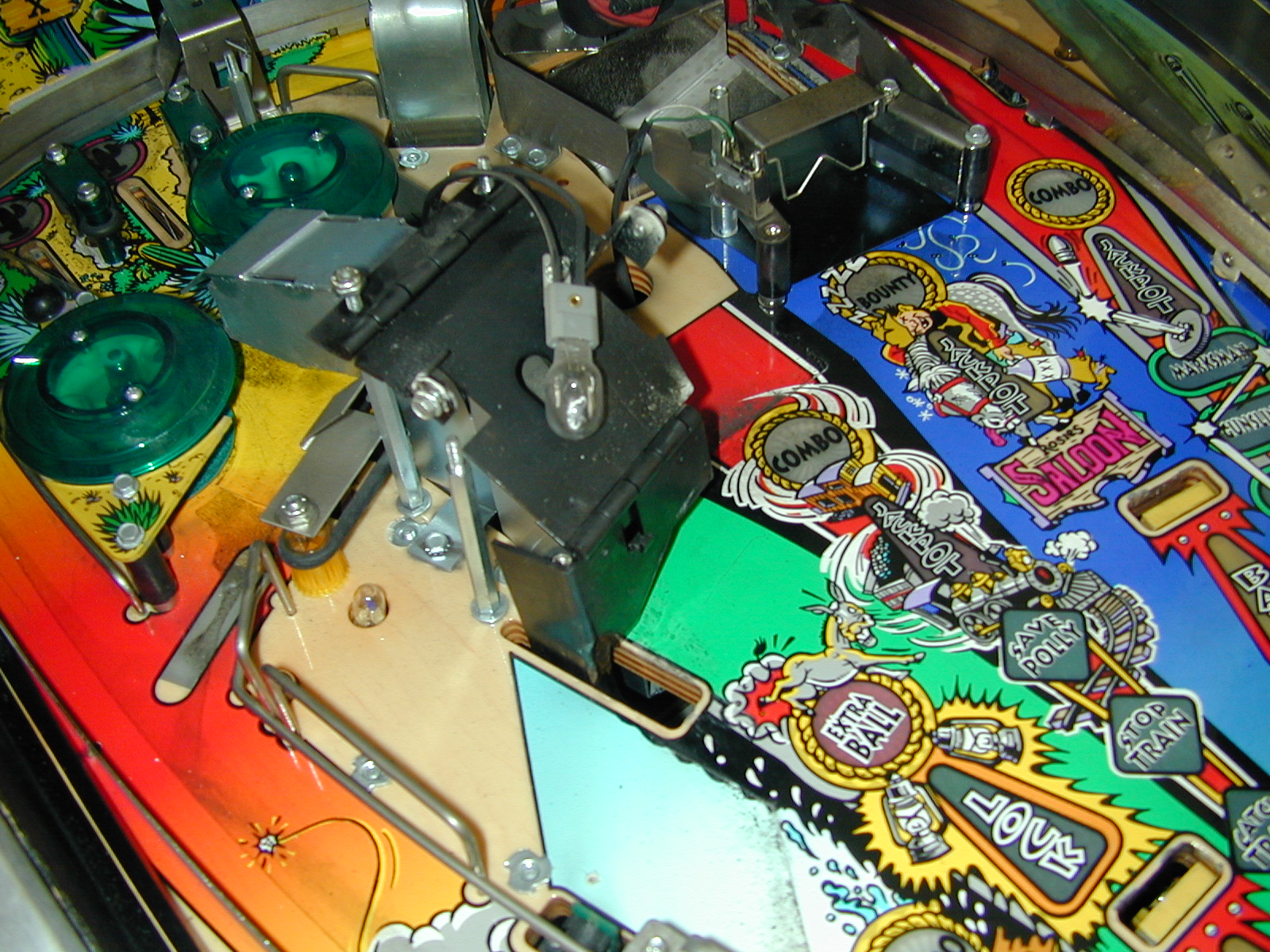

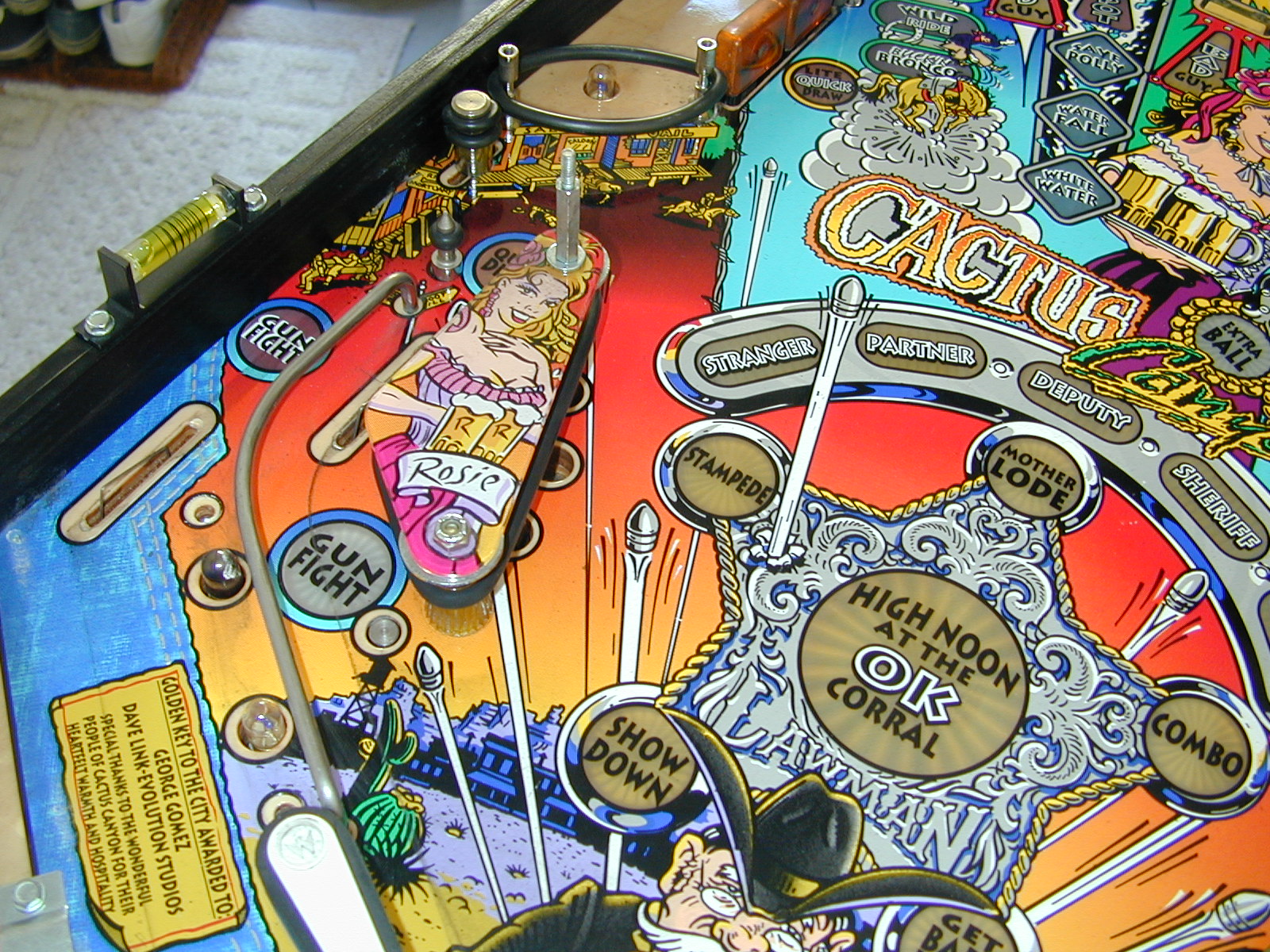

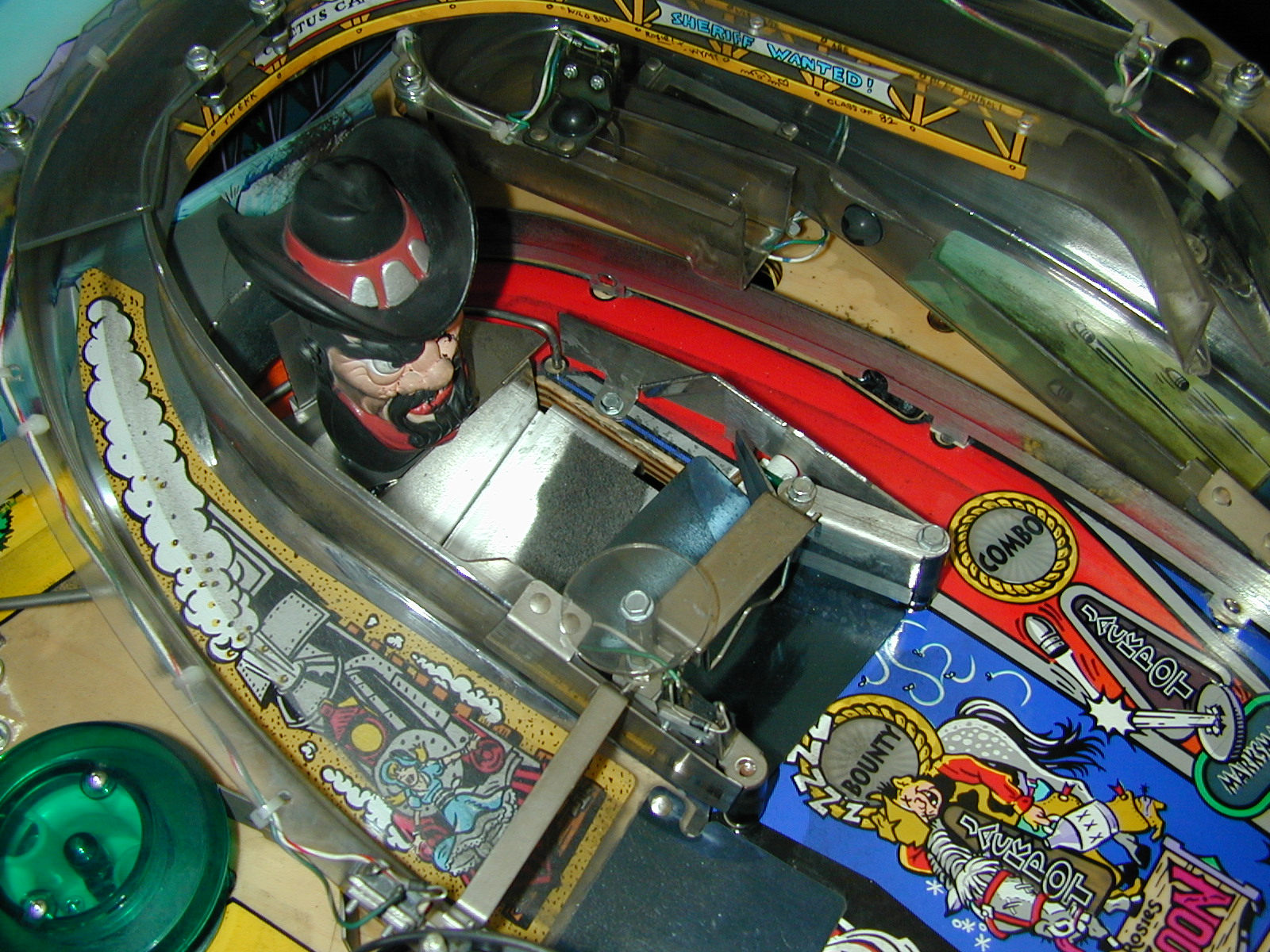

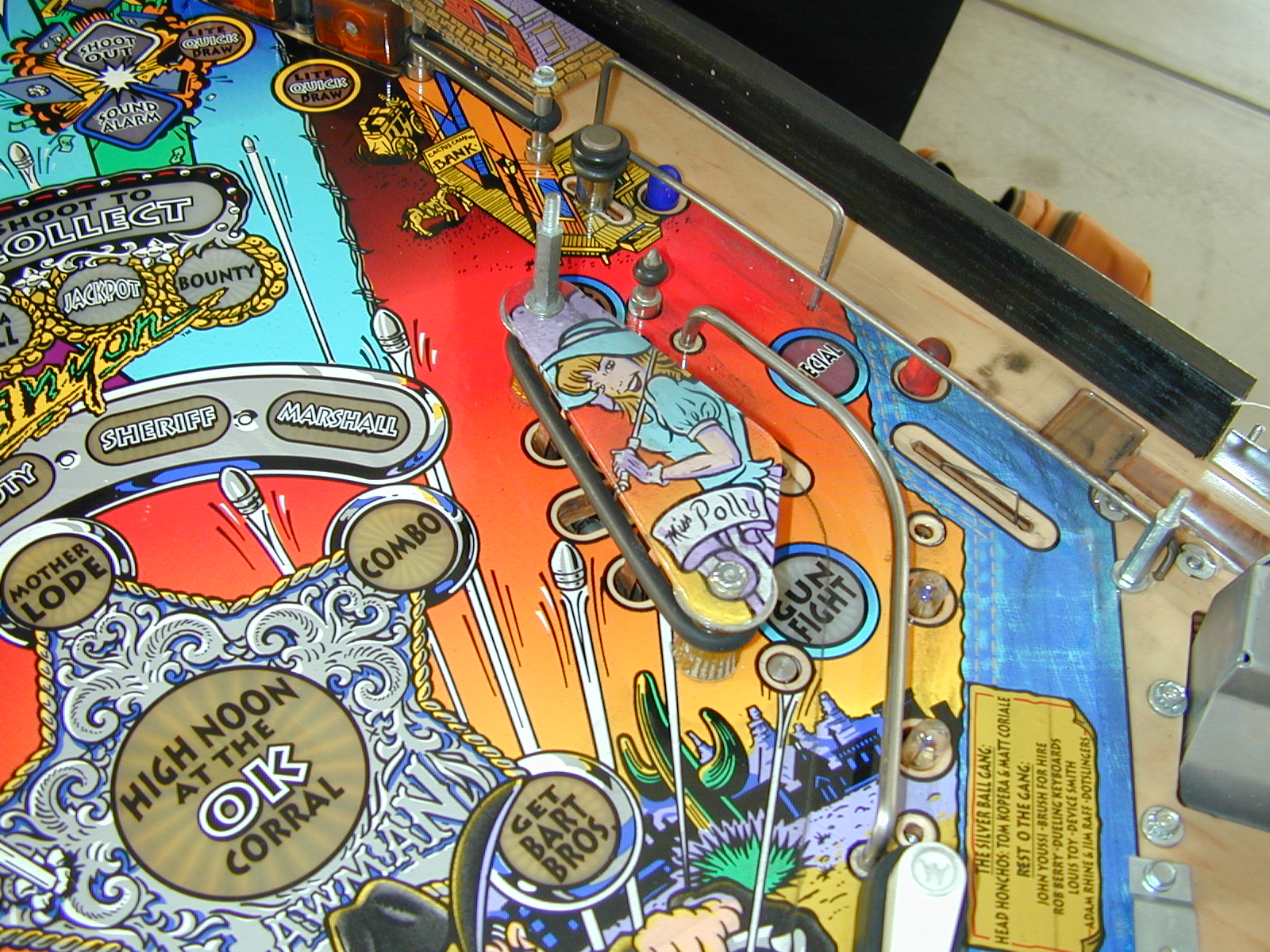

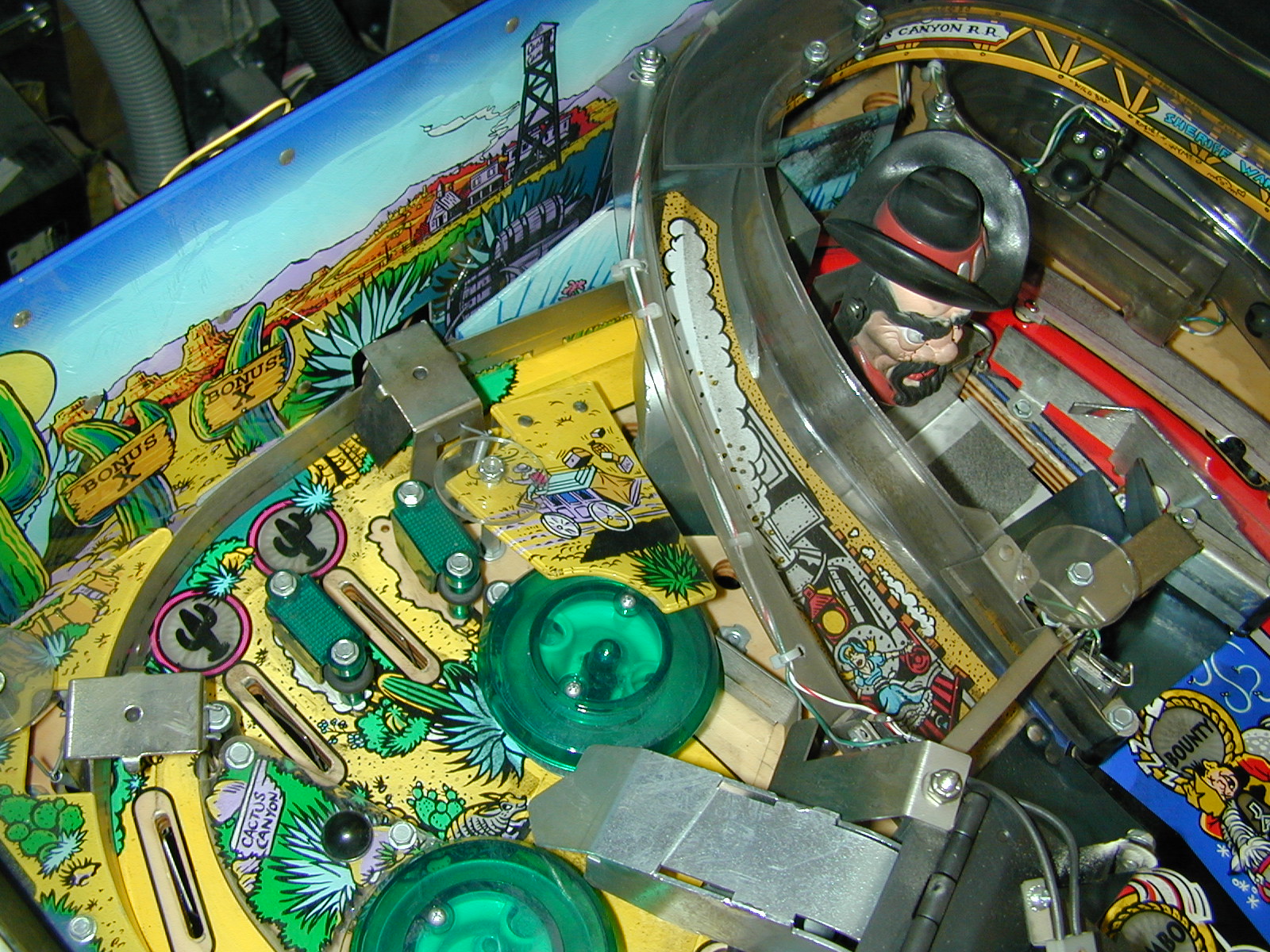

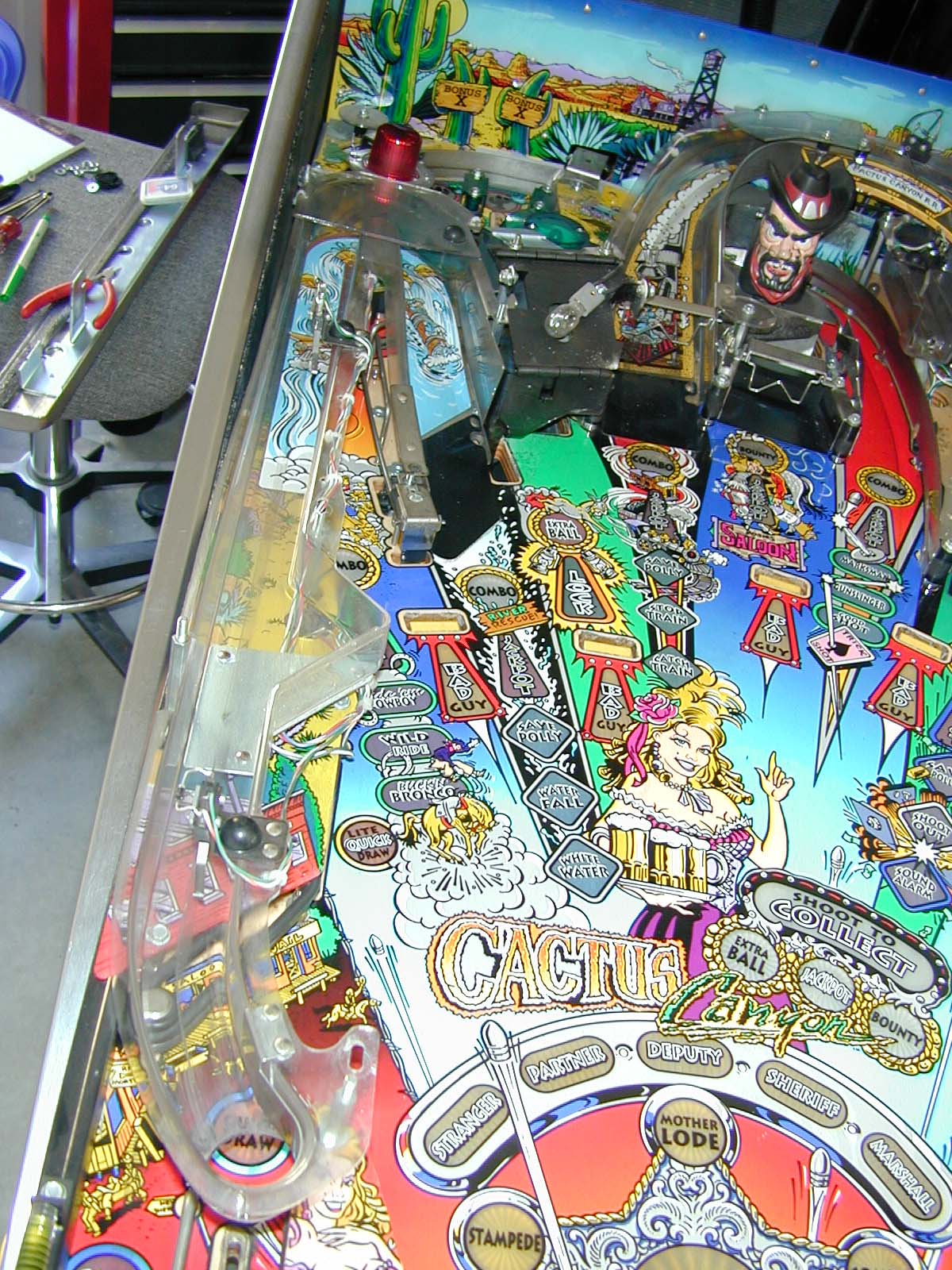

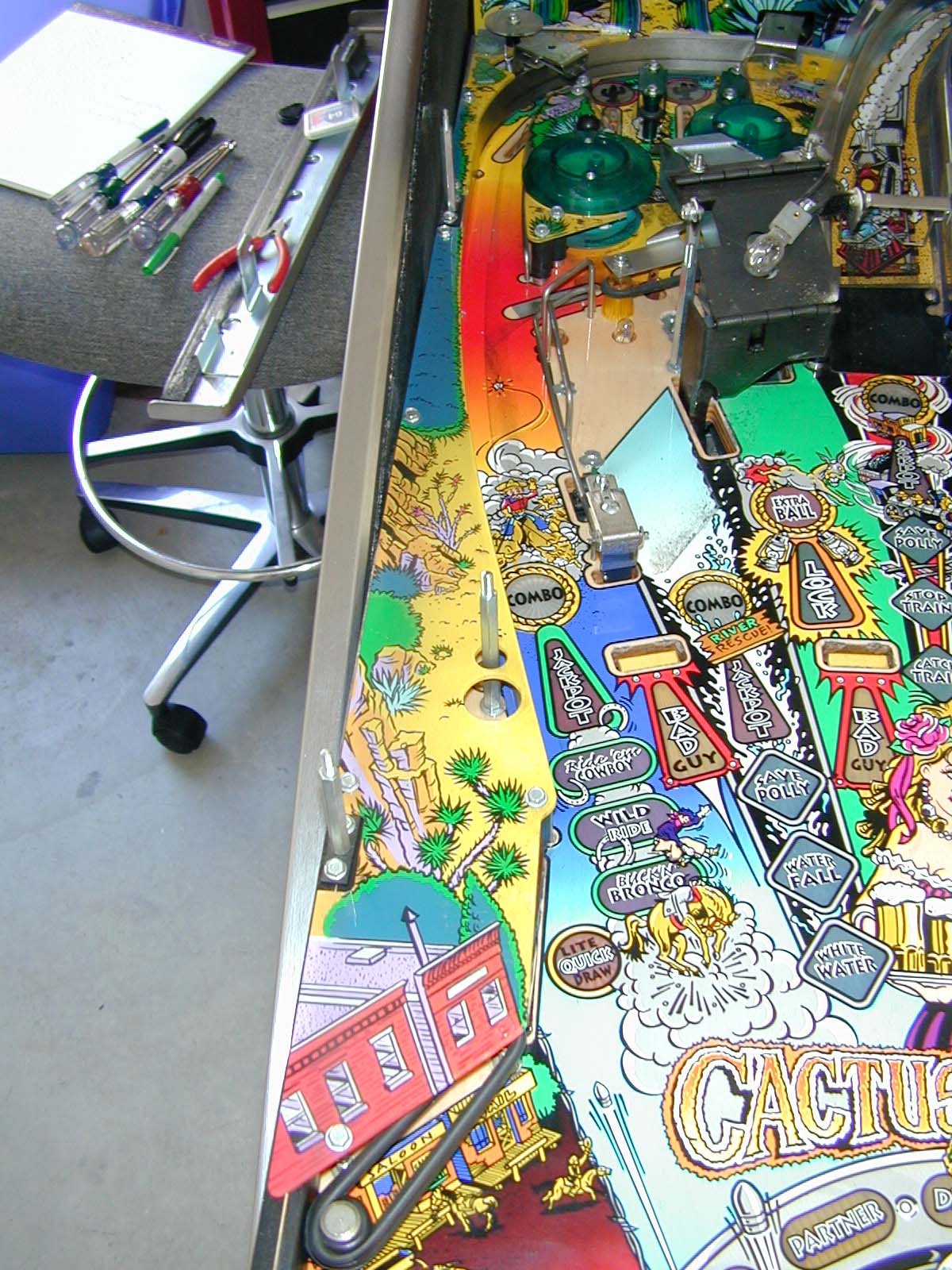

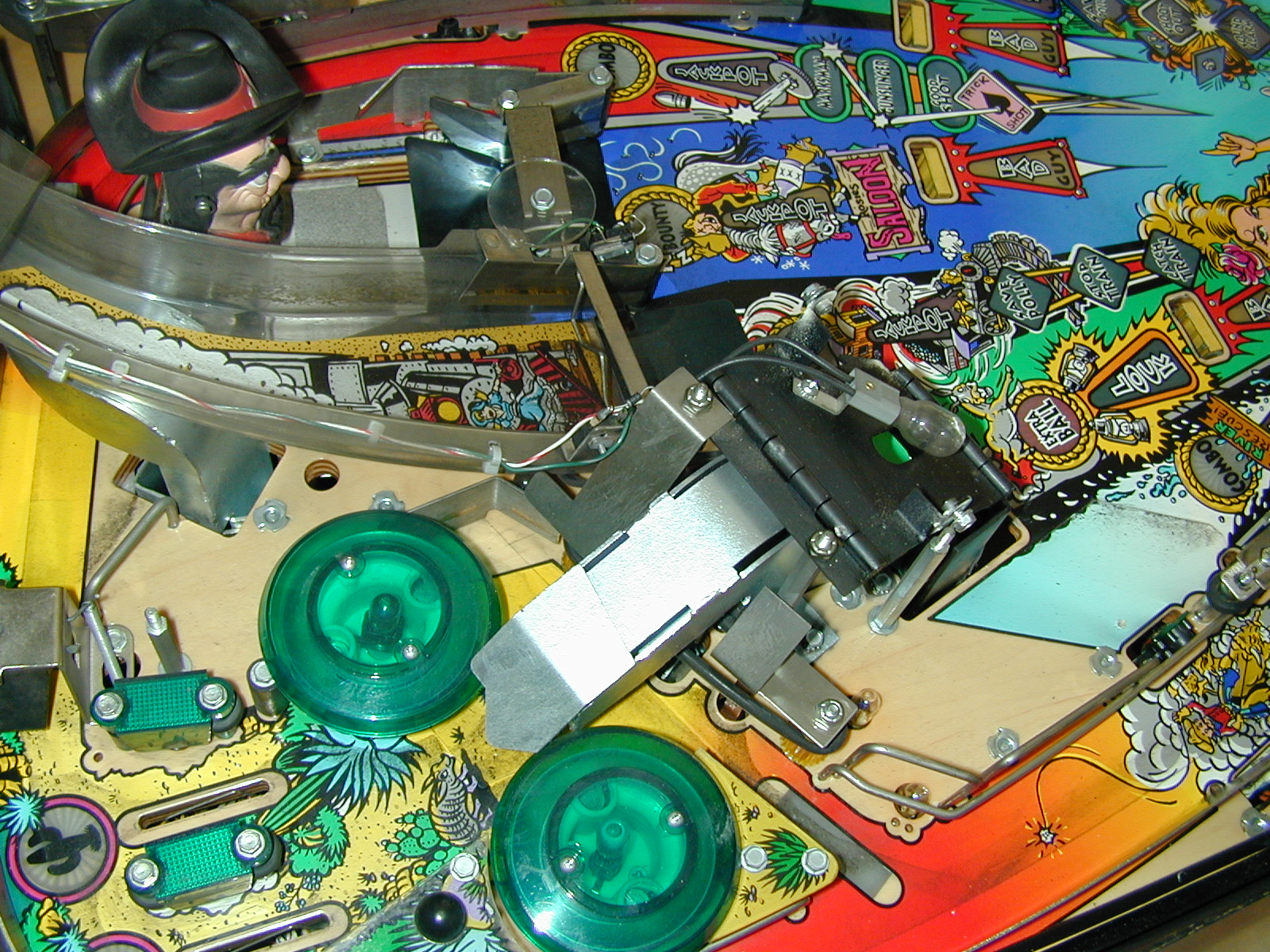

13 Left ramp - 5 nuts, 1 small wood screw (WS), metal protector to left of mine 14 Left plastic - 3 WS, 2 MS 15 Left sling ass'y with rubber 16 Right sling ass'y with rubber 17 Plastic to right of right pop bumper - 1 nut, clear washer on top 18 Metal guide behind right of mine - 1 nut 19 Clear round plastic to right of center ramp 20 Center ramp - 3 nuts with washers, 2 MS 21 Mine ass'y 22 Two pop bumper caps - 4 WS 23 Right plastic ass'y - 2 WS, 2 MS 24 Right ramp - 3 nuts, 1 MS
