Playfield Teardown

Pinball Home

Restorations

Coin Door

Cabinet

Backbox

Playfield

Playfield Teardown Pictures

Painting

Replacing Side Rails

Tips

The Finished Product



The Second Finished Product


Click to enlarge Click to enlarge Click to enlarge Click to enlarge
1

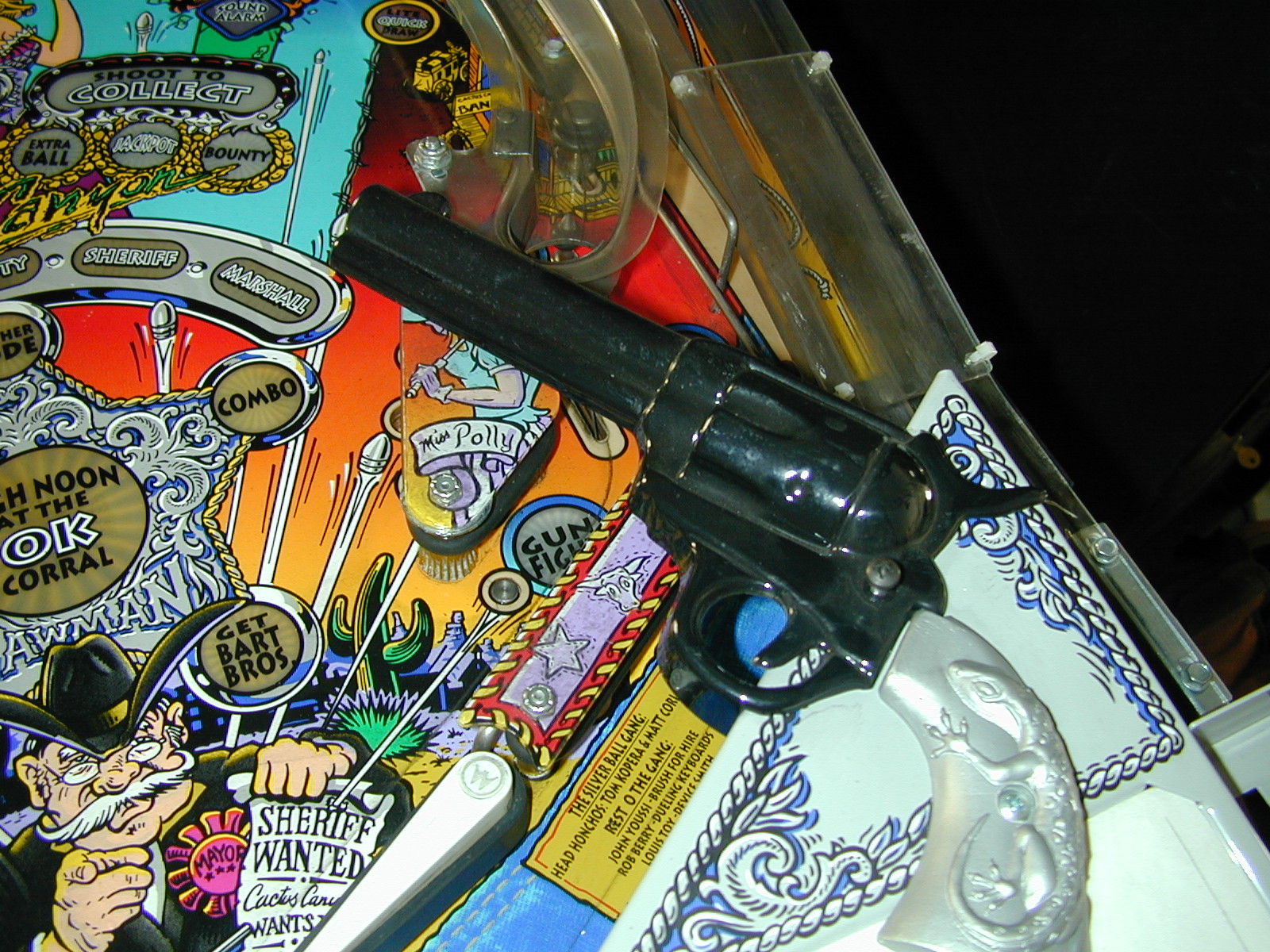

Gun handles on apron - 2 machine screws (MS)
2
Gun barrels on apron - 2 MS
3

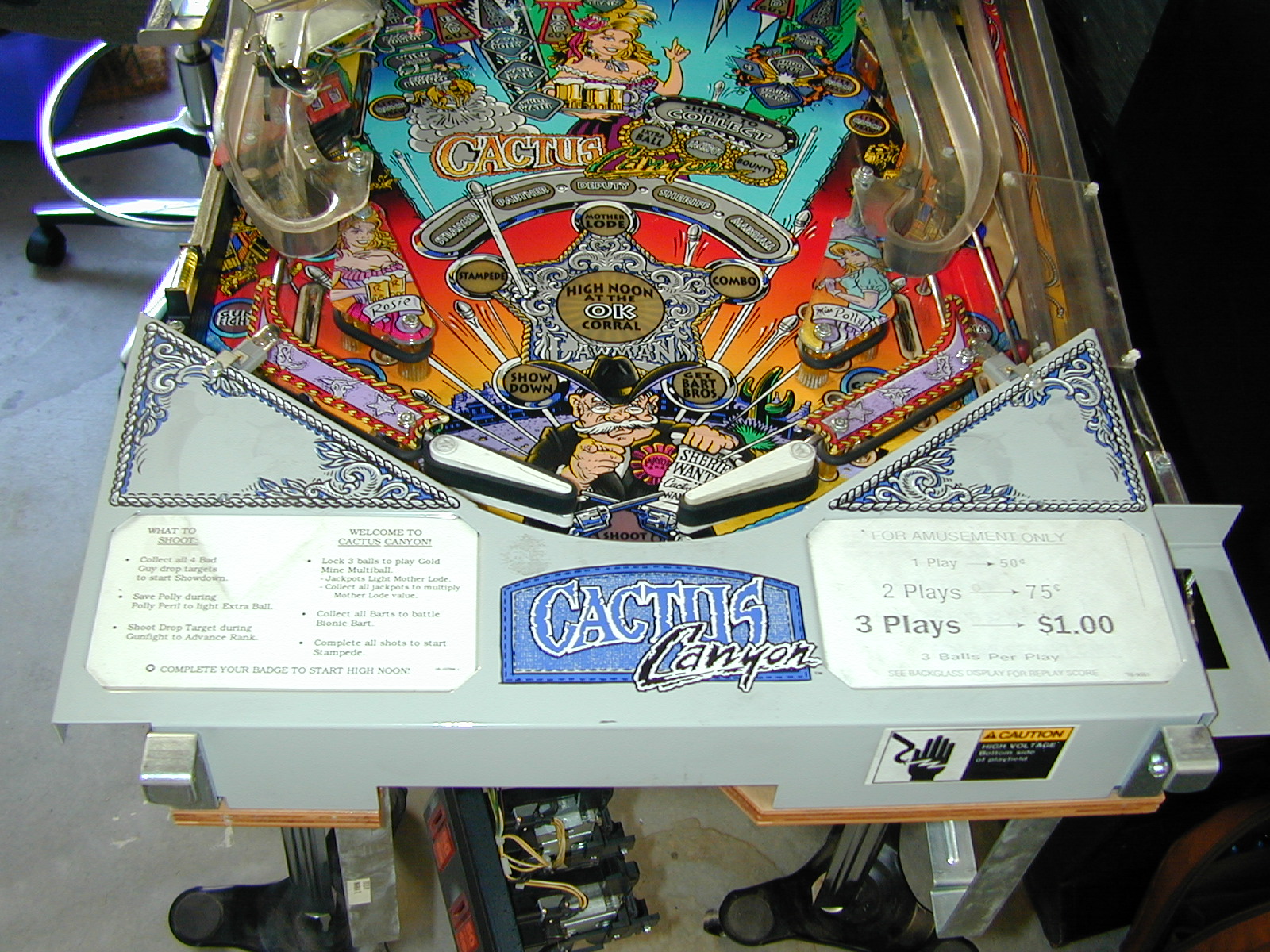

Apron - 2 MS, disconnect 2 connectors (CN)
4

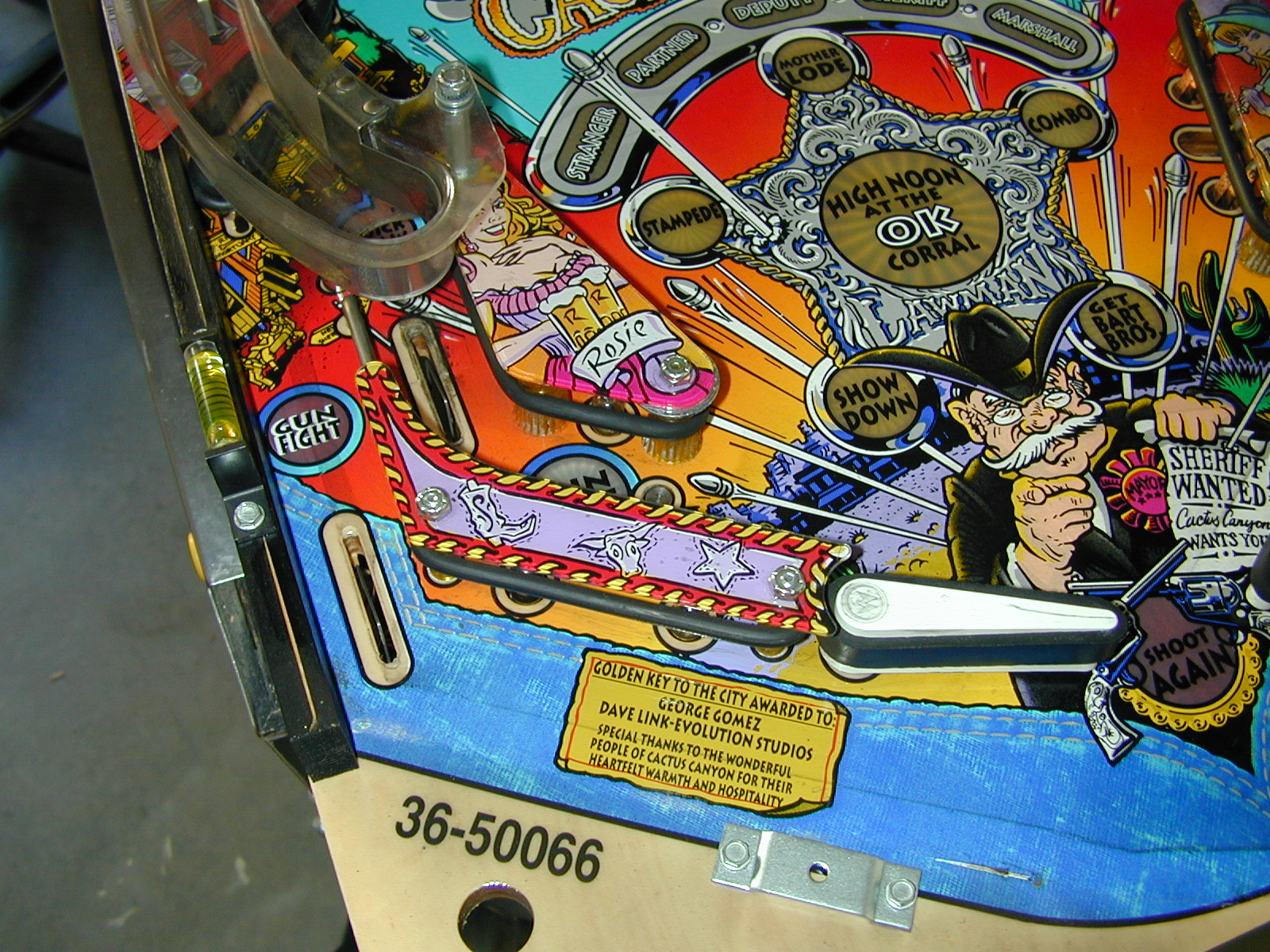

Left inlane plastic - 2 nuts
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
5

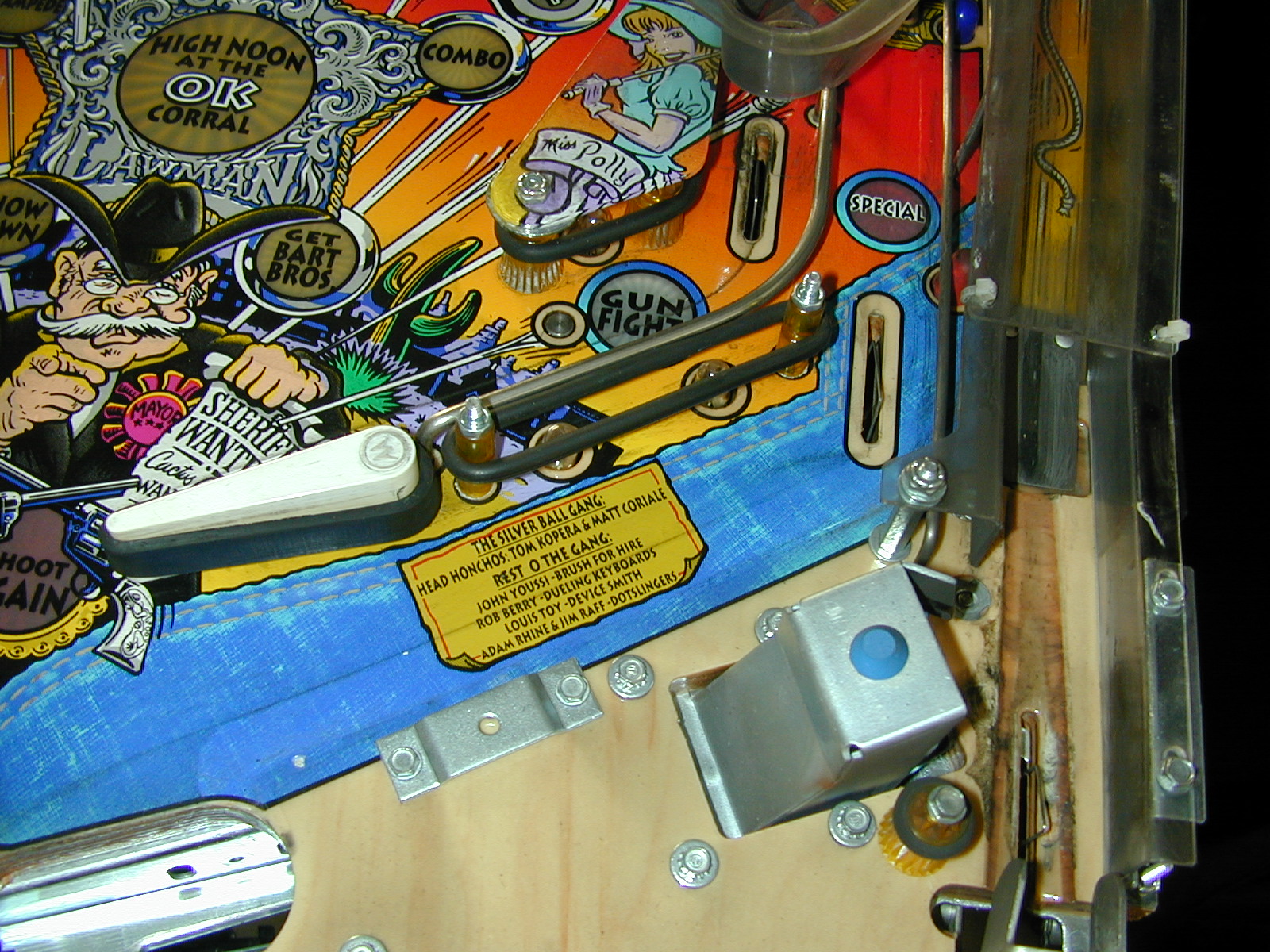

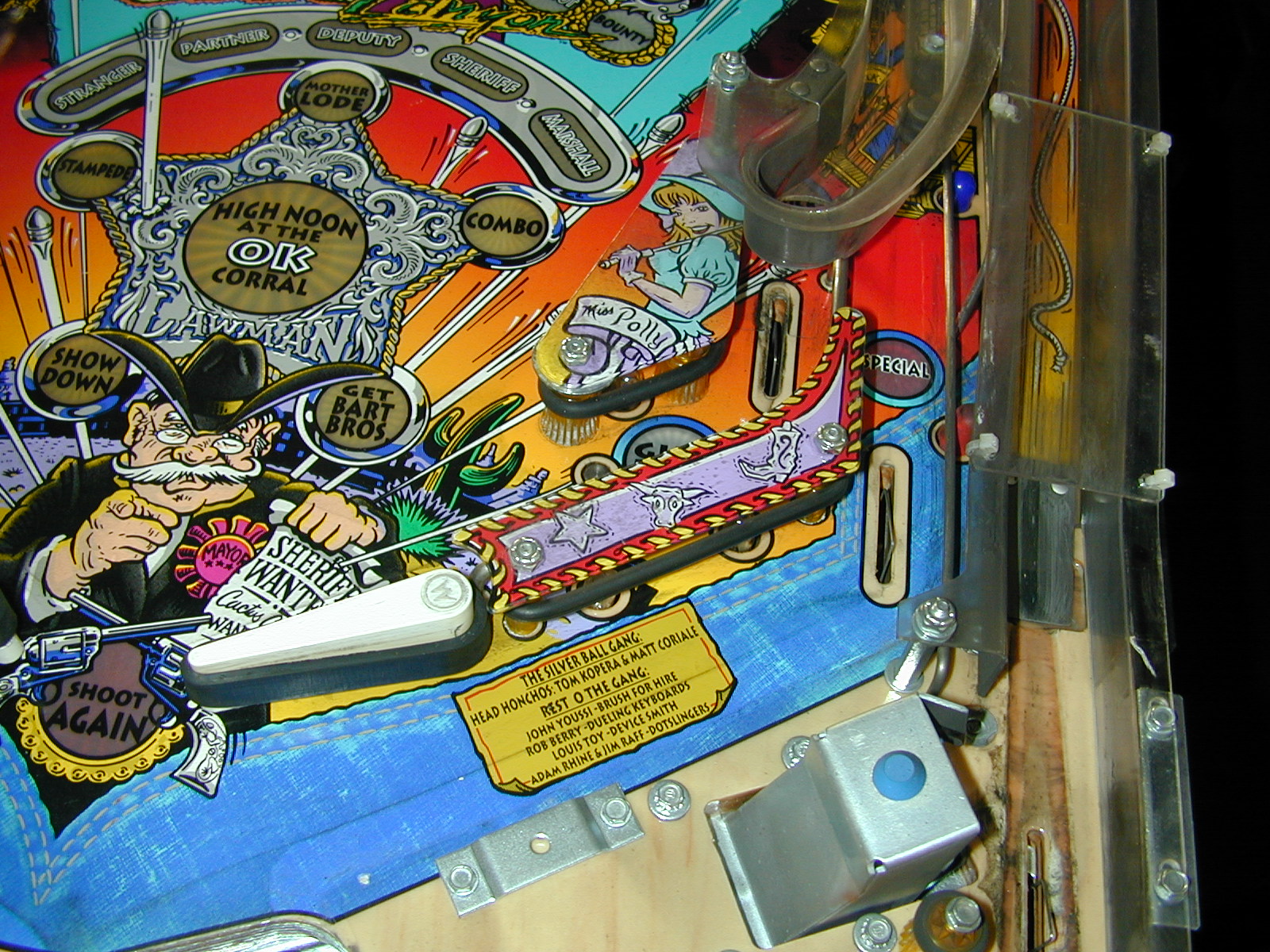

Right inlane plastic - 2 nuts
6

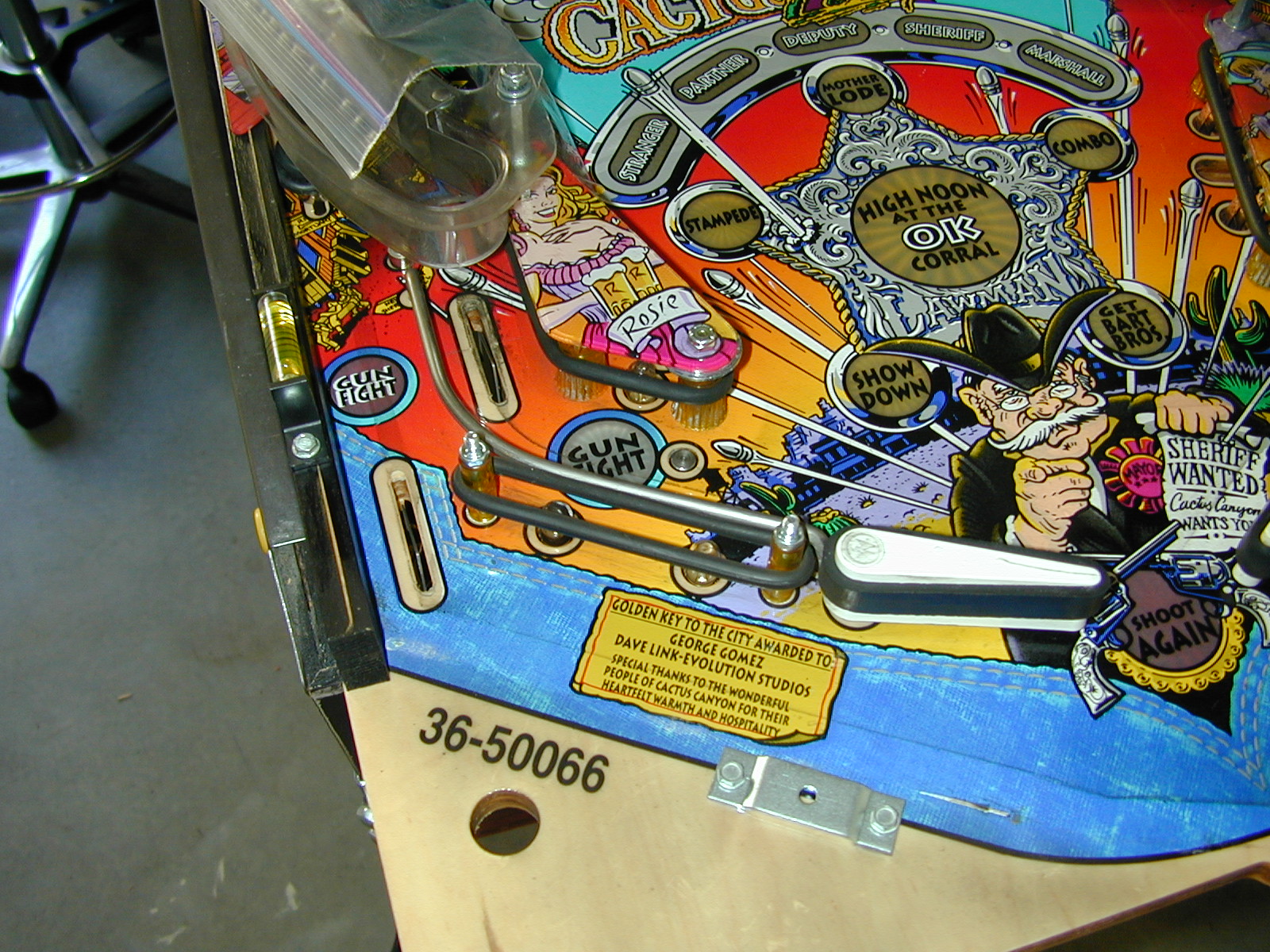

Left inlane rubber with 2 posts - 2 studs
7
Right inlane rubber with 2 posts - 2 studs
8

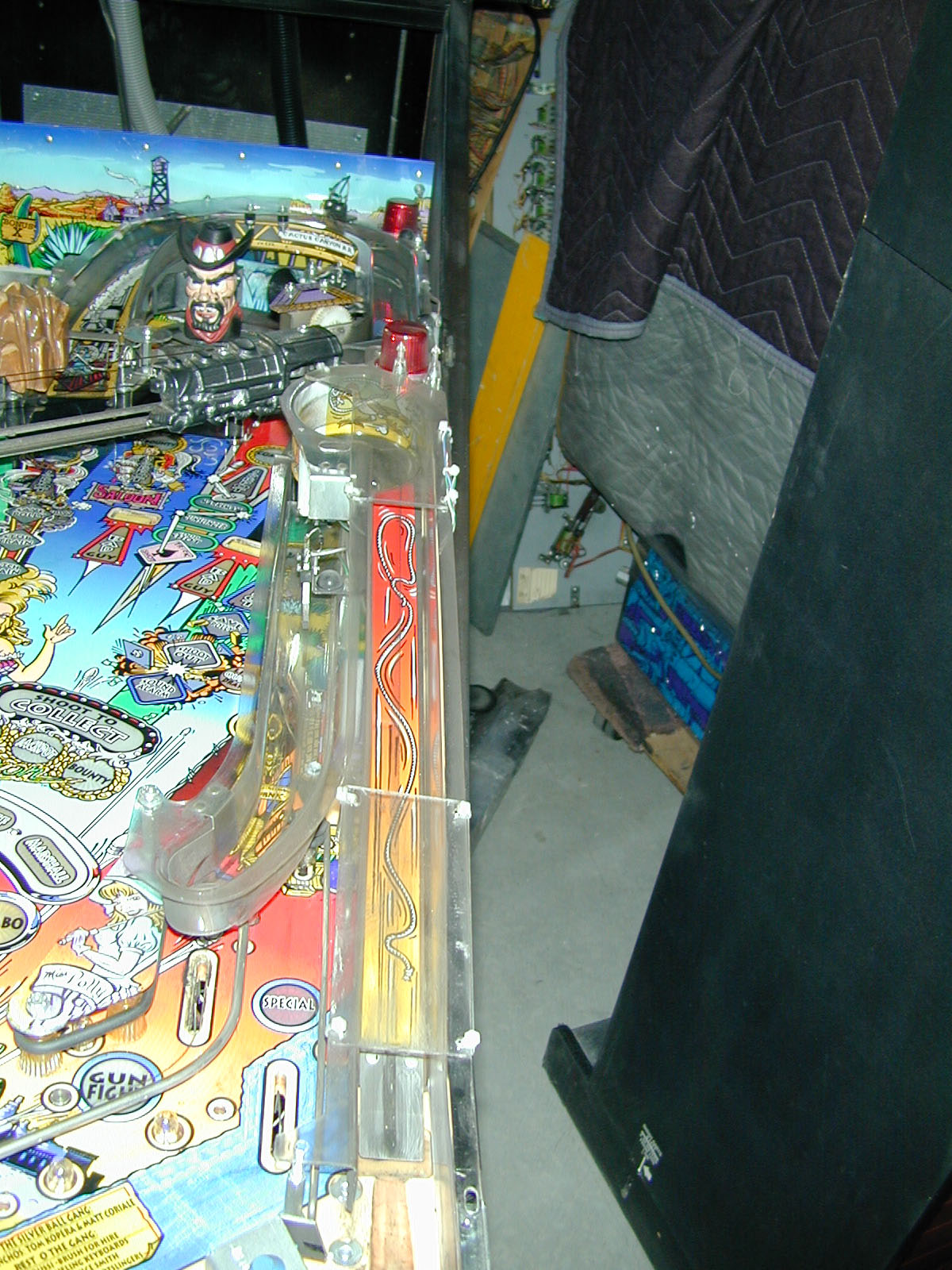

Skill shot ramp - 2 nuts, 2 MS, 2 CN
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
9

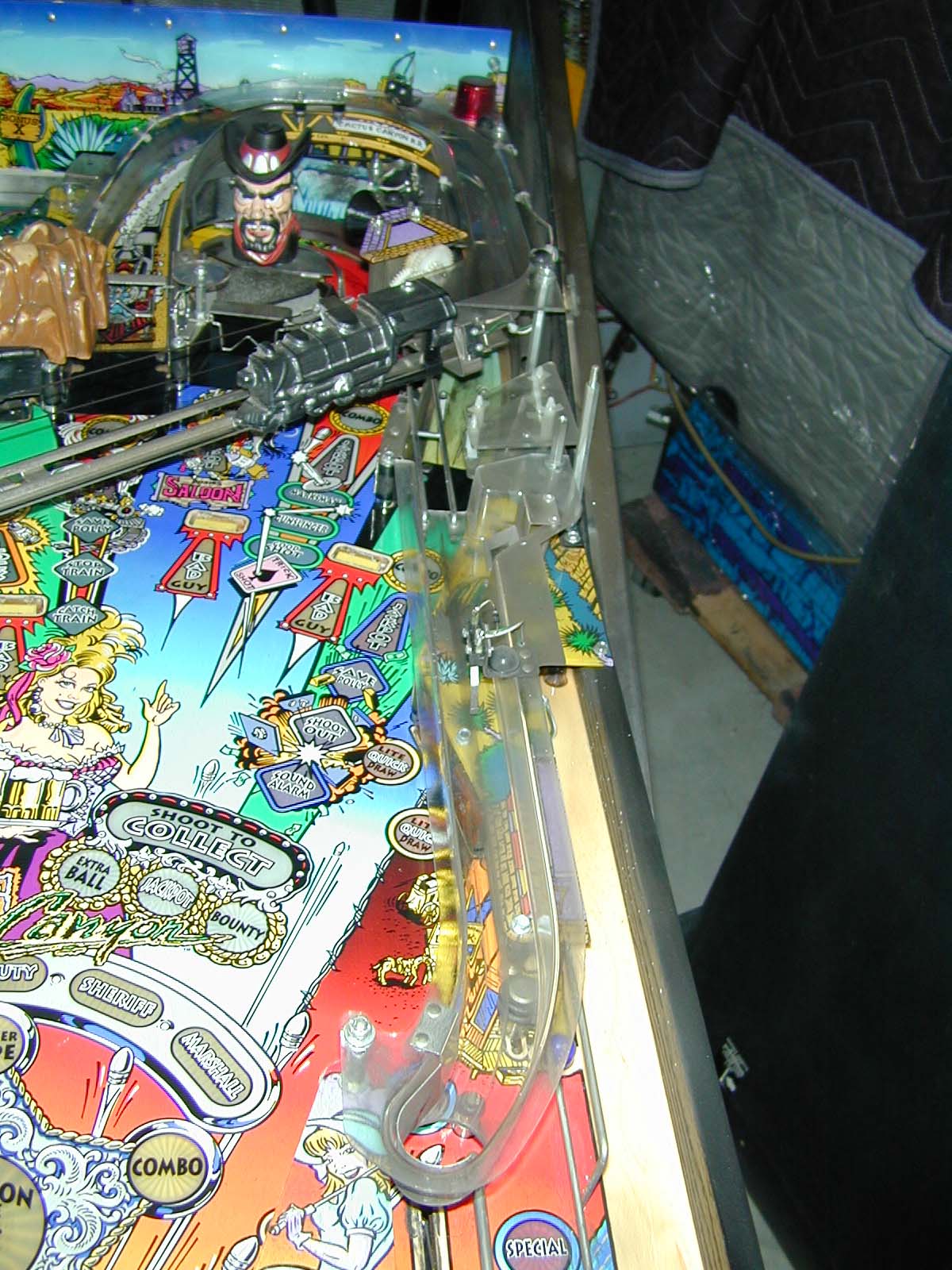

J ramp - 1 nut, 1 stud, wire ramp attached
10
Mountain - 2 MS
11

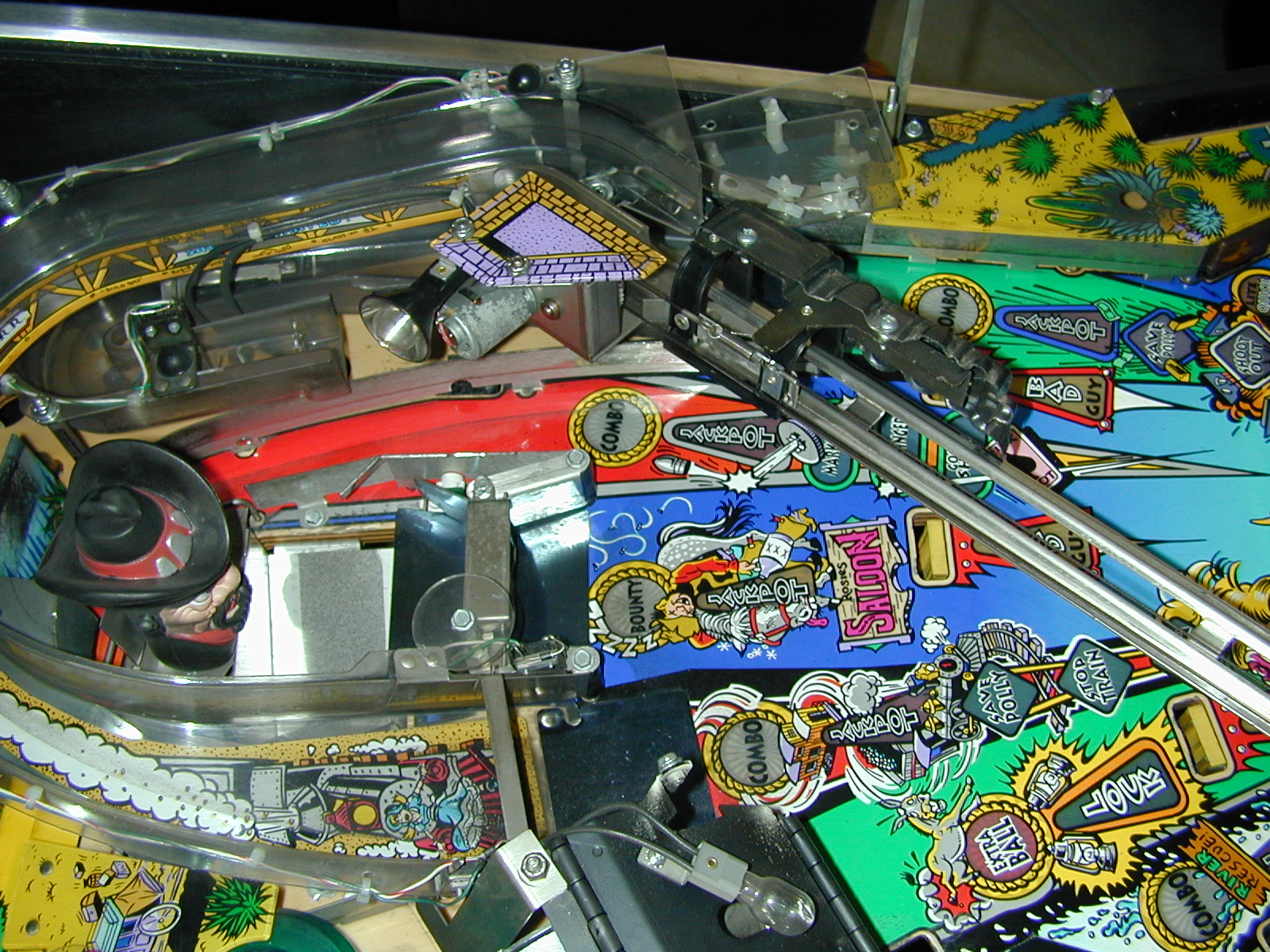

Train ass'y - 1 nut, 1 MS, 5 CN
12

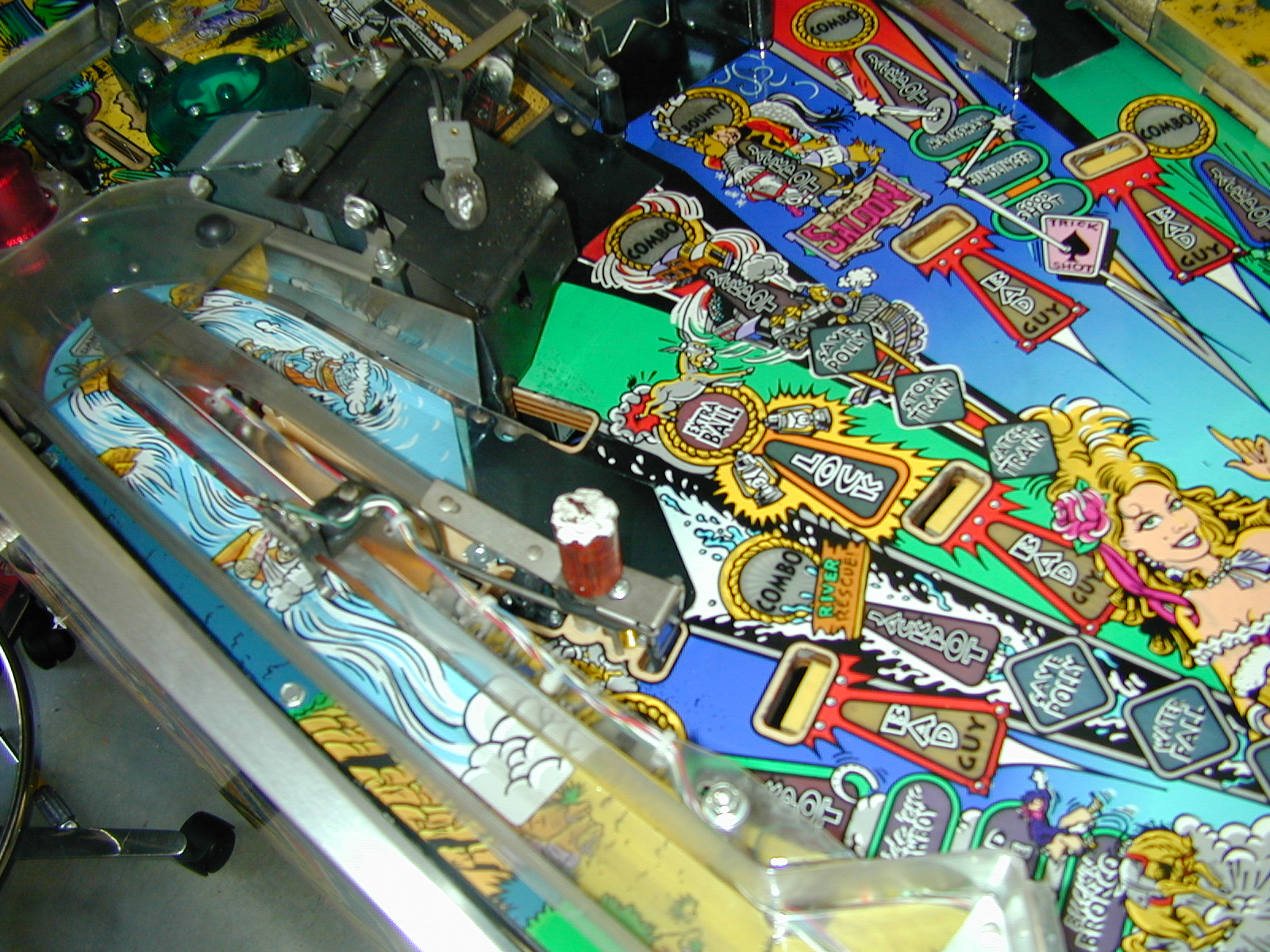

Beer mug (nut on rod?)
